Thread: Build #5 - TB-4

  1. #1
    Member Trevor Davies's Avatar
    Join Date
    May 2020
    Location
    Perth
    Posts
    390

    Build #5 - TB-4

    I have finally started on my TB-4 which was a Christmas present. My plan for this is to create a pigeon pair (or big brother) for my FBM-1. I will use FW stains to create a tobacco like burst. Then coat with tru-oil. Today hopefully I will get to reshape the headstock as drawn.
    The logo on the pick guard is a laser printed image covered with packing tape.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMG_1054.jpg
Views:	45
Size:	83.8 KB
ID:	39563   Click image for larger version.

Name:	IMG_1055.jpg
Views:	46
Size:	54.2 KB
ID:	39564   Click image for larger version.

Name:	IMG_1053.jpg
Views:	40
Size:	72.6 KB
ID:	39565
    Last edited by Trevor Davies; 07-03-2021 at 08:07 AM.
    Build #1 - FVB-4
    #2 - LP-1SS
    #3 - FBM-1
    Semi-scratch Explorer - Rebuild Diary
    #4 - AG-2 - Runner up GOTM May 2021
    #5 - TB-4
    Scratch Build #2 - Axe Bass
    #6 - TLA-1 - Current

  2. Liked by: Fuzzyworbols

  3. #2
    Member Trevor Davies's Avatar
    Join Date
    May 2020
    Location
    Perth
    Posts
    390

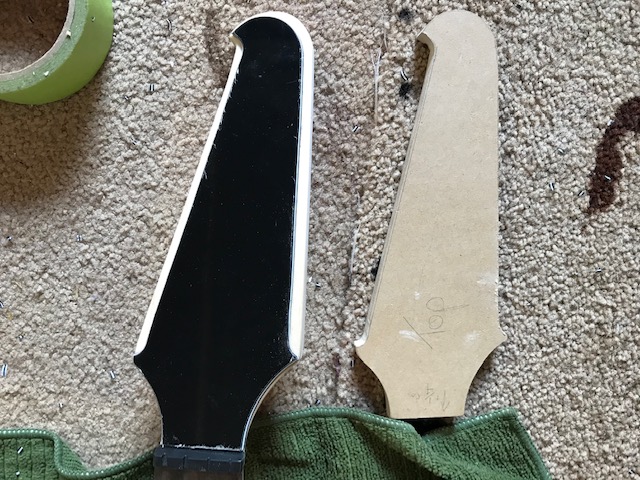

    Reshaped the headstock and created a 3-ply laminate for the headstock. I still need to round over the edge of the laminate with wet and dry.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMG_1058.jpg
Views:	38
Size:	130.3 KB
ID:	39577   Click image for larger version.

Name:	IMG_1059.jpg
Views:	37
Size:	146.5 KB
ID:	39578
    Build #1 - FVB-4
    #2 - LP-1SS
    #3 - FBM-1
    Semi-scratch Explorer - Rebuild Diary
    #4 - AG-2 - Runner up GOTM May 2021
    #5 - TB-4
    Scratch Build #2 - Axe Bass
    #6 - TLA-1 - Current

  4. Liked by: Fuzzyworbols

  5. #3
    Mentor DarkMark's Avatar
    Join Date
    Sep 2017
    Location
    Perth, WA
    Posts
    1,401
    Your laser printed images are looking good.
    I was going to post in the swap/trade/unload threads that I have a large unopened bottle of tru oil I wanted to swap for enough satin poly to do a neck. Since youre planning on using tru oil I thought Id run it by you.

  6. #4
    Member ChrizK's Avatar
    Join Date
    Feb 2021
    Location
    L'Derry, Northern Ireland
    Posts
    11
    Did you do the laser printing yourself? I have a graphic that I would like to put on the pickguard fo my TB-4 but have no idea how to do this!

  7. #5
    Member Trevor Davies's Avatar
    Join Date
    May 2020
    Location
    Perth
    Posts
    390
    Quote Originally Posted by DarkMark View Post
    Your laser printed images are looking good.
    I was going to post in the swap/trade/unload threads that I have a large unopened bottle of tru oil I wanted to swap for enough satin poly to do a neck. Since youre planning on using tru oil I thought Id run it by you.
    Hi DarkMark. Thanks. Re Tru-oil - Sorry to say that I have a bottle and a half.
    Build #1 - FVB-4
    #2 - LP-1SS
    #3 - FBM-1
    Semi-scratch Explorer - Rebuild Diary
    #4 - AG-2 - Runner up GOTM May 2021
    #5 - TB-4
    Scratch Build #2 - Axe Bass
    #6 - TLA-1 - Current

  8. #6
    Member Trevor Davies's Avatar
    Join Date
    May 2020
    Location
    Perth
    Posts
    390
    Quote Originally Posted by ChrizK View Post
    Did you do the laser printing yourself? I have a graphic that I would like to put on the pickguard fo my TB-4 but have no idea how to do this!
    Hi Chriz,
    Yes I did do it myself. It must be laser printed (not inkjet). Just printed the image on normal paper. Covered it with packing tape (clear tape - we call it sticky tape in Oz!). Cut out the shape. Placed it in water for 10 minutes. Carefully rubbed the soggy paper off the tape under gently running water - making sure all the paper was removed and not to rub the printed part too much. Stuck it on the pick guard. Wiped off as much moisture from under the sticker with tissue paper. (Some folks then clear coat the pickguard to help it stay put).

    I think there is also a forum discussion on this!

    I'm not sure if it will last very well. Saying that, my Firebird logo still looks good after 6 months. I also used it for the logo on my pine wood explorer (it did take quite a few coats of tru-oil to cover it!!)
    Build #1 - FVB-4
    #2 - LP-1SS
    #3 - FBM-1
    Semi-scratch Explorer - Rebuild Diary
    #4 - AG-2 - Runner up GOTM May 2021
    #5 - TB-4
    Scratch Build #2 - Axe Bass
    #6 - TLA-1 - Current

  9. #7
    Mentor DarkMark's Avatar
    Join Date
    Sep 2017
    Location
    Perth, WA
    Posts
    1,401
    Quote Originally Posted by Trevor Davies View Post
    Hi DarkMark. Thanks. Re Tru-oil - Sorry to say that I have a bottle and a half.
    No worries, sounds like you have more than enough.

  10. #8
    Member Trevor Davies's Avatar
    Join Date
    May 2020
    Location
    Perth
    Posts
    390
    Stained the neck and body using FW stains. Body is jarrah with black, and the neck is golden teak. So far have 25 coats of tru-oil , sanded back with 1200 grit and given two more coats. I will start working my way up through the micro mesh pads.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMG_1071.jpg
Views:	36
Size:	158.7 KB
ID:	39929   Click image for larger version.

Name:	IMG_1072.jpg
Views:	40
Size:	176.9 KB
ID:	39930   Click image for larger version.

Name:	IMG_1073.jpg
Views:	37
Size:	120.2 KB
ID:	39931   Click image for larger version.

Name:	IMG_1069.jpg
Views:	42
Size:	96.8 KB
ID:	39932   Click image for larger version.

Name:	IMG_1070.jpg
Views:	37
Size:	130.8 KB
ID:	39933

    Build #1 - FVB-4
    #2 - LP-1SS
    #3 - FBM-1
    Semi-scratch Explorer - Rebuild Diary
    #4 - AG-2 - Runner up GOTM May 2021
    #5 - TB-4
    Scratch Build #2 - Axe Bass
    #6 - TLA-1 - Current

  11. #9
    Member Trevor Davies's Avatar
    Join Date
    May 2020
    Location
    Perth
    Posts
    390

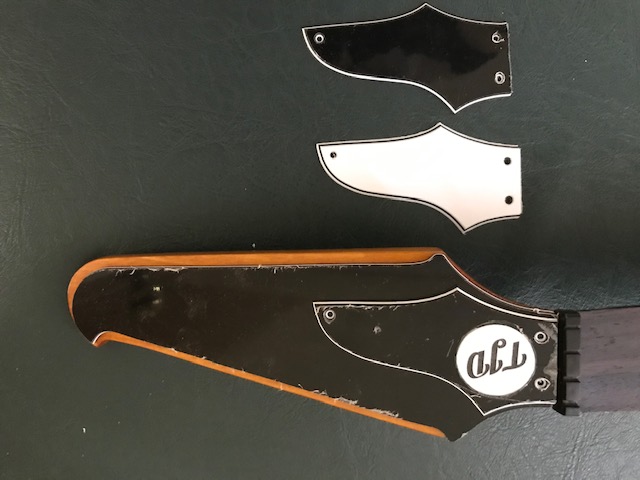

    Today I created a template for a TB truss rod cover - trying to keep it similar to the original design (which is normally difficult to see). The truss rod cover is to go on top of the black head stock cover. I could not decide on the colour so I made 3 different ones! The white may look good with the white pick guard. I think I will decide when putting it together.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMG_1075.jpg
Views:	40
Size:	62.7 KB
ID:	40045
    Build #1 - FVB-4
    #2 - LP-1SS
    #3 - FBM-1
    Semi-scratch Explorer - Rebuild Diary
    #4 - AG-2 - Runner up GOTM May 2021
    #5 - TB-4
    Scratch Build #2 - Axe Bass
    #6 - TLA-1 - Current

  12. Liked by: Fuzzyworbols

  13. #10
    Mentor DarkMark's Avatar
    Join Date
    Sep 2017
    Location
    Perth, WA
    Posts
    1,401
    Looking good and youve got your options covered 👍
