Thread: My Marshall MA100C 100 Watt All Valve 2 X 12 Combo Amp

  1. #21
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513
    Quote Originally Posted by wokkaboy View Post
    cool Doc so it isn't very old then, well hasn't had many playing hours. I've had a couple of Marshall amp heads, one a solid state, the other a 100W valve head and they were great. Got sick of the cost of replacing and tuning the valves so got the digital Fender Mustang IV 100W head but it still powers the Marshall 100W quad cabinet. I still got the Marshall valve head, might keep it as a collector or get some new valves for it

    Which model Marshall Head do you have mate?, I reckon if you can afford it, then definitely see if you can get a set of new valves for it, when they're working like they're supposed to Marshalls can't be beat, I might get myself one of those Fender Mustangs as a backup gigging amp, maybe next year, Sounds Of Music have some in stock.

  2. #22
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513
    Quote Originally Posted by andrewdosborne View Post
    Good stuff Doc it must be good to have the sound engine room back again

    Sent from my GT-I9506 using Tapatalk

    For sure, I had been really missing that Marshall sound, I had to make do with a little 35 Watt solid-state Peavey Backstage Plus amp while the Marshall was being fixed, a bit different sounding compared to the Marshall, but at least I had something I could gig with.

  3. #23
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513
    I'll see if I can record a new demo clip of the amp later on, cause I have a nice Focusrite Condenser mic I can use, and it's a good excuse for me to give the mic a good tryout in a recording session.

    I'll also see if I can find out what speakers are installed in the amp, I'm pretty sure they're Eminences, but I could be wrong.


    I'll tell you what, seeing as I have a printer/scanner/copier, I'll scan the copy of the job sheet I got from the guy who fixed my Marshall, into my PC so I can post an image of it here so you can see exactly what the guy did to fix my amp.

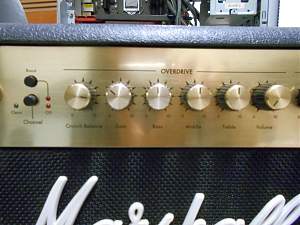

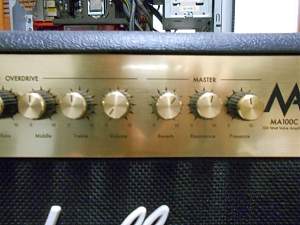

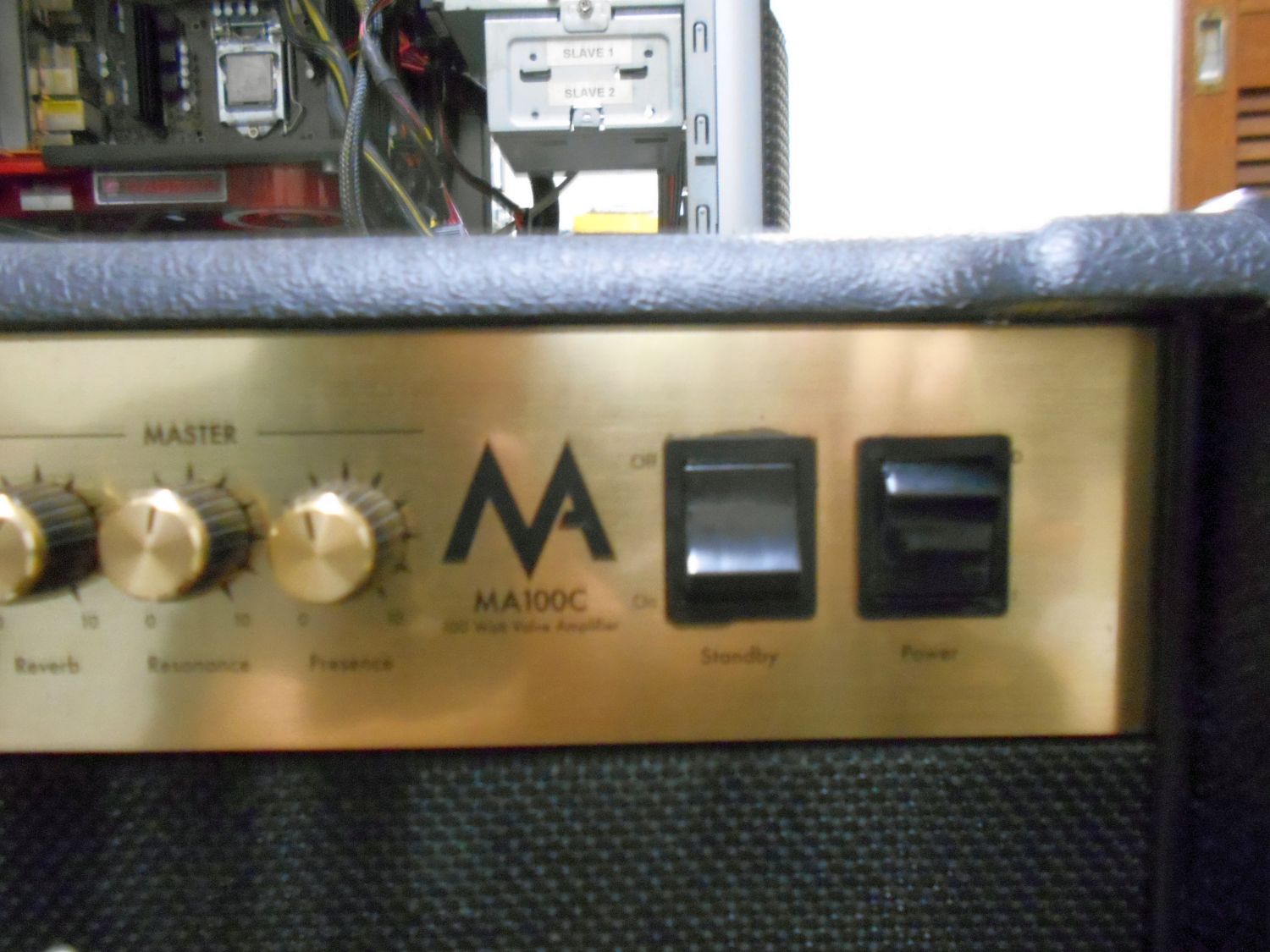

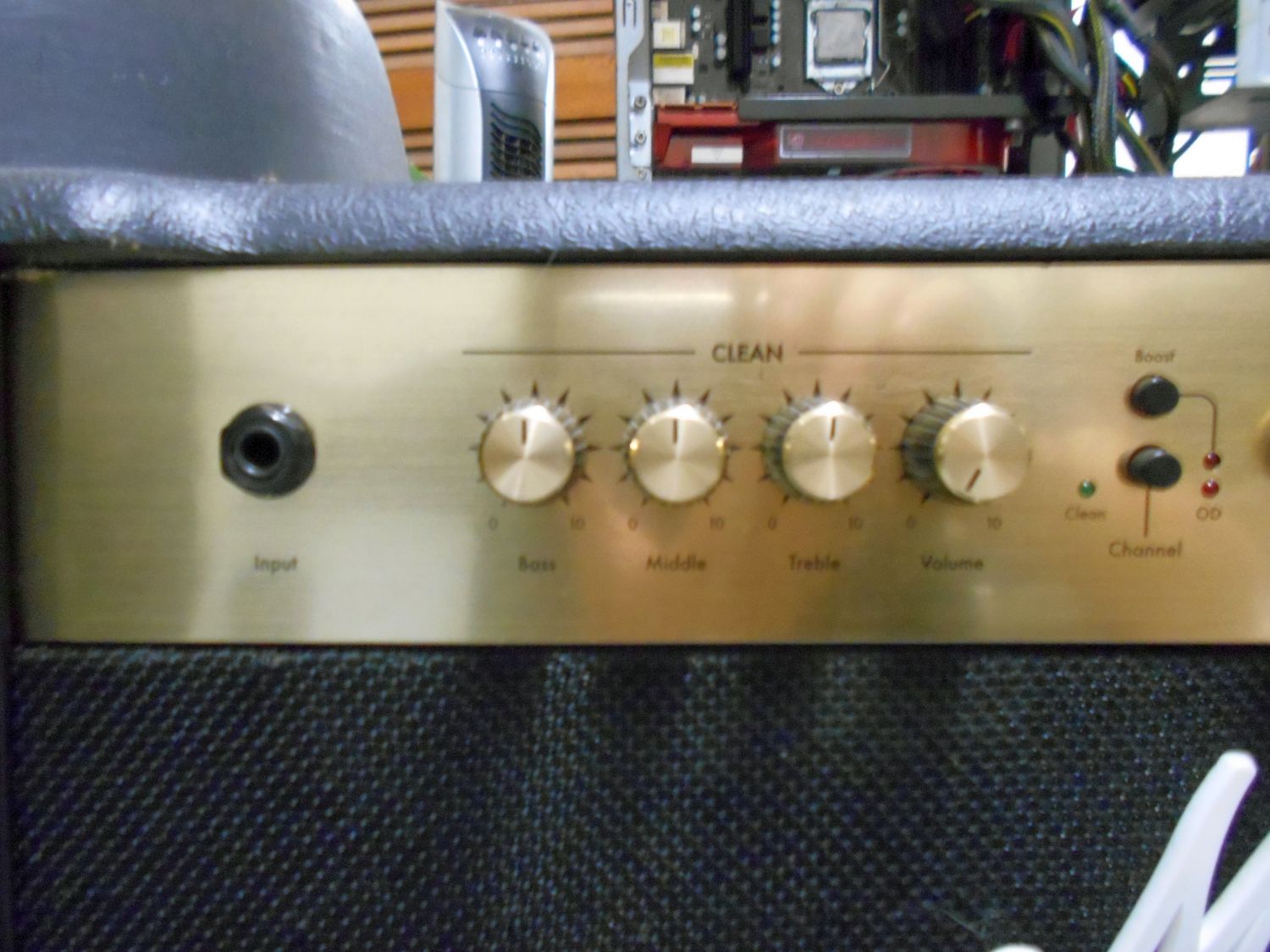

    Okay, here are some more pics of the amp for you, firstly some closeups of the front panel:

    Click image for larger version.

Name:	Front Panel 1_resized.jpg
Views:	420
Size:	247.1 KB
ID:	12819

    Click image for larger version.

Name:	Front Panel 2_resized.jpg
Views:	429
Size:	252.5 KB
ID:	12820

    Click image for larger version.

Name:	Front Panel 3_resized.jpg
Views:	453
Size:	240.4 KB
ID:	12821

    Click image for larger version.

Name:	Front Panel 4_resized.jpg
Views:	469
Size:	228.1 KB
ID:	12822
    Last edited by DrNomis_44; 28-07-2016 at 06:31 PM.

  4. #24
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513

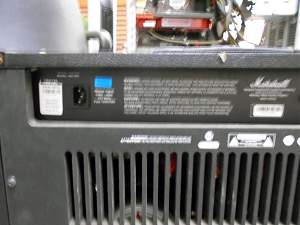

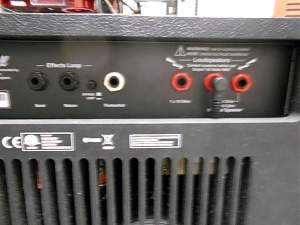

    Next some pics of the back panel:

    Click image for larger version.

Name:	Back Panel 1_resized.jpg
Views:	435
Size:	228.9 KB
ID:	12823

    Click image for larger version.

Name:	Back Panel 2_resized.jpg
Views:	441
Size:	243.1 KB
ID:	12824

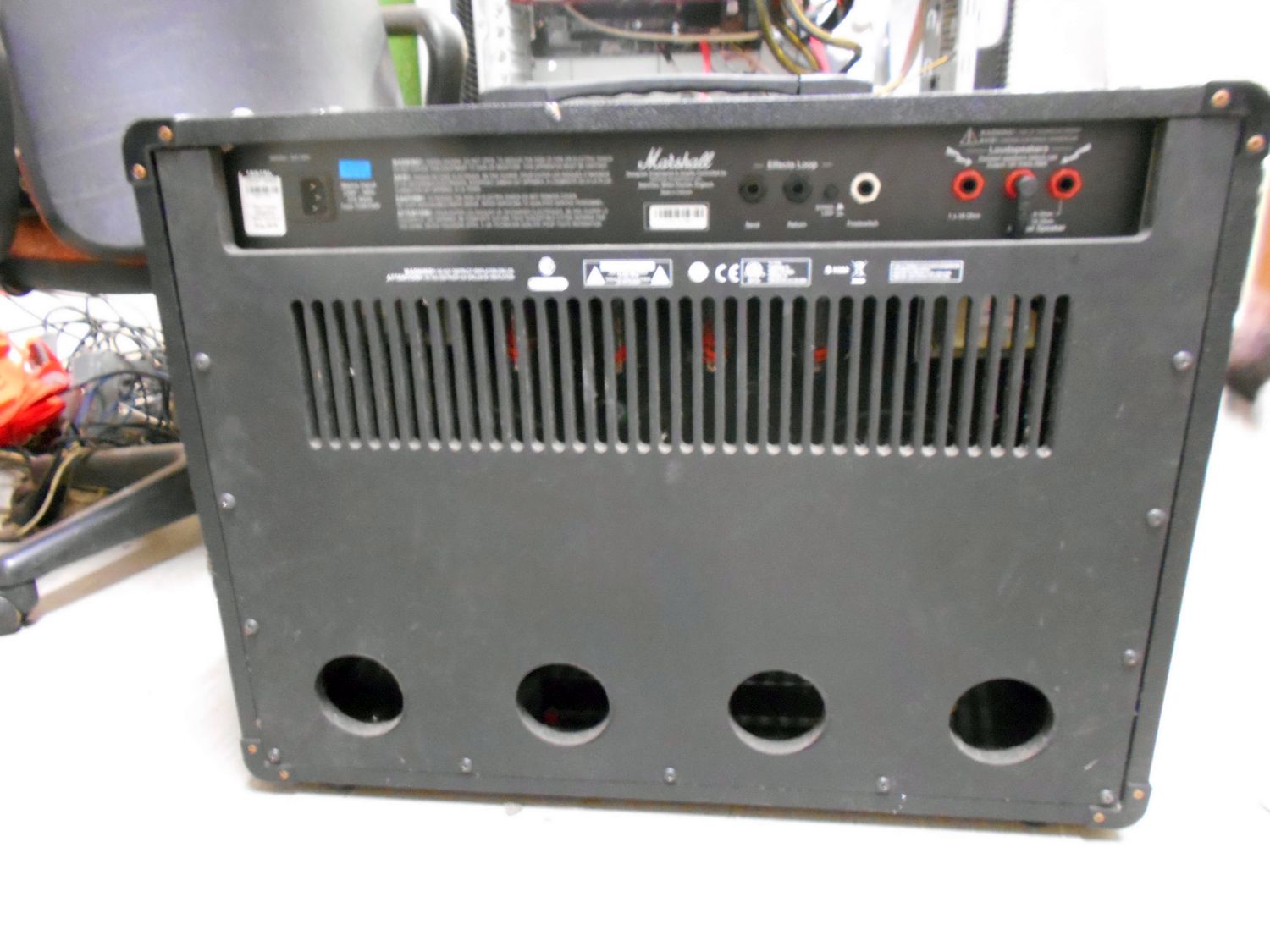

    And a pic of the back of the amp:

    Click image for larger version.

Name:	Amp Back_resized.jpg
Views:	447
Size:	204.6 KB
ID:	12825

  5. #25
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513

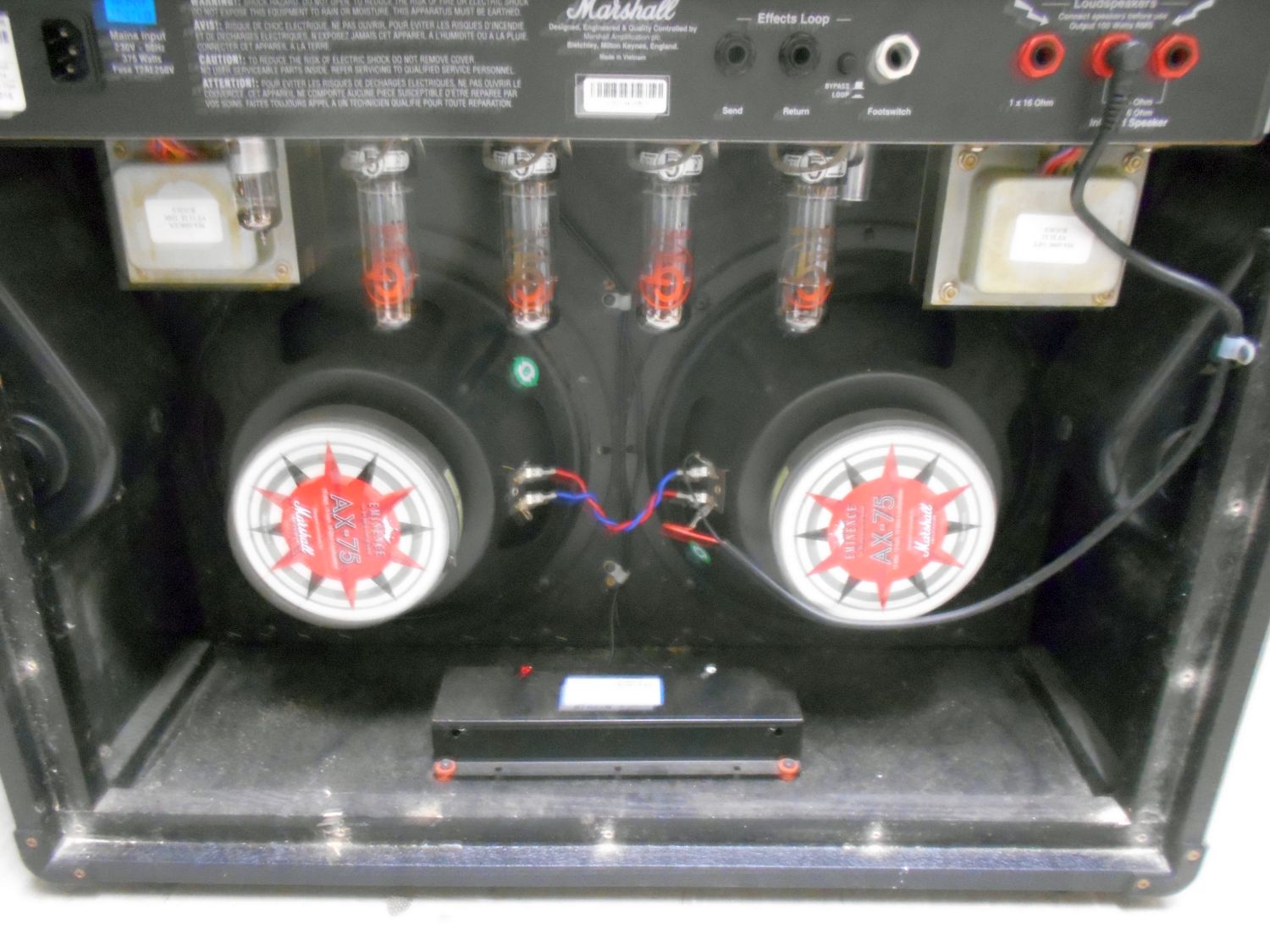

    Here's a pic of the insides of the amp with the back removed:

    Click image for larger version.

Name:	Amp Insides_resized.jpg
Views:	504
Size:	252.7 KB
ID:	12826

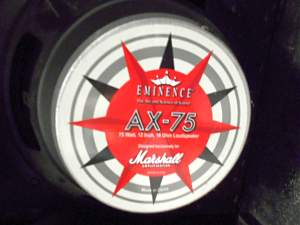

    And finally, a closeup of one of the speakers installed in the amp, there are two of them installed in the amp:

    Click image for larger version.

Name:	Speaker Closeup_resized.jpg
Views:	448
Size:	230.1 KB
ID:	12827

  6. #26
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555

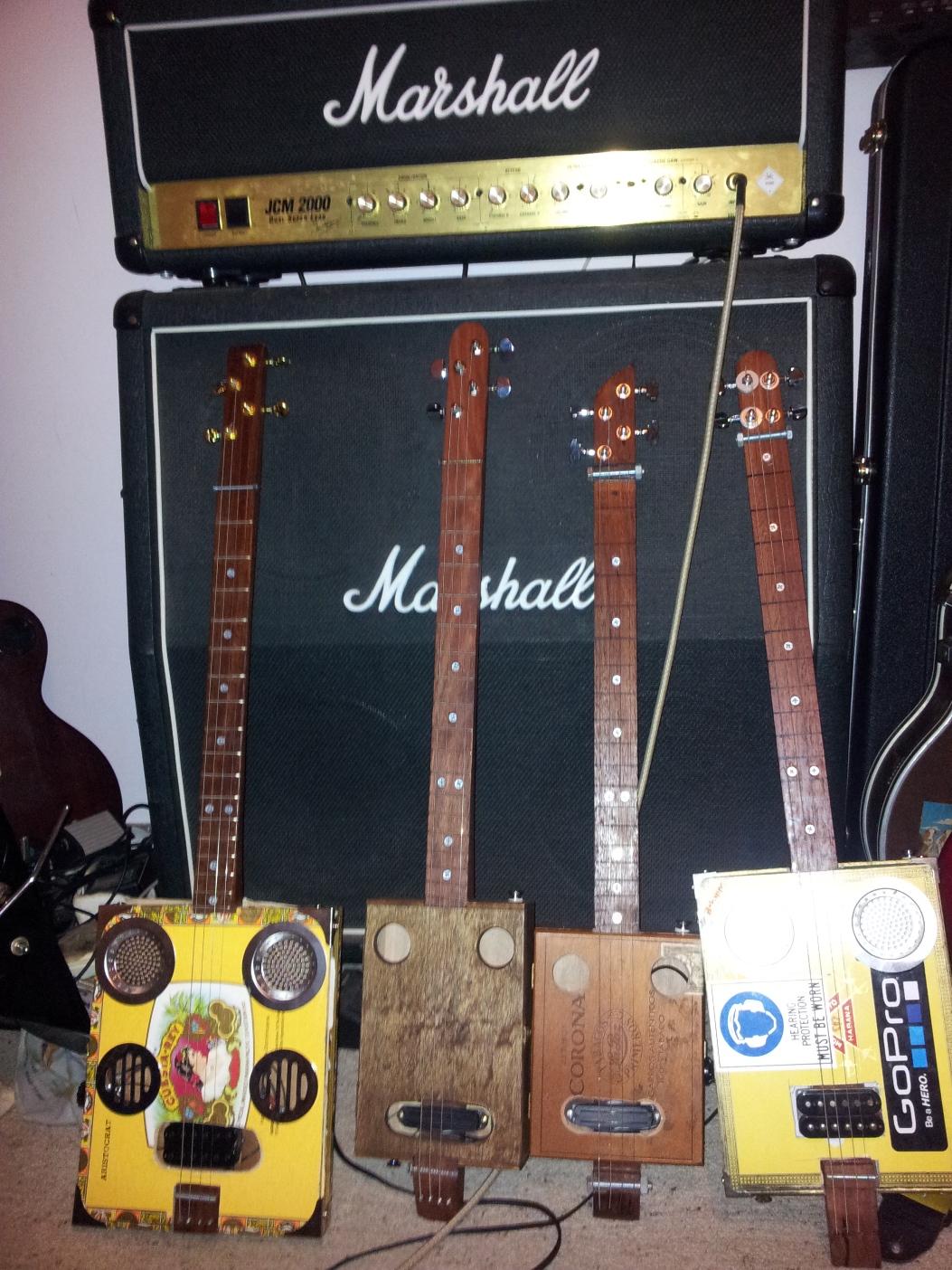

    Hey Doc here's a pic of the Marshall cab and head, was taken 4 years ago, so this was what I was building at the time, from left in order of builds CBG #5, #3, #2 and #1
    Head is a JCM2000 Dual Super Lead and cab is a JCM 800 super lead 1960
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	20120610_220235resize.jpg
Views:	424
Size:	739.5 KB
ID:	12828
    Last edited by wokkaboy; 28-07-2016 at 07:33 PM.
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  7. #27
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513
    Quote Originally Posted by wokkaboy View Post
    Hey Doc here's a pic of the Marshall cab and head, was taken 4 years ago, so this was what I was building at the time, from left in order of builds CBG #5, #3, #2 and #1
    Head is a JCM2000 Dual Super Lead and cab is a JCM 800 super lead 1960

    Cheers mate, I reckon you should get some new valves for that JCM2000 Head of yours if/when you can afford some, cause they do sound great when they're working well, I just tried my Radial Tonebone Hot British pedal through my Marshall with the LP Studio a few minutes ago, the combination of the three sounded very fat, I got some really nice rock tones and I started hearing some really good dynamics when I varied my picking from soft to hard, I don't remember my Marshall amp being so dynamic before it got fixed, it always sounded a bit compressed before, now, after it's been fixed it sounds dynamic and lively, and loud too.

    Those guitars in the pic look cool too mate.


    I got a bit of a pleasant surprise when I took the back off my Marshall so I could take a pic of the insides, I thought it had a set of Ruby/Shuguangs in it, but they look like they are a set of four new Groove Tubes EL34s, they're supposed to be good quality tubes, so I'm pretty happy with that, the two spare Marshall EL34s that were originally in my amp are still good, the other two were apparently bad, so I'm going to use the two good Marshall EL34s in my Soldano amp since they're matched.
    Last edited by DrNomis_44; 28-07-2016 at 08:40 PM.

  8. #28
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513
    Update:


    As far as I know my Marshall is still working well...touchwood, and the only thing it lacks is a footswitch so I can remotely switch the channels, so, I'm planning on visiting my local Jaycar Electronics store so I can buy some bits and pieces to make myself a custom footswitch for the Marshall, I found a good schematic on the internet which I may end up modifying to suit my needs, just need to work out if it'll be compatible with my Marshall before doing the mods, I want to mod it so that the different channels are indicated by different coloured Leds, here's what I'm going with:

    Green = Clean Channel.

    Red = Crunch Channel.

    Blue = Boosted Crunch Channel.

  9. #29
    GAStronomist stan's Avatar
    Join Date
    Aug 2013
    Location
    Geelong, Vic
    Posts
    5,290
    I like the idea of the LEDs in the foot switch

  10. #30
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,513
    Update:


    Due to the fact that Darwin is playing host to the US Air Force, I won't be able to record any more demos of my Marshall amp because of the noise levels, but once the US Air Force have stopped making noise I'll see if I can record a new demo for you guys, yeah i know I could record the demo at night but there's noise restrictions at night where I live.
