Thread: 1st build junior JRM-1DC

  1. #11
    Overlord of Music McCreed's Avatar
    Join Date
    Oct 2018
    Location
    AUS
    Posts
    3,552
    I also checked the wiring diagram for JR1-DC from Pitbull guitars website, I didn't understand how do I solder the wire ground to bridge?
    There should be a hole drilled laterally to the treble side bridge post hole either from the pickup cavity or the control cavity.
    However, the lack of this hole seems to be a regular occurrence in a number of theses style kits.

    The solution is drilling the hole yourself. You'll need a long drill bit in order to get the appropriate angle without marring the edge of the cavity with the chuck. A 3mm diameter bit will be big enough to accommodate the size of the ground wire.
    Making the world a better place; one guitar at a time...

  2. #12
    Mentor dozymuppet's Avatar
    Join Date
    Jun 2020
    Location
    Perth, WA
    Posts
    842
    And you shouldn't actually need to solder the ground wire to the bridge. It just needs enough contact with the metal of the underside of the bridge to do the job. Typically splaying the wires so it sits nice and flush when tightening the bridge to the body is a good idea.

  3. #13
    Member giacomo's Avatar
    Join Date
    May 2021
    Location
    Italy
    Posts
    14
    There should be a hole drilled laterally to the treble side bridge post hole either from the pickup cavity or the control cavity.

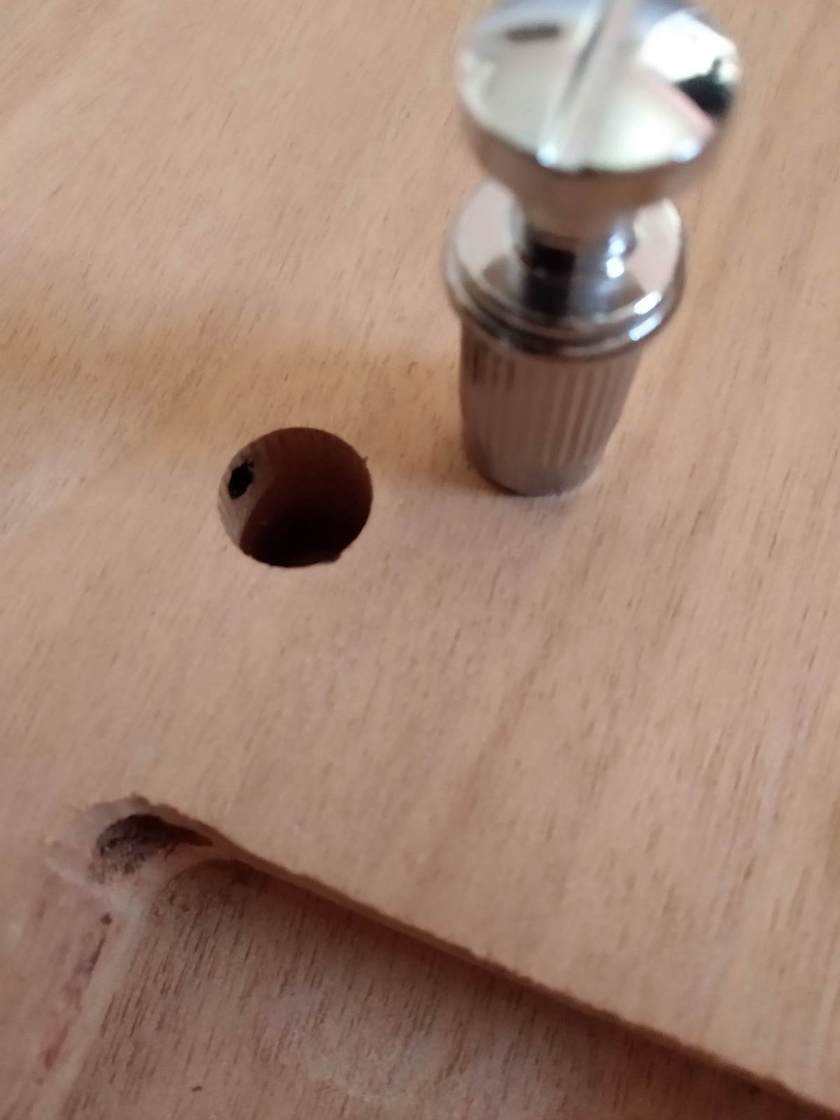

    I found the hole
    Click image for larger version.

Name:	IMG_20210529_130445.jpg
Views:	584
Size:	52.3 KB
ID:	40708

    Do I have to touch ground wire with bridge bushing or direct with bridge?

  4. #14
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    10,547
    Just the bushing insert. When you're ready to put the bushings in, strip the end off sone wire, put the wire in through the hole leaving the bare ends poking out into the post hole, then put the bushing in so that the bare wire is trapped between it and the side of the hole. That's all that's needed. Then when you put the wiring harness in, solder the bridge ground wire to the back of a pot.

  5. #15
    Overlord of Music McCreed's Avatar
    Join Date
    Oct 2018
    Location
    AUS
    Posts
    3,552
    I found the hole
    That's great. One less thing to have to fiddle with.
    Making the world a better place; one guitar at a time...

  6. #16
    Member giacomo's Avatar
    Join Date
    May 2021
    Location
    Italy
    Posts
    14

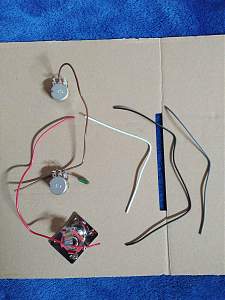

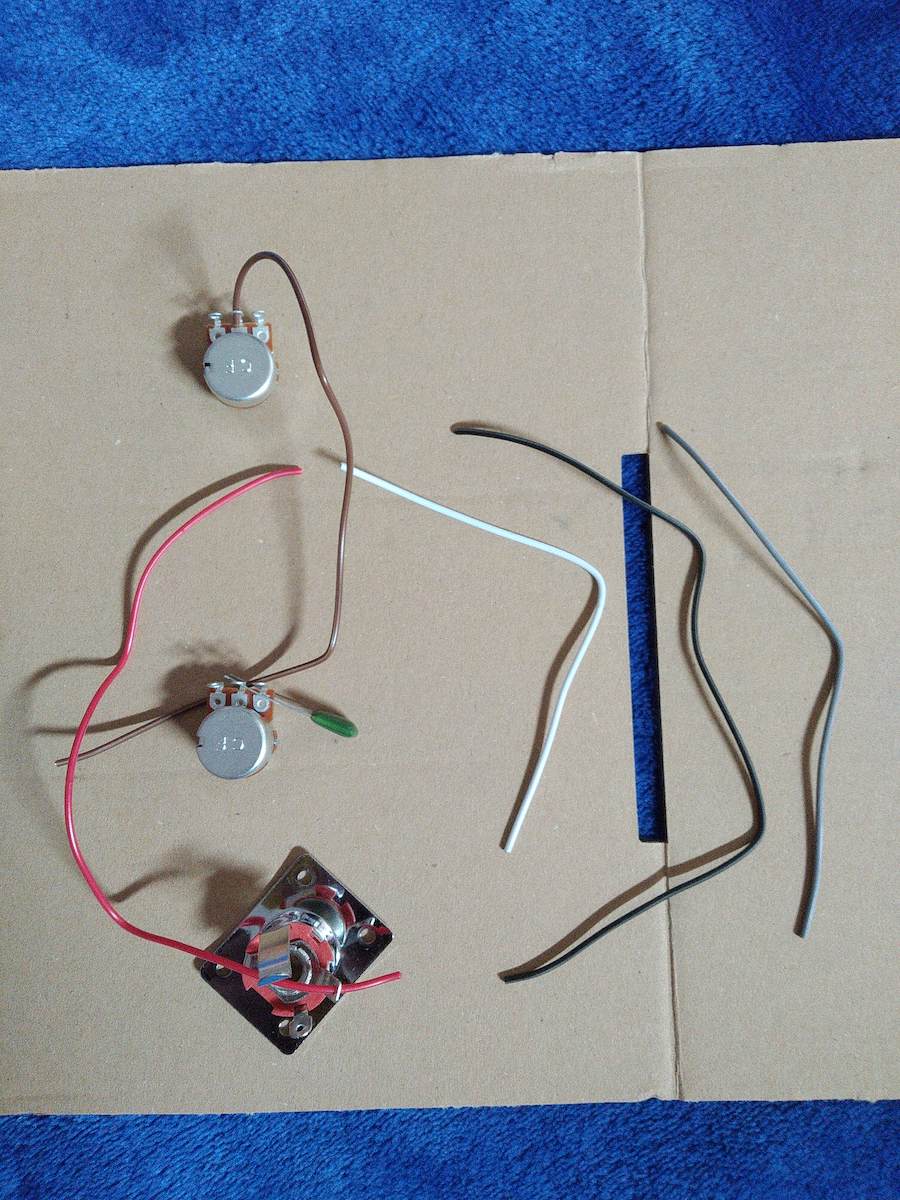

    Hi, which of these is the ground wire?
    Click image for larger version.

Name:	IMG_20210606_142025_BURST1.jpg
Views:	586
Size:	153.3 KB
ID:	40775

  7. #17
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    10,547
    It doesn't matter which colour wire you use for ground, but I always use black if I can. Just be consistent and don't use red for one bit and black for another. It makes it a lot harder to check for faults.

    On the output jack, you've currently got the red wire going through the hole in the ground connection tab. The other tab is the signal connection.

  8. Liked by: giacomo

  9. #18
    Member giacomo's Avatar
    Join Date
    May 2021
    Location
    Italy
    Posts
    14
    ok, thank you

  10. #19
    Overlord of Music McCreed's Avatar
    Join Date
    Oct 2018
    Location
    AUS
    Posts
    3,552
    Laying everything out as sort of a "mock build" for the electronics like you've done is a good idea. Especially if all this is new to you.
    It helps visualise how things fit together and "see" the flow of signal path. Think of it as water flowing through pipes starting from the pickups finishing at the output jack.
    Making the world a better place; one guitar at a time...

  11. Liked by: giacomo, OliSam

  12. #20
    Member giacomo's Avatar
    Join Date
    May 2021
    Location
    Italy
    Posts
    14

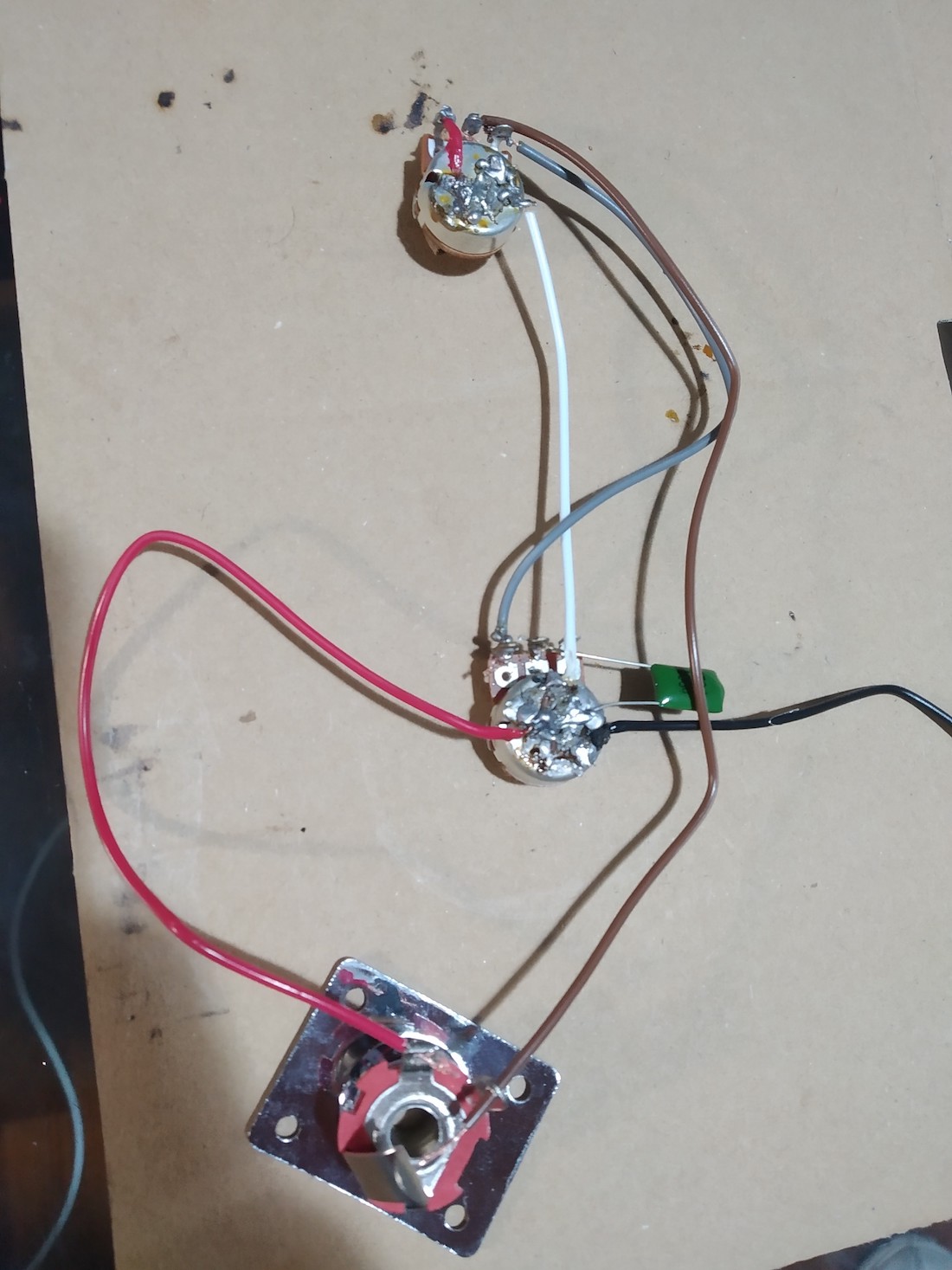

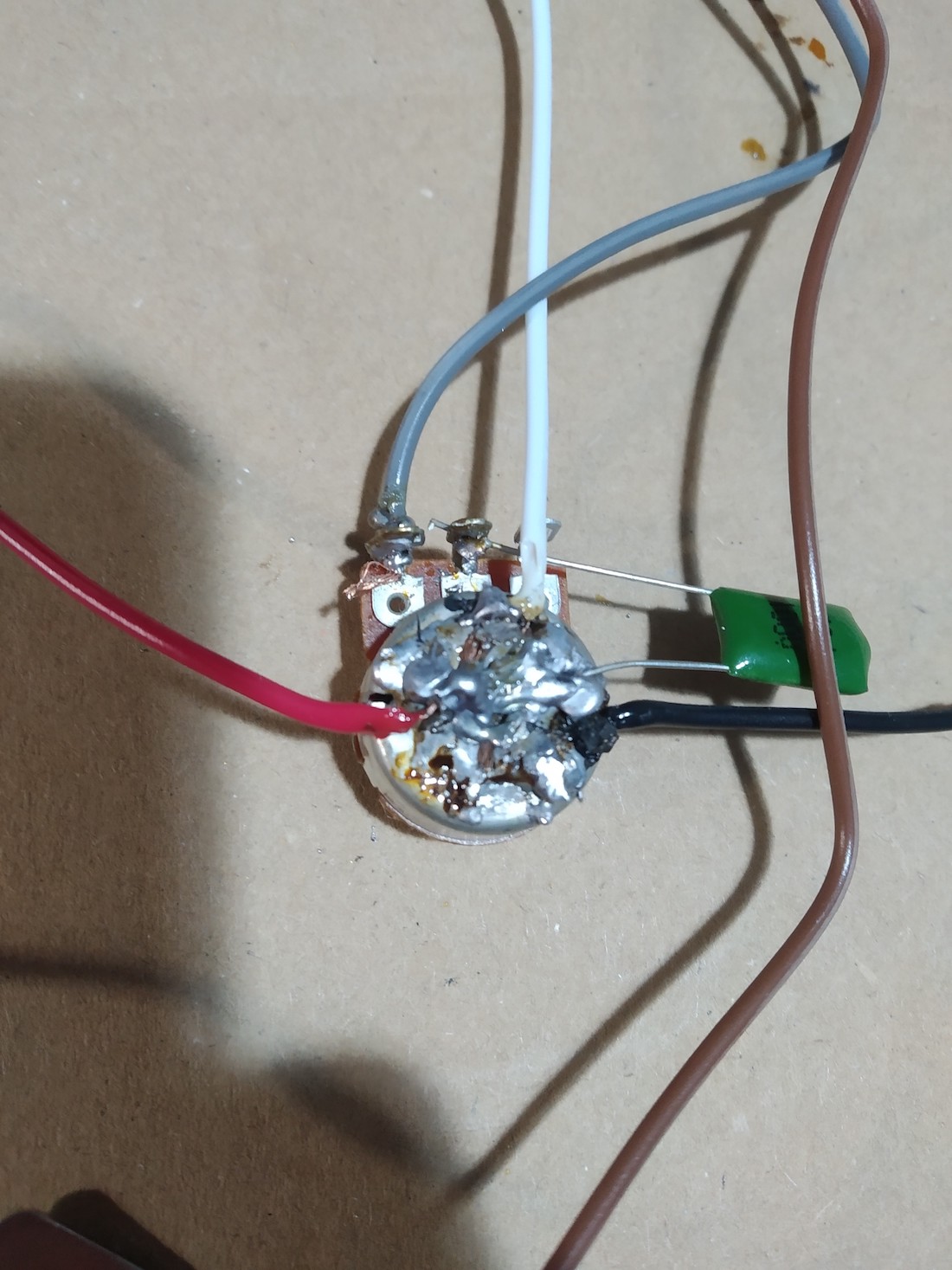

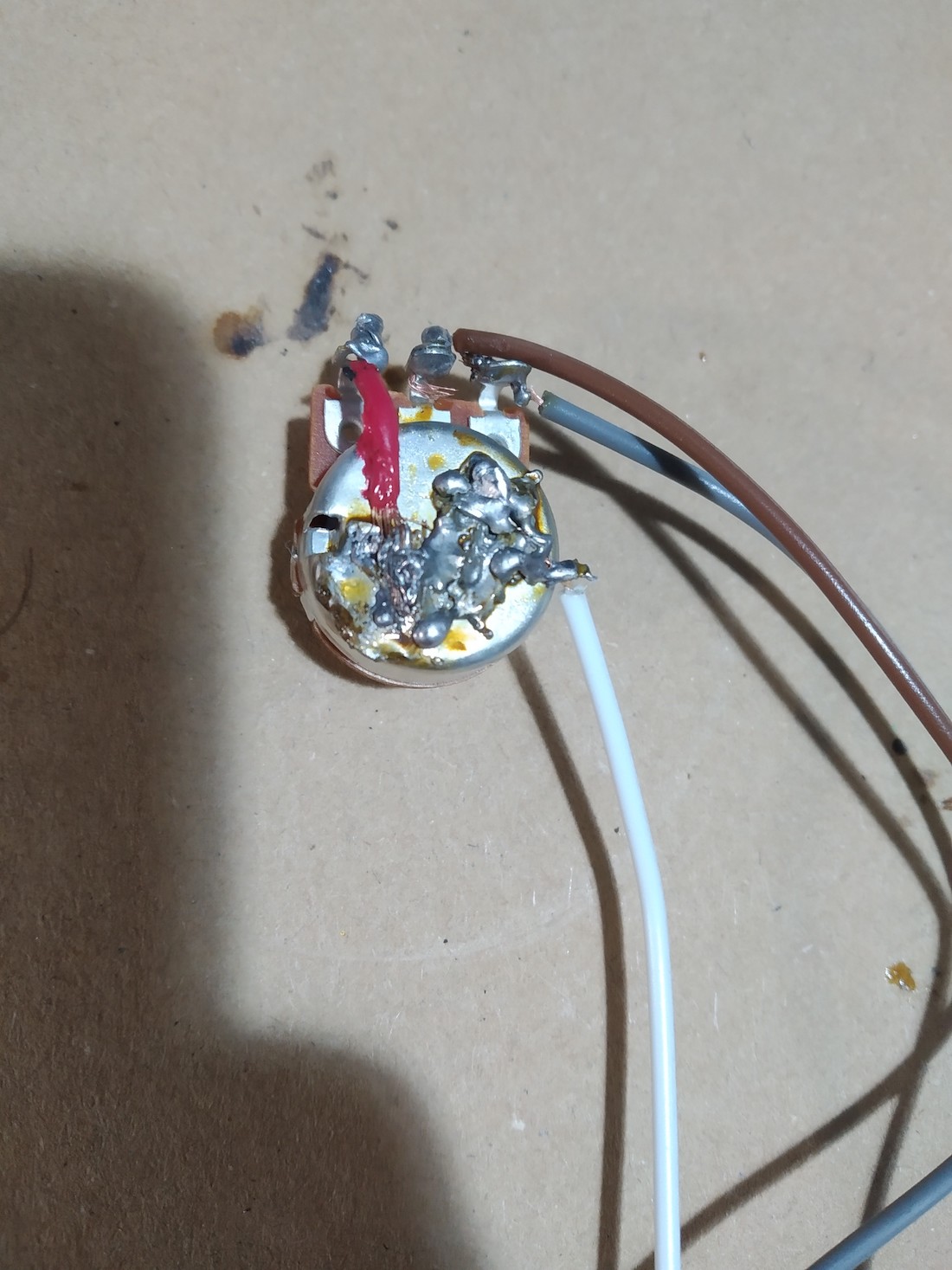

    I did it! Look at this abomination of nature (never did it before!)
    Click image for larger version.

Name:	IMG_20210611_235228~2.jpg
Views:	569
Size:	216.8 KB
ID:	40800

    Click image for larger version.

Name:	IMG_20210611_235246~2.jpg
Views:	579
Size:	237.2 KB
ID:	40798

    Click image for larger version.

Name:	IMG_20210611_235300~2.jpg
Views:	582
Size:	247.5 KB
ID:	40799

    I have a doubt: do the wires have to touch directly the surface of the pot or can they touch just the solderin tin and stay a bit higher? I mean e.g. from bottom to top: pot -> solderin tin -> wire -> solderin tin
    Maybe I heated the pots too much, is it possible that I have damaged them? I didn't try if it works yet.
    Last edited by giacomo; 12-06-2021 at 08:46 PM.
