Thread: AJ's TL-1A

  1. #1
    Mentor AJ's Avatar
    Join Date
    Mar 2013
    Location
    Hoppers Crossing, Melbourne
    Posts
    562

    AJ's TL-1A

    have started on the TL now, have sanded the body etc etc... and have applied 2 coats after using some Old baltic pine stain to even out the difference in-between the 3 pieces of alder to make the body.
    Am not using clear lacquer this time... am experimenting with "naughty oils" ....lol


    the first coating was straight T.O. sanded down with green scotch brite the second coating is laced with gold ghost pearl and thinned to 50% as a base for the rest of the coats that will be plain ( straight clear).

    Although the pictures don't pick up the shimmer, it does look quite interesting in the flesh.

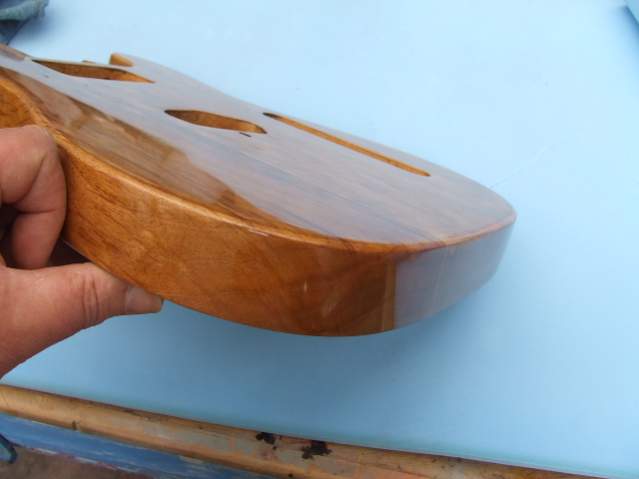

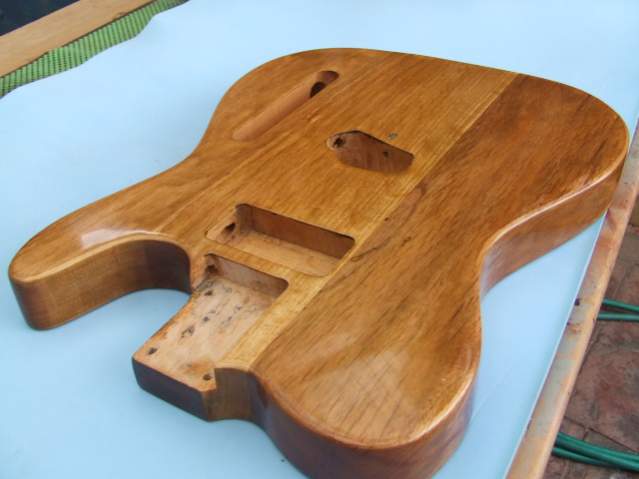

    first coating : Click image for larger version.

Name:	DSCF1603.jpg
Views:	181
Size:	31.4 KB
ID:	597 Click image for larger version.

Name:	DSCF1605.jpg
Views:	227
Size:	30.5 KB
ID:	598

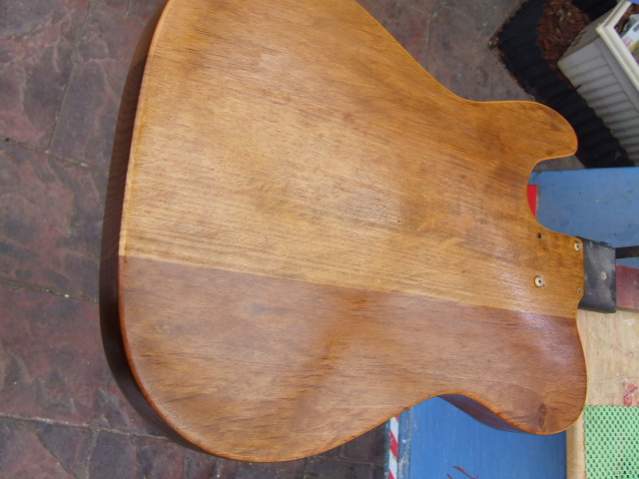

    second coat with the ghost pearl:
    Click image for larger version.

Name:	DSCF1610.jpg
Views:	196
Size:	34.6 KB
ID:	599 Click image for larger version.

Name:	DSCF1608.jpg
Views:	207
Size:	26.9 KB
ID:	600 Click image for larger version.

Name:	DSCF1606.jpg
Views:	197
Size:	44.4 KB
ID:	601


    now to do the rest of the coats over the next few weeks.
    Projects:
    LP-1A
    TL1-A
    LP-1Completed
    TL-1Completed
    Yamaha rebuild: Completed
    Mako -Scratch designed: Completed
    PUP winder: Completed

    Facebook : www.facebook.com/andrew.johns.1272010
    Skype: andyjohns1

  2. #2
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    nice one AJ, looks excellent. FW old baltic one of my favourite colours. The alder kits I've seen always have a lighter/darker piece so wouldn't worry too much.
    Should come up a treat with more naughty oil.
    We've run out of pizza matey so can you please cook up a couple more ?
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  3. #3
    Mentor AJ's Avatar
    Join Date
    Mar 2013
    Location
    Hoppers Crossing, Melbourne
    Posts
    562

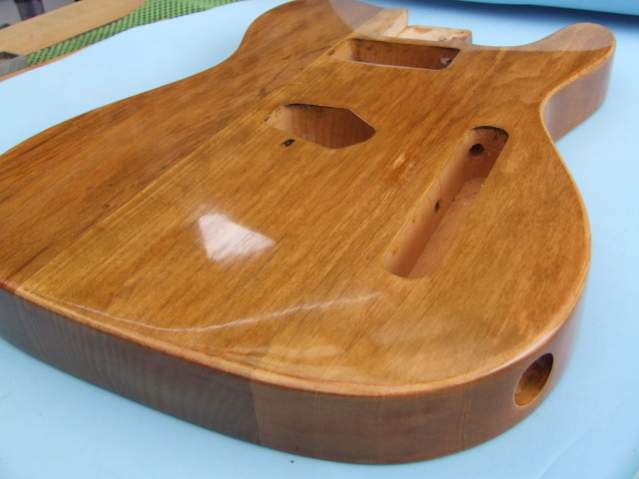

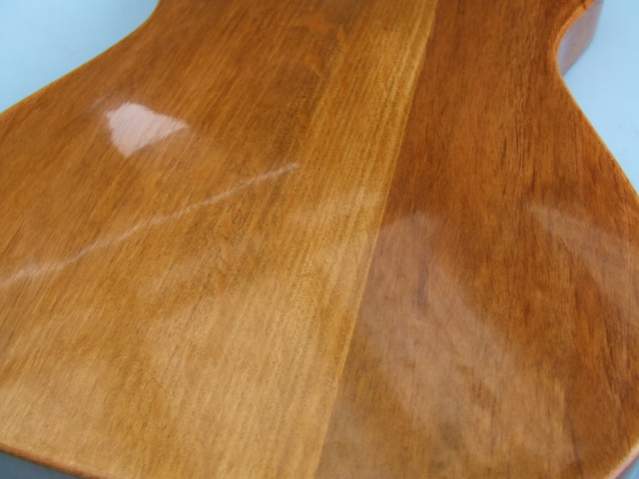

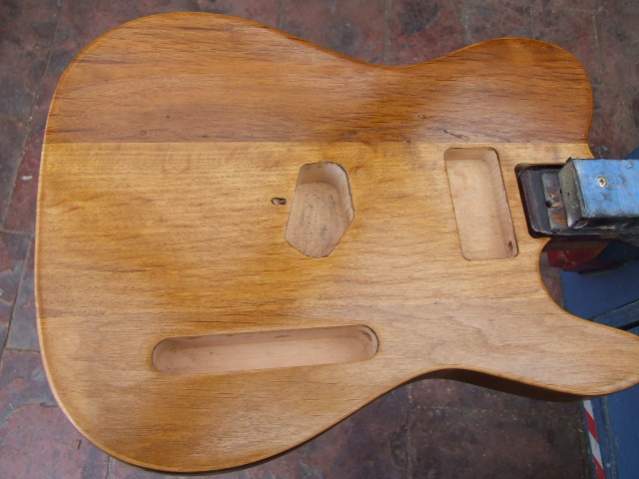

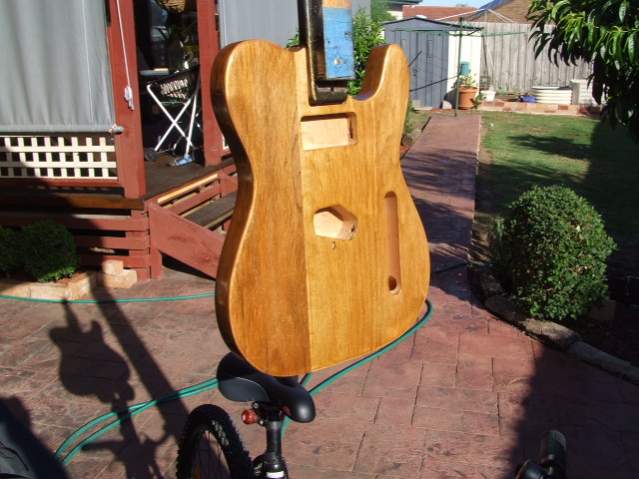

    think I'm finished doing the body of the TL-1A with true oil now.. Lot of mucking around to use the true oil.. I added gold ghost peal to the second coat, it doesn't show up in the pictures, but it has a nice gold sparkle from different angles in the sun light. Now on to start on the neck, still waiting for the fret board protector and the routing attachment to turn up in the post.. should be here by the 9th I hope. The protector will make fret leveling a lot easier than masking off the fret board when leveling, crowing and polishing the frets.
    Click image for larger version.

Name:	DSCF1611.jpg
Views:	187
Size:	27.8 KB
ID:	743Click image for larger version.

Name:	DSCF1612.jpg
Views:	215
Size:	26.6 KB
ID:	744Click image for larger version.

Name:	DSCF1613.jpg
Views:	188
Size:	25.7 KB
ID:	745Click image for larger version.

Name:	DSCF1614.jpg
Views:	204
Size:	19.2 KB
ID:	746
    Projects:
    LP-1A
    TL1-A
    LP-1Completed
    TL-1Completed
    Yamaha rebuild: Completed
    Mako -Scratch designed: Completed
    PUP winder: Completed

    Facebook : www.facebook.com/andrew.johns.1272010
    Skype: andyjohns1

  4. #4
    Mentor vh2580's Avatar
    Join Date
    Aug 2013
    Location
    Cleveland Qld
    Posts
    1,179
    Looks good AJ as always. How many coats of tru oil did you do.
    Tony

  5. #5
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    nice one AJ, looks like its more time in the naughty room, what flavour pizza we eating tonight ?
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  6. #6
    Mentor AJ's Avatar
    Join Date
    Mar 2013
    Location
    Hoppers Crossing, Melbourne
    Posts
    562
    did 2 coats at !00% TO.. (the second one was whilst wet sanding, then wiped followed in same session with 50% with ghost gold in same session, then 6 coats ranging from 50% thinned to 75% thinned, light steal wool in-between and final sanding after last coat was with 3000 grit wet sand)
    Projects:
    LP-1A
    TL1-A
    LP-1Completed
    TL-1Completed
    Yamaha rebuild: Completed
    Mako -Scratch designed: Completed
    PUP winder: Completed

    Facebook : www.facebook.com/andrew.johns.1272010
    Skype: andyjohns1

  7. #7
    Mentor AJ's Avatar
    Join Date
    Mar 2013
    Location
    Hoppers Crossing, Melbourne
    Posts
    562
    think it will be supreme tonight.. am a bit peckish..lol
    Q for you guys, what recording software do you use (DAW)?..
    also just bought a looper pedal from JB hifi, the digitech RP 155 for $90 on sale.. seems ok.. now to learn how to use it
    Projects:
    LP-1A
    TL1-A
    LP-1Completed
    TL-1Completed
    Yamaha rebuild: Completed
    Mako -Scratch designed: Completed
    PUP winder: Completed

    Facebook : www.facebook.com/andrew.johns.1272010
    Skype: andyjohns1

  8. #8
    Looking great mate. I use Cubase and ableton. The loopers are good fun man, you'll have a blast.

  9. #9
    GAStronomist stan's Avatar
    Join Date
    Aug 2013
    Location
    Geelong, Vic
    Posts
    5,290
    very nice AJ

  10. #10
    Mentor jarrod's Avatar
    Join Date
    Nov 2013
    Location
    Perth
    Posts
    921
    AJ that's a stunning finish. And loving the colour
