    The wiper puller worked, hooray! Well, sort of. The bolt it came with was a tad too short, so I screwed it out to take it to the hardware store as a template. As I had it out, out of curiosity, I screwed it in to the bushing, carefully trying to wiggle a bit. It started to wiggle. I wiggled a while and had it out!
    Will still get a new bolt for the puller, because it actually seems like it could come handy again.

    So, everything was good for a few minutes, until I noticed that the bridge holes seems to be too close together. MEH! The bridge does not fit!
    Neither does my replacement roller bridge
    However, the roller bridge holes can be opened up more easily than the stock bridge, I just need to file away one millimeter of metal. My smartwatch is happy, it thinks I've been exercising. LOL.
    I don't know what I'm doing but I hope I will end up with a guitar

  2. #102
    Member ThatCluelessGerman's Avatar
    Join Date
    May 2020
    Location
    Hamburg, Germany
    Posts
    333

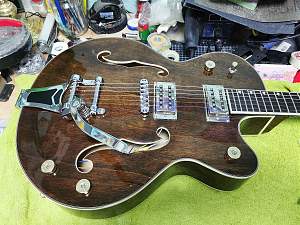

    It plays! Yeeees, finally!

    Click image for larger version.

Name:	IMG_20200831_183307.jpg
Views:	144
Size:	495.2 KB
ID:	37176

    I must say, even though it didn't turn out the way I hoped it would, it plays pretty damn well. The action is quite low, no fretbuzz at all, the neck is slim and smooth, and the one pickup that's working (LOL ;D) is amazing, considering I paid 20 bucks for them

    Talking about the pickups, the switch is acting up again. I resoldered it yesterday after installing and it all worked well (tap tested), but I guess tightening the screws and turning it a bit broke the solder joint AGAIN. So currently, only the neck pickup works.

    But as the switch is pretty crappy and wiggly anyway, I have ordered a replacement. Hope I will have the "rhythm/treble" washer (or whatever I'm gonna write on it) ready until then.

    Another thing I messed up is how the wiring is visible through the f-hole. I should have made the ground and pickup wires a bit longer. I have tied them together and could probably get them a bit further out of the way, let's see. I will MAYBE fix this if it bothers me too much. Right now, I think I can live with it.

    Now, I wish that thing was made of tone wood instead of cheap plywood. I would LOVE to have an acoustic guitar with such a neck!

    Tomorrow, I need to make the pickguard and trussrod cover. Sawing 3mm brass, I'm mentally crying already ;-)
    I don't know what I'm doing but I hope I will end up with a guitar

  3. Liked by: JimC, PJSprog

  4. #103
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    10,547
    Well done on bringing it all together at the end. At least you now know that it's worth fixing. Looks great as well.

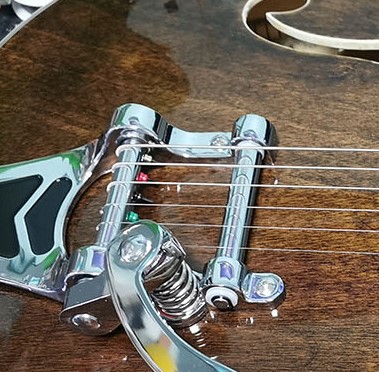

    You do know that the strings are supposed to go under the round bar at the front of the Bigsby? It's there to give you a decent break angle for the strings over the saddle.

    Click image for larger version.

Name:	IMG_20200831_183307.jpg
Views:	253
Size:	109.3 KB
ID:	37177

    Have fun cutting the brass!

  5. #104
    Overlord of Music Sonic Mountain's Avatar
    Join Date
    Jul 2017
    Location
    Toowoomba, Qld.
    Posts
    3,261
    Having done a bit of work with 3mm brass...yeah have fun, at least you aren't making tentacles :P

    Great looking guitar you've put together there.
    Build 1 - Shoegazer MK1 JMA-1
    Build 2 - The Relliecaster TL-1
    Build 3 - The Black Cherry SG AG-1
    Build 4 - The Sonicaster TL-1ish
    Build 5 - The Steampunker Bass YB-4
    Build 6 - The Howling Gowing ST-1

    "What I lack in talent I make up for with enthusiasm"

  6. #105
    I've found that as long as the angle is enough to keep the strings in the saddles (bridge height will come into play here). You are better going over that bar for tuning stability. Less break angle = less pressure on the bridge sadles and more free movement.

    Roller saddle, over bar stringing and graphtech nut go has done wonders for my tuning stability.

  7. #106
    Moderator fender3x's Avatar
    Join Date
    Jan 2016
    Location
    Miami, FL, USA
    Posts
    2,713
    That is really a gorgeous outcome, planned or unplanned.

    Sent from my ONEPLUS A3000 using Tapatalk

  8. #107
    Member
    Join Date
    Apr 2020
    Location
    Northumberland UK
    Posts
    124
    Serious congratulations, Clueless!
    That is one sweet looking guitar and the fact it plays so well completes the package!
    Well done.

    Cheers
    Ricky

  9. #108
    Mentor DarkMark's Avatar
    Join Date
    Sep 2017
    Location
    Perth, WA
    Posts
    1,570
    Love the finish. I never consider brown stain but it always looks good (Mental note for the future). Do a sound demo when it’s all sorted.

  10. #109
    Member ThatCluelessGerman's Avatar
    Join Date
    May 2020
    Location
    Hamburg, Germany
    Posts
    333
    Hey guys, I'm glad you like it (from afar )!

    I spent the last two days adding the final touches, polishing metal and playing her for sure!

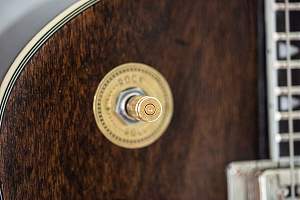

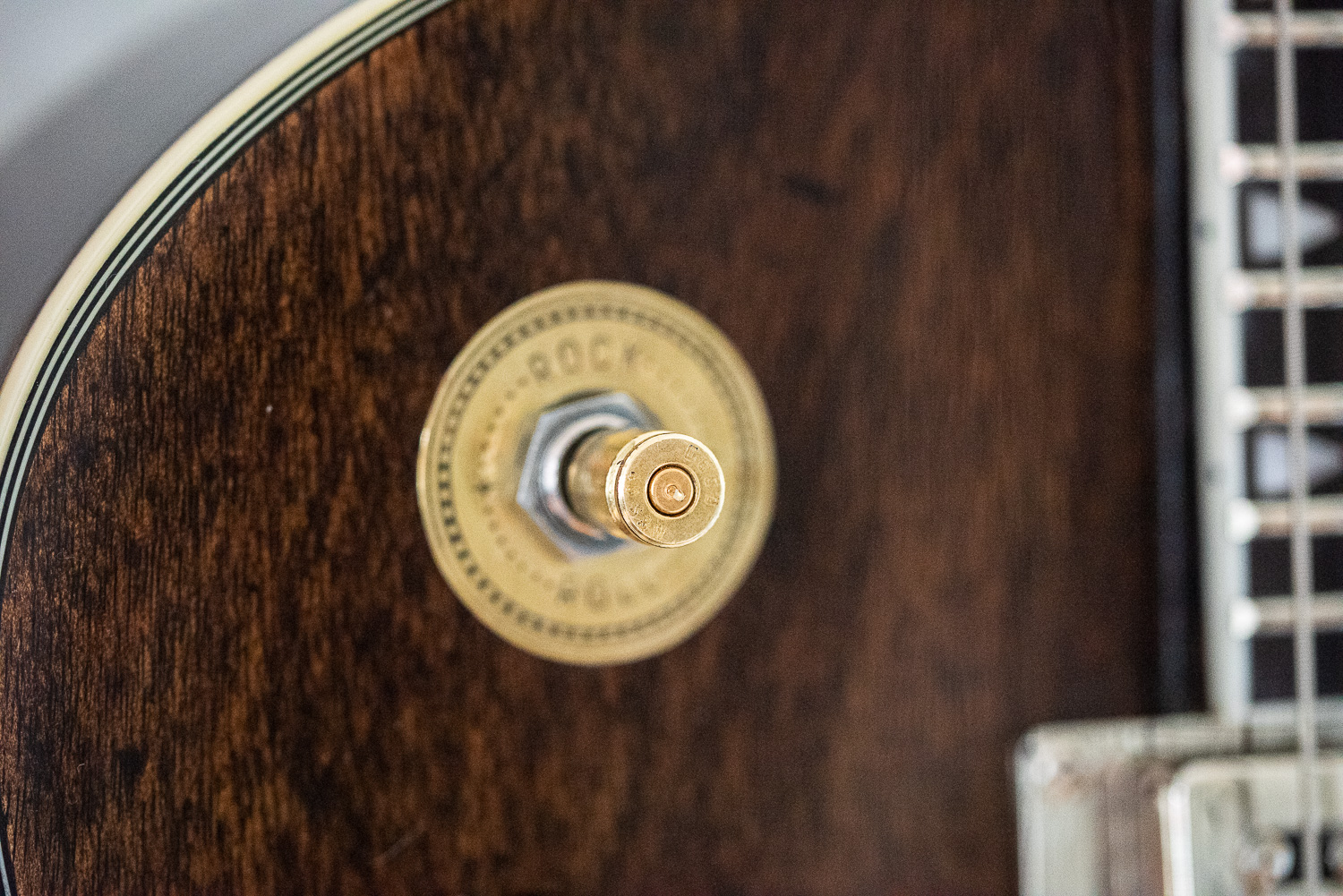

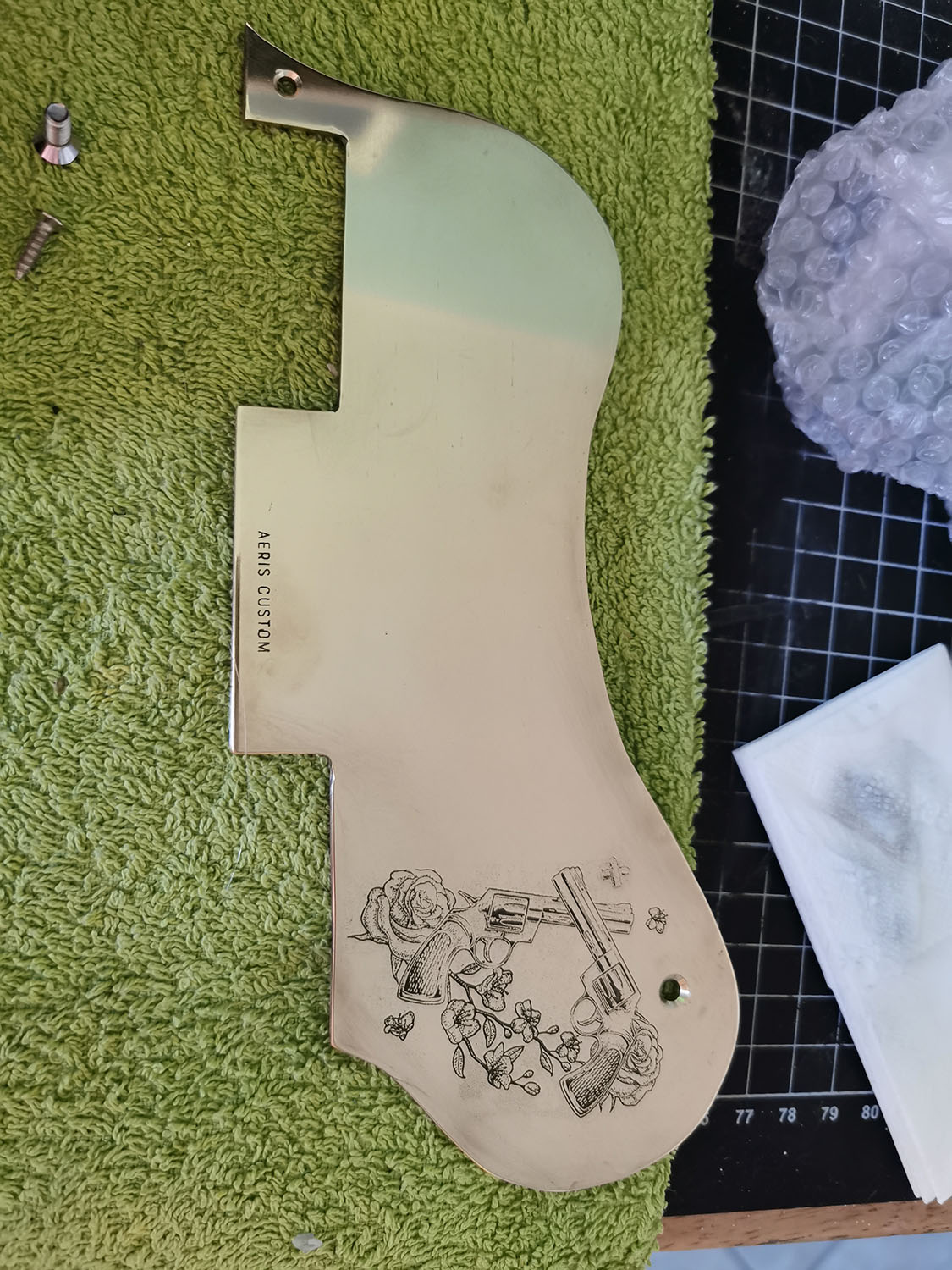

    Truss rod cover and pickguard were cut from 3mm brass and etched with ferrous chloride. Then, I made a washer for the new switch and a little badge for the bigsby clone where I want to add some kind of serial no... It's currently only attached with sticky tape until I get my number punches ready so I can punch the number on the badge.

    Resoldering the switch was surprisingly easy, I am so lucky my hands fully fit through the pickup holes

    Now, everything is working as intended. The pickups are Gretsch Broadt'rons, the cheapest Gretsch pickups and people seem to bash them a lot, but I think they sound pretty awesome.

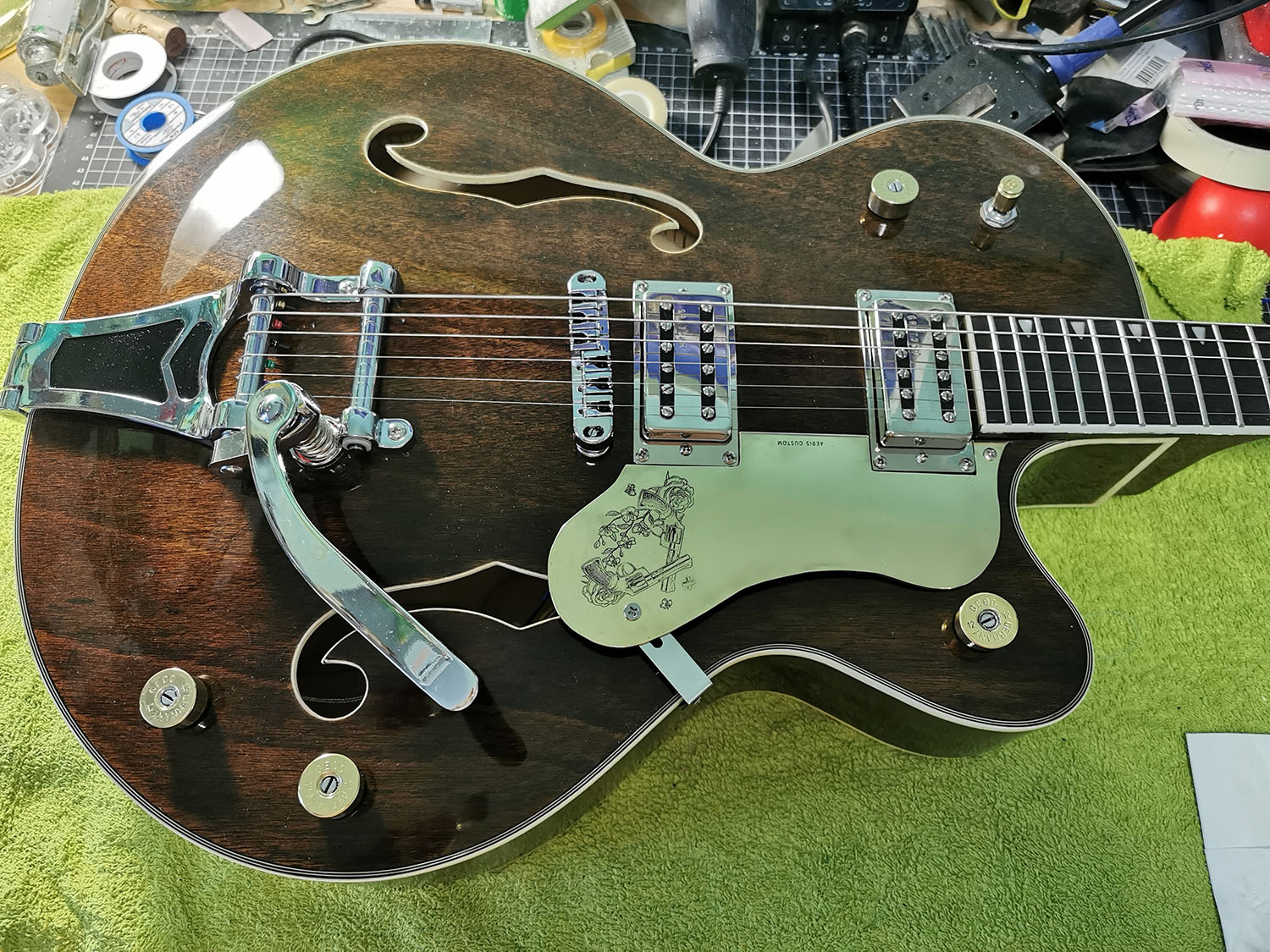

    I have taken like a million crappy pictures of the guitar, so be prepared I'm going to dump a few of them here...

    Click image for larger version.

Name:	IMG_20200901_183303.jpg
Views:	134
Size:	349.5 KB
ID:	37217

    Click image for larger version.

Name:	IMG_20200901_184547.jpg
Views:	138
Size:	492.0 KB
ID:	37218

    Quote Originally Posted by Simon Barden View Post
    You do know that the strings are supposed to go under the round bar at the front of the Bigsby? It's there to give you a decent break angle for the strings over the saddle.
    Haha, I was so BUSY with the bridge, this didn't even occur to me. But of course you are right, I don't know why I didn't notice it myself.

    Quote Originally Posted by AMG-Kazoo View Post
    I've found that as long as the angle is enough to keep the strings in the saddles (bridge height will come into play here). You are better going over that bar for tuning stability. Less break angle = less pressure on the bridge sadles and more free movement.

    Roller saddle, over bar stringing and graphtech nut go has done wonders for my tuning stability.
    Interesting! I have restrung it as I got some really bad ghost notes and bridge noise while the strings went over the bar.

    Quote Originally Posted by DarkMark View Post
    Do a sound demo when it’s all sorted.
    LOL, now if I could only play guitar
    No, seriously... I am not sure if you could call it a sound demo.. more a noise demo probably.
    Last edited by ThatCluelessGerman; 03-09-2020 at 09:09 PM. Reason: typos
    I don't know what I'm doing but I hope I will end up with a guitar

  11. #110
    Member ThatCluelessGerman's Avatar
    Join Date
    May 2020
    Location
    Hamburg, Germany
    Posts
    333

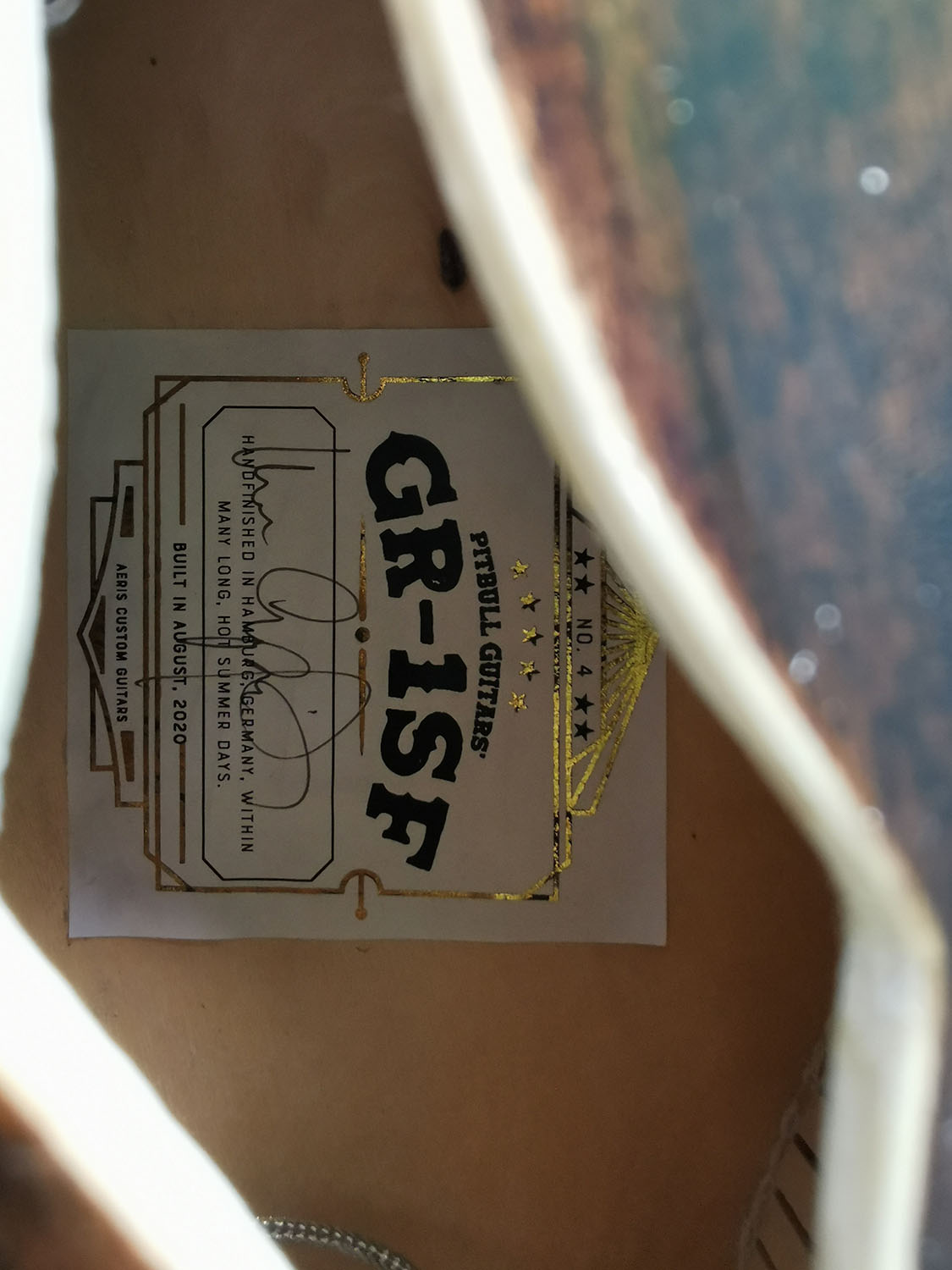

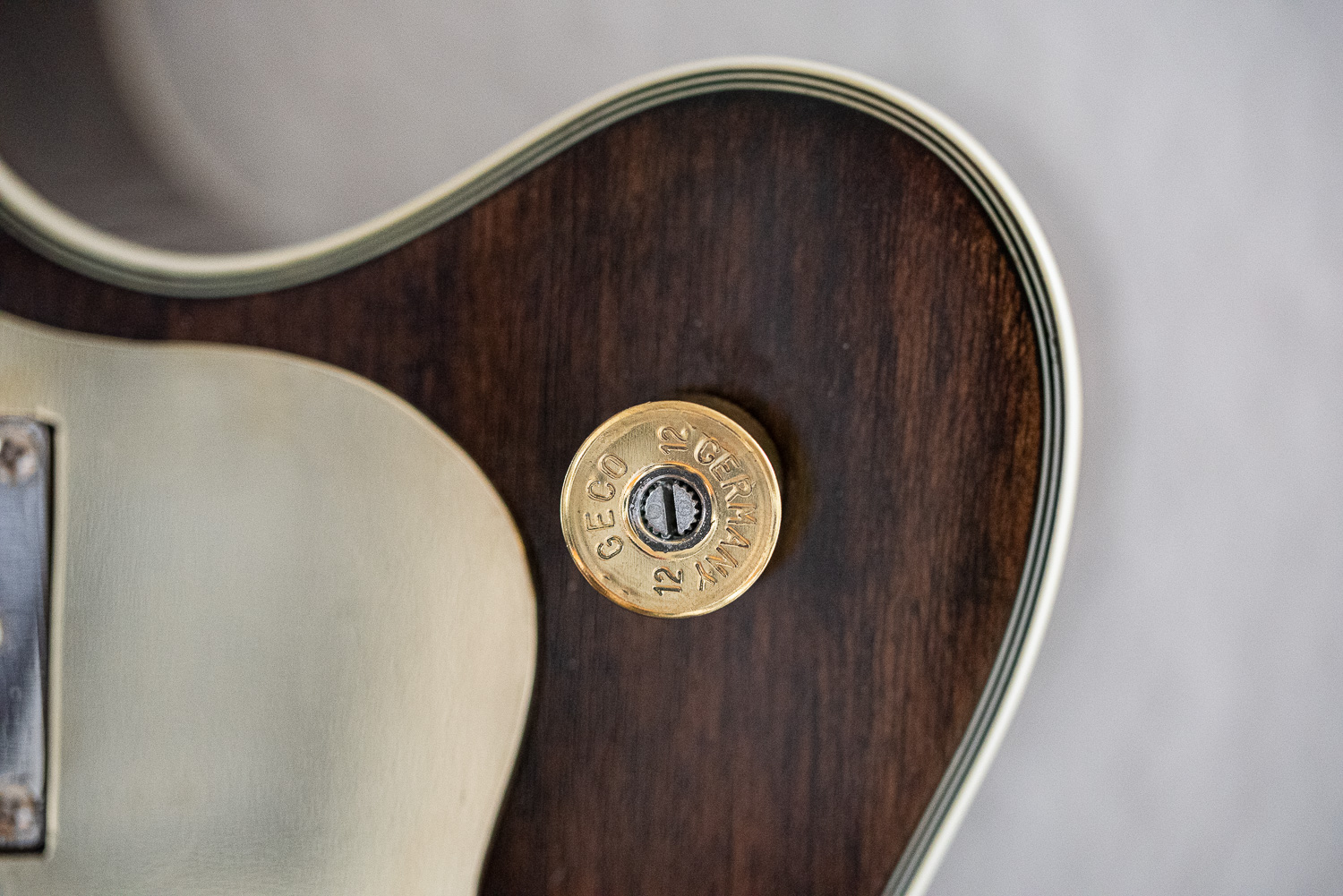

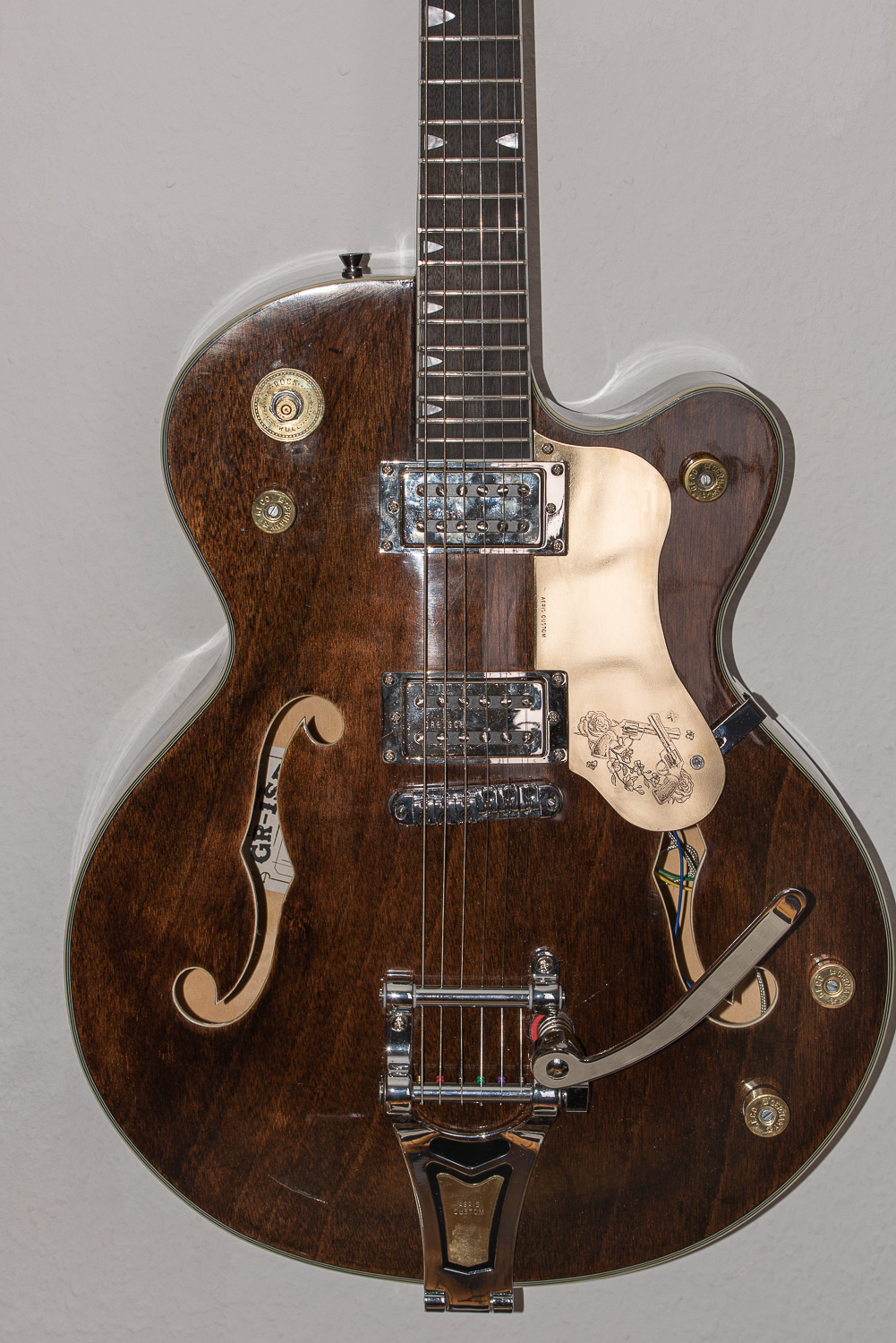

    More pictures. Ignore dust and fingerprints please

    Click image for larger version.

Name:	_DSC4458.jpg
Views:	137
Size:	601.9 KB
ID:	37220

    Click image for larger version.

Name:	_DSC4568.jpg
Views:	130
Size:	668.2 KB
ID:	37221

    Click image for larger version.

Name:	IMG_20200901_193106.jpg
Views:	120
Size:	164.0 KB
ID:	37219

    Click image for larger version.

Name:	_DSC4562.jpg
Views:	123
Size:	519.1 KB
ID:	37223

    Click image for larger version.

Name:	_DSC4566.jpg
Views:	121
Size:	627.3 KB
ID:	37224
    I don't know what I'm doing but I hope I will end up with a guitar
