2nd - SG-1F mod to a trip hum!

good points Pabs, 100% agree

Quote:

---

Originally Posted by wokkaboy

Hey Shaz, glad the pup surrounds cover the swimming pool. The templates aren't really suitable for the job, if you line it up in the wrong position. You are better getting templates made up of the actual pup shape, that way you can line it up perfectly with marked outline where the cavity will be. Using a pattern following router bit of course.
Also get into the habit of waiting for the router bit to stop before you remove it from the workpiece. If you angle it slightly while the bit is spinning it can easily cut into wood that you don't want to be damaged/cut.
Also as Fretty says you should wear ear muffs.
Treat routers with the upmost respect.

EDIT also if the router base plate isn't a perfect circle which it probably isn't then when you angle the router slightly away from square that's probably why the cavity walls got torn out

---

Hey wokka,
I think the template moved ever so slightly which caused me to have to re-cut both times.
Haha I've used plenty of routers... just bad habits 😜
I do agree with using a pattern following bit, but this is all my FIL brought over. Still happy with the end result, no one (except all you guys) will know haha

Quote:

---

Originally Posted by pablopepper

Agree with everything Wokka says here. Need to add one thing though, don't try to cut at full depth in one pass. Many shallow passes will produce a much neater outcome. Also, if you are removing bulk material, drilling out with a spade or forstner bit is a good way to prep. That way the router doesn't have to work as hard and you put less stress on the surrounding material.

Loving the vids so far.

---

Hey Pabs,
Yeah was probably a bit much on the bit. I did do practices before at the same depth, but on pine and it seemed to handle fine hence I went with one cut. Didn't factor the more dense timber :/

3rd video done! Sanding of body... a little boring but time lapse's are fun!
https://youtu.be/5Mqzvz1H4P0
Prepping and editing the shaping of headstock & sanding of neck video :)

Dropping them like its hot tonight! 4th Vid - headstock shaping & sanding of neck!
https://youtu.be/uWLEy-q3yO4

good work Shaz, you have probably finished sanding the body but hope you went easy sanding the flame maple veneer !

EDIT just saw the neck video, headstock shape looks good. Did you do a mock build with the neck in place and 3 pups and check the 12th fret to bridge distance ? Think you have already done this !

Quote:

---

Originally Posted by wokkaboy

good work Shaz, you have probably finished sanding the body but hope you went easy sanding the flame maple veneer !

EDIT just saw the neck video, headstock shape looks good. Did you do a mock build with the neck in place and 3 pups and check the 12th fret to bridge distance ? Think you have already done this !

---

Yeah went super light on it :) the stain dries a bit darker... hopefully the grain shows nicely still!
Haha totally just drew a line and went for it, but I really like it!
Yeah it all fits :) I did initially have to adjust the neck as the top part of the mounting block overhung about 3 mm so I notched it out so the pickup fitted, didn't take any length off the neck and it's perfect length :)

Great video diaries Shazz and hope your enjoying your study break - the build is coming along nicely and well done with the routing

Shaz, well done on all your vids, really like them all, it was seeing the ones for the GR-1SF that inspired me to give it a go and got me into my first purchase from Pitbull, Adam should be paying you commission....

Quote:

---

Originally Posted by andrewdosborne

Great video diaries Shazz and hope your enjoying your study break - the build is coming along nicely and well done with the routing

---

Hey Andrew, The break won't be long enough that's for sure haha! But I'm thoroughly enjoying it :)
Cheers! I was so dang nervous! Even with the little error I'm still stoked with it :)

Quote:

---

Originally Posted by chrissyinbkk

Shaz, well done on all your vids, really like them all, it was seeing the ones for the GR-1SF that inspired me to give it a go and got me into my first purchase from Pitbull, Adam should be paying you commission....

---

Hey Chrissyinbkk, glad I could be of inspiration :) always need guitar builders! Haha Adam is a legend, but don't think I'll get commission 😜

Dang it!! I've just remembered I'm meant to do a black undercoat and sand then start applying the finish 😭😭 I've already almost finished the top.... might have to do a sand back and start again

It's all ok! I did a light sandback and the grain is still sweet 😁

Well done Shazz, don't let the little things get you down.

Quote:

---

Originally Posted by Simon Barden

Well done Shazz, don't let the little things get you down.

---

Thanks Simon! Seems this build has me a lot more nervous then the last! Loving the challenge though :)

So this is the stain 😁 Has come up really nicely! I thought the black might've been a bit darker but it's a real translucent black, still digging it though! I might do a once over with the black before sealing it with a gloss coat but. Attachment 20378Attachment 20379

Noice this is going to be one cool axe

Quote:

---

Originally Posted by dave.king1

Noice this is going to be one cool axe

---

Thanks Dave! I'm loving it so much! It's going to be such an awesome shredder

oooo poiple black goodness!

Quote:

---

Originally Posted by FrankenWashie

oooo poiple black goodness!

---

Can't beat poiple!

that black will darken a bit with the clear Shaz. My Vee looked almost grey and pink before the clear coats

Quote:

---

Originally Posted by Dedman

that black will darken a bit with the clear Shaz. My Vee looked almost grey and pink before the clear coats

---

Hey dedman, yeah when I wiped over it with a damp cloth it's darker so hopefully with the clear it holds that look :) did yours look 'powdery' in some sections when dry? I wiped off the marks from the latex glove but it seems to be drying wth a powdery residue?

the timbermate I used for popping grain did yes.

Quote:

---

Originally Posted by Dedman

the timbermate I used for popping grain did yes.

---

Was it there in the end or was it just whilst there was no seal coat?

Back to the books for me 😭 So far I've done the staining, just working out which gloss clear to use. Currently have 2 testers on the go, dulux duramax and rust-oleum 2x. Am hoping to be able to do weekend work until she's done, can't wait to play her!

Bummer that usual mundane things can get in the way of creative pleasures.

Love the dye job Shaz. That looks really great. Can't wait to see some clear on there!

cheers,
Gav.

Quote:

---

Originally Posted by wazkelly

Bummer that usual mundane things can get in the way of creative pleasures.

---

I know :( it's so sad! Why does reality have to kick our bums?

Quote:

---

Originally Posted by gavinturner

Love the dye job Shaz. That looks really great. Can't wait to see some clear on there!

cheers,
Gav.

---

Thanks Gav! I'm really happy with it. Dye's are a new medium for me, I think I've done fairly well :) cause they were 2 different brands the consistencies were a little different so it was like 2 different approaches to the same thing. But the result is something I'm happy with :) just gotta apply 2nd coat to the neck and it can get cleared as well :)

Quote:

---

Originally Posted by wokkaboy

Hey Shaz, glad the pup surrounds cover the swimming pool. The templates aren't really suitable for the job, if you line it up in the wrong position. You are better getting templates made up of the actual pup shape, that way you can line it up perfectly with marked outline where the cavity will be. Using a pattern following router bit of course.
Also get into the habit of waiting for the router bit to stop before you remove it from the workpiece. If you angle it slightly while the bit is spinning it can easily cut into wood that you don't want to be damaged/cut.
Also as Fretty says you should wear ear muffs.
Treat routers with the upmost respect.

EDIT also if the router base plate isn't a perfect circle which it probably isn't then when you angle the router slightly away from square that's probably why the cavity walls got torn out

---

Hey just caught up with this thread, awesome job with the routing Shaz, im just about to use one for the first time myself. Thanks for the tips Wokka and Pablo i will need all the help i can get.

Quote:

---

Originally Posted by nitroburner1000

Hey just caught up with this thread, awesome job with the routing Shaz, im just about to use one for the first time myself. Thanks for the tips Wokka and Pablo i will need all the help i can get.

---

Heya, thanks for dropping in :) cheers! It was a very nerve wracking task that didn't quite work out as expected, but I'm still stoked with the job I've done so far :) all the best with yours!

Quote:

---

Originally Posted by ShazzRandom

Heya, thanks for dropping in :) cheers! It was a very nerve wracking task that didn't quite work out as expected, but I'm still stoked with the job I've done so far :) all the best with yours!

---

Thanks heaps, personally i think you did an awesome job, most guys wouldnt even think of trying to route a new pup cavity, i know id have second thoughts!.

Well thanks to your videos i used a router for the first time to deepen a bridge cavity so i could fill it in and i am stoked. Youve gotta hand it to everyone here, they are all willing to give anything a go, and if theyve already done it are at the ready to help.
Cheers keep up the awesome work Shazz.

Quote:

---

Originally Posted by nitroburner1000

Thanks heaps, personally i think you did an awesome job, most guys wouldnt even think of trying to route a new pup cavity, i know id have second thoughts!.

Well thanks to your videos i used a router for the first time to deepen a bridge cavity so i could fill it in and i am stoked. Youve gotta hand it to everyone here, they are all willing to give anything a go, and if theyve already done it are at the ready to help.
Cheers keep up the awesome work Shazz.

---

Thanks again, There is definitely a helpful bunch on here!

hey shazz do you mind if I ask a few questions about the gr-1 sf, if / when you have the time ..thanks.

the purple looks amazing Shazz, you're doing a great job

Quote:

---

Originally Posted by NULLIG

hey shazz do you mind if I ask a few questions about the gr-1 sf, if / when you have the time ..thanks.

---

Hey Nullig, go right ahead :)
If you want to ask on my other forum thread here's the link http://www.buildyourownguitar.com.au...ead.php?t=4174

Quote:

---

Originally Posted by stan

the purple looks amazing Shazz, you're doing a great job

---

Cheers Stan! I'm stoked with it :) just gave her a wipe over to get rid of any residue and she looks even better! About to drop some pics :)

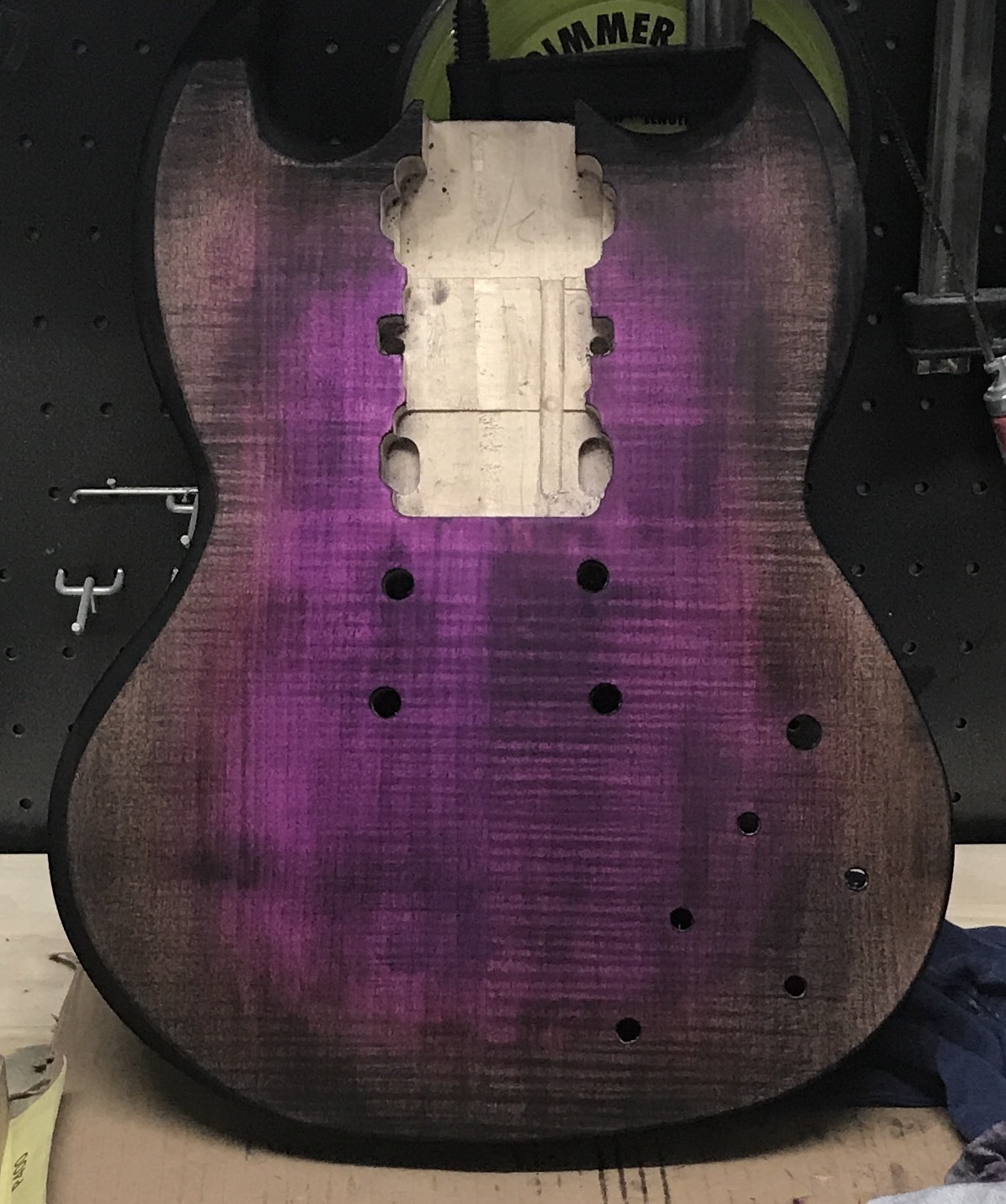

So here is what the final stain looks like. This is just wiped down, no clear yet. Just waiting to do a polish on the test pieces to see which comes up a better finish.
Attachment 20704Attachment 20705

Shazz looking good. I think it's worth trying to smooth the blend line go for one more colour coat. Try and darken the black edge, then keep rubbing purple (in a circular motion) along the transition area and you should smooth it out. A good burst takes many many coats to get a really smooth transition. When the clear goes on the transition will be highlighted even more.
I know its easier said than done because some areas 'take' the stain better than others, but worth trying to blend the colours smoother.
What are you using a wipe on poly/tru oil for the clear coats ?

Quote:

---

Originally Posted by wokkaboy

Shazz looking good. I think it's worth trying to smooth the blend line go for one more colour coat. Try and darken the black edge, then keep rubbing purple (in a circular motion) along the transition area and you should smooth it out. A good burst takes many many coats to get a really smooth transition. When the clear goes on the transition will be highlighted even more.
I know its easier said than done because some areas 'take' the stain better than others, but worth trying to blend the colours smoother.
What are you using a wipe on poly/tru oil for the clear coats ?

---

Hey wokka, I can't seem to get the black any darker :( it's a really thin dye. I've applied about 9 coats so far and the last 4 haven't done much. I don't want to do to much more and wreck what I've already got. It looks smoother in real life too haha
I'm going to use a spray clear and do a polish on top.
