My First Build the GR-1SF

Quote:

---

Originally Posted by darthdamo

Hi shazz I got a my braided wire here:
http://www.ebay.com.au/ulk/itm/171879503177
hope this helps!
I hadn't soldered much before but found the PBG videos really helpful especially the intro to soldering.

---

Hey Darth, thanks I'll check it out. My husband is an ex avionics tech so he will def be my guiding hand.

Quote:

---

Originally Posted by Dekka28

Hi shazz, from all the reading I have done it seems that the braided shield s a must. I got mine from Amazon as I am UK based but I think that stew mac sells it. The braided shield will avoid unwanted noises really.

I think I am going to go back to the PBG videos a few more time as well before I get started.

---

Yeah they're my thoughts too. My husband did a Es 335 build (not Pitbull) and used the standard wiring that came with it. it has a lot of noise issues so he's got to completely re-wire the poor thing!

Quote:

---

Originally Posted by ShazzRandom

Yeah they're my thoughts too. My husband did a Es 335 build (not Pitbull) and used the standard wiring that came with it. it has a lot of noise issues so he's got to completely re-wire the poor thing!

---

Since the pickup circuit of an Electric guitar is what's called a High-Impedance circuit, it produces a low level signal which is very susceptible to hum and electrical noise, so it is very important that signal wires are shielded in order to reduce noise and hum.


Hope you manage to get the noise issues sorted out.

Thanks for that Doc! Appreciate it :) it's annoying cause t was all wired correctly as per the schematic but just the quality of cables wasn't great.
He's kinda put it on the back burner at the moment, I will make sure he gets to it one day!

Quote:

---

Originally Posted by ShazzRandom

Thanks for that Doc! Appreciate it :) it's annoying cause t was all wired correctly as per the schematic but just the quality of cables wasn't great.
He's kinda put it on the back burner at the moment, I will make sure he gets to it one day!

---

What sort of cables was it?, if it was just one wire for the signal and another for the ground, there's a way you can add shielding to it by wrapping both wires together in some ordinary aluminium kitchen foil, making sure the foil doesn't touch any soldered joints, next you wind some thin copper wire around this and solder the free end of the copper wire to a convenient circuit ground point such as the metal shielding of the volume control, you can cut the foil into strips about 2cm wide....hope that helps.

Quote:

---

Originally Posted by DrNomis_44

What sort of cables was it?, if it was just one wire for the signal and another for the ground, there's a way you can add shielding to it by wrapping both wires together in some ordinary aluminium kitchen foil, making sure the foil doesn't touch any soldered joints, next you wind some thin copper wire around this and solder the free end of the copper wire to a convenient circuit ground point such as the metal shielding of the volume control, you can cut the foil into strips about 2cm wide....hope that helps.

---

I will show him this! Could be his saving grace. I'm pretty sure it was the earthing cable. Thanks heaps!

No worries, let me know how it goes Shazzrandom.

Quote:

---

Originally Posted by DrNomis_44

No worries, let me know how it goes Shazzrandom.

---

Shall do :)

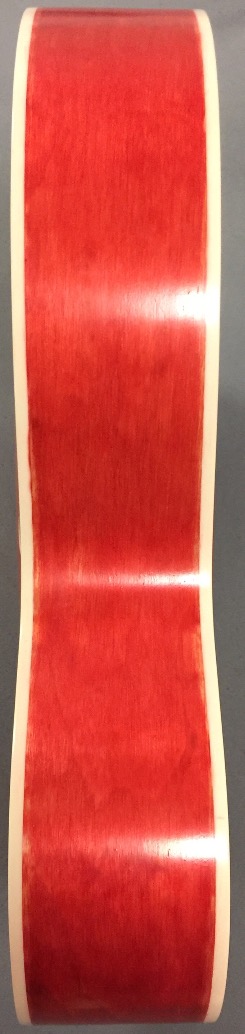

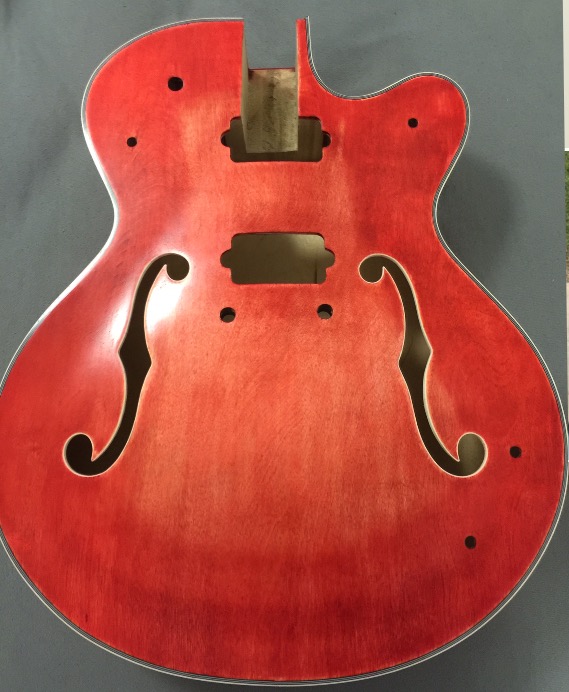

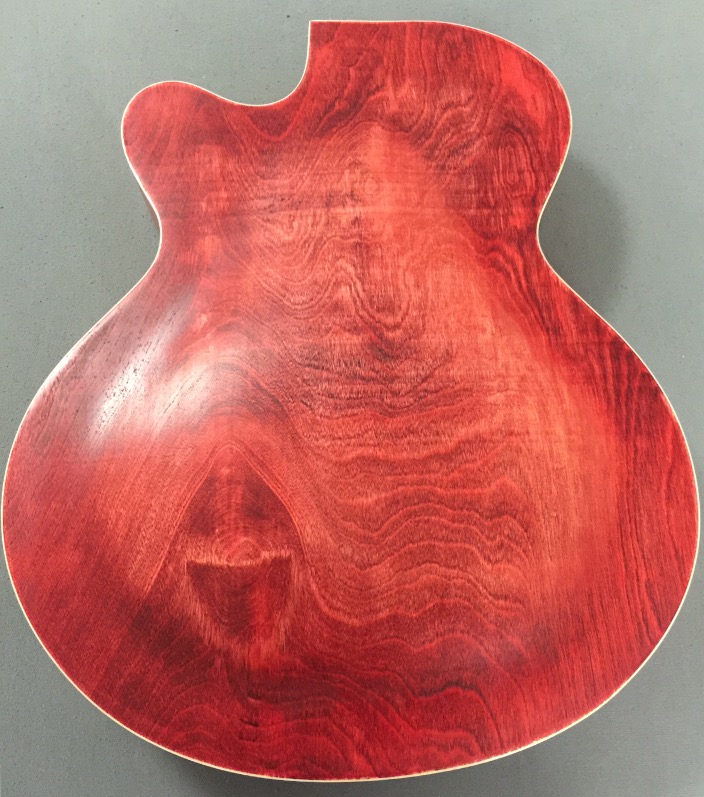

Finally the staining is done yewww!!! This be the final colour!
DB, how much do you recommend using the wax finish on top of the stain?
Attachment 6739Attachment 6740Attachment 6741

Looks awesome Shazz. Really nice deep colour. Can't wait to see the hardware go on.

cheers,
Gav.
