For you Brian May Guitar Fans

http://youtu.be/mh0jQ-6cy1A
Nice variation of tone. Hey Scott what about a wiring diagram for this beastie so that it can be used on a Strat lol.

nice sounding axe KB

Guitarfetish do just that

http://www.guitarfetish.com/BHM-Styl...its_c_226.html

Then theres always

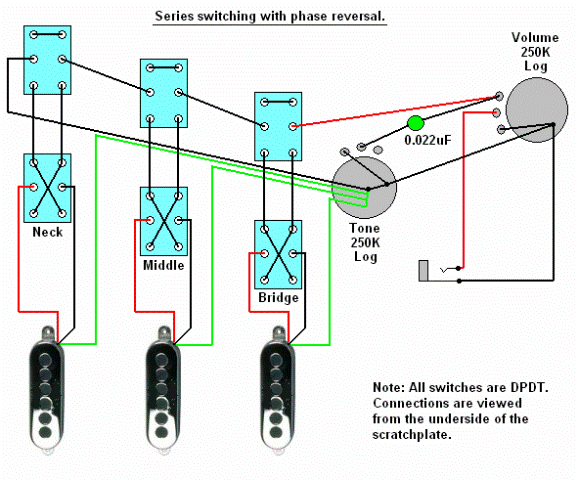

Attachment 9340

There's also John Hewitt's variant that adds a master series/parallel switch for how the pickups are linked, so you can go for BMS or more Strat'ish type tones.

I always wanted to try to come up with a version that has series/off/parallel switching for each individual pickup instead of just the series/off setting on the BMS, but it's a little tricky with the potential series and parallel settings across all three pups... have to spend some time on it one day.

Hi Scott, my original strat copy had a mitey mite scratch plate fitted with 3 x mini on-off-on switches for the blade style bill Lawrence 4 conductor pickups that were fitted and it did exactly what you mentioned above.

You could have all three on together, neck & bridge, plus the usual 5 position switch combinations plus muck around with the in & out of phase sounds across those PUP's. Sadly it was left behind at a gig on Gold Coast in 1985 and really wish I still had it today as it was that good and extremely versatile through all the sounds you could achieve.
