I am currently building my first guitar with my 14 year old daughter, which is a DMS-4 Bass guitar.

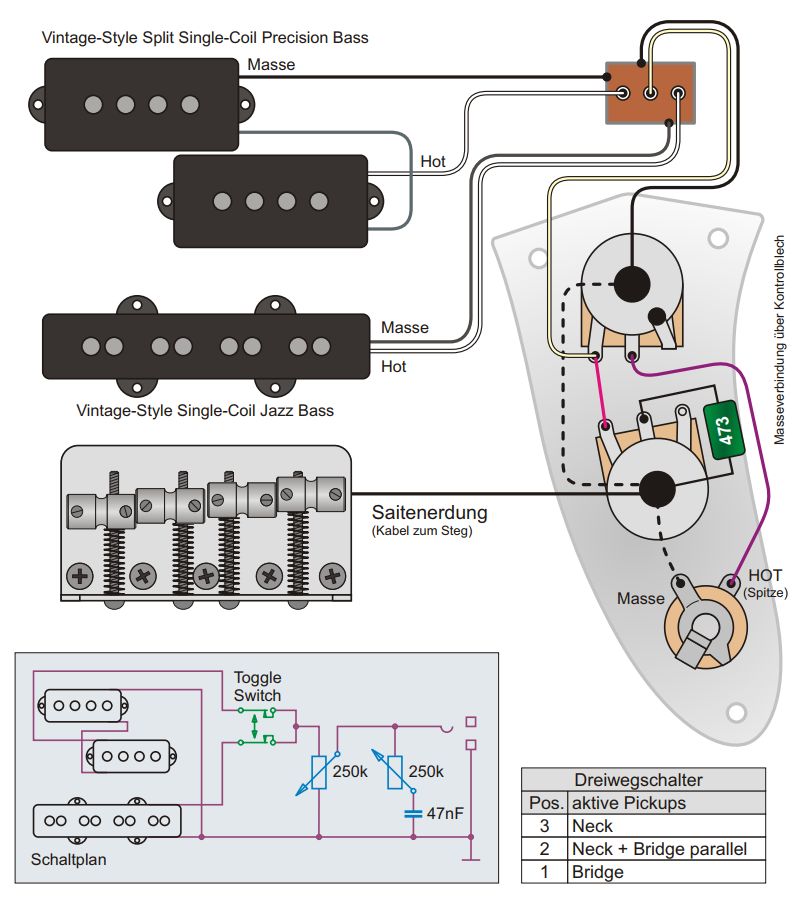

I have thoroughly searched through the guides and cannot find any related to the DMS-4. The YB4 wiring diagram is the closest I can find to what I have. The issue with this is it shows an earth wire to the bridge but I don't have that option to wire the bridge.
I am also missing the tone, volume and jack components, so I will have to purchase some of those.
Please if there is anyone who can advise where I can get a wiring diagram from, I will be forever grateful.
Also note, I am not musically gifted (that is my daughters gift) so I may need some layman's terms at times.

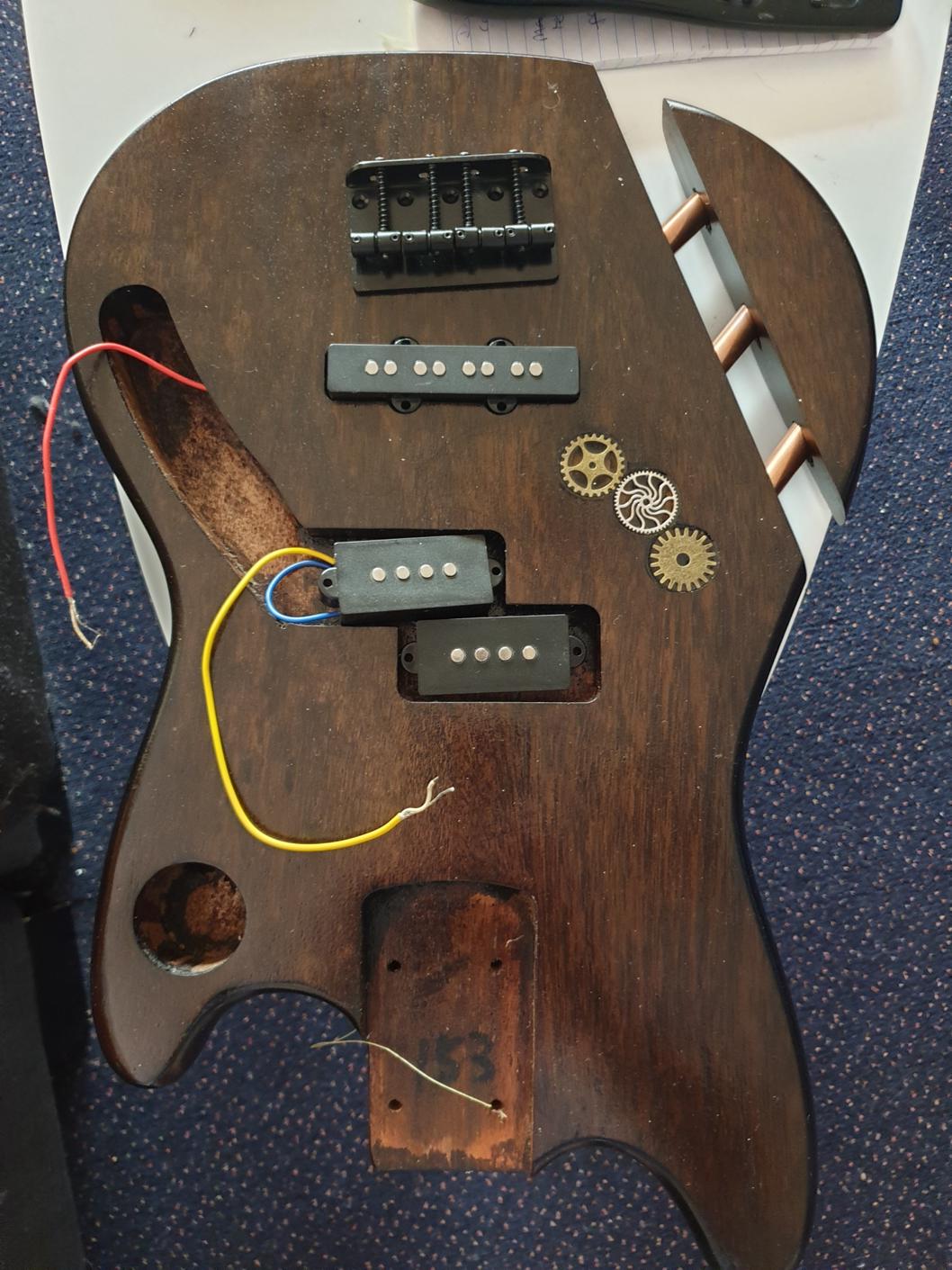

I have attached a photo of where I am up to with the build.
