Thread: Great mistakes of guitar building!

  1. #1
    Mentor Chuck's Avatar
    Join Date
    Aug 2016
    Location
    Sydney
    Posts
    584

    Great mistakes of guitar building!

    FlyHog85’s post about accidentally tuning his guitar too high and wondering why he was breaking strings made me think about one of my great bonehead plays when building.

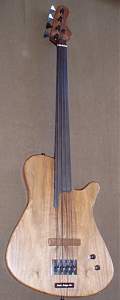

    On my first bass build many years ago everything had gone perfectly… until putting everything together. I excitedly went about installing the bridge, measured twice, then happily started drilling holes. Got the bridge on then strung it up, and wondered why the strings seemed short? Couldn’t work it out for the life of me. After working through every possible reason, I finally decided to remeasure the scale. It was 36 inches! For some reason I’d got 36 in my head as the standard long scale length. God knows why! Afer a few choice words to myself I redrilled and all was good – but there were four holes sitting behind the bridge. I eventually covered them with a “logo” (you can see it below), and now it serves as a constant reminder to keep a clear head and take your time when building!!

    Click image for larger version.

Name:	bassicdesigns001.jpg
Views:	204
Size:	28.7 KB
ID:	14204

    I think it’s good for people new to building to know that everyone makes mistakes – sometimes really stupid ones! – but all you do is move on and come up with a way to fix it.

    Anyone else want to share some of their clangers?!
    Completed Builds: #1 TL-1 "Telemaster" (GOTM Oct 2016); #2 The "Maplecaster" scratch build; #3 JB-4 "Bass IV" (co-winner GOTM Jan 2017); #4 ST-1M "Surfcaster" (GOTM Apr 2017), #5 JZA-1 "EC Deluxe"

    In Progress:
    Build #6 N1R "Semi-scratch" build
    Build #7 JZA-1 Baritone

    The Cavan Project
    The Magnificent Compañeros

  2. #2
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    Nice one Chuck... at least you had a workaround

    Mine was after giving someone heaps (in a light hearted way) for drilling right through the headstock when installing the tuner locking screws.
    Very next day I did exactly the same thing... I had never done it in more than 20 odd years of building.
    Kama can be a real biartch.

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....

  3. #3
    Overlord of Music Andy40's Avatar
    Join Date
    Oct 2015
    Posts
    3,913
    Click image for larger version.

Name:	IMG_6636.JPG
Views:	178
Size:	49.9 KB
ID:	14222

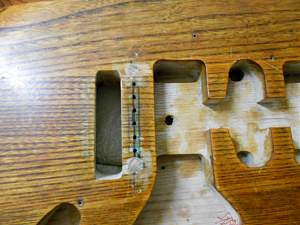

    Check this out....whilst building my ES I decided I wanted to put a trapeze on instead of a stop tail.....for some reason, I dowelled up the saddle holes instead of the stop tail holes.....

    I had to take a photo of it
    Build #1 - ST-1 - Completed
    Build #2 - LP-1SS - Completed
    Build #3 - TLA-1R - Completed
    Build #4 - SGD-612 - Completed
    Build #5 - ES-1G - Completed
    Build #6 - STA-1HT | Completed
    Build #7 - ST1JR - Completed
    Current Build #8 - JBA-4
    Build #9 - Semi-scratch build Tele x 2 - Completed
    Current Build #10 - PRS-1H
    Current Build #11 - AGJR-1 - Completed
    Current Build #12 - ATL-1SB
    Current Build #13 - GST-1
    Current Build #14 - FBM-1

  4. #4
    Mentor Chuck's Avatar
    Join Date
    Aug 2016
    Location
    Sydney
    Posts
    584
    Nice ones DB and Andy!
    Completed Builds: #1 TL-1 "Telemaster" (GOTM Oct 2016); #2 The "Maplecaster" scratch build; #3 JB-4 "Bass IV" (co-winner GOTM Jan 2017); #4 ST-1M "Surfcaster" (GOTM Apr 2017), #5 JZA-1 "EC Deluxe"

    In Progress:
    Build #6 N1R "Semi-scratch" build
    Build #7 JZA-1 Baritone

    The Cavan Project
    The Magnificent Compañeros

  5. #5
    Mentor Rabbitz's Avatar
    Join Date
    Apr 2015
    Location
    Barossa Valley, South Australia
    Posts
    765
    My biggest mistake (so far) was to start making guitars.

    *shakes head and says in best Darth Vader voice* "The GAS is strong in this one".
    Col.

    I admit that I am an agent of Satan, however, my duties are largely ceremonial.

    \m/

  6. #6
    Overlord of Music andrewdosborne's Avatar
    Join Date
    May 2014
    Location
    Sydney, NSW
    Posts
    2,751
    Classic Rabbitz spot on! I've also developed a bit of AAS (amp aquisition syndrome)

    DB was that my fairly recent episode with the drilled through headstock hahaha. Still not fully fixed I've left as a daily reminder to be more careful!

    Sent from my GT-I9506 using Tapatalk
    Current Projects
    #Planning 5 String Bass

  7. #7
    GAStronomist DrNomis_44's Avatar
    Join Date
    Dec 2014
    Location
    Darwin,NT Australia
    Posts
    5,500
    The greatest mistake I made was when I decided to try installing a Schaller Lockmeister Floyd Trem system on my Gold Strat, everything went well till I went to drill the two 10mm pivot-post holes for the Bridge pivot-posts, I marked out where the centres for the holes were supposed to go, made sure I drilled them 90 degrees with respect to the front surface of the body, then I tapped-in the pivot-posts, it was only when I tried to set the intonation for each string that I realized something was wrong, you can probably see where this is going, anyway, I was trying to set the intonation for the high e-string when the tuner kept indicating that the 12th fretted not was flat compared to the 12th fret harmonic, even though the saddle for the high e-string was as far forward towards the neck as it could go,....and then it dawned on me, I checked the scale length and found that I had drilled the holes about 6mm further away from the neck than where they should have been, making the strings too long by 6mm, you could imagine the colourful language that was going through my mind at the time when I realized my mistake and that I needed to plug the holes with doweling, what's worse was that the only piece of doweling I had was some 12mm Oak Doweling which was too big for the nice 10mm holes I had drilled in the body, to cap it all off, I had to wait till I had some money in the bank so I could get some Dowelling that would fit, the closest I could get from my local Big Green Shed was some 9.2mm Oak Dowelling, fortunately it seemed to do the job, I've got a pic I took after plugging the two 10mm holes I drilled in the wrong place on the front of the Gold Strat body, but I think it's either on my laptop or in my camera's SD Card, will post it here when I find it.

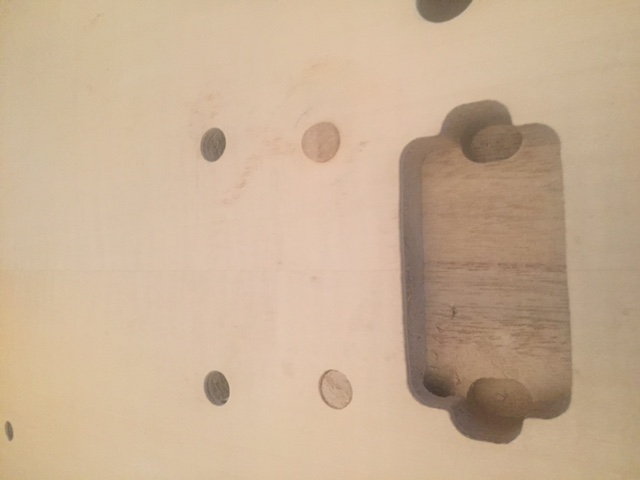

    Here we go, here's the pic I took:


    Click image for larger version.

Name:	Holes Plugged 2_resized.jpg
Views:	180
Size:	249.1 KB
ID:	14285


    The blue line that's closer to the neck marks the scale length and is where I should have drilled the two 10mm holes after marking the centres....how embarrassing, considering that I worked in my dad's workshop as an apprentice Fitter and Machinist, I should have known better.


    So, what's the moral of the story here?, measure twice and cut once, but really it should be measure four times, make absolutely sure you have got it right, then, and only then, drill/cut when you are absolutely sure after checking it a dozen more times just to be 200% sure.
    Last edited by DrNomis_44; 05-10-2016 at 09:16 AM.

  8. #8
    Moderator Brendan's Avatar
    Join Date
    Apr 2013
    Location
    Perth, WA
    Posts
    3,444
    Second build in - tried to enlarge the hole for the bridge grounding wire - long drill bit in drill - all going well until I came out the other side - entirely missing the cavity I was aiming for. Lesson - wrap the bit in a rag and twist by hand. Much harder to miss...
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	P1060124 - error - cropped.jpg
Views:	172
Size:	303.3 KB
ID:	14295

  9. #9
    Member corsair's Avatar
    Join Date
    Oct 2016
    Location
    Hervey Bay, Qld
    Posts
    292
    Drilled through headstock? Check.
    Drilled bridge mounting holes in incorrect places because of rushing? Check.
    Filled/dowelled wrong holes? Check.
    Spilled stain in unwanted places? Check.
    Had adverse chemical reactions due to not reading instructions carefully? Check.
    Filed nut slots too deep with the ".. just one more stroke of the file!" thought process? Check.
    Sawed repair pieces too short/narrow due to not measuring twice? Check.
    Wired a guitar up and neglected to run an earth anywhere then wondered why the thing was humming like a good 'un?? Check.

    Yes, folks... all this and more at Crazy John's crazy house of wayward guitars...
    "If it's Blues music in a bar and it helps people swallow their drink of choice, or it's a dance song and people get up off their chairs and shuffle their feet, or it's a Jazz tune and the Chardonnay tastes so much better... then it's all good."

    - Marcel

  10. #10
    Member Muzza's Avatar
    Join Date
    Jan 2016
    Location
    Sunshine Coast
    Posts
    487
    Biggest mistake I made was buying a kit from somebody other than PitBull...

    And PitBull had to come to my rescue, which they did without hesitating.
    first build PRS-1TS in progress...
    http://www.buildyourownguitar.com.au...ead.php?t=4937

    second build PRS-1Q in progress...
    http://www.buildyourownguitar.com.au...ead.php?t=4956
