Thread: Greg's First Build - LP-1MQ #151

  1. #1
    Member GregLane's Avatar
    Join Date
    Sep 2016
    Location
    Nelson Bay NSW
    Posts
    211

    Greg's First Build - LP-1MQ #151

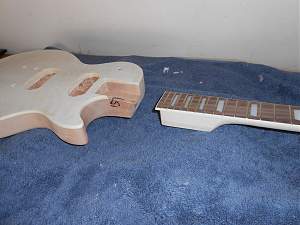

    Unpacked my birthday surprise and found this much to my delight

    Click image for larger version.

Name:	DSCN5337 r25.jpg
Views:	176
Size:	362.0 KB
ID:	14141

    I am very happy with finish as there are no blemishes and little glue. As it is my first build I am thinking of going stock standard as in the box. I guess I can upgrade the electronics later if necessary. Still to decide on colour but Dingotone options look good.

    I started my mock build and step 1 was to put the neck in the body.

    Click image for larger version.

Name:	DSCN5345 r25.jpg
Views:	152
Size:	454.1 KB
ID:	14142

    WHOOPS!! ALREADY??

    Click image for larger version.

Name:	DSCN5351 r25.jpg
Views:	198
Size:	348.0 KB
ID:	14143

    The fret board is not sitting on the body. It is up 4 mm. Does that mean enough would has not been taken of the neck or out of the neck slot. Or does a scratch pad go between. There i3 no scratch pad in the box.

    Dimensions in next post
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	DSCN5345 res1.jpg
Views:	117
Size:	123.6 KB
ID:	14139   Click image for larger version.

Name:	DSCN5351 res1.jpg
Views:	122
Size:	114.1 KB
ID:	14140
    Guitars:
    Build #4 - Scratch SG - Qld Mahogany - In Progress
    PBG#3- - ES-1F - kit electronics (Dec 2020)- upgrade if I can do it justice
    PBG#2- - STA-1 Ash w black upgrades GOTM June 2020
    PBG#1- LP-1MQ http://www.buildyourownguitar.com.au...ead.php?t=6378
    Acoustics -Washburn WD18SW
    - Maton Australian EA80C
    Electric - Magnum pseudo Stratocaster - upgraded with PitBull bits - 2020

  2. #2
    Member GregLane's Avatar
    Join Date
    Sep 2016
    Location
    Nelson Bay NSW
    Posts
    211

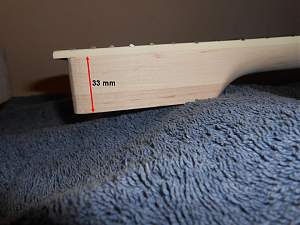

    Dimensions

    Click image for larger version.

Name:	Dimensions.jpg
Views:	145
Size:	74.8 KB
ID:	14144


    Click image for larger version.

Name:	Dimensions2.jpg
Views:	144
Size:	104.5 KB
ID:	14145
    Guitars:
    Build #4 - Scratch SG - Qld Mahogany - In Progress
    PBG#3- - ES-1F - kit electronics (Dec 2020)- upgrade if I can do it justice
    PBG#2- - STA-1 Ash w black upgrades GOTM June 2020
    PBG#1- LP-1MQ http://www.buildyourownguitar.com.au...ead.php?t=6378
    Acoustics -Washburn WD18SW
    - Maton Australian EA80C
    Electric - Magnum pseudo Stratocaster - upgraded with PitBull bits - 2020

  3. #3
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    Hi Greg nice looking kit. The neck looks ok, the fingerboard will sit about 4mm above the body. There should be a break angle on the neck about 3 or 4 degrees to compensate for the height of the tune o matic bridge.
    If you want a pickguard email Adam will send you one if it didn't come with the kit. Personally I wouldn't want to hide that quilted maple !
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  4. #4
    Member GregLane's Avatar
    Join Date
    Sep 2016
    Location
    Nelson Bay NSW
    Posts
    211
    Thanks for your quick response.

    What do you thinks of this photo

    Click image for larger version.

Name:	DSCN5359 r25.jpg
Views:	145
Size:	327.6 KB
ID:	14148
    Guitars:
    Build #4 - Scratch SG - Qld Mahogany - In Progress
    PBG#3- - ES-1F - kit electronics (Dec 2020)- upgrade if I can do it justice
    PBG#2- - STA-1 Ash w black upgrades GOTM June 2020
    PBG#1- LP-1MQ http://www.buildyourownguitar.com.au...ead.php?t=6378
    Acoustics -Washburn WD18SW
    - Maton Australian EA80C
    Electric - Magnum pseudo Stratocaster - upgraded with PitBull bits - 2020

  5. #5
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    Hi Greg, yes the break angle looks fine. The pickup ring has to be rotated 180 degrees and the thicker surround is for the bridge pup
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  6. #6
    Member GregLane's Avatar
    Join Date
    Sep 2016
    Location
    Nelson Bay NSW
    Posts
    211
    Woops

    I am comparing my photo to Andy40's prizing winning photos from May guitar of the month. The white edgestrips on the fretboard and body are actually touching. Mine has a 4mm gap. The top of his fret board is almost the same as the top of the pickup.
    Guitars:
    Build #4 - Scratch SG - Qld Mahogany - In Progress
    PBG#3- - ES-1F - kit electronics (Dec 2020)- upgrade if I can do it justice
    PBG#2- - STA-1 Ash w black upgrades GOTM June 2020
    PBG#1- LP-1MQ http://www.buildyourownguitar.com.au...ead.php?t=6378
    Acoustics -Washburn WD18SW
    - Maton Australian EA80C
    Electric - Magnum pseudo Stratocaster - upgraded with PitBull bits - 2020

  7. #7
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    Greg if you are worried about the height of the neck do a mock build and check the height of both E strings
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  8. #8
    Member GregLane's Avatar
    Join Date
    Sep 2016
    Location
    Nelson Bay NSW
    Posts
    211
    OK Thanks Wokkaboy. I'll get on with it.
    Guitars:
    Build #4 - Scratch SG - Qld Mahogany - In Progress
    PBG#3- - ES-1F - kit electronics (Dec 2020)- upgrade if I can do it justice
    PBG#2- - STA-1 Ash w black upgrades GOTM June 2020
    PBG#1- LP-1MQ http://www.buildyourownguitar.com.au...ead.php?t=6378
    Acoustics -Washburn WD18SW
    - Maton Australian EA80C
    Electric - Magnum pseudo Stratocaster - upgraded with PitBull bits - 2020

  9. #9
    Looks like mine. I sanded the heel down so the neck fit. I did it SLOWLY THOUGH. On the base of the heel with a block. Sits much better now. Have a lookat my link in the sig. I had same issues.
    Build 1 - Refurbished Ibanez RG550.
    Build 2 - Refurbished ESP LTD F10
    Build 3 - DEC 2016 GOTM - PB LPA1 JP Wiring and FCH Bridge - http://www.buildyourownguitar.com.au...ead.php?t=6342
    Build 4 - Surprise JB-4 - Build Diary coming soon

  10. #10
    Member GregLane's Avatar
    Join Date
    Sep 2016
    Location
    Nelson Bay NSW
    Posts
    211
    I have just done a rough measurement of gaps between the strings and pickups
    The neck pickup will be 5.5 mm to the strings. The bridge pickup will be 2mm to the strings.

    Click image for larger version.

Name:	DSCN5361 r30.jpg
Views:	144
Size:	401.9 KB
ID:	14152
    Guitars:
    Build #4 - Scratch SG - Qld Mahogany - In Progress
    PBG#3- - ES-1F - kit electronics (Dec 2020)- upgrade if I can do it justice
    PBG#2- - STA-1 Ash w black upgrades GOTM June 2020
    PBG#1- LP-1MQ http://www.buildyourownguitar.com.au...ead.php?t=6378
    Acoustics -Washburn WD18SW
    - Maton Australian EA80C
    Electric - Magnum pseudo Stratocaster - upgraded with PitBull bits - 2020
