    Making a homemade no load pot

    I like no load pots, they take all the load off your pickup when full on, giving you just your nice clean pickup sound.

    Heres how i do it.

    Pull the tabs back on the pot
    Click image for larger version.

Name:	pot1.jpg
Views:	378
Size:	28.4 KB
ID:	8798

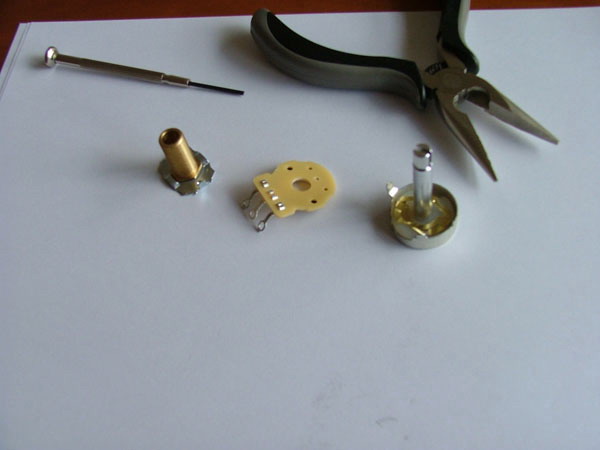

    Pull the pot apart, it comes apart easy
    Click image for larger version.

Name:	pot2.jpg
Views:	336
Size:	37.6 KB
ID:	8799
    Click image for larger version.

Name:	pot3.jpg
Views:	413
Size:	29.5 KB
ID:	8800

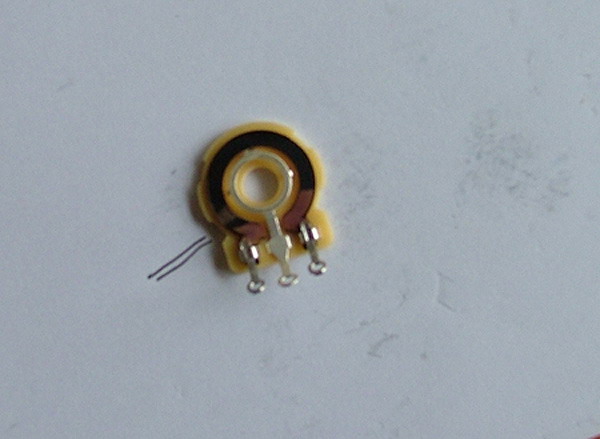

    Scrape some of the carbon from the left side of the sweeper as marked
    Click image for larger version.

Name:	pot4.jpg
Views:	1049
Size:	46.8 KB
ID:	8801

    Wire into the tone control on your harness your choice which one or all
    Click image for larger version.

Name:	pot5.jpg
Views:	377
Size:	68.2 KB
ID:	8802

    You can make one for your volume, it will mean at 10 you have no sound at all, i have a mod to get around this but i dont see the point, the low resistance load to the pickup will damp the electrical resonance and result in a lot of treble loss at lower volume setting

  2. #2
    Moderator fender3x's Avatar
    Join Date
    Jan 2016
    Location
    Miami, FL, USA
    Posts
    2,449
    Cool mod! Also that is one very tidy wiring harness!

    Another easy mod on a CTS pot ;-)

    Sent from my SAMSUNG-SM-N900A using Tapatalk

  3. #3
    Banned
    Join Date
    Dec 2015
    Posts
    1,171
    I pride my self on my wiring, if it looks a bit rough i hate it, but others dont notice, i sort of had to get over them not being perfect or i would be there a week on 1 harness.

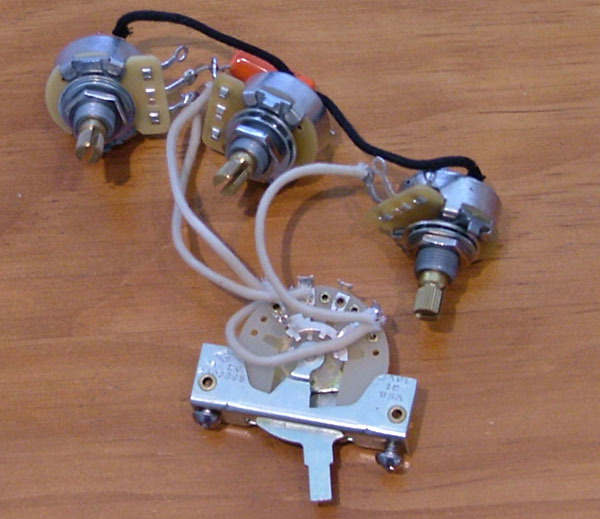

    Heres where the harness went, my project strat.
