Thread: Hi Chaz here just arrived

  1. 09-11-2015, 07:45 PM #1
    Chazking
    Chazking is offline
    Member Chazking's Avatar
    Join Date
    Oct 2015
    Location
    Nottingham, England
    Posts
    30

    Hi Chaz here just arrived

    How do I post pictures? I have hollow body a GR-1SF and cannot identify a couple of parts. Also noticed the wiring diagram recommended seems different from the wiring supplied.
    Reply With Quote Reply With Quote
  2. 09-11-2015, 07:49 PM #2
    dingobass
    dingobass is offline
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    Welcome to the crazy GAS ranch, Chaz

    To post pics, go to the Go Advanced tab, scroll down and you will see the upload pics tab.

    You will need to resize pics to 1000x 1000 for them to upload successfully

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....
    Reply With Quote Reply With Quote
  3. 09-11-2015, 07:51 PM #3
    dingobass
    dingobass is offline
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    Oh, the wireing diagram should match up with supplied bitz..
    When you get the pic posting sorted out, take a few happy snaps and our wireing gurus will soon sort it out.

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....
    Reply With Quote Reply With Quote
  4. 09-11-2015, 08:10 PM #4
    wokkaboy
    wokkaboy is offline
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    Welcome to the forum Chaz. Upload pics of parts you are unsure of. Good luck with the build
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in
    Reply With Quote Reply With Quote
  5. 09-11-2015, 10:46 PM #5
    Chazking
    Chazking is offline
    Member Chazking's Avatar
    Join Date
    Oct 2015
    Location
    Nottingham, England
    Posts
    30
    Cant identify what this is for
    Click image for larger version.  Name: rsz_20151109_121155_resized_1.jpg  Views: 200  Size: 45.2 KB  ID: 6438

    This is the wiring diagram recommended for my model but my wiring is a lot different
    Click image for larger version.  Name: rsz_20151109_121206_resized_1.jpg  Views: 230  Size: 150.8 KB  ID: 6437

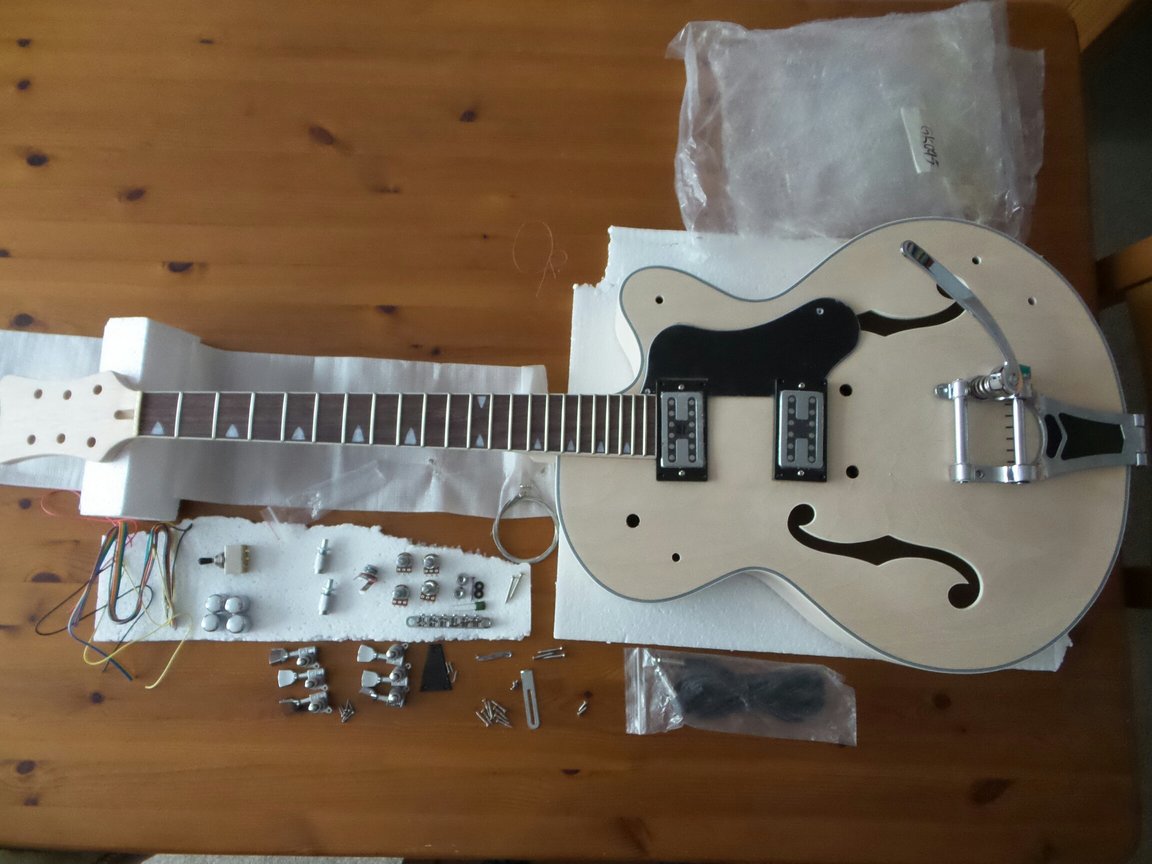

    And here is my model. this is a first for me. Have only ever done one solid guitar before with all wiring ready soldered.
    Click image for larger version.  Name: rsz_20151109_131418_resized_1.jpg  Views: 216  Size: 123.3 KB  ID: 6436
    Reply With Quote Reply With Quote
  6. 09-11-2015, 11:01 PM #6
    dingobass
    dingobass is offline
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    OK.
    First pic is the support for the pick guard. Personally I reckon these Guitars look nicer without it

    With the wires supplied, ignore the colours and simply use the lengths of wire that reach.

    Lucky you! You scored an extra Green Cap Capacitor!

    Hope that helps.

    Please start a build diary in my build diary section, we all love seeing how peeps builds are going

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....
    Reply With Quote Reply With Quote
  7. 09-11-2015, 11:49 PM #7
    Chazking
    Chazking is offline
    Member Chazking's Avatar
    Join Date
    Oct 2015
    Location
    Nottingham, England
    Posts
    30
    Thanks for the info. If I can find the build diary section Ill start one
    Reply With Quote Reply With Quote
  8. 10-11-2015, 04:08 AM #8
    gavinturner
    gavinturner is offline
    Overlord of Music gavinturner's Avatar
    Join Date
    May 2013
    Location
    HOLGATE NSW
    Posts
    3,057
    Welcome Chaz! Enjoy the kit dude it looks like a great one.

    cheers,
    Gav.
    --
    Build #01: BC-1
    Build #02: ST-1
    Build #03: JR-1DC
    Build #04: ES-2V
    Build #05: ESB-4 (GOTM July 2014)
    Build #06: RC-1
    Build #07: MK-2
    Build #08: TLA-1
    Build #09: JR-1DC
    Build #0A: LPA-1
    Build #0B: STA-1 (GOTM April 2015)
    Build #0C: MKA-2
    Build #0D: LP-1M
    Build #0E: JB-1
    Build #0F: FS-1

    Find me:
    https://www.facebook.com/firescreek.guitars/
    http://www.guitarkitbuilder.blogspot.com.au/
    Reply With Quote Reply With Quote
  9. 11-02-2016, 05:22 AM #9
    Chazking
    Chazking is offline
    Member Chazking's Avatar
    Join Date
    Oct 2015
    Location
    Nottingham, England
    Posts
    30

    Moving On at Last

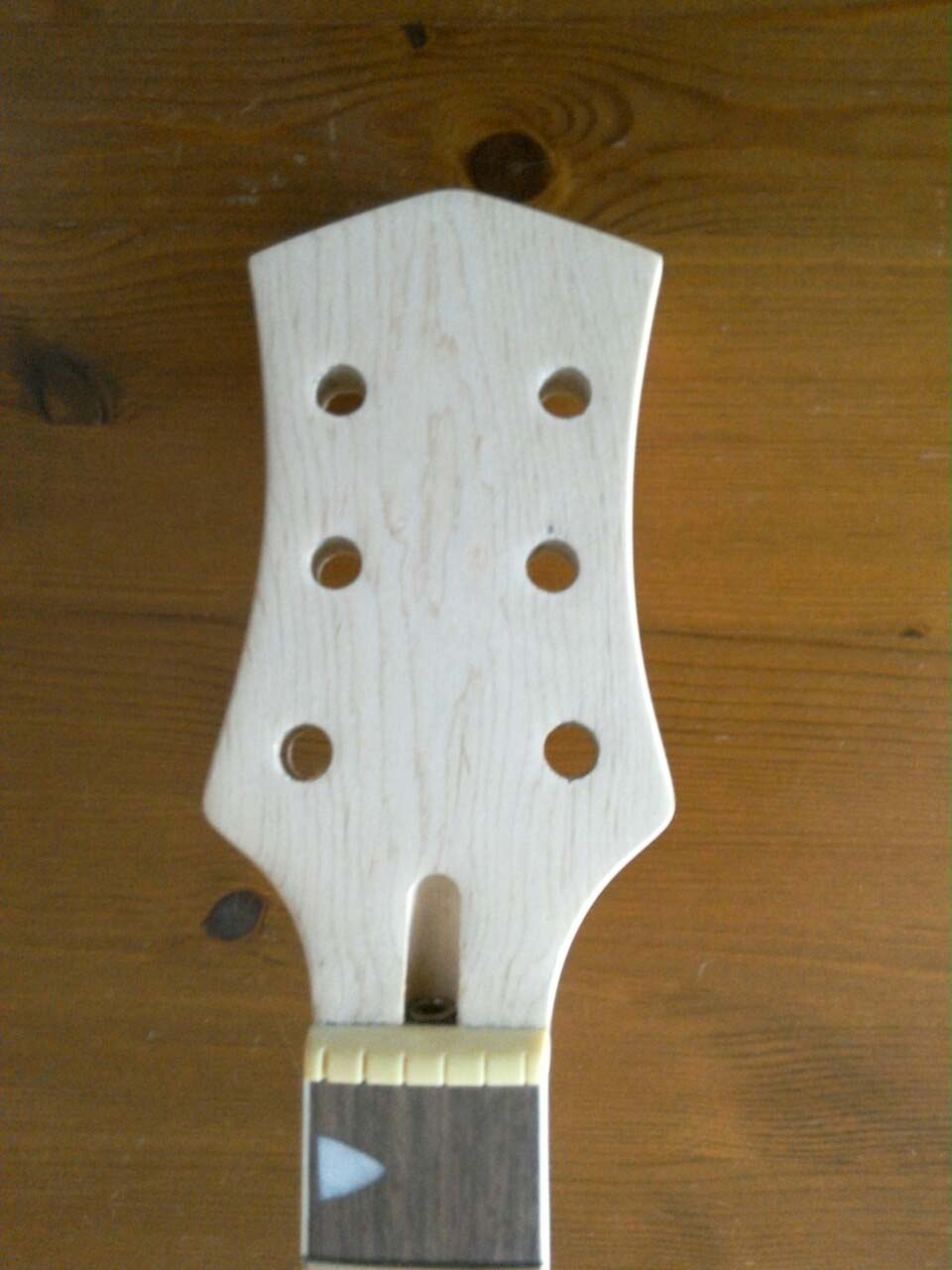

    Well have managed to get some work done on the guitar. Click image for larger version.  Name: IMG_20151202_085502.jpg  Views: 206  Size: 88.4 KB  ID: 8564First thing was to get rid of the mouse ears. I decided to keep it to a simple cut as I don't have a steady hand anymore or a band saw.

    Next after years of sanding was two coats of orange stain for the body.Click image for larger version.  Name: Stained1.jpg  Views: 203  Size: 476.2 KB  ID: 8566

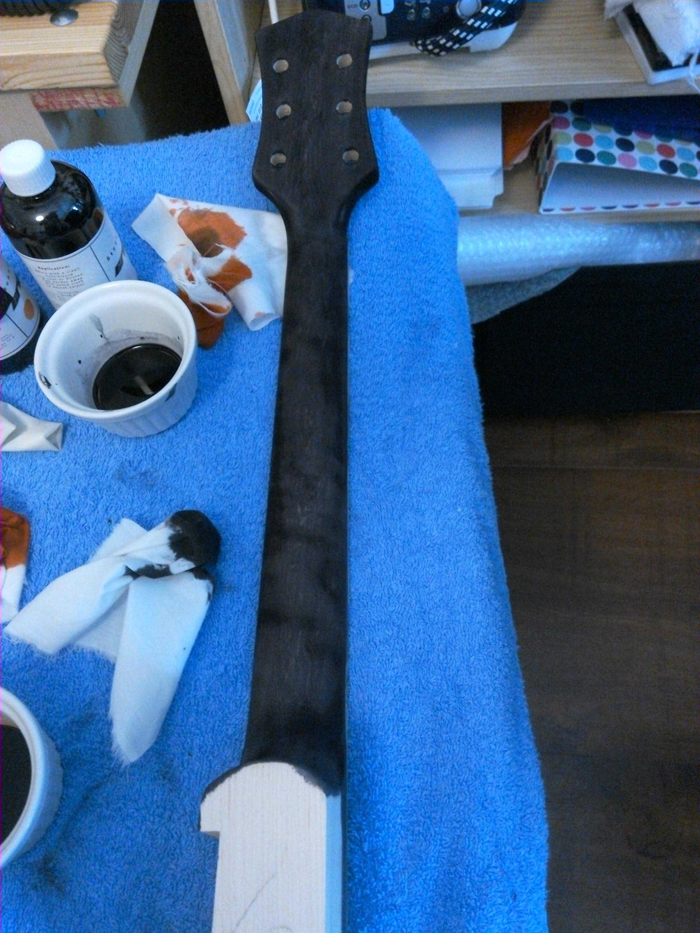

    And black for the neck Click image for larger version.  Name: Black Neck.jpg  Views: 200  Size: 586.8 KB  ID: 8565I didn't intend the neck to stay black I had other ideas in mind.
    Reply With Quote Reply With Quote
  10. 11-02-2016, 05:29 AM #10
    tonyw
    tonyw is offline
    Banned
    Join Date
    Dec 2015
    Posts
    1,171
    Hi Chaz and welcome

    it looks like some glue on the top of that F hole?
    Reply With Quote Reply With Quote
