Thread: EX-1 Neck Tenon

  1. #1

    Question EX-1 Neck Tenon

    Hi

    I recently routed my own Explorer style body and as this is my first build I wanted to fit a pre-made neck. I have looked everywhere for a set in neck and can't find one - other than supplied in a kit such as the EX-1.

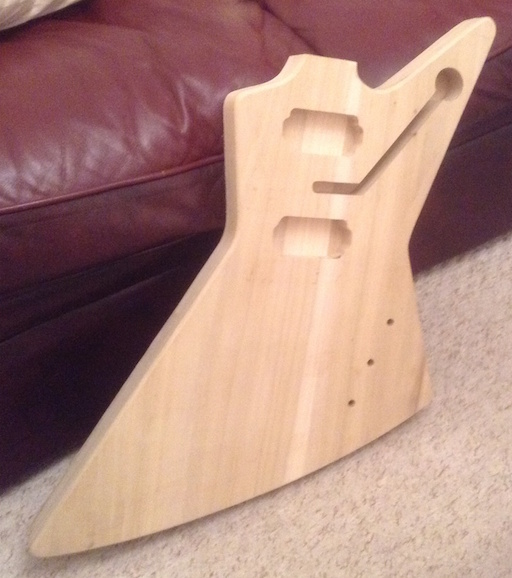

    Here is the body: Click image for larger version.

Name:	photo.JPG
Views:	208
Size:	115.7 KB
ID:	6398

    Can anybody tell me the width of the neck/tenon so I can rout the correct sized cavity, buy the kit, use the neck and keep the kit body for a future project? I need to be sure that my body will take the neck, particularly the neck/tenon width. The depth shouldn't be an issue (I have 45mm to play with).

    Any help will be appreciated.

    J

  2. #2
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    Hey Mateyboy,

    Best bet would be to get the kit, make your routing template to match the neck heel and then go nutz and rout the pocket.
    This will ensure that everything fits up properly.

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....

  3. #3
    Yeah, think I'll do that - I live in the UK, what is the general shipping time?

  4. #4
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    Not sure on that.
    Maybe one of our UK based peeps could answer?
    Otherwise you could email Adam, he may have an idea as shipping is his domain.
    adamboyle at pitbullguitars dot com.

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....

  5. #5
    I placed an order, on the website it says up to two weeks. The explorer will have to wait... on to the next project!

  6. #6
    The kit arrived, less then 6 days to the UK which I was very impressed with. I routed a neck pocket out on my body, see image, and now I am ready to calculate the bridge placement. Does anybody know what scale length is used for the EX-1?

    Click image for larger version.

Name:	12249817_10153224105582596_2942090635493019539_n.jpg
Views:	204
Size:	54.6 KB
ID:	6637

    Thanks

  7. #7
    Nevermind, I'm being stoopid! I can measure the length myself!

  8. #8
    Moderator Gavin1393's Avatar
    Join Date
    Sep 2012
    Location
    Mindarie, Western Australia
    Posts
    3,152
    The Explorer is typically a 24.75 inch scale length.
    http://www.buildyourownguitar.com.au/forum/image.php?type=sigpic&userid=1258&dateline=1443806  448Gavmeister

  9. #9
    Thanks 👍 I think I have worked out where the bridge goes... I'll know when I try to play it!!! 😂
