    Rabz ST-1 Inattentive Diary

    Hi Ho Fellow Hacks and Guru's,

    What follows here will be an inattentive build diary of my attempt at a lime washed ST-1.

    The proposal:
    A basswood ST-1 that will have a lime-wash look, sort of a Mary Kaye finish (but not really).

    Water-based walnut stain to pop the grain.

    Water-based liming stain & varnish - an F&W product.

    Clear water-based Cabothane to hold it all together and give it a hard (enough) finish.

    Undecided whether it will have a going over with cutting compound. That will depend on what it looks like after the final poly coat.

    It is an inattentive build diary as time to "share with the world" in a stalkbook fashion just isn't available, nor is it in my DNA.

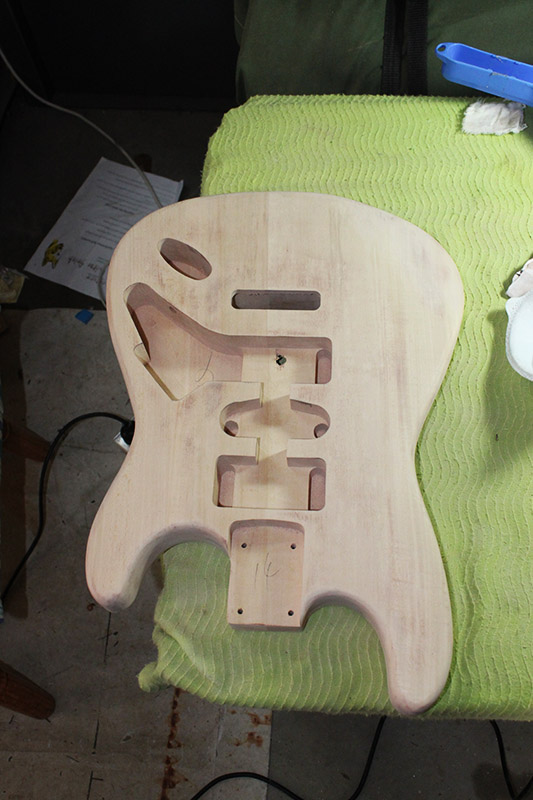

    So the first steps:
    Neck & Headstock
    Click image for larger version.

Name:	Neck 02.jpg
Views:	157
Size:	243.9 KB
ID:	5945Click image for larger version.

Name:	Headstock 01.jpg
Views:	165
Size:	275.6 KB
ID:	5946

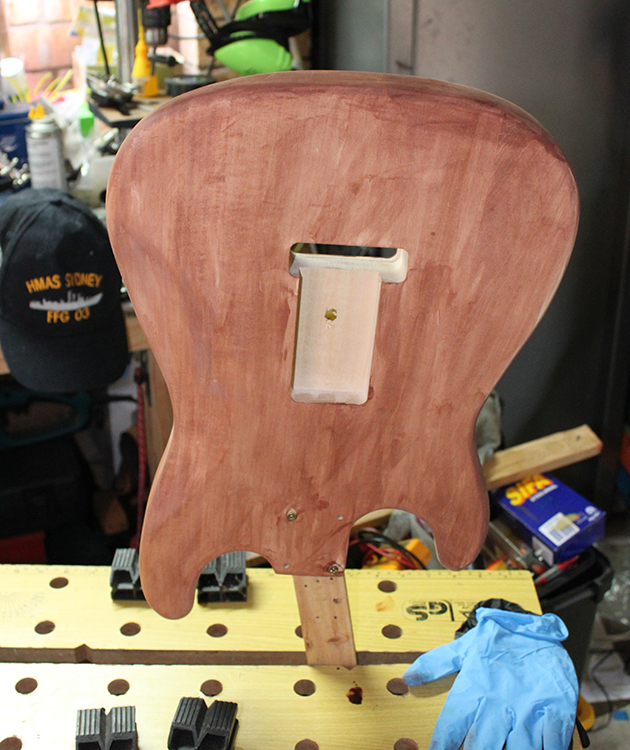

    Body after staining with walnut stain diluted by 10 or 15% with water:
    Click image for larger version.

Name:	Front Stained 01.jpg
Views:	167
Size:	180.8 KB
ID:	5947Click image for larger version.

Name:	Rear Stained 01.jpg
Views:	175
Size:	415.6 KB
ID:	5948
    Col.

    I admit that I am an agent of Satan, however, my duties are largely ceremonial.

    \m/

  2. #2
    Mentor Rabbitz's Avatar
    Join Date
    Apr 2015
    Location
    Barossa Valley, South Australia
    Posts
    765
    I should have said that the neck and headstock is simply hand-rubbed clear Cabothane.

    This is in an effort to let the timber be the timber.
    Col.

    I admit that I am an agent of Satan, however, my duties are largely ceremonial.

    \m/

  3. #3
    GAStronomist stan's Avatar
    Join Date
    Aug 2013
    Location
    Geelong, Vic
    Posts
    5,290
    that cabothane comes up well, looks good

  4. #4
    Mentor Rabbitz's Avatar
    Join Date
    Apr 2015
    Location
    Barossa Valley, South Australia
    Posts
    765
    Ok so the stain is knocked back and it is rubbed down to 400 grit.

    Next step will be a very thin clear coat, followed by three lime wash coats.

    Wish me luck!

    Click image for larger version.

Name:	Front Stain Knocked Back 01.jpg
Views:	172
Size:	117.5 KB
ID:	6126Click image for larger version.

Name:	Back Stain Knocked Back 01.jpg
Views:	150
Size:	115.3 KB
ID:	6127
    Col.

    I admit that I am an agent of Satan, however, my duties are largely ceremonial.

    \m/

  5. #5
    Overlord of Music
    Join Date
    Aug 2012
    Location
    Brisvegas
    Posts
    3,356
    Is the clear coat before to grain fill? I would have thought the lime wash be more effective on to raw wood.
    'As long as there's, you know, sex and drugs, I can do without the rock and roll.'

  6. #6
    Mentor Rabbitz's Avatar
    Join Date
    Apr 2015
    Location
    Barossa Valley, South Australia
    Posts
    765
    Hi Pabs,

    I will be using an F&W limewash & varnish combination.

    The reason I decided on the clear coat is to seal the stain. While I was experimenting I found the limewash/varnish would soften and lift the stain onto the brush and rag. Which means it was all a bit messy. So I am trying to put a bit of a clear barrier between them.

    Here are couple of shots after the clear coat:
    Click image for larger version.

Name:	Front after sealer clear coat 01.jpg
Views:	195
Size:	127.5 KB
ID:	6128Click image for larger version.

Name:	Back after sealer clear coat 01.jpg
Views:	156
Size:	114.6 KB
ID:	6129

    Looking OK so far...
    Col.

    I admit that I am an agent of Satan, however, my duties are largely ceremonial.

    \m/

  7. #7
    Mentor Rabbitz's Avatar
    Join Date
    Apr 2015
    Location
    Barossa Valley, South Australia
    Posts
    765
    Well I'm about four of my three hand rubbed coats of the Lime Wash / Varnish in. (Yes, you read that right).

    Frankly it doesn't look much different to the photo's above.

    I like the smoothness of the hand rubbed finish, but it'll take about ten or more coats due to the thinness of the coats.

    I feel like I should do a couple of thick brush coats, but I know that will create a different load of work when it comes time to smooth it all out.

    Any suggestions, other than "patience Grasshopper" or "shut up and keep applying"?
    Col.

    I admit that I am an agent of Satan, however, my duties are largely ceremonial.

    \m/

  8. #8
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    Hi Rabbitz, sounds like thick coats will just be too uneven and cause too much sanding later, so as DB always says best apply several thin coats so patience will pay off
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  9. #9
    Mentor Rabbitz's Avatar
    Join Date
    Apr 2015
    Location
    Barossa Valley, South Australia
    Posts
    765
    Trouble is, I am sitting around at home with tonsillitis, so my patience is lacking and what is left is really being taxed!

    Did a couple more sneaky coats today (Don't tell SWMBO) but it is frustrating.
    Col.

    I admit that I am an agent of Satan, however, my duties are largely ceremonial.

    \m/

  10. #10
    Mentor Rabbitz's Avatar
    Join Date
    Apr 2015
    Location
    Barossa Valley, South Australia
    Posts
    765
    Click image for larger version.

Name:	A bit lighter01.jpg
Views:	168
Size:	119.6 KB
ID:	6204

    I think it is whitening up.

    I think

    About 7 liming coats.
    Col.

    I admit that I am an agent of Satan, however, my duties are largely ceremonial.

    \m/
