Thread: Loose Neck Cavity

  1. #1

    Loose Neck Cavity

    Hi All,
    Would anyone be able to advise on a good way to deal with a loose neck cavity? Just over a millimetre gap.

    I can comfortably slot one card in without a problem and second one with little resistance.

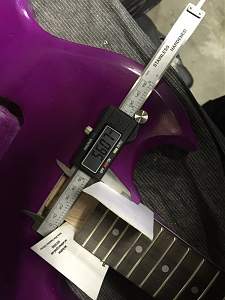

    The heel? or end of the neck measures at 54.9 mm
    Click image for larger version.

Name:	P07. Neck Heel.JPG
Views:	223
Size:	265.6 KB
ID:	3908

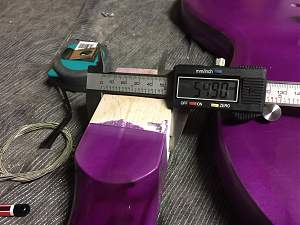

    and the cavity measures 56.07
    Click image for larger version.

Name:	P08. Neck Cavity.JPG
Views:	233
Size:	233.9 KB
ID:	3909

    Thank you.

  2. #2
    Mentor Nickosaurus's Avatar
    Join Date
    Mar 2014
    Location
    Adelaide
    Posts
    1,077
    Check out Pab's EX build diary. He glues veneers in the joint to create more tension.

  3. #3
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    Devon if you can find some 0.6mm thick veneer glue to each side of the pocket sides and sand back a bit if required
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  4. #4
    Veneers eh. Ok sounds like a plan.

    Thanks Nick.
    Thanks Woks.
