A few weeks ago I picked up an ST-1 kit less hardware, I have an old Legend brand guitar with a body I mucked up by being overly aggressive with the power sander (and the body was only plywood anyway) which I will be using the hardware out of, I also ordered a black pickguard and the almost obligatory bone nut. A set of GFS Lil Killer rail pick-ups has been acquired, so it should sound ok. The finish will be loosely based on the Frankenstrat type look, with the base colour and striped overlay. I won't cover the basics like sanding and headstock shaping as they have been done before, but I will show how I did the body finish and a couple other bits and pieces.

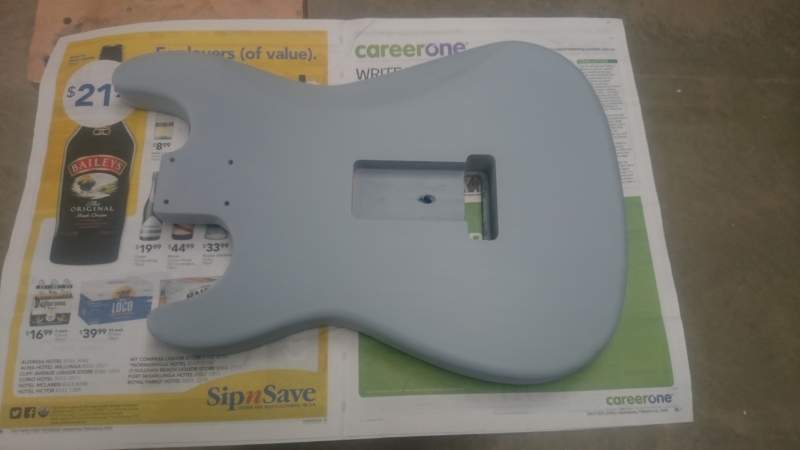

I started off by sanding, sanding and sanding some more, the filled the grain with watered down Timbermate to get as smooth as surface as possible. Then I sprayed with a couple of coats of automotive primer surfacer. I sanded that back when dry and it looked something like this:





Then went on the base coat of silver:

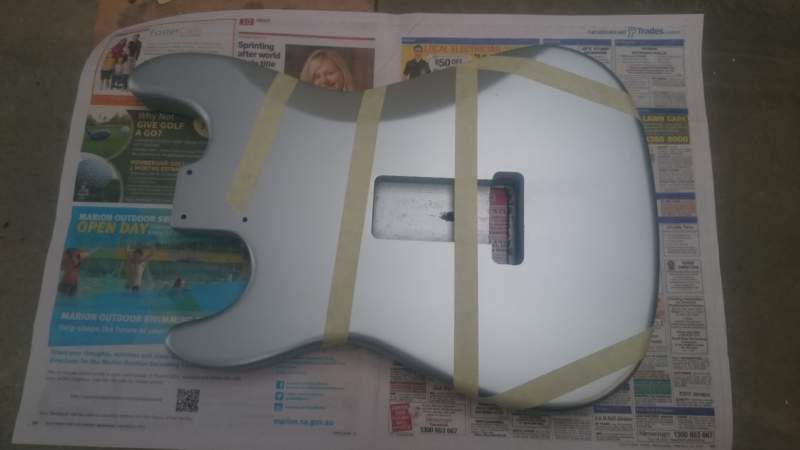

Masking up for the first stripes:



Cont...

[gavinturner]

Looking great Ian! That's a beautifully smooth surface you've created there. She's gonna shine like glass .

cheers,
Gav.

[jarrod]

Nice job Ian, looking forward to seeing this progress.

[TC1600]

Cheers Gav, if it comes up like you blue ST I will be rapt!

Anyway, more pics:



Second layer of colour, bright yellow:


(sorry, only got a pic of the back of that part)

More masking, then the top layer of blue:

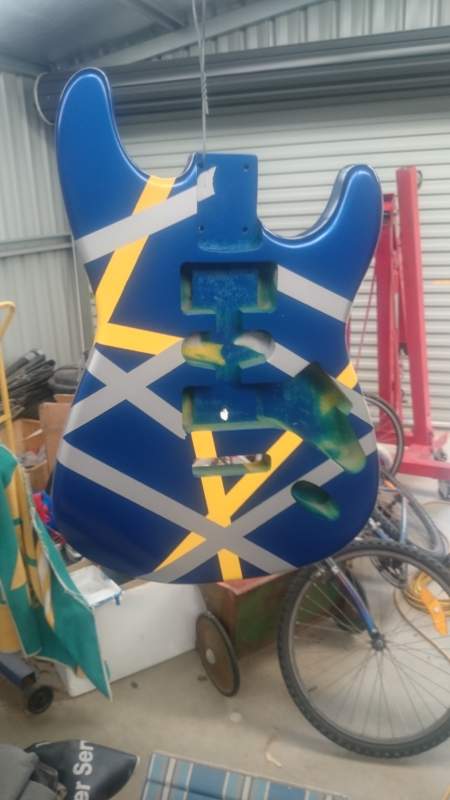

Once sufficiently dried, the masking was removed, and voila!





So now I'll leave for a couple of days to dry, then start on the clear coats. It will take a few to fill the trenches where the masking tape was, so could take a while! Might have to invest in a heat lamp to help speed up the process.

[keloooe]

That looks really cool TC!

[maxaxe]

While not a fan of Frankenstrats, I must say this looks to be an outstanding job so far.
IMHO your colour scheme mitigates the garishness of the usual variety of these axes.
Oughta look bonzer when she's completed . . .

[Brendan]

Nicely done!

[stan]

you are doing a great job here!

[gavinturner]

Stripes look great Ian! She's really coming along. What are you going to use for clear coats??

cheers,
Gav.

[TC1600]

I got a can of automotive acrylic clear when I picked up the colours, I've put the first clear coat on and it should come up alright I think
