Thread: First Scratch build.

  1. #1
    Here is my first attempt at a scratch body. The rest of the parts were all sourced from spares I had laying around.

    The body is made of extremely rare and exotic radiata pine. No Finish on it as of yet. Not sure if I will actually use this body, even though it turned out pretty good. I will probably strip it and use the parts elsewhere.

    But for now it plays and sounds quite good. So I'll leave it together until after this weekends session.



  2. #2
    Mentor robin's Avatar
    Join Date
    Feb 2013
    Location
    Brisbane
    Posts
    1,513
    Well done Dan, looks great. I am very envious, I don't think I could ever accomplish a scratch build, let alone know where to get some very rare exotic radiata pine

    rob

  3. #3
    GAStronomist stan's Avatar
    Join Date
    Aug 2013
    Location
    Geelong, Vic
    Posts
    5,290
    looks pretty good Dan, pine is not a lot different from basswood, and I think some early Fenders were in a pine of sorts.
    doesn't matter what the wood is - if it sounds good, then it is good.

    How did you go about getting the neck fit correct?

  4. #4
    It's a bit on the thin side, only 35mm. But I will probably try another pine build with some 45's.

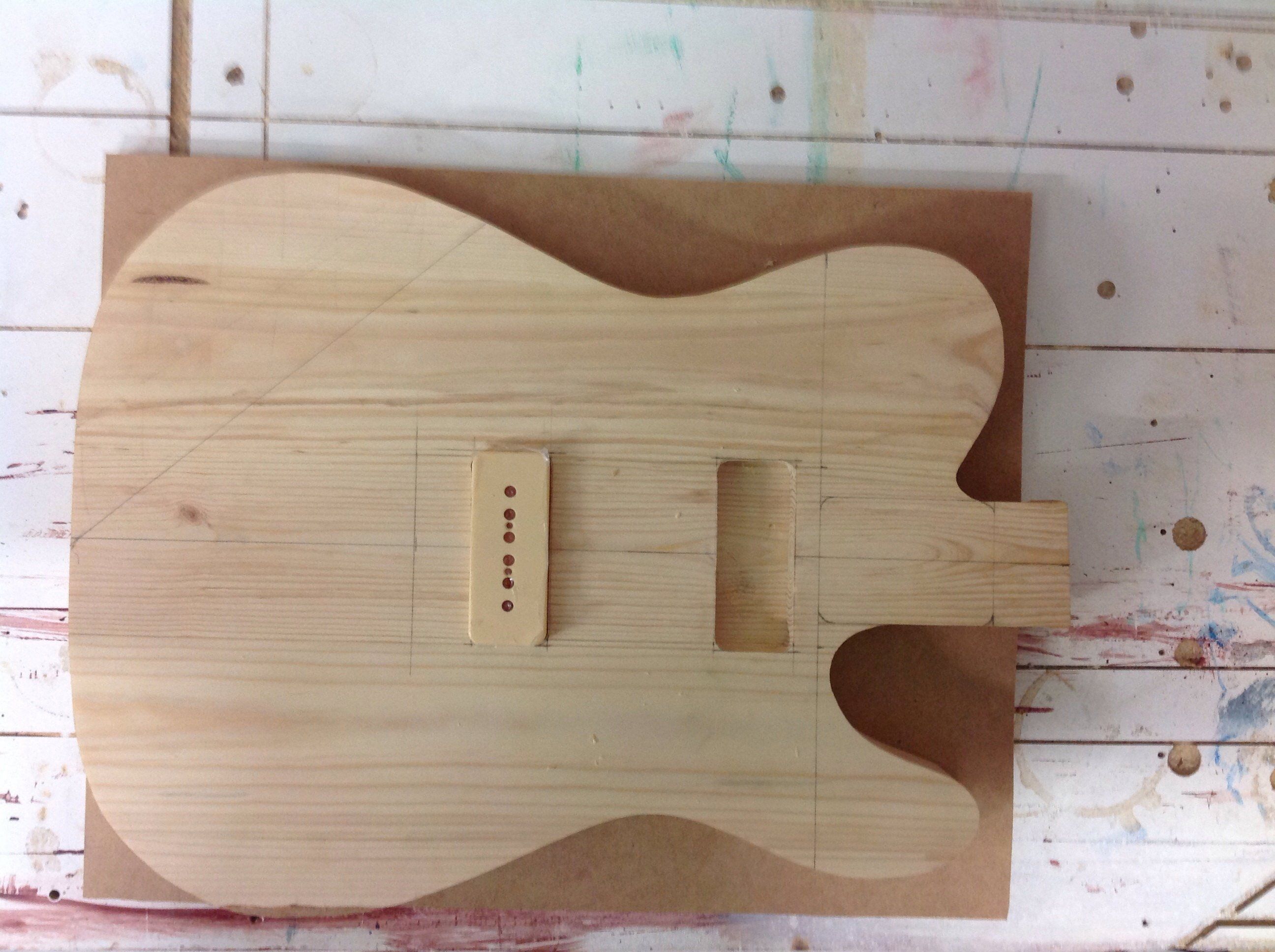

    Stan, I made templates for all the cut outs. So it was just a matter of keeping everything square. I scribed a center line at the start and just worked everything from that.

    I will post a pic of the templates I made.

    The pine(90x35)was just some off cuts from some benches I made. I just trued the edges up with an electric plane. Then glued them between some sash cramps.

    I only have a 1/4 inch trimmer so I had to keep all my rough cuts within 1.5mm so the router could handle it. I was actually impressed with how well the bosch trimmer worked. The only downside with a 1/4 inch router is the router bits only do about a 25mm deep cut,so you need to flip the body over and make a pass from the opposite side.

    It's possible to build a guitar body with just a 1/4 inch trimmer/router, but not ideal.

  5. #5
    Here are some shots of the templates and the router and bits I used.


  6. #6
    Mentor
    Join Date
    Aug 2013
    Location
    Mackay
    Posts
    1,276
    Dan, that is mighty fine. And exotic timbers always make a classy guitar. Seriously though, I am like Robin in that I could never do it. I don't have the skills. Well done.

  7. #7
    Mentor
    Join Date
    Aug 2013
    Location
    Mackay
    Posts
    1,276
    Dan, that is mighty fine. And exotic timbers always make a classy guitar. Seriously though, I am like Robin in that I could never do it. I don't have the skills. Well done.

  8. #8
    I'm sure any of you guys could give it a go. A basic body like this doesn't require to much skill. Just some simple planing and preparation. It's just cutting out shapes. And could be done with only a jigsaw and router. Well there is a lot more to it than just that, but as far as shaping a piece of timber is concerned. It's not to hard.

    I am a cabinet maker and have many tools of the trade that just so happen to be great for guitar building too, so that is a plus. But if you are already shaping your own headstocks, why not have a go at a body.

    Necks on the other hand.....

  9. #9
    GAStronomist stan's Avatar
    Join Date
    Aug 2013
    Location
    Geelong, Vic
    Posts
    5,290
    terrific pics Dan, thanks

  10. #10
    Overlord of Music Fretworn's Avatar
    Join Date
    May 2013
    Location
    Hornsby Area, Sydney, NSW
    Posts
    3,951
    P90 Tele. Awesome.
    Current:
    GTH-1

    Completed:
    AST-1FB
    First Act ME276 (resurrected curb-side find)
    ES-5V
    Scratchie lapsteel
    Custom ST-1 12 String
    JBA-4
    TL-1TB
    Scratch Lapsteel
    Meinl DIY Cajon
    Cigar Box lap steel

    Wishing:
    Baritone
    Open D/Standard Double 6 twin neck
