Thread: First Build - IC-1 Custom 7 String

  1. #31
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    9,186
    Looks very nice indeed.

    Your cavity shielding needs a tiny bit more work though. It's far more effective if you fully enclose the cavity with grounded shielding, which means putting tape on the underside of the cavity cover and running the cavity tape up over and around the recess for the cover, so that the cover copper is grounded by its touching the copper on the recess on the cavity.

  2. #32
    Member
    Join Date
    Mar 2021
    Location
    Perth, WA
    Posts
    26
    Quote Originally Posted by Simon Barden View Post

    Your cavity shielding needs a tiny bit more work though. It's far more effective if you fully enclose the cavity with grounded shielding, which means putting tape on the underside of the cavity cover and running the cavity tape up over and around the recess for the cover, so that the cover copper is grounded by its touching the copper on the recess on the cavity.
    Ah I wish I saw this comment before I finished stringing up, I didn't notice any interference when I played it, but I do have a noise gate pedal. At least if I notice anything further down the track adding the shielding tape isn't an issue.

    I'll be posting images of the finished product later today!

  3. #33
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    9,186
    You won’t pick up much interference at all from the control cavity in most situations, but you can find there are some electrically noisy locations where shielding the cavity does quieten things down. You’ll be playing with high gain most of the time, which will magnify any hum, but your noise gate will mask any of that.

    I just thought as you’d gone to the trouble of lining the cavity, you might as well get the full benefit from it with a little extra tape. You do need to fully cover the underside of the lid, but you only need run some tape up to one of the screw locations if you want, rather than all the way around the rebate. The screw will ensure the copper is held together well enough for good electrical continuity.

  4. #34
    Member
    Join Date
    Mar 2021
    Location
    Perth, WA
    Posts
    26

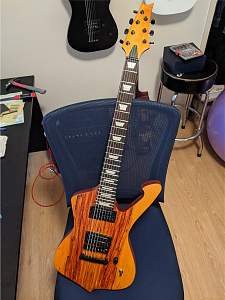

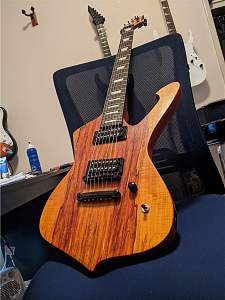

    Finished product!

    Here it is!

    Click image for larger version.

Name:	Ey3opRu.jpg
Views:	53
Size:	950.0 KB
ID:	40461

    Click image for larger version.

Name:	GfooBPH.jpg
Views:	55
Size:	904.7 KB
ID:	40460

    Very happy with how this has turned out, the slight sheen on the top is exactly what I was after.

    Getting used to playing a 7 again (after about 4 years of not owning one) is taking longer than I anticipated.

    There are still a few tweaks I want to make before I am fully satisfied but nothing a good setup won't fix.

    Now to decide on a name for this guy... i'm thinking either IC-277 (7 strings, 27" scale length). I might end up 3D printing a logo and sticking it on the headstock at a later stage.

    I plan on taking some more/better photos on the weekend when the sun is out. But for now, I desperately need to practice

  5. #35

  6. #36
    Member Trevor Davies's Avatar
    Join Date
    May 2020
    Location
    Perth
    Posts
    472
    She looks great. Well done. The colours look great.
    Build #1 - FVB-4
    #2 - LP-1SS
    #3 - FBM-1
    Semi-scratch Explorer - Rebuild Diary
    #4 - AG-2 - Runner up GOTM May 2021
    #5 - TB-4
    Scratch Build #2 - Axe Bass
    #6 - TLA-1 - Current

  7. #37
    Member
    Join Date
    Sep 2020
    Location
    NSW, Australia
    Posts
    142
    That looks amazing. I would be very pleased with that.
