Thread: GST-1 build

  1. #1

    GST-1 build

    Hello everyone,

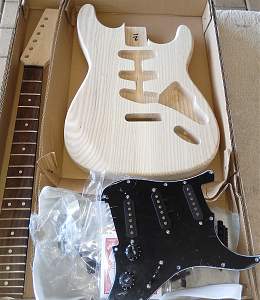

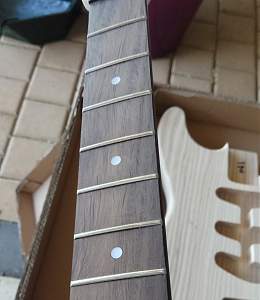

    This week my next (3rd) kit arrived, a beautiful gst kit. Nice ash body with a really nice Jatoba fretboard.

    Click image for larger version.

Name:	B6B3A53A-EDB2-4AB8-9BF0-955B5099199C.jpeg
Views:	14
Size:	574.5 KB
ID:	34325Click image for larger version.

Name:	CDE58E2C-7E30-46EE-95A6-A67CE2101841.jpeg
Views:	14
Size:	397.7 KB
ID:	34326Click image for larger version.

Name:	E2D9D2A5-0D41-48CE-B790-E29132D3F012.jpeg
Views:	15
Size:	479.7 KB
ID:	34327

    My plan with this one is to have a finish similar to the below guitar. Iím going to use the Shou Sugi Ban method to darken the grain and Karijini red dingotone to get the red look.

    Click image for larger version.

Name:	7FC02855-2A45-4DC2-9F85-EDBCC9BB3AEB.jpeg
Views:	15
Size:	122.9 KB
ID:	34328

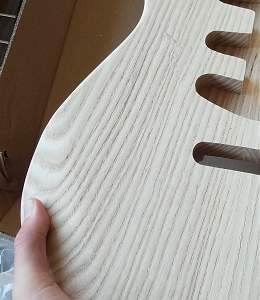

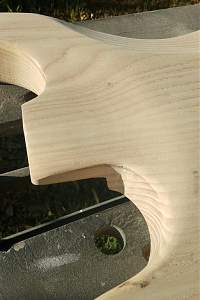

    Iím actually a day late on starting this thread so I did a bit of work on it yesterday. These two body modifications have been on my wish list for a while and they work well on this kit- a larger arm contour and a reduced neck pocket heel thingy (whatís the proper name?). Iím happy with the forearm contour, thatís just smoothing out now, but the other I went further than planned due to a large sander. I hope it grows on me and hopefully it looks fine once sanded smooth.

    Click image for larger version.

Name:	628EB726-530D-447A-9EB5-4AA197B41AEC.jpeg
Views:	12
Size:	373.9 KB
ID:	34329

  2. #2
    Hereís the other picture, couldnít add it above

    Click image for larger version.

Name:	92419BC2-C9A1-4B9F-B635-F1916AA7429E.jpeg
Views:	11
Size:	431.6 KB
ID:	34330

  3. #3
    Overlord of Music Sonic Mountain's Avatar
    Join Date
    Jul 2017
    Location
    Toowoomba, Qld.
    Posts
    2,759
    I've done similar on a few of mine. Forum uploader only allows 5 pics per post. You can use Imgur and hotlink to get around that.
    Build 1 - Shoegazer MK1 JMA-1
    Build 2 - The Relliecaster TL-1
    Build 3 - The Black Cherry SG AG-1
    Build 4 - The Sonicaster TL-1ish
    Build 5 - The Steampunker Bass YB-4
    Build 6 - The Howling Gowing ST-1

    "What I lack in talent I make up for with enthusiasm"

  4. #4

    Progress

    Iím back with some progress shots.

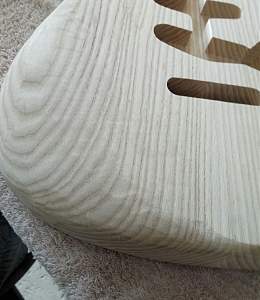

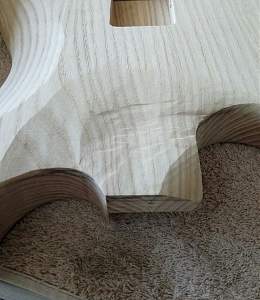

    First off is the smoothed out sanding on the back- came out better than expected and feels very nice.
    Click image for larger version.

Name:	EEFC11DB-E9F3-44D8-8CAF-A078AA558B50.jpeg
Views:	11
Size:	357.2 KB
ID:	34552

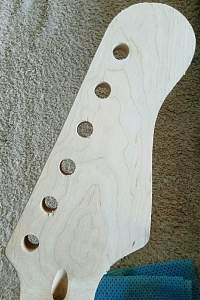

    Headstock has been shaped and I like it, somewhere between tele and strat.
    Click image for larger version.

Name:	DABAB3D1-4674-49E8-9A5F-25258958EF02.jpeg
Views:	10
Size:	412.5 KB
ID:	34553

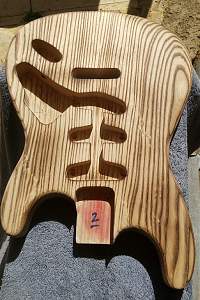

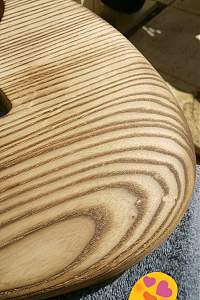

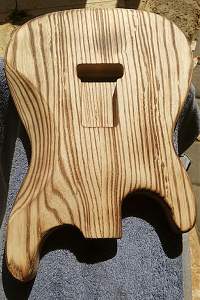

    Then came the fun part- Fire! Using a blowtorch attached to the bbq gas bottle, I burnt the surface of the wood, darkening the grain and turning the wood a slightly darker colour. This Japanese technique is called Shou Sugi Ban and was actually originally used for waterproofing wood (once burnt and sanded it is sealed with a particular oil). Iíve seen it done a few times on guitars, Crimson guitars over in the UK have done it once or twice on youtube. Anyway this came out extremely well and after some wire brushing, became really textured and 3d. The extra curve on the forearm contour really shows off the burning and brushing.
    Click image for larger version.

Name:	B2939BFB-5AA1-47E9-98EB-F58948EC48ED.jpeg
Views:	10
Size:	537.1 KB
ID:	34554 Click image for larger version.

Name:	C411AF00-CFFF-4C27-BB33-DA8B5A587DA2.jpeg
Views:	11
Size:	544.3 KB
ID:	34555 Click image for larger version.

Name:	597693C6-3B2F-467A-B13B-6D237DAEC59C.jpeg
Views:	11
Size:	509.5 KB
ID:	34556

    Tomorrow is onto staining with some karrijini red dingotone. Contemplating staining the face of the headstock to match, thoughts?

  5. Liked by: Cliff Rogers

  6. #5
    Mentor jugglindan's Avatar
    Join Date
    Sep 2019
    Location
    Canberra
    Posts
    668
    I love it! IMHO it looks much better than the mock-zebrawood. Similar effect and intent, but this looks more natural.

  7. #6

    Colour

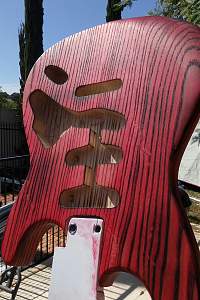

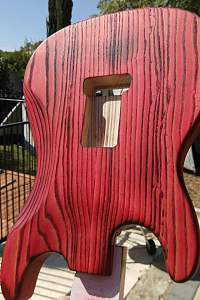

    I had a successful morning adding colour to the guitar. I used Karijini red dingotone and man this stuff is nice to use. Definitely going to be using it again in the future.

    Click image for larger version.

Name:	F2F663B6-284B-43E6-BE28-DAB790D6BD8F.jpeg
Views:	12
Size:	528.0 KB
ID:	34576 Click image for larger version.

Name:	6F1105B1-177E-4ADC-A361-DA19ECB03A28.jpeg
Views:	12
Size:	431.3 KB
ID:	34577 Click image for larger version.

Name:	962D143E-801E-47A2-A080-2185F1EA76B6.jpeg
Views:	13
Size:	423.7 KB
ID:	34578

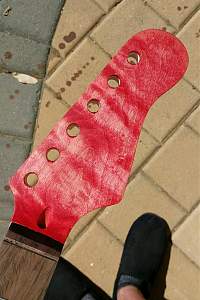

    I stained the headstock face as well, it feels more complete and whole. Iím loving the colour and canít wait to put the intensifying coats on as Iíve heard it works wonders.

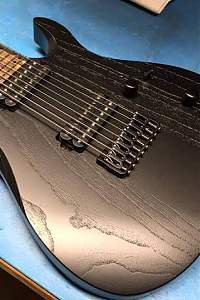

    For a long time Iíve wanted to replicate Jim Rootís jazzmaster (left) yet I prefer what Iíve done- more red and it feels cleaner (if that makes sense). Iím planning my next build and it may well be a jazzmaster in a similar style to this. Could be similar to kieselís raw tone finish (right) which I accidentally discovered while sanding this body. I used spray paint to indicate where I had sanded and where I hadnít (removes highs and lows) and because I had wire brushed the body already, it came out like the below picture. Stunning.

    Click image for larger version.

Name:	C5C233E2-C74E-474B-A6F0-3730F6507459.jpeg
Views:	13
Size:	502.7 KB
ID:	34579 Click image for larger version.

Name:	4A3847FA-148E-4C04-8BD1-A71CAB39BF1E.jpeg
Views:	12
Size:	364.5 KB
ID:	34580


  8. #7
    Oops. The stain on the headstock has come through to the back and seeping down the sides. Iím guessing I canít sand it off? Does this mean I have to stain the whole neck? Can I with this stain kit, itís not specified as a neck kit.

  9. #8
    Overlord of Music Andy40's Avatar
    Join Date
    Oct 2015
    Posts
    3,774
    You can sand it off, as its oil based it will take a bit of sanding but it will sand out mate. I usually tape it off before staining.
    Build #1 - ST-1 - Completed
    Build #2 - LP-1SS - Completed
    Build #3 - TLA-1R - Completed
    Build #4 - SGD-612 - Completed
    Build #5 - ES-1G - Completed
    Build #6 - STA-1HT | Completed
    Build #7 - ST1JR - Completed
    Current Build #8 - JBA-4
    Build #9 - Semi-scratch build Tele x 2 - Completed
    Current Build #10 - PRS-1H
    Current Build #11 - AGJR-1 - Completed
    Current Build #12 - ATL-1SB
    Current Build #13 - GST-1
    Current Build #14 - FBM-1

  10. #9

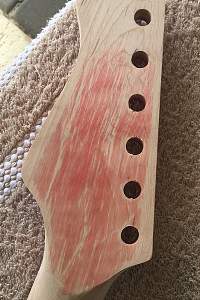

    Andy, I thought I couldnít because the stain has travelled through the headstock and come out the back of it. Same thing happened on the body- applying stain on the back and it came through to the control cavity. If I sand, wouldnít I keep sanding to it as it Ďfillsí the wood? Iíd get rid of the surface stain but then the layer underneath would be stained as well.

    Hereís the bottom of the headstock for some visuals-
    Click image for larger version.

Name:	A7647C31-A127-421A-9B63-503BBA34D89B.jpeg
Views:	12
Size:	594.8 KB
ID:	34590

  11. #10

    Problem solved

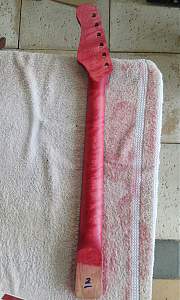

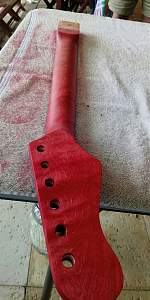

    Problem- stain went through headstock and onto the back of it. Looked bad, hard to clean up.

    Solution- stain the whole neck!

    Click image for larger version.

Name:	C2ED9FA5-5F1B-4745-BCC0-CCA8734CF96F.jpeg
Views:	13
Size:	508.6 KB
ID:	34592 Click image for larger version.

Name:	23F5CAC6-07E8-4420-8516-28887F233CDB.jpeg
Views:	12
Size:	375.3 KB
ID:	34593

    Iím rather happy that I did this, it looks quite nice and brings out those shiny stripes (minor quilting i think).
