    Have you copper shielded the cavity?
    If so, you wont need an earth jumper across the pots.
    Other than that, wot Tin said

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....

  2. #62
    I did shield it, but it was at about 2am, and upon inspection today I did a terrible job of it. Gaps everywhere

    I'll try redoing it better, and grabbing a multimeter today. I sanded the paint off the back of the bridge but that didn't help at all either. Touching the pots also doesn't reduce hum so I'm wondering if they're not part of the circuit or something too...

  3. #63
    If you can't find the fault, post some pics of your wiring and we'll see if we can spot any problems.
    Scott.

  4. #64

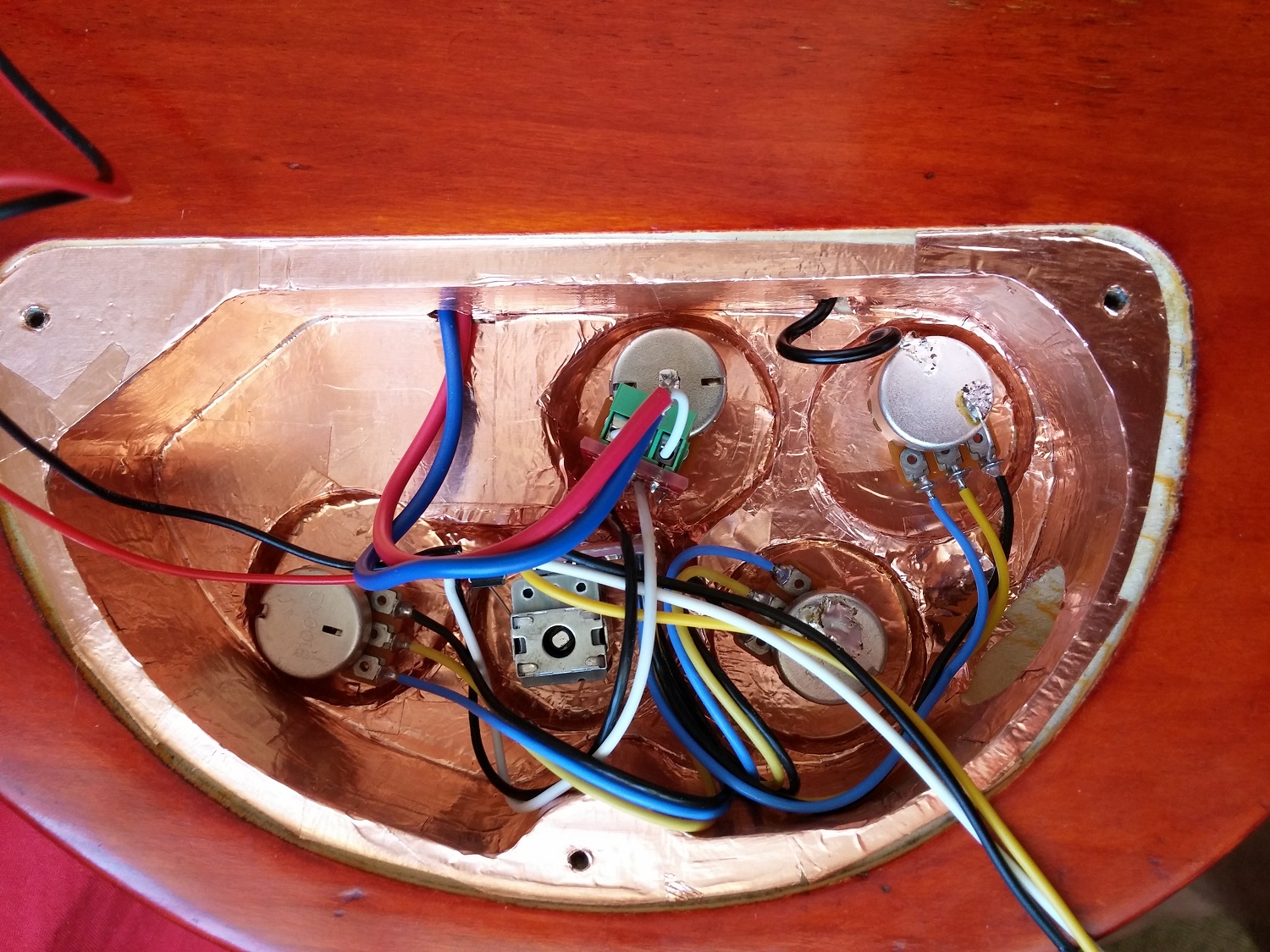

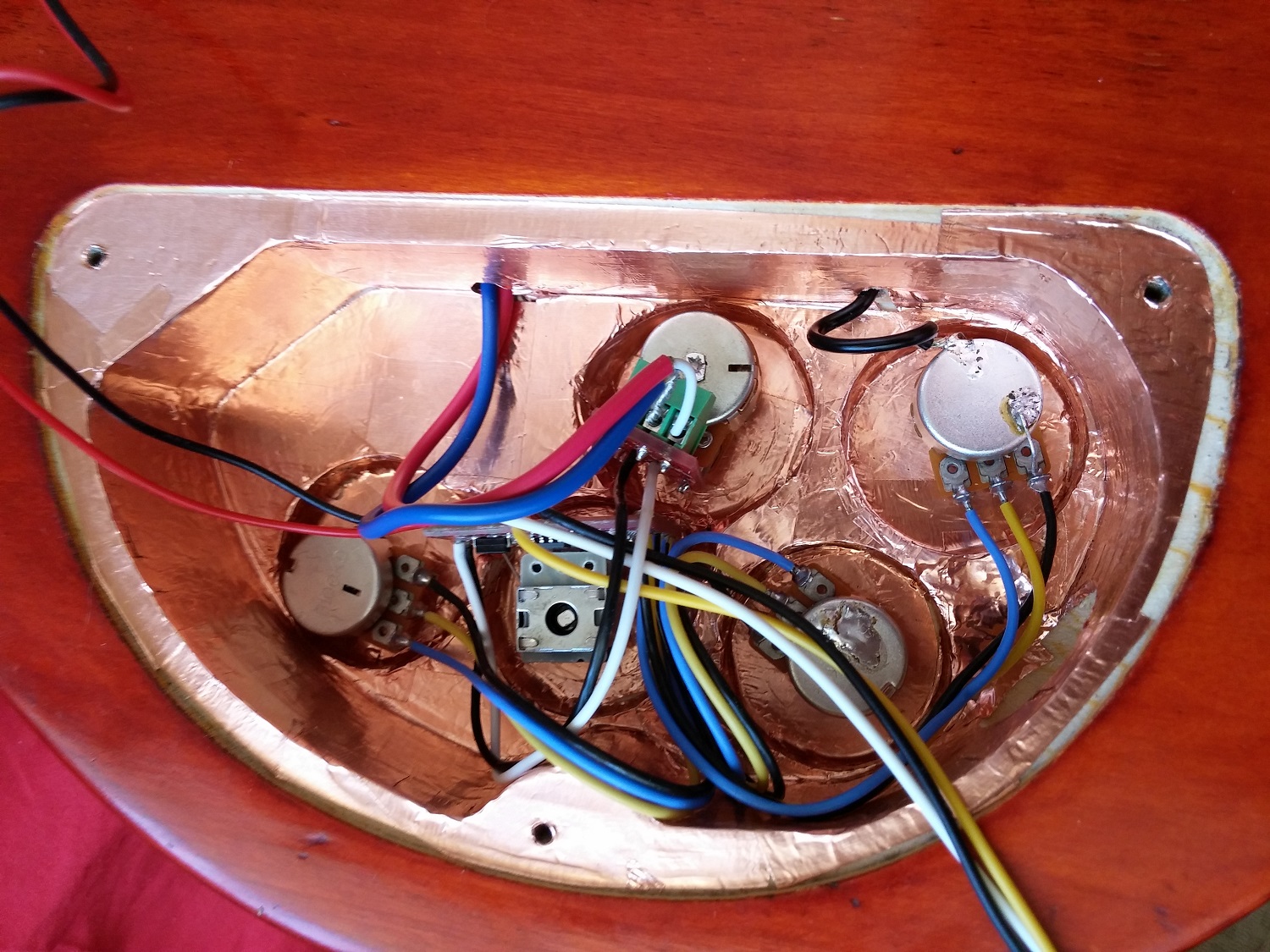

    Pretty messy. Multimeter says everything is connected. I'm probably missing something really obvious though.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	20151025_160524.jpg
Views:	121
Size:	561.0 KB
ID:	6130   Click image for larger version.

Name:	20151025_160537.jpg
Views:	146
Size:	537.0 KB
ID:	6131   Click image for larger version.

Name:	20151025_160546.jpg
Views:	130
Size:	579.0 KB
ID:	6132

  5. #65
    Shielding with recessed pots can sometimes cause hard to find shorts, complicated with the preamp and the power/signal ground switching and separation. Just check that none of the pot lugs and/or circuit boards are touching the shielding. It may pay to put some electrical tape on the underside to the lugs to may sure they can't short with anything.

    Also, check the wiring digram for your preamp and make sure you have the grounds connected as specified. They often have the power negative connected to the jack for switching, but keep the signal grounds separate.
    Scott.

  6. Liked by: dingobass

  7. #66
    Moderator dingobass's Avatar
    Join Date
    Sep 2012
    Location
    Perth
    Posts
    4,491
    And don't forget to solder the joins in the shielding tape

    There is always a workaround for glitches, mistakes and other Guitar building gremlins.....

  8. #67
    There's no shorting, I did that the first time around but I fixed that, and I've made sure all the lugs aren't touching the shielding as well. The diagram just says to solder the bridge ground to the volume pot, which I've done, so I can't figure out where I'm going wrong.

    Apparently you don't need to, DB! The adhesive is conductive
    I sure hope I don't have to solder them anyway, there's about a million little pieces in there

  9. #68
    GAStronomist stan's Avatar
    Join Date
    Aug 2013
    Location
    Geelong, Vic
    Posts
    5,290

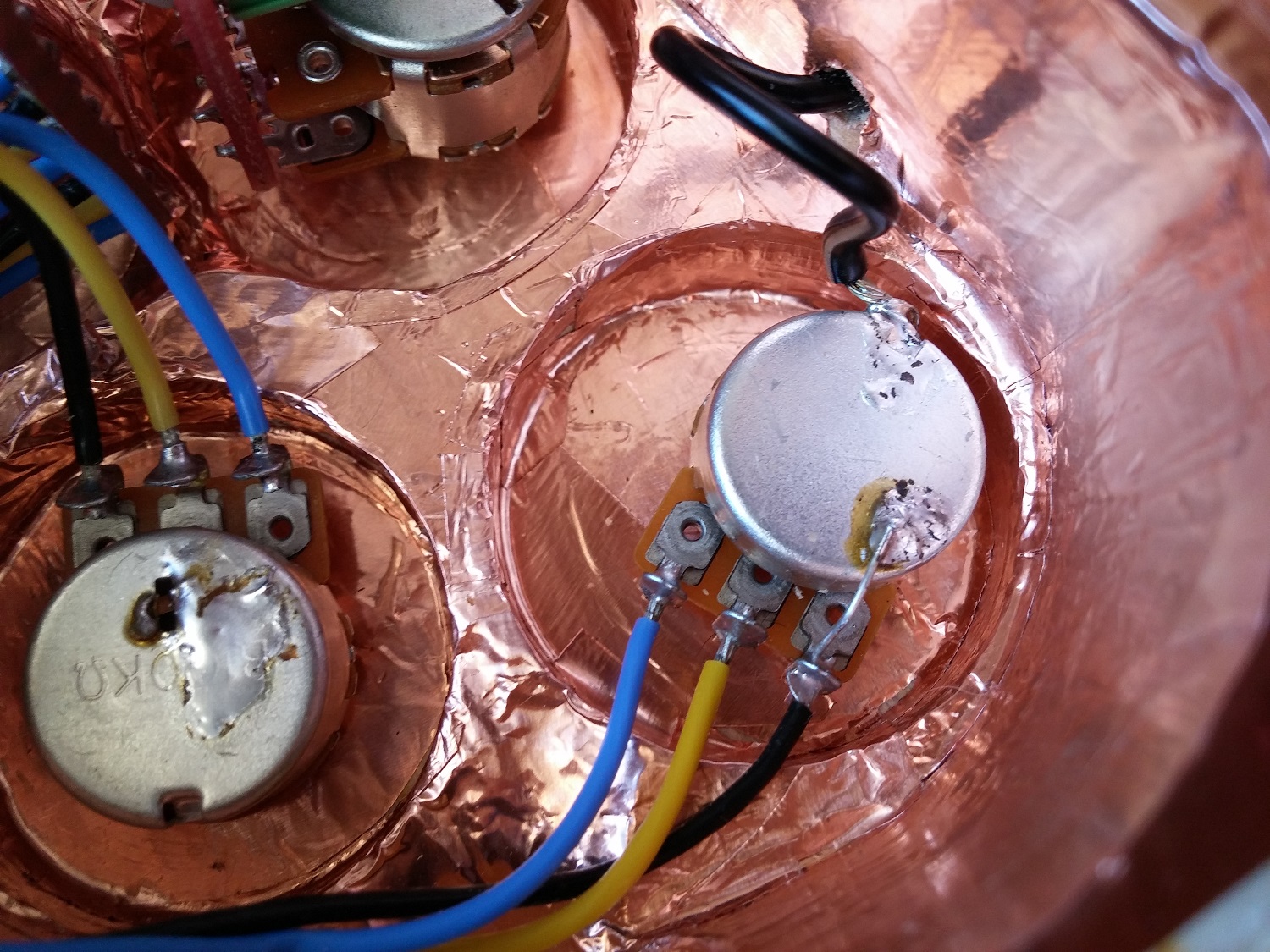

    whilst the shielding should work to create a connection between the pots, try running a wire from the volume pot to each pot in turn

    like the black wire going from pot to pot in this pic

    Last edited by stan; 25-10-2015 at 04:12 PM.

  10. #69
    Thanks Stan, I'll give that a shot.

    Should actually ask first, how noiseless should I expect this to be? I get the feeling I might just be expecting too much. I'm used to noiseless active pickups.

    Sorry for all the questions/problems, just not sure about a lot of this stuff. The strings are crazy high off the fretboard past the 12th fret, and lowering the saddles didn't do much. Any solutions?
    Last edited by Mechanixxxer; 25-10-2015 at 04:22 PM.

  11. #70
    GAStronomist stan's Avatar
    Join Date
    Aug 2013
    Location
    Geelong, Vic
    Posts
    5,290
    not personally familiar with this kit, but it shouldnt be noticeable, i would have thought

    post up some closeups and general shots of the action, this will help us give you some advice on the action
