    Starting to look very cool indeed.
    And I too like the vaguely "Baroque Stock".

  2. #42
    Hey Jacob the guitar is coming out amazing. I really like your headstock design. Looking forward to seeing this guitar when it's all strung up and rocking.

  3. #43

    Wiring

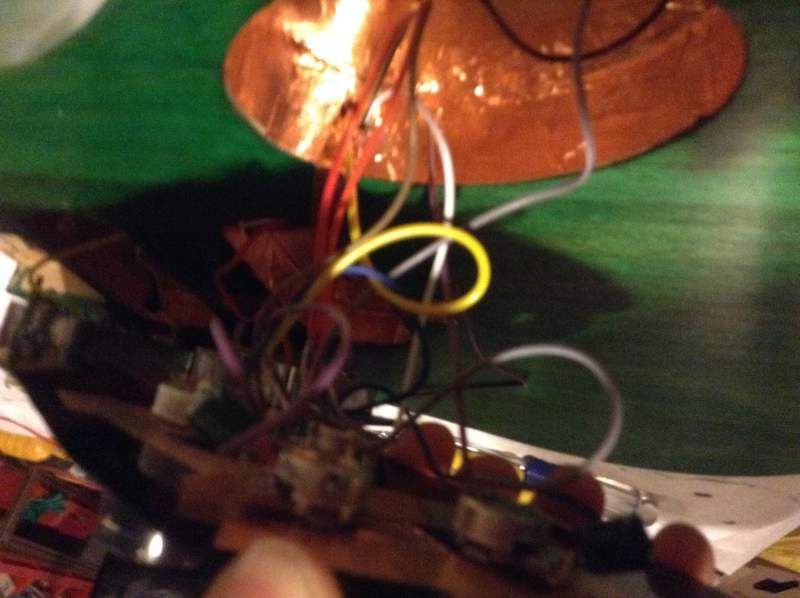

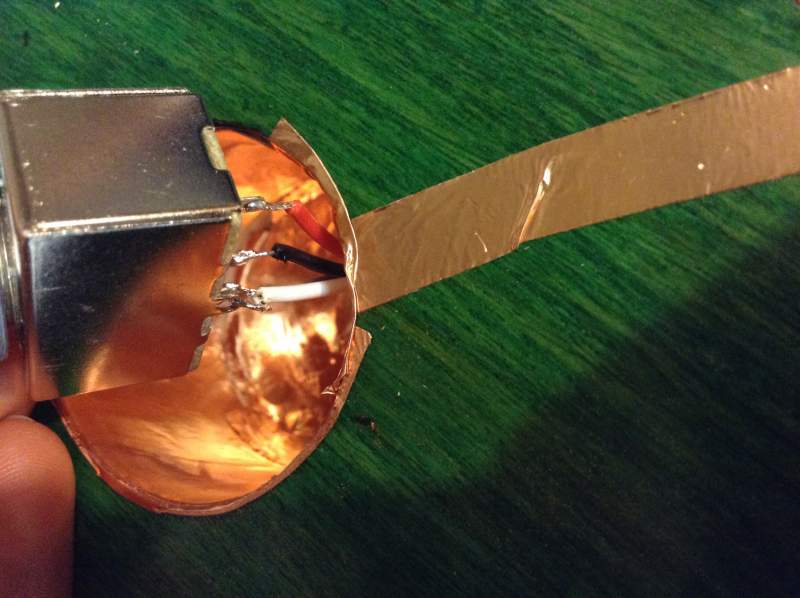

    I have finished the soldering of the guitar, it took a couple visits to my uncle's workshop and it worked out great. We tested the connection by tapping the pickups with a screw driver while it was plugged in, at first it didn't work because the output Jack was grounded out, as it was touching the Copper tape the we used to shield the guitar. We peeled out the tape inside the hole for the Jack, after that it worked as it was supposed to! Here are a few pictures of the wiring.
    Thanks,
    Jacob
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	image.jpg
Views:	168
Size:	43.7 KB
ID:	216   Click image for larger version.

Name:	image.jpg
Views:	135
Size:	46.8 KB
ID:	217

  4. #44
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    well done Jacob, you look like a pro with the soldering iron and wiring diagram on the bench.
    You must be close to screwing the neck in and stringing her up ?
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  5. #45

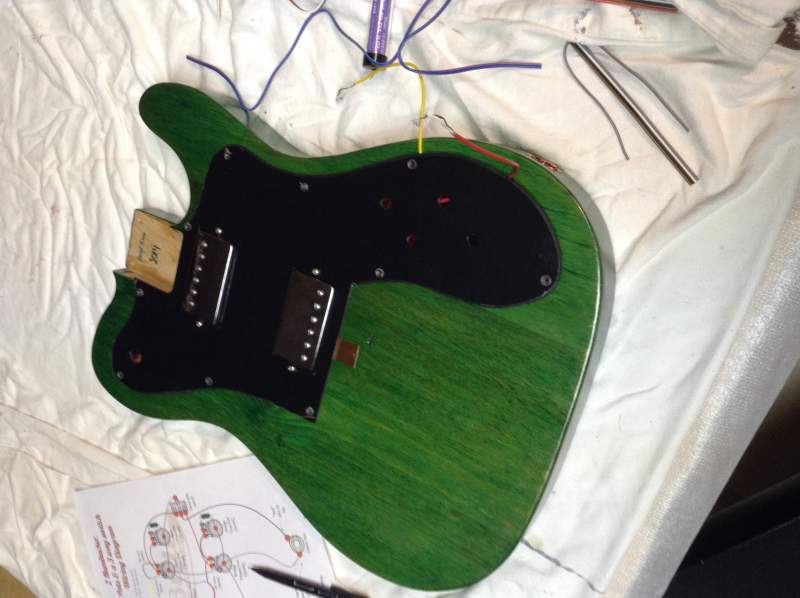

    Here are a few more pictures
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	image.jpg
Views:	157
Size:	37.7 KB
ID:	218   Click image for larger version.

Name:	image.jpg
Views:	136
Size:	50.0 KB
ID:	219   Click image for larger version.

Name:	image.jpg
Views:	159
Size:	46.4 KB
ID:	220

  6. #46
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    nice one Jacob. So the black wire on the output jack is going to the hot tip is that correct ? You since must have put an earth wire on the other lug.
    You do know there is a thin clear plastic protection sheet on the pickguard so make sure you remove that before you screw the pickguard in place.
    Looking good, love the black and dark green look
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  7. #47
    Overlord of Music gavinturner's Avatar
    Join Date
    May 2013
    Location
    HOLGATE NSW
    Posts
    3,057
    Looking great Jacob! Will be great to see it complete.

    cheers,
    Gav.
    --
    Build #01: BC-1
    Build #02: ST-1
    Build #03: JR-1DC
    Build #04: ES-2V
    Build #05: ESB-4 (GOTM July 2014)
    Build #06: RC-1
    Build #07: MK-2
    Build #08: TLA-1
    Build #09: JR-1DC
    Build #0A: LPA-1
    Build #0B: STA-1 (GOTM April 2015)
    Build #0C: MKA-2
    Build #0D: LP-1M
    Build #0E: JB-1
    Build #0F: FS-1

    Find me:
    https://www.facebook.com/firescreek.guitars/
    http://www.guitarkitbuilder.blogspot.com.au/

  8. #48
    Yes we made sure to remove the plastic
    Thanks,
    Jacob

  9. #49

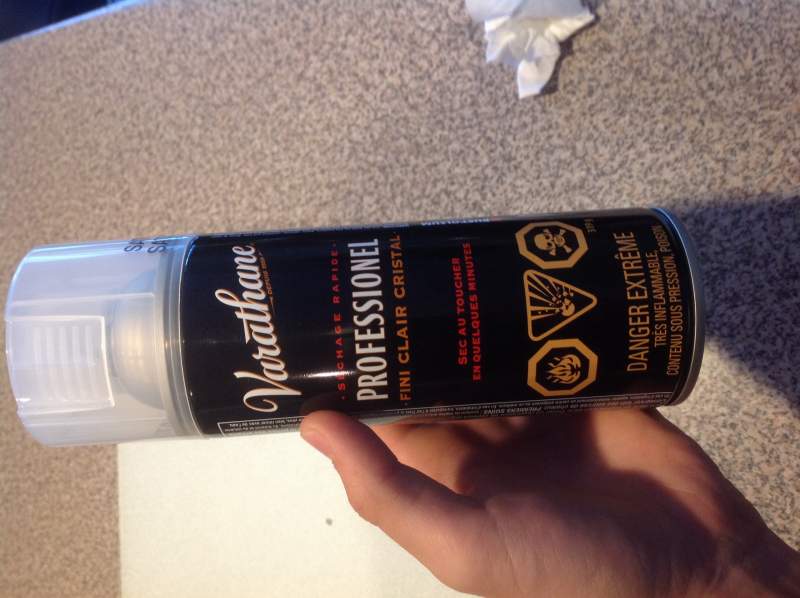

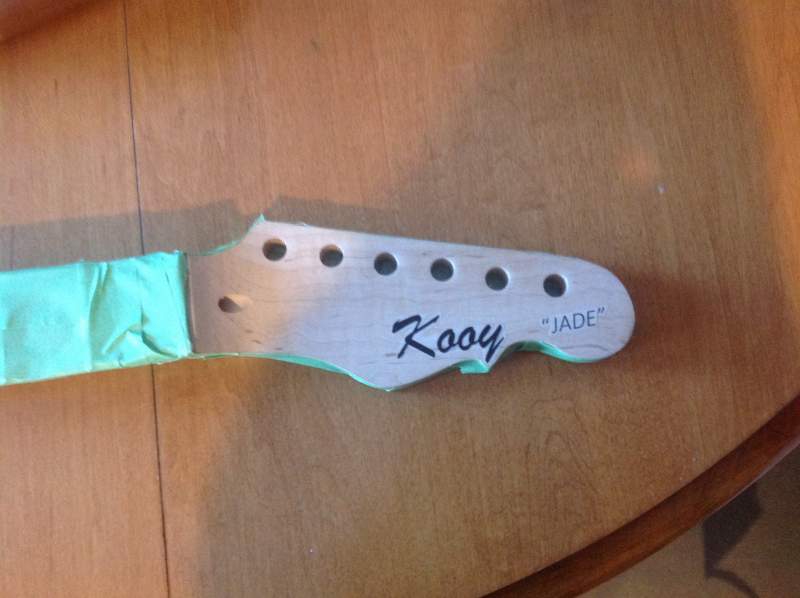

    We are about to apply a lacquer finish to the front of the headstock, here's how it looks before and what we are using.
    Jacob
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	image.jpg
Views:	142
Size:	52.3 KB
ID:	275   Click image for larger version.

Name:	image.jpg
Views:	171
Size:	38.6 KB
ID:	276

  10. #50
    Well done Jacob, love black on green theme and the label blends well with headstock.

    Budi
