In that particular configuration with the neck tone 'up' (the series setting) it disconnects the link from the bridge pup to the bridge volume and reroutes it into the neck pup. So, with the pup selector in the bridge position the bridge pup isn't actually connected to it and therefore no output. However, with the selector in either the middle or neck position you should get both bridge and neck pups linked in series with the neck volume acting as a master volume etc.
Scott.
Really appreciate the explanation Scott, it works as you have described and I wanted to check I hadn't missed something.
Thanks very much.
Grant

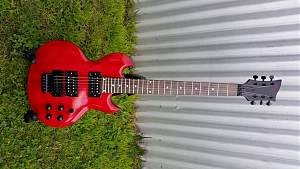

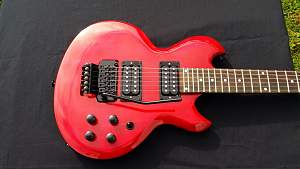

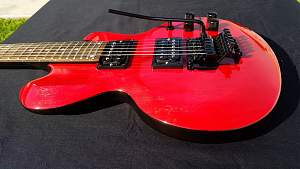

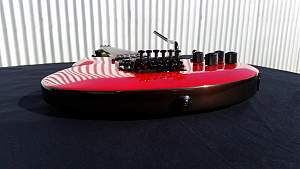

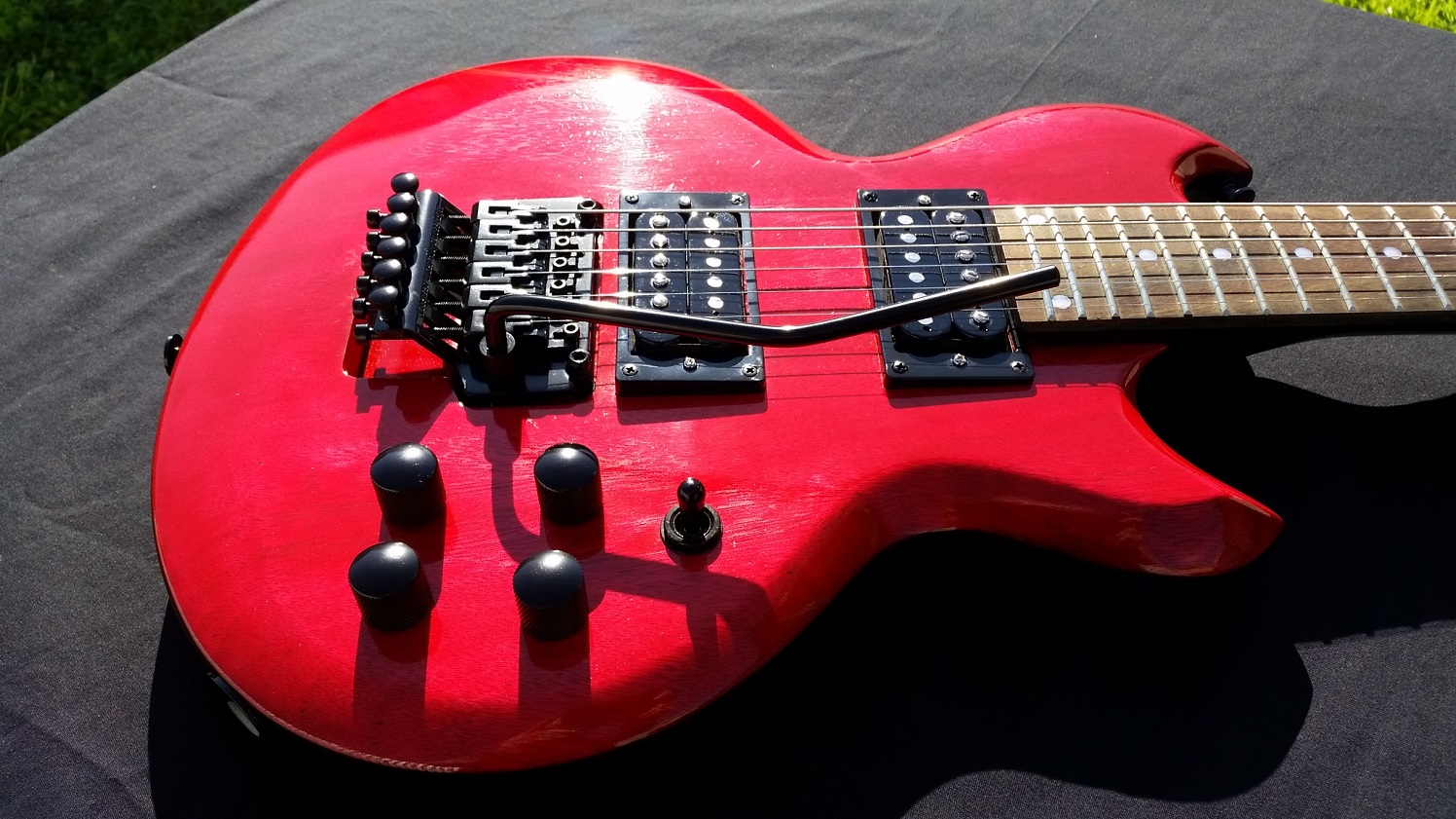

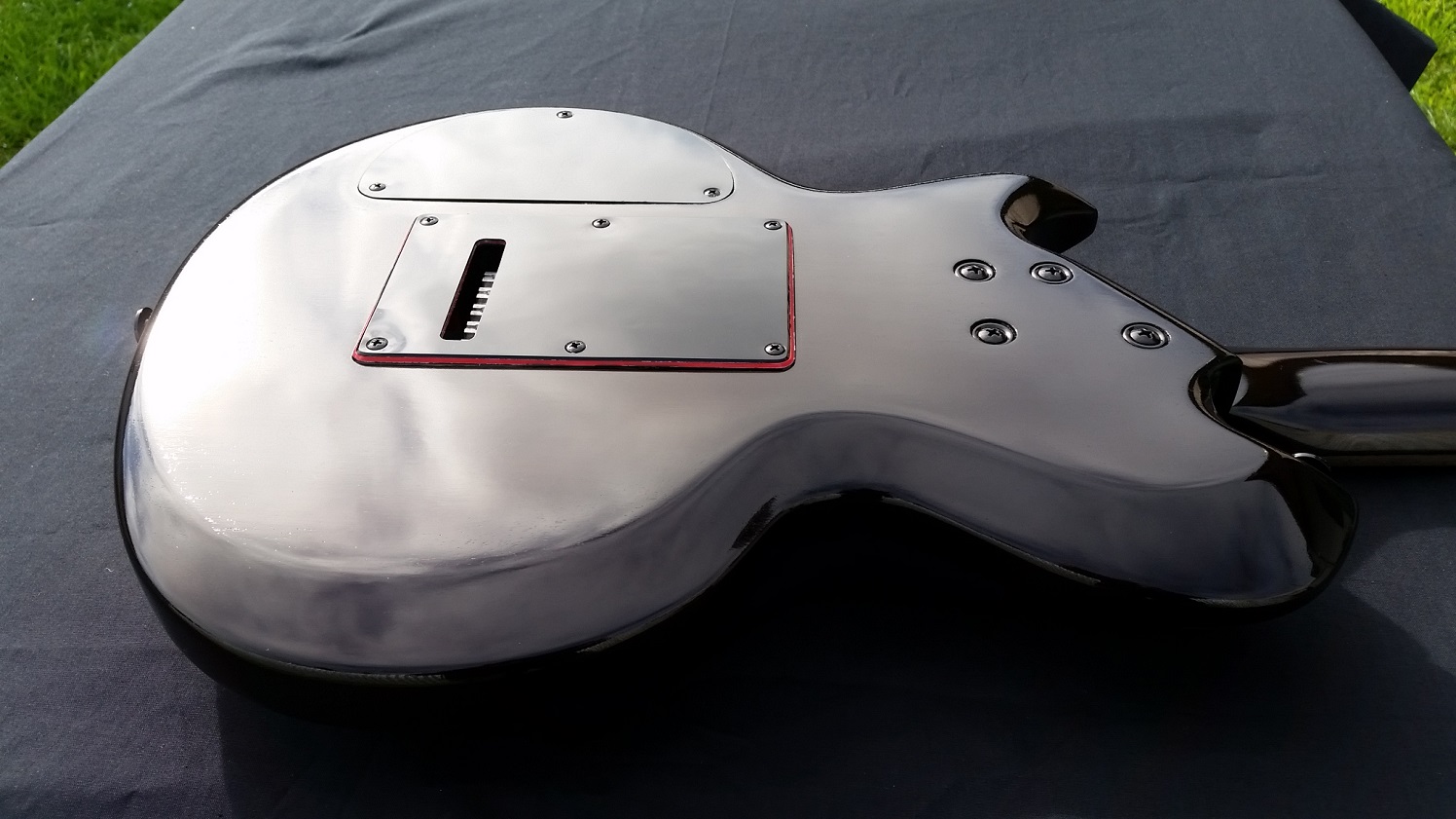

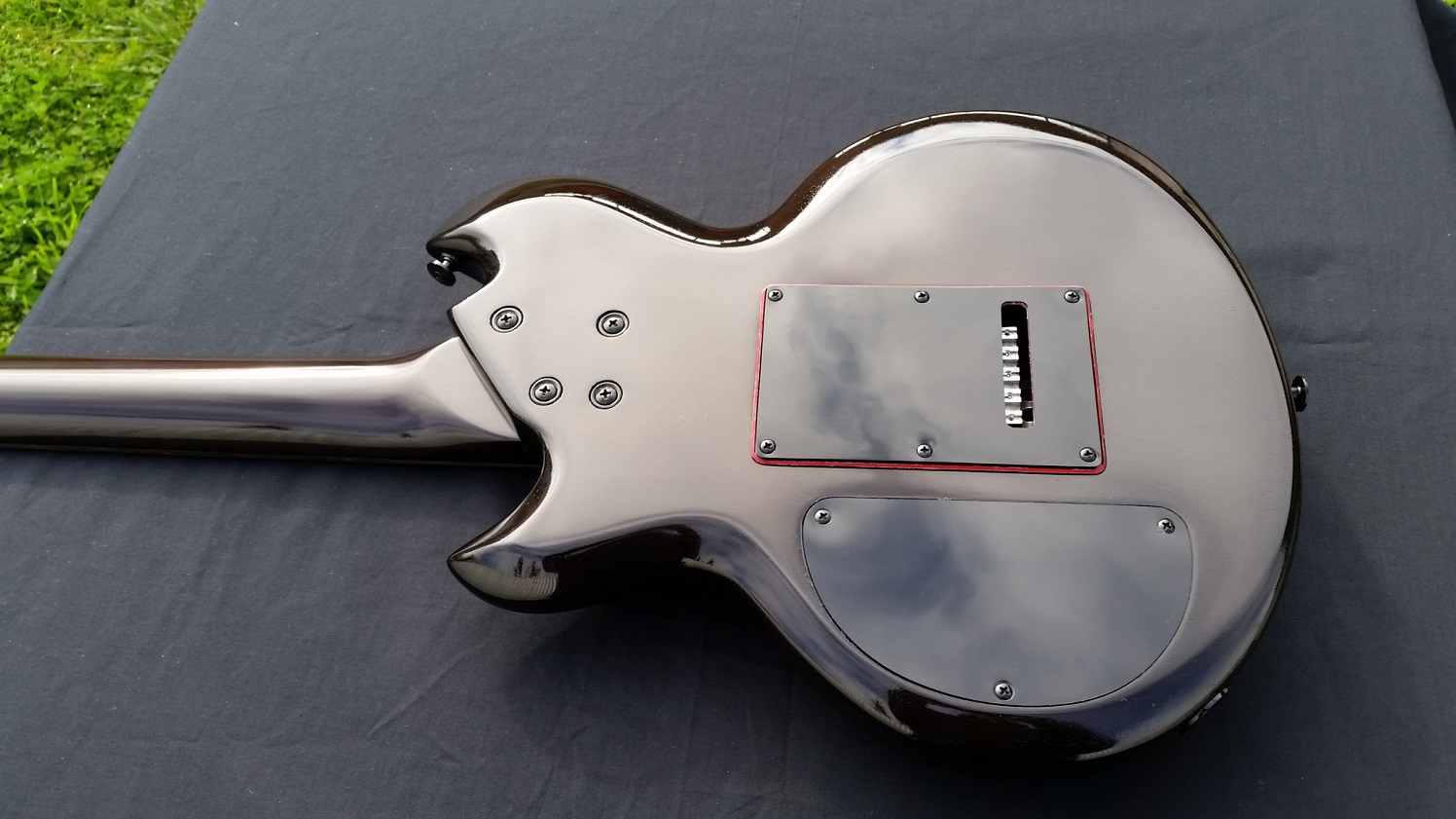

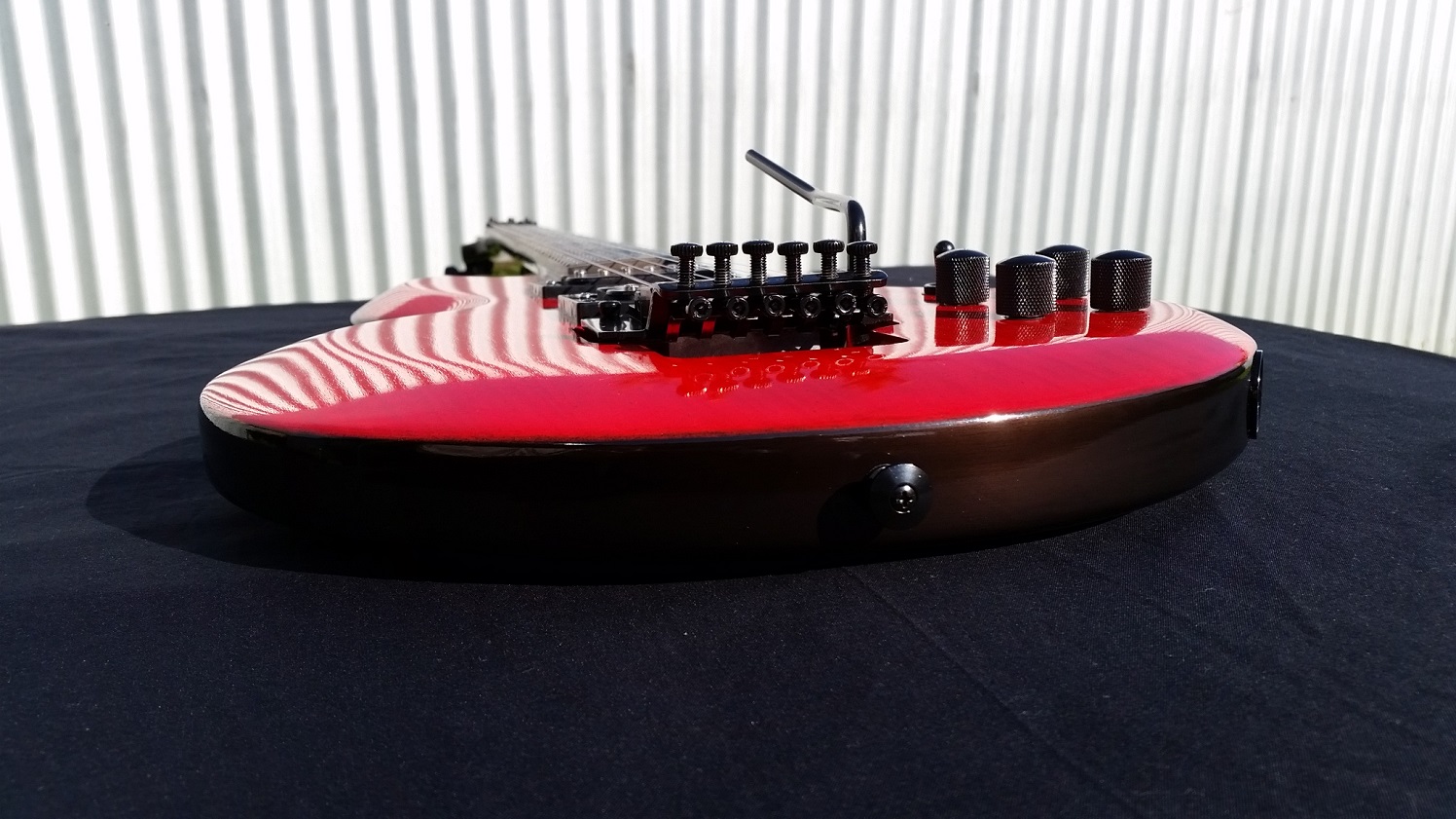

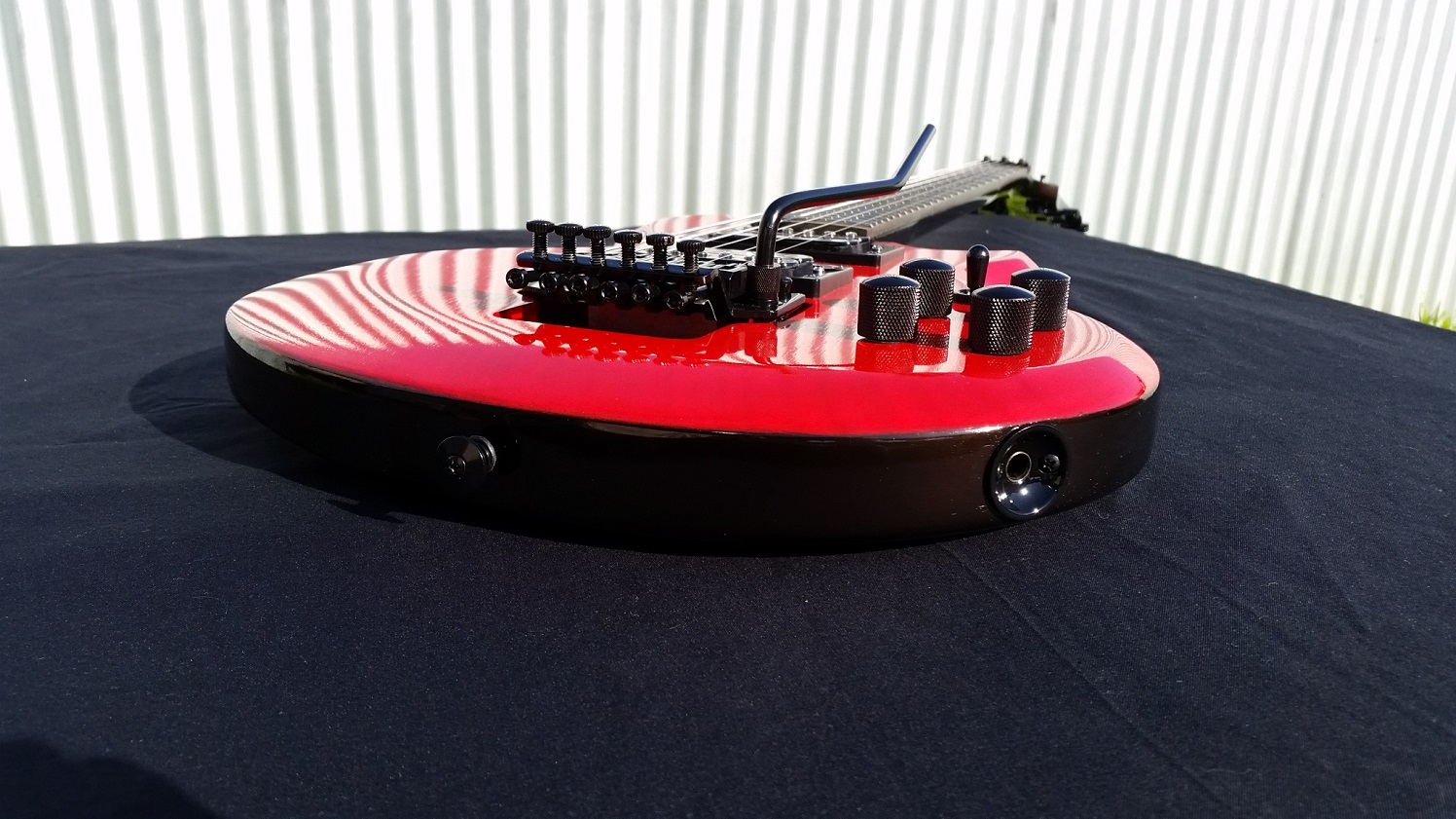

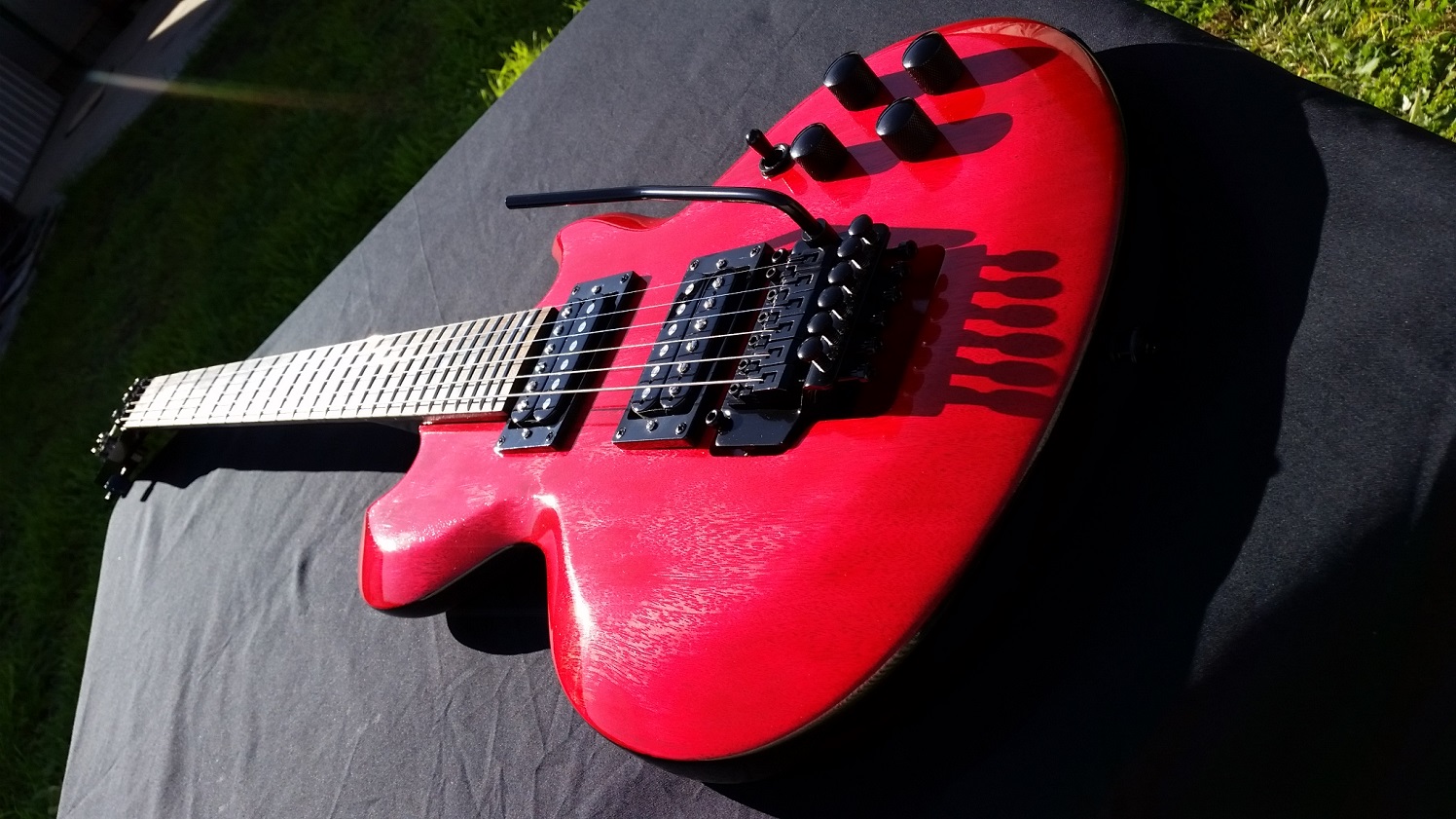

Finished the set-up, intonation done, bridge as level to body as I can get it, need to raise bass side slightly to stop slight rattle on frets (a bit heavy handed with my 'playing').Here's a heap of pics

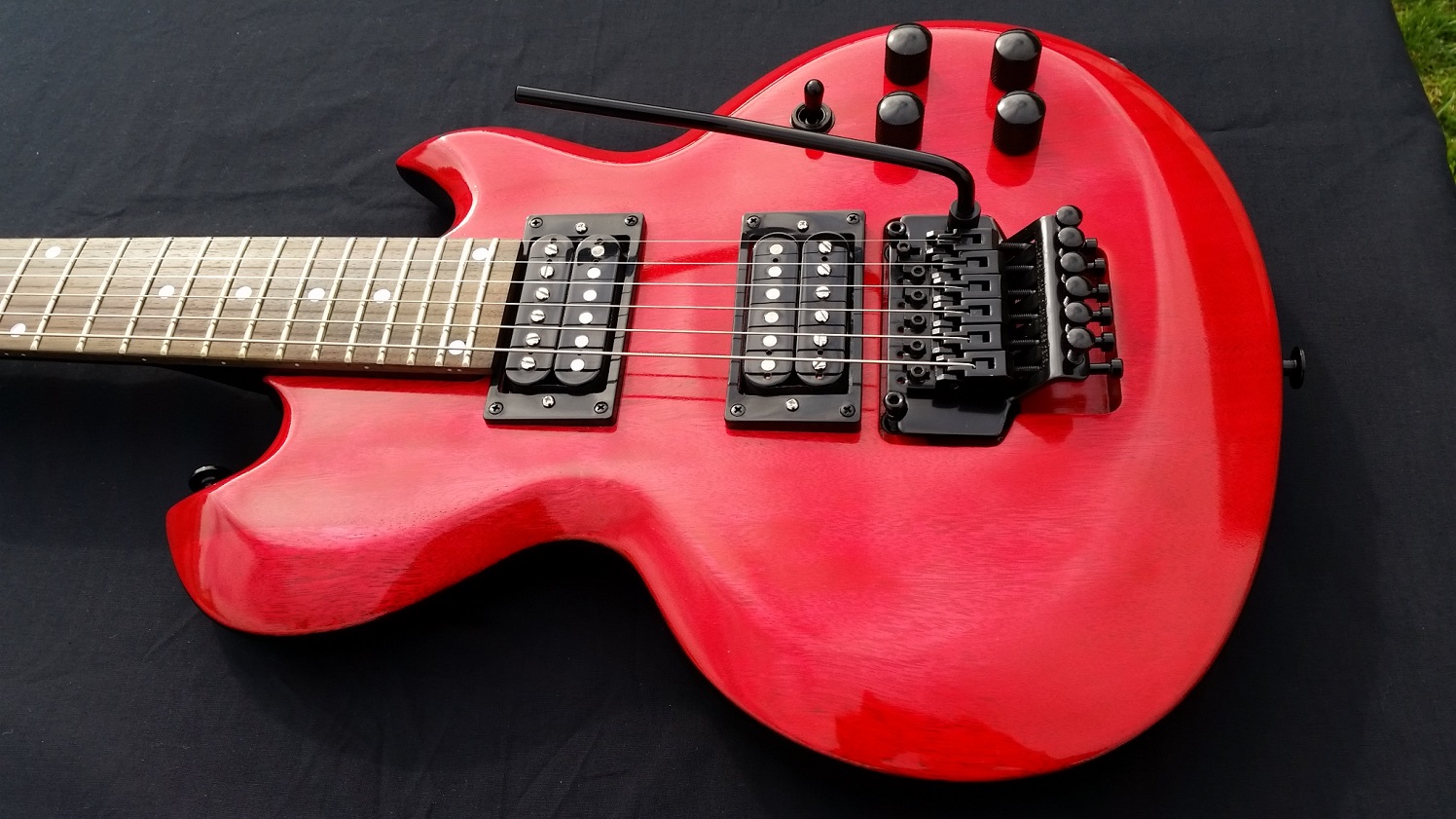

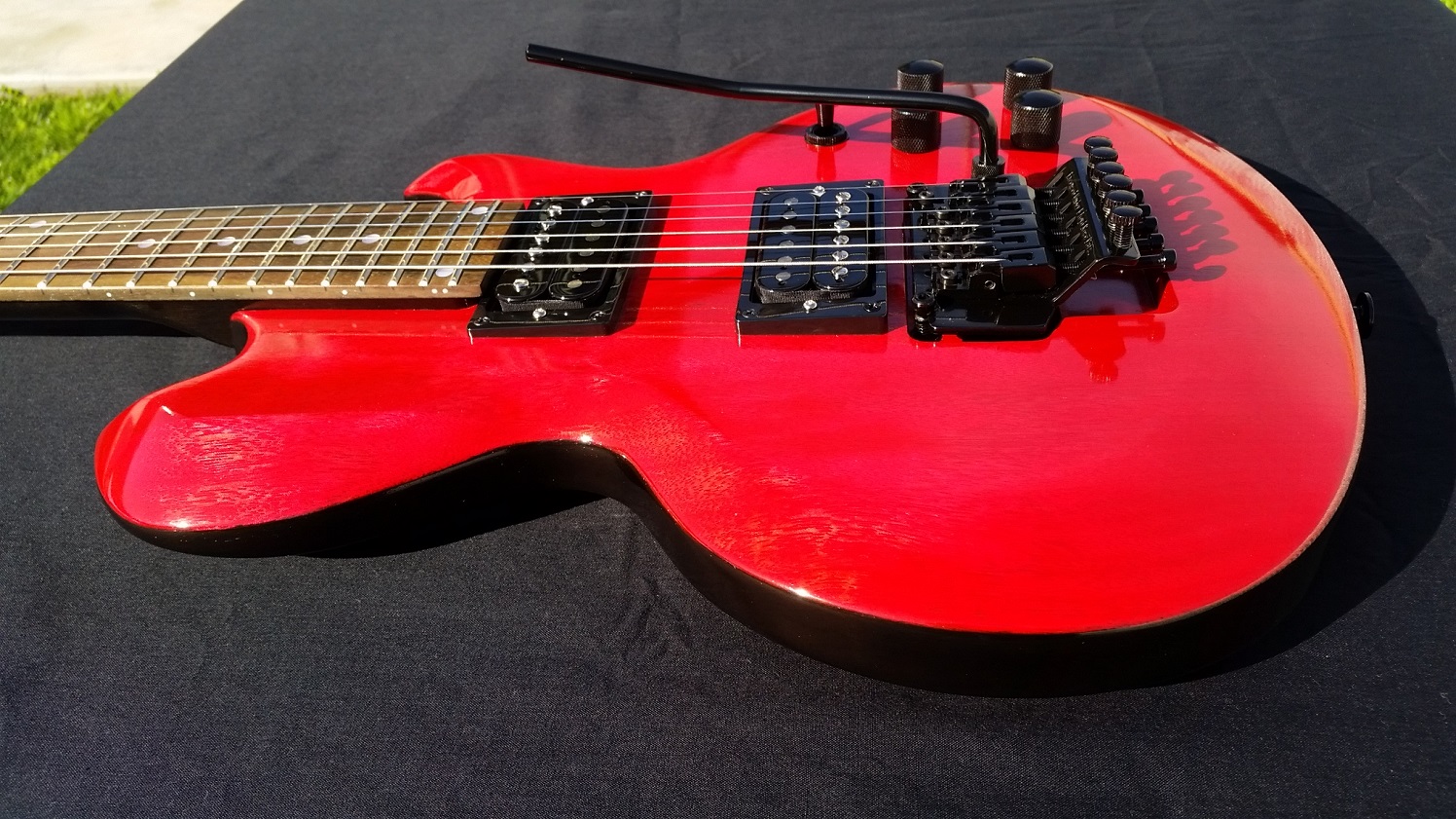

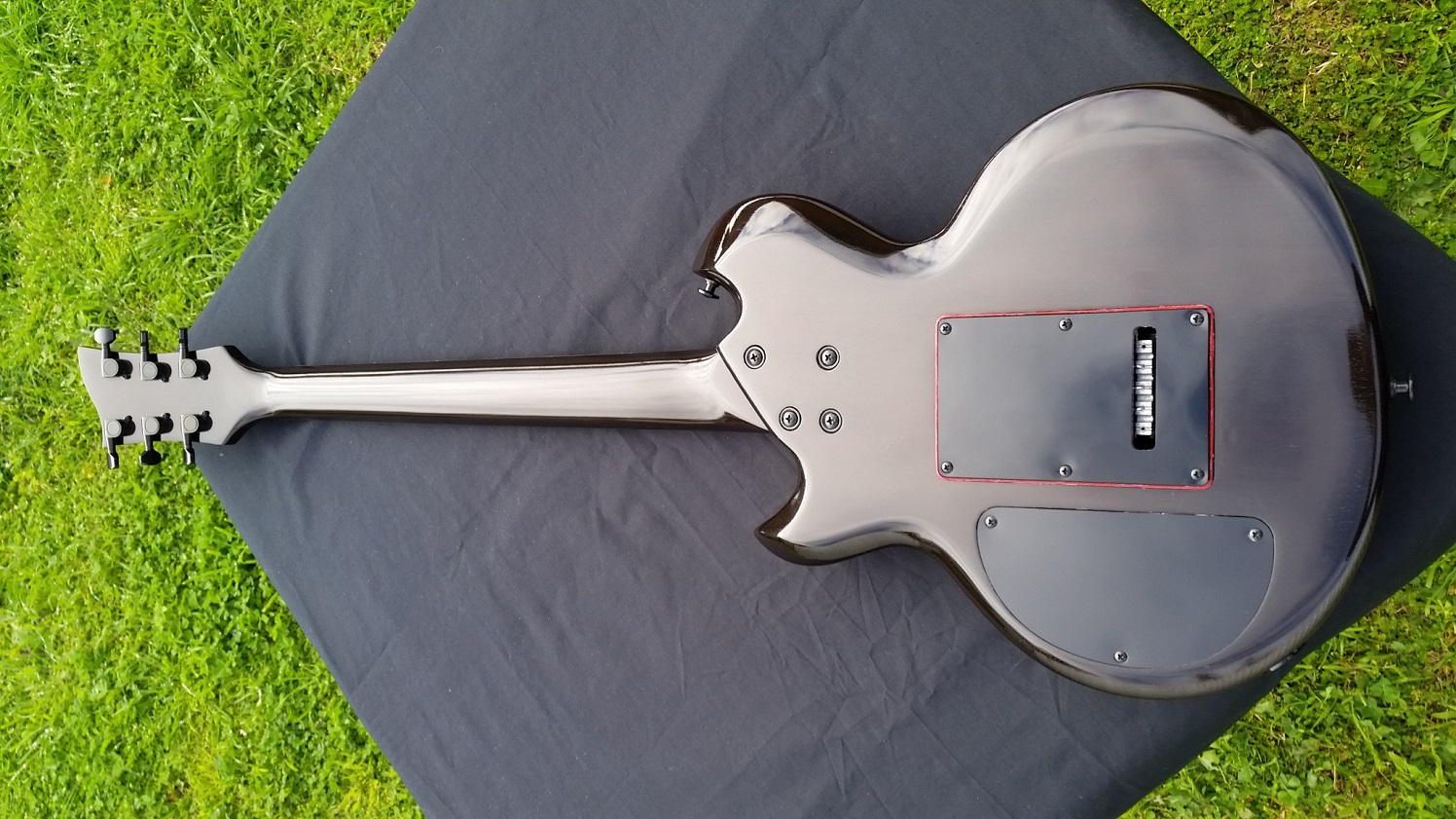

More

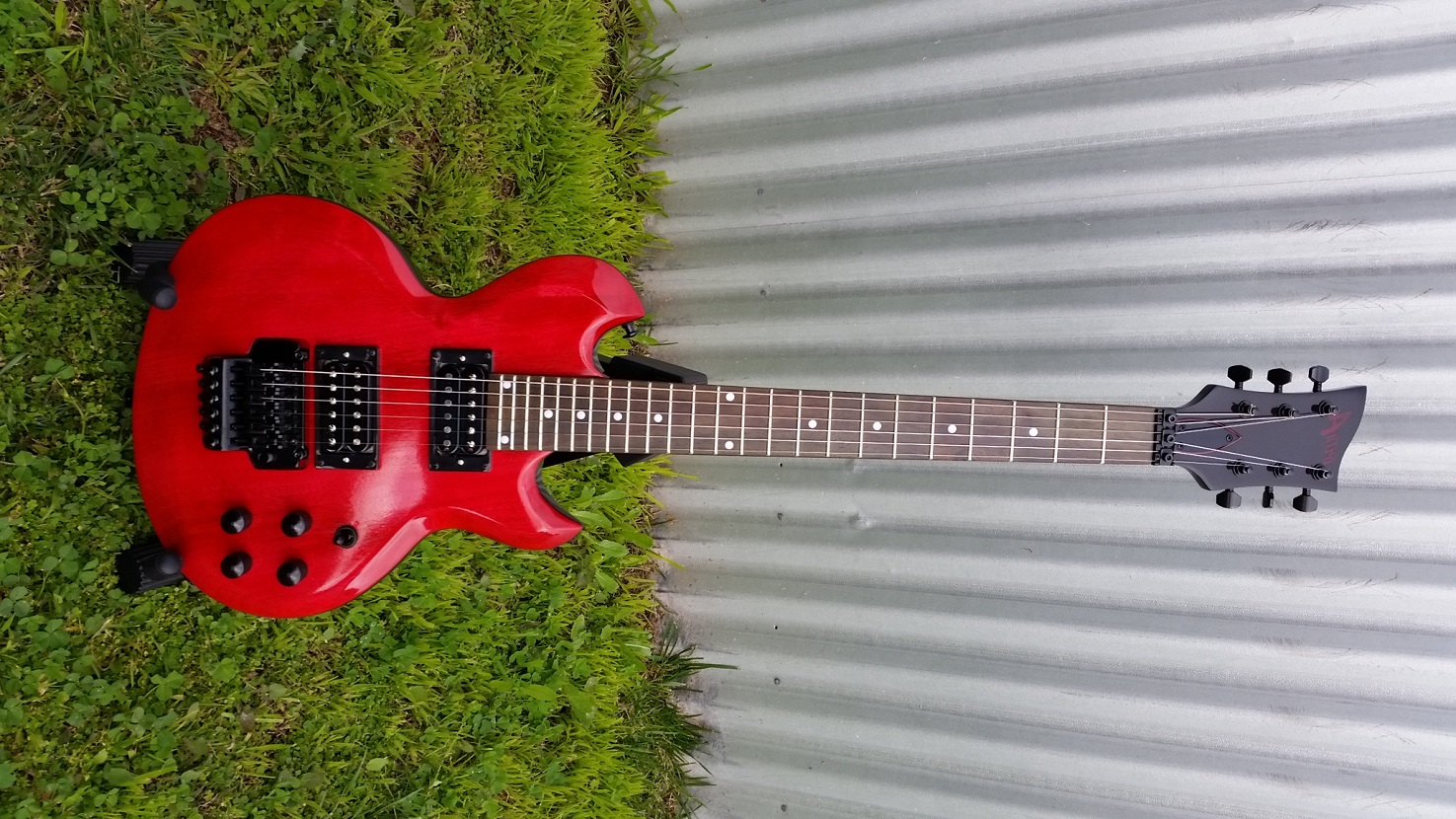

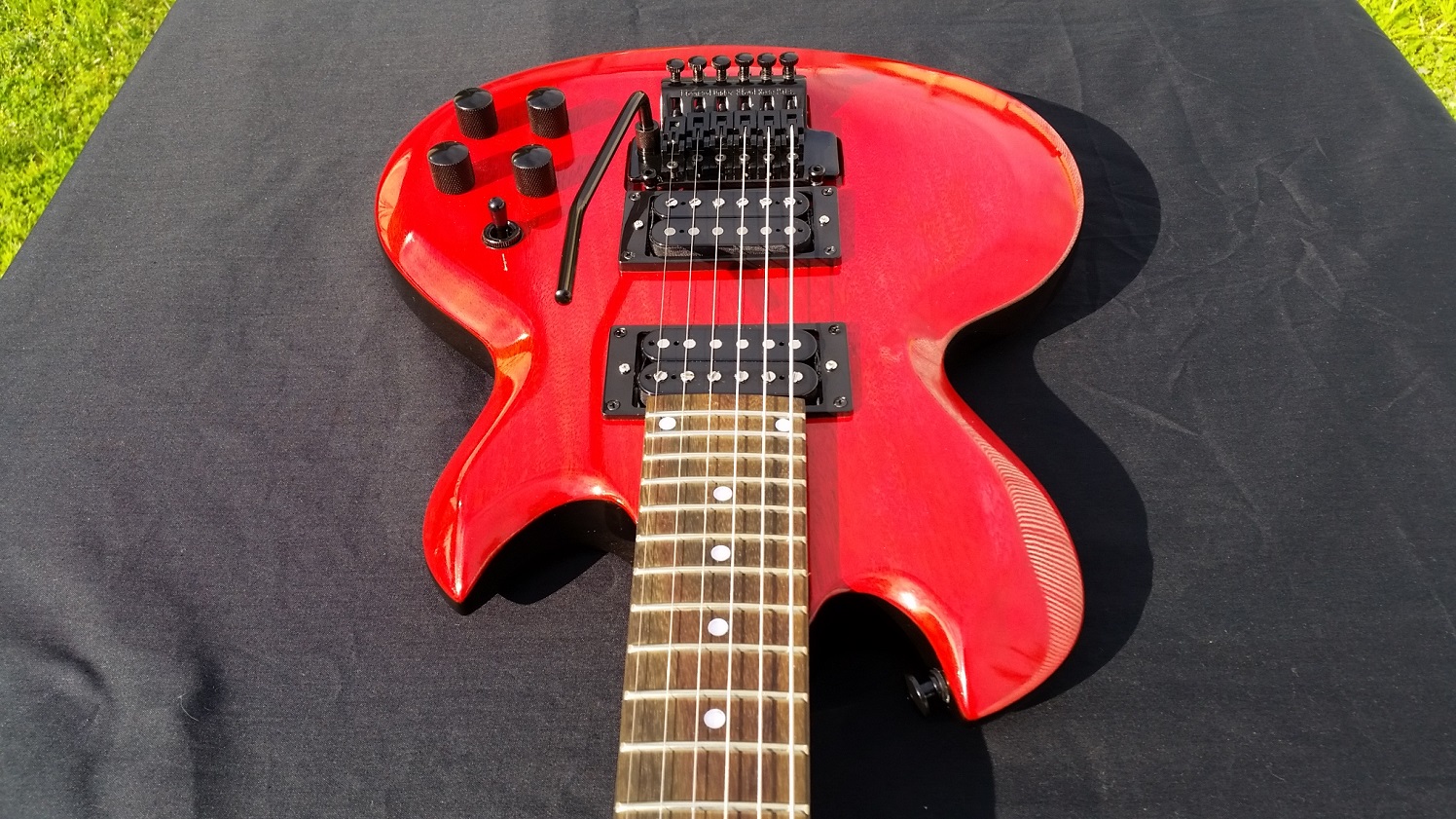

And to finish off
Wanted to use flat (non slanted) pup rings but they were out of stock at the supplier so the angled ones will do for now.

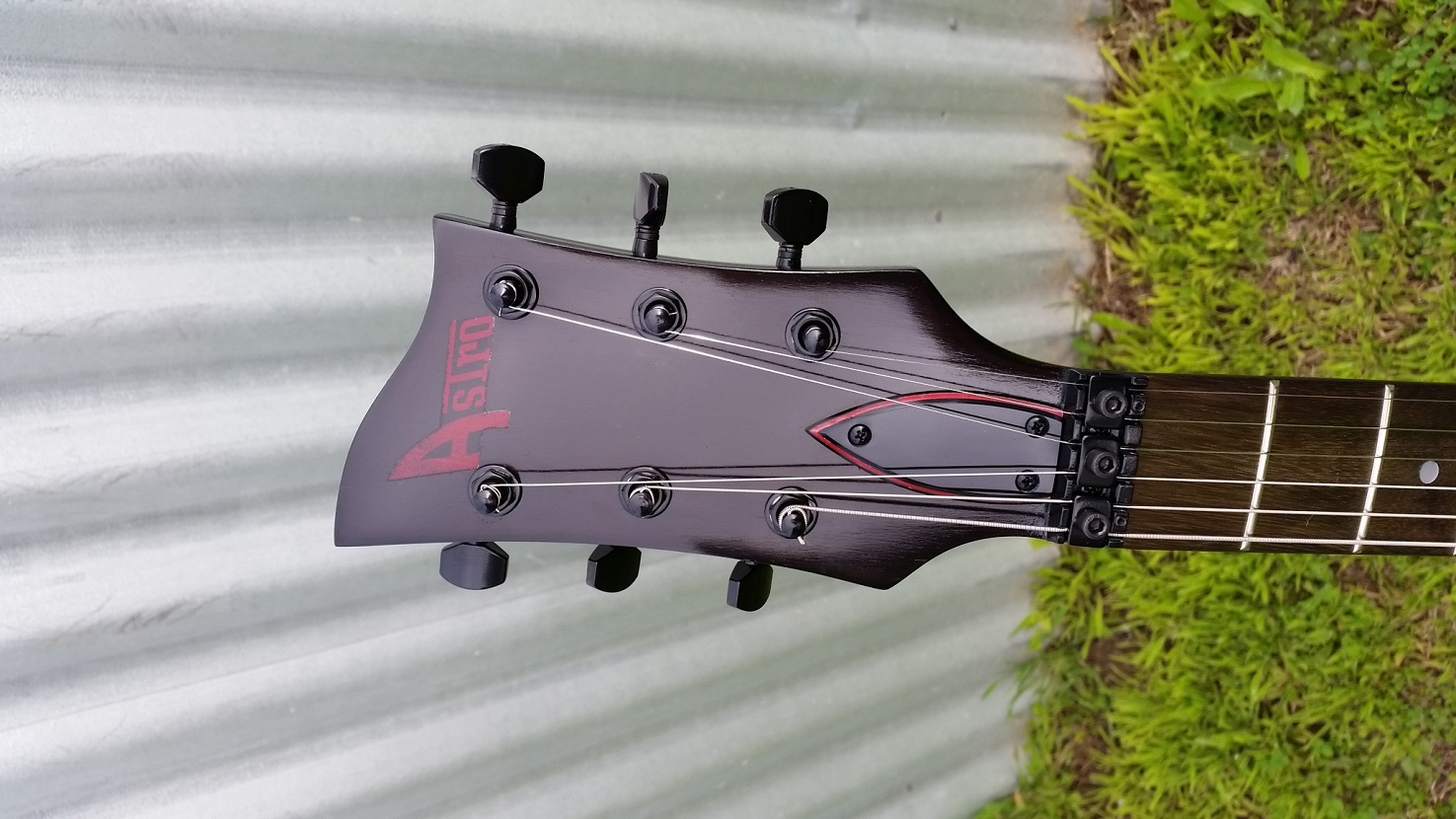

My headstock logo almost disappears into the black, used water slide paper, vinyl sticker would be better.

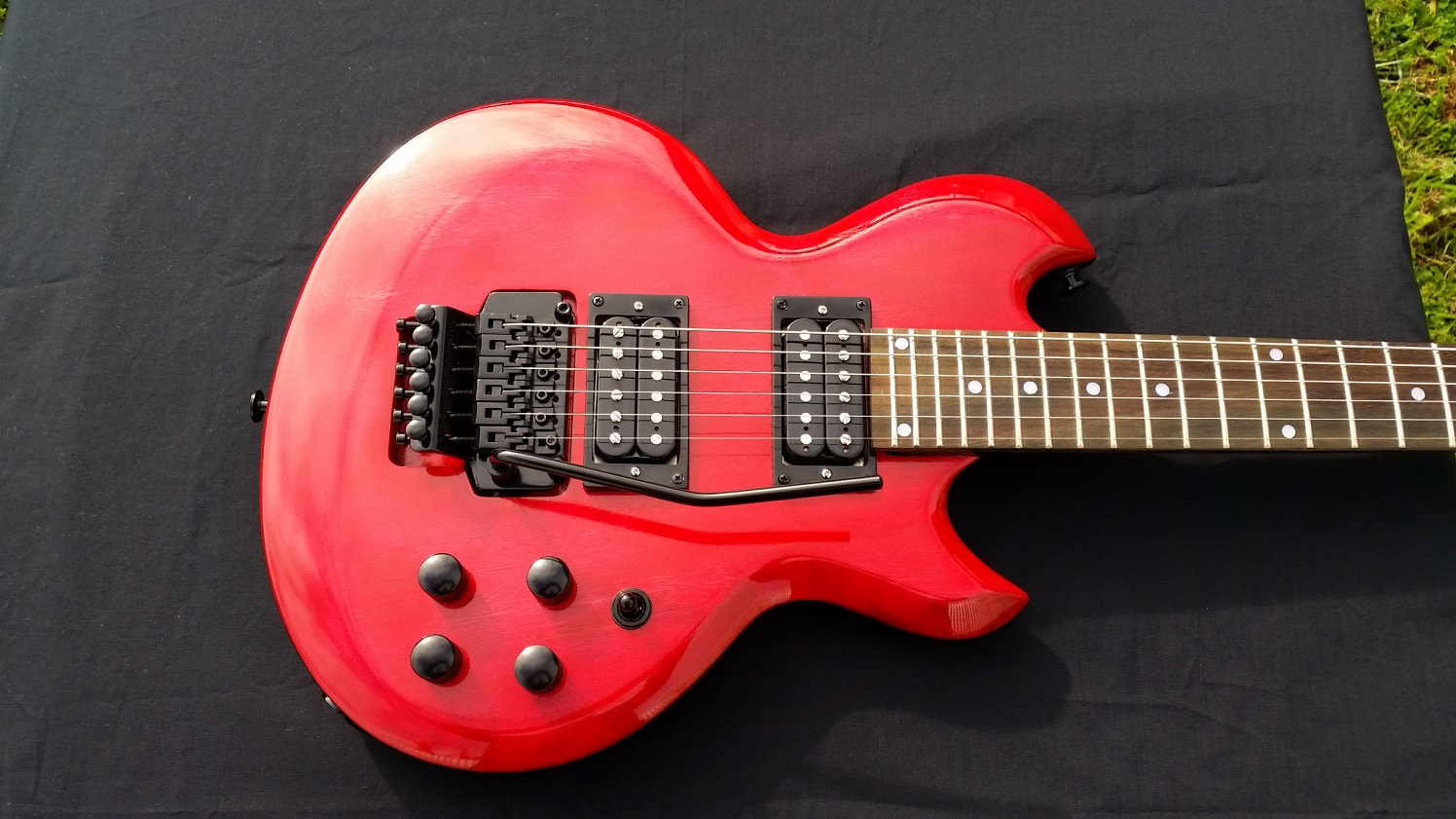

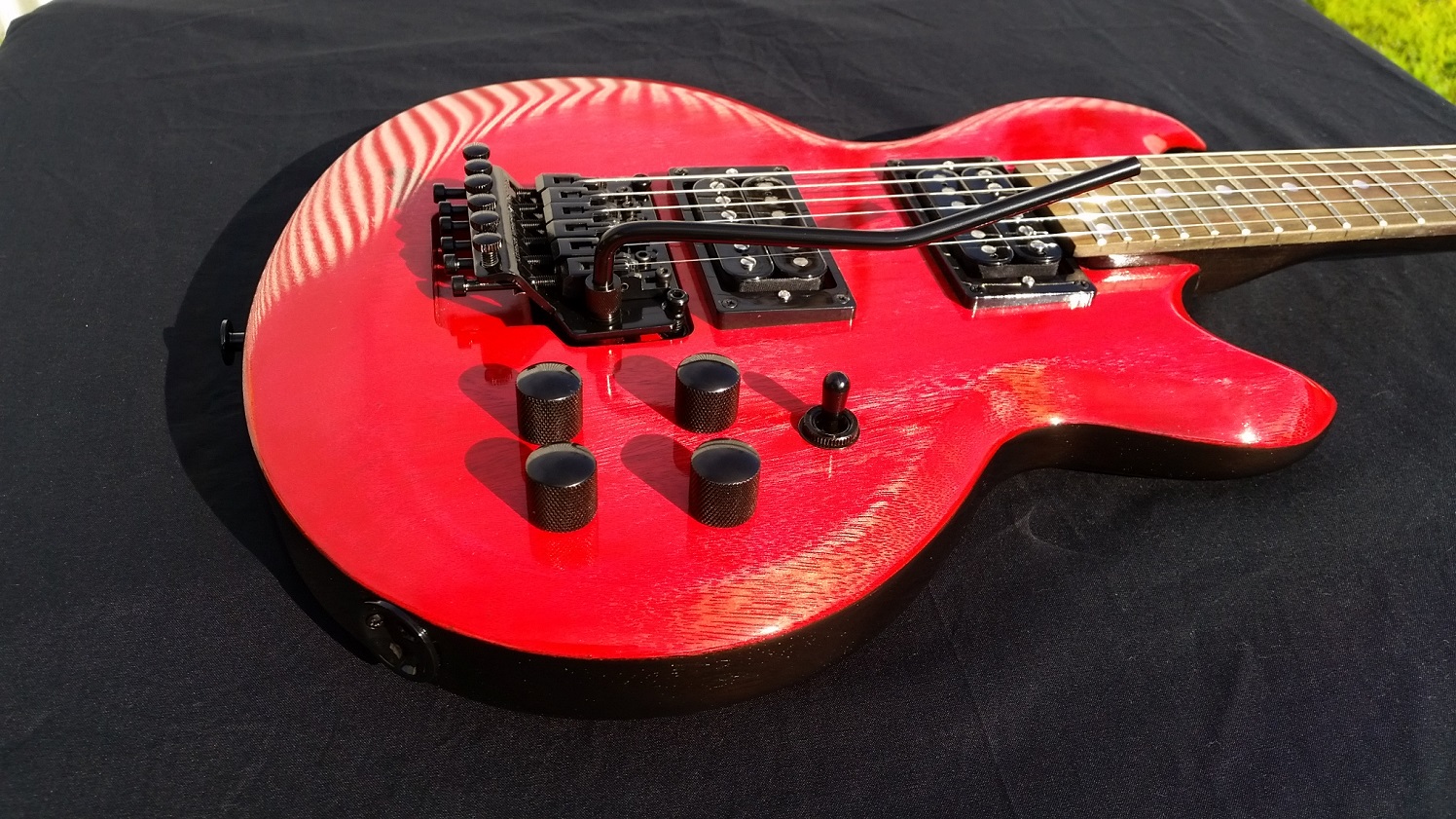

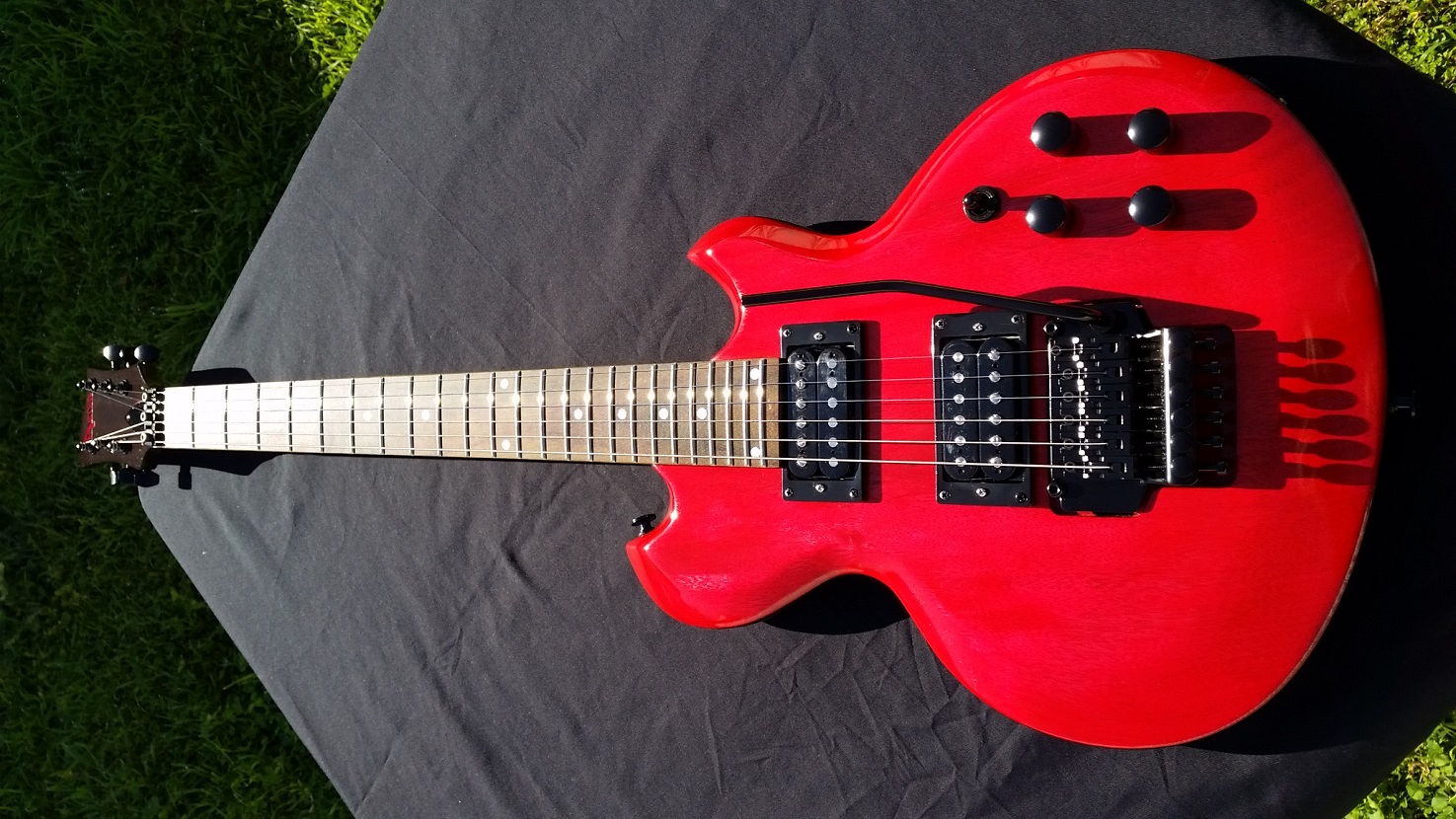

There is an odd effect with the red on the grain, it has an almost 'candy' appearance as you move it around in the light. At least that's what I call it, more like it has shades of pink depending on the light angle. Must have rubbed some of the poly into the timber I guess. Enough rambling, here is my version of an Astrojet.
Grant
awesome build Grant, this was a PBG2 kit modded ?
very cool build as usual
Current Builds and status
scratch end grain pine tele - first clear coat on !
JBA-4 - assembled - final tweaks
Telemonster double scale tele - finish tobacco burst on body and sand neck
Completed builds
scratch oak.rose gum Jazzmaster - assembled needs setup
MK-2 Mosrite - assembled - play in
Ash tele with Baritone neck - neck pup wiring tweaks and play in
This is an incredible build mate, be super proud of what you've made.
As for the pup rings, just get some sandpaper, a flat surface, and go at it. Then Bob's your uncle - arched pup rings are then flat (and it's all for free too).
