Thread: Build #3 DHB-4 fretless

  1. #31
    Member
    Join Date
    Aug 2021
    Location
    Blue Mountains NSW
    Posts
    134
    I have strung the bass with the kit strings (which are not too bad btw, round wounds) and played for about a week or so.
    The set up was relatively straight forward this time, and I'm not complaining about that.

    The bass didn't have any side dots at that point, and it's always a good ear exercise for sure to play a plank of timber like that. The instrument is very pleasant to play, it has a lot of presence, don't know how else to describe it. The low string has a great tone, and it's easy to reach the highest notes on the fretboard especially on the G and D string .
    With a cheap shoulder strap, there's a bit of neck dive. This was easily resolved with a nice shoulder strap with some comfy friction and padding. I noticed that I like to play this bass lower than my usual instrument height.
    The pickups controls and switch offer a good selection of sonic choices, my personal fav is both pickups on, or just the neck pick up on.

    The strings I've ordered (super long scale half rounds) have been stuck for a week in a post office somewhere between the seller and me. Not sure when they'll get here.

    After some fine tuning everyday, the instrument felt very stable for a few days.

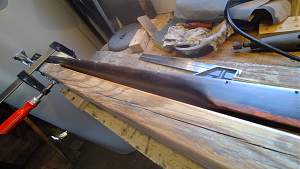

    Yesterday I decided to go ahead and mark the side dots on the fretless position (in line with the frets).
    I have put some masking tape on the side of the fretboard, tuned the instrument very carefully; then proceeded marking in pencil the position of the 3, 5, 7, 9, 12, 15, 17, 19, and 21st fret with a vertical line, using a tuner, checking across all 4 strings.

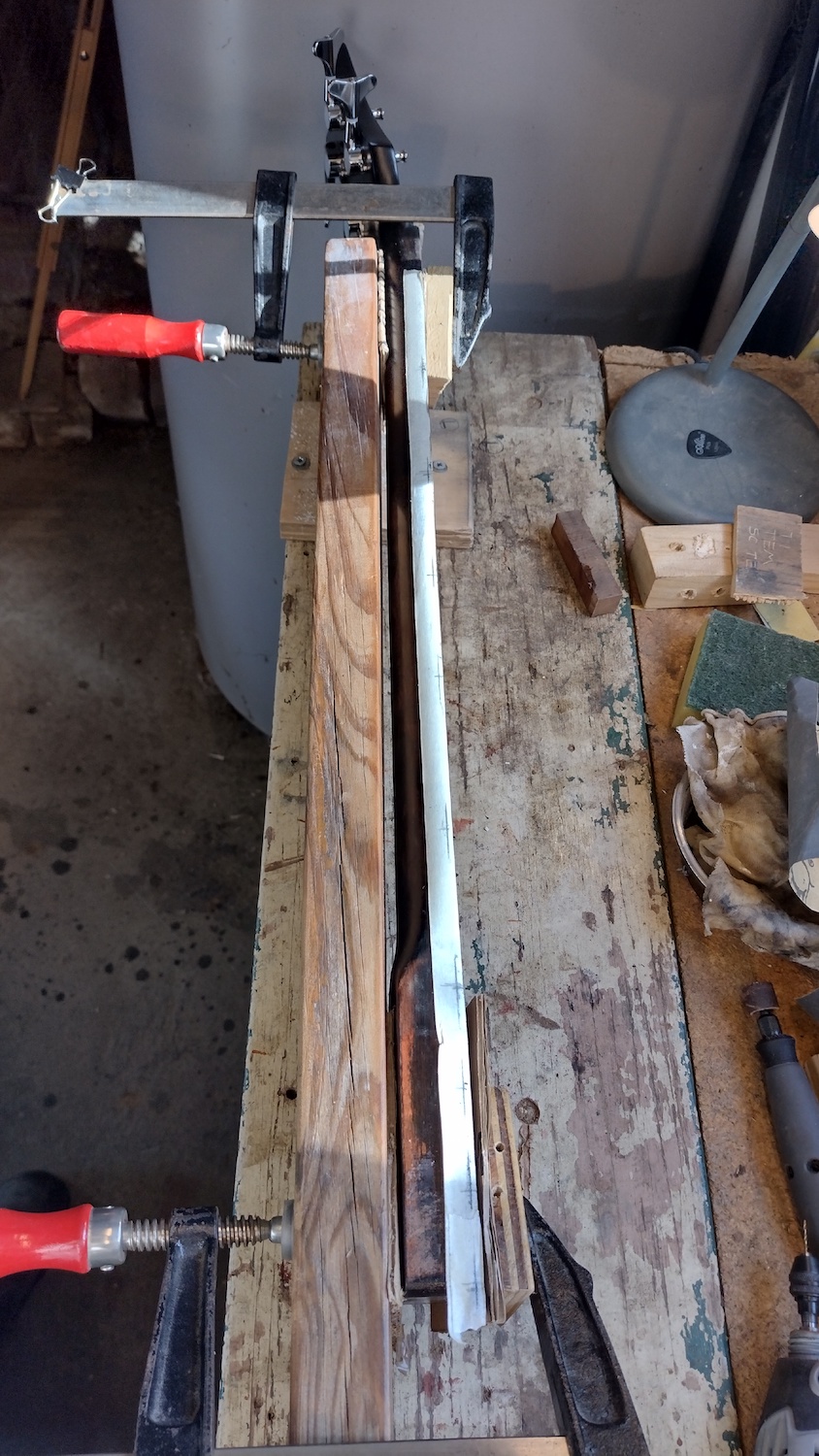

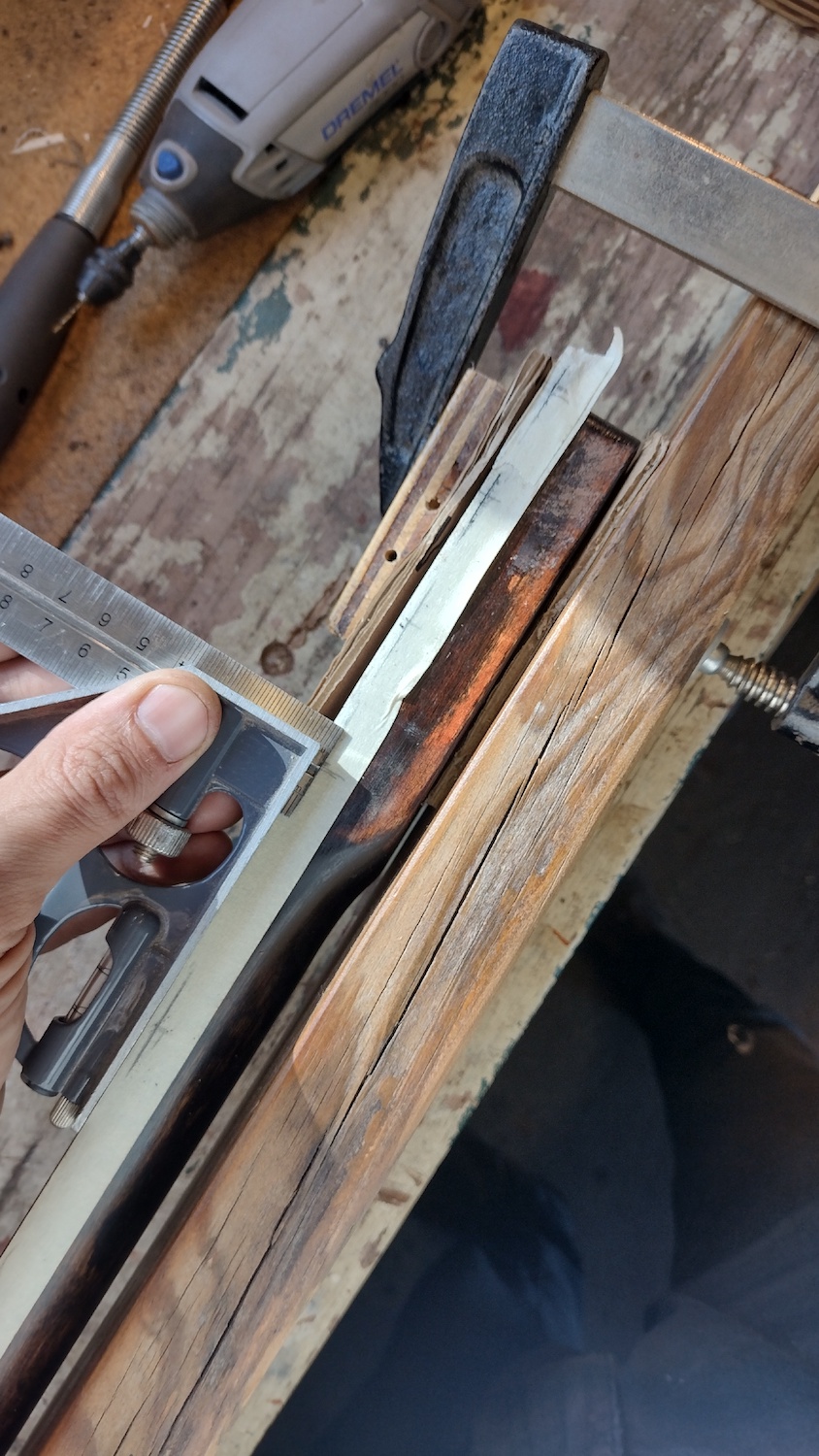

    I have clamped the neck gently to a simple jig I made, and with a square ruler I drew a horizontal line across the side of the fretboard so that all the new side dots are sitting at the same distance.

    Click image for larger version.

Name:	01vert and horiz lines.jpg
Views:	1046
Size:	429.1 KB
ID:	43724

    Click image for larger version.

Name:	02_ready.jpg
Views:	1088
Size:	449.7 KB
ID:	43725

    After that, the process is somehow similar to what I have done at the beginning of this build to take the side dots out.
    I found a suitable drill bit.

    Click image for larger version.

Name:	03_drill bit smaller than pin head.jpg
Views:	1018
Size:	308.6 KB
ID:	43726

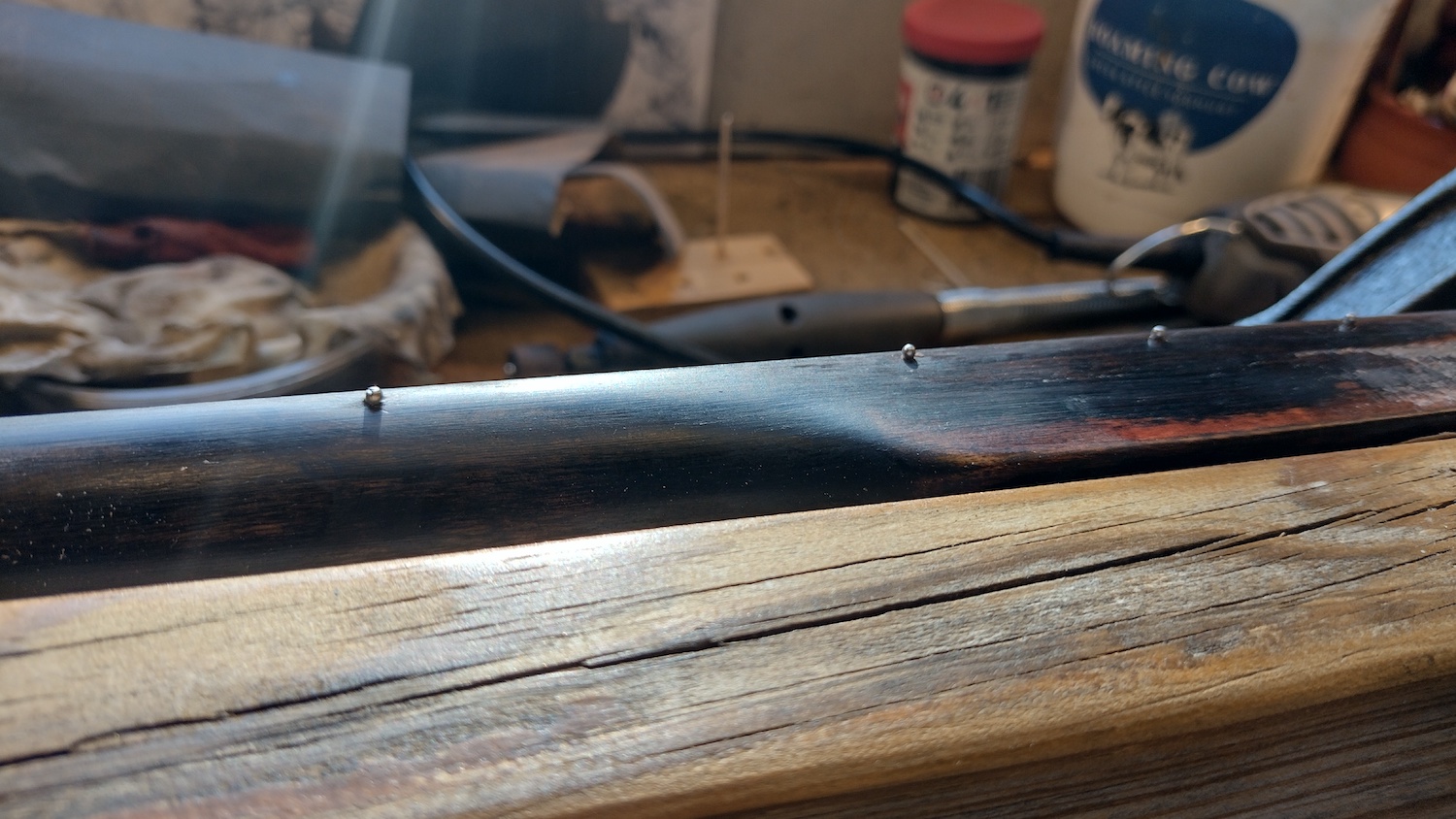

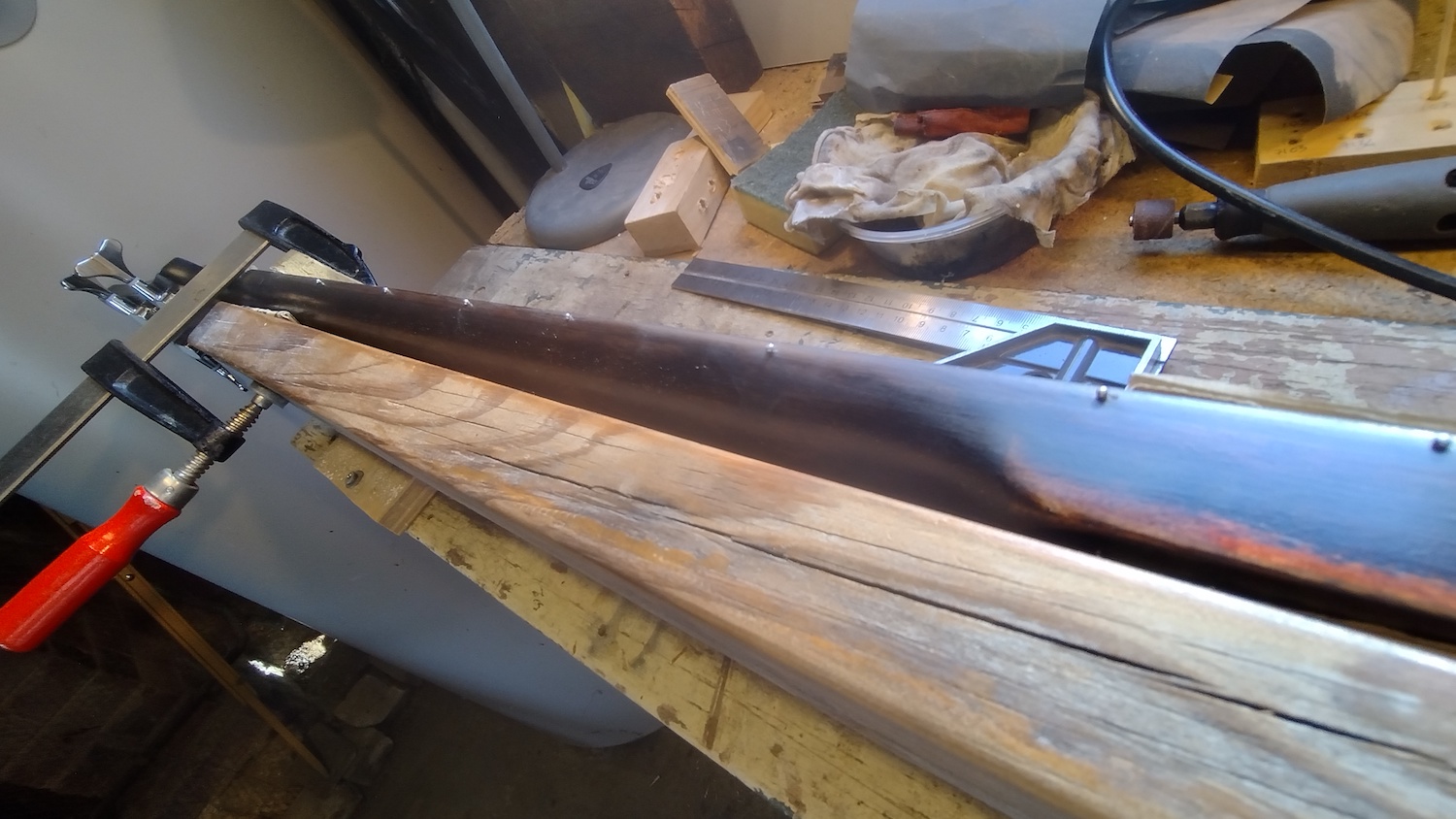

    drilled all the side dots in the marked position, removed the masking tape and inserted the pins, which were shortened to bite in the timber only about 1mm.
    Like I did for my last build, I am going with metal pins slightly protruding out for a tactile and visual feel because I have received good feedback from those ones who tried the instrument and because I like it. I fell like this time I really fine tuned this technique.

    Click image for larger version.

Name:	04.jpg
Views:	1040
Size:	400.2 KB
ID:	43727

    Click image for larger version.

Name:	06.jpg
Views:	1040
Size:	332.2 KB
ID:	43728

    Photos of finished instrument coming soon, although I would love to get the strings I have in mind first and record a short clip.
    Last edited by FaustoB; 29-10-2022 at 08:33 AM.

  2. #32
    Member
    Join Date
    Aug 2021
    Location
    Blue Mountains NSW
    Posts
    134
    Getting there!
    Over the past 3 months I have lent this bass to some local musicians and have received an equal amount of valuable feedback and great compliments.

    Now I am finalising the set up and fine tuning some bits and pieces:

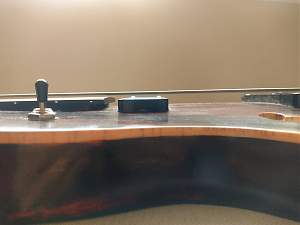

    Adjusted the neck pick up height which was sitting on a weird angle. Now it sits parallel to the strings.
    Click image for larger version.

Name:	2023-01-23 07.30.48-1.jpg
Views:	860
Size:	164.0 KB
ID:	43977

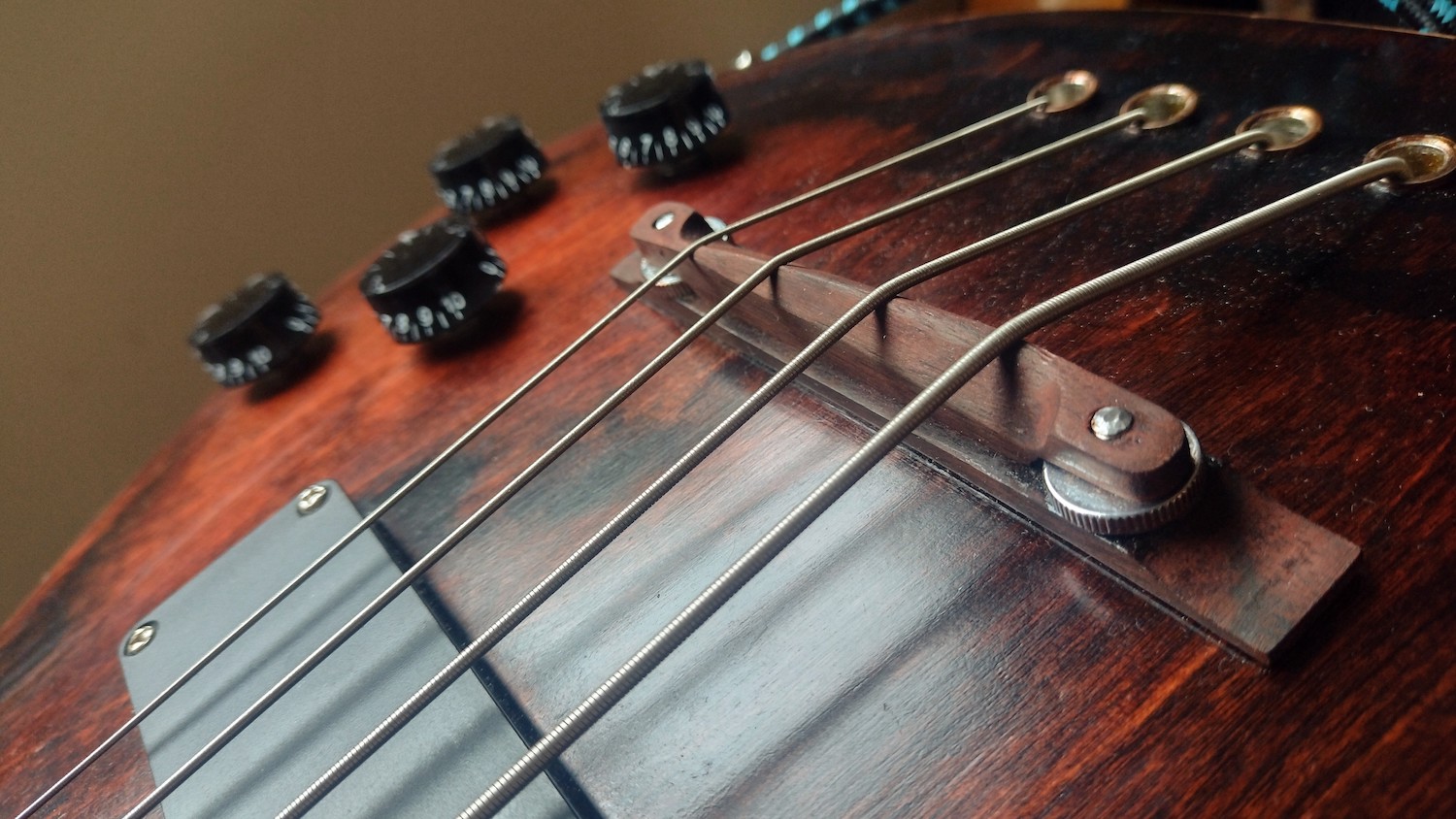

    Shortened the screws that were protruding out the floating bridge (the bridge will never get higher than that)
    Click image for larger version.

Name:	2023-01-23 07.31.30-1.jpg
Views:	840
Size:	288.0 KB
ID:	43978

    Added my logo to the neck plate
    Click image for larger version.

Name:	2023-01-23 07.31.45-1.jpg
Views:	860
Size:	208.7 KB
ID:	43979


    .

  3. Liked by: McCreed

  4. #33
    Moderator Trevor Davies's Avatar
    Join Date
    May 2020
    Location
    Perth
    Posts
    1,671
    Looking good.
    PitBull Builds: FVB-4, LP-1SS, FBM-1, AG-2, TB-4, SSCM-1, TLA-1,TL-1TB, STA-1HT, DSCM-1 Truckster, ST-1, STA-1, MBM-1, MBM custom, GHR-1 (Resonator).

    Scratch Builds: Pine Explorer, Axe Bass, Mr Scary, Scratchy Tele's.

    The little voices in my head keep telling me "build more guitars"

  5. #34
    Member
    Join Date
    Aug 2021
    Location
    Blue Mountains NSW
    Posts
    134
    bass finished a few months ago but haven't had the chance to upload some photos yet, here we go
    .
    Click image for larger version.

Name:	2023-12-10 13.09.34-1.jpg
Views:	823
Size:	423.5 KB
ID:	44956
    .
    Click image for larger version.

Name:	2023-12-10 13.10.16-1.jpg
Views:	829
Size:	414.8 KB
ID:	44957
    .
    Click image for larger version.

Name:	2023-12-10 13.11.56.jpg
Views:	860
Size:	407.4 KB
ID:	44958
    .
    Click image for larger version.

Name:	2023-12-10 13.12.24.jpg
Views:	826
Size:	313.5 KB
ID:	44959

    some videos captured with my mobile phone. Not a perfect representation of the sound but pretty close, for now this would do!

    https://youtu.be/s5T_3wb2uNU?si=vVbJvQlunlAwEkxT

    https://youtu.be/b5VOa_79kiU?si=X3LdRl6CVHnuYbBw

    https://youtu.be/_1mxMEv0eMM?si=BTC35X4eR6sYqrQz

    it plays wonderfully with half round strings, very warm sound and smooth tactile feel.
    the pickup selectors does a great job offering a variety of tones from super warm, round and bass-y (neck pick up) to very bright, very present attack and mids (bridge pick up only), otherwise selector in the center position for both pickups and both goodness at the same time.

    Everything stock except the strings!

  6. #35
    Looking good! The extra work will be well worth it in the long run.

  7. #36
    Moderator Trevor Davies's Avatar
    Join Date
    May 2020
    Location
    Perth
    Posts
    1,671
    +1 for looking good. I love the colours on the body and neck.
    PitBull Builds: FVB-4, LP-1SS, FBM-1, AG-2, TB-4, SSCM-1, TLA-1,TL-1TB, STA-1HT, DSCM-1 Truckster, ST-1, STA-1, MBM-1, MBM custom, GHR-1 (Resonator).

    Scratch Builds: Pine Explorer, Axe Bass, Mr Scary, Scratchy Tele's.

    The little voices in my head keep telling me "build more guitars"

  8. #37
    Moderator fender3x's Avatar
    Join Date
    Jan 2016
    Location
    Miami, FL, USA
    Posts
    2,583
    Looks great. It also sounds great. that is some pretty impressive playing, particularly on a fretless ;-)

  9. #38
    Sounds great, nice bass, the looks of a lez paul body, fretless is something Ive never attempted, maybe I should. Sounds awesome nice playing.
