Wow it has almost been a month since I buffed it out. I was working on the bass and was also waiting for a hard case but thanks to Auspost that hard case is lost and I don't know where it is. I was holding out for the hard case before assembling but enough was enough so I bought a gig bag locally instead. I think I have too many hard cases anyway haha. Of course I'll be getting a refund.

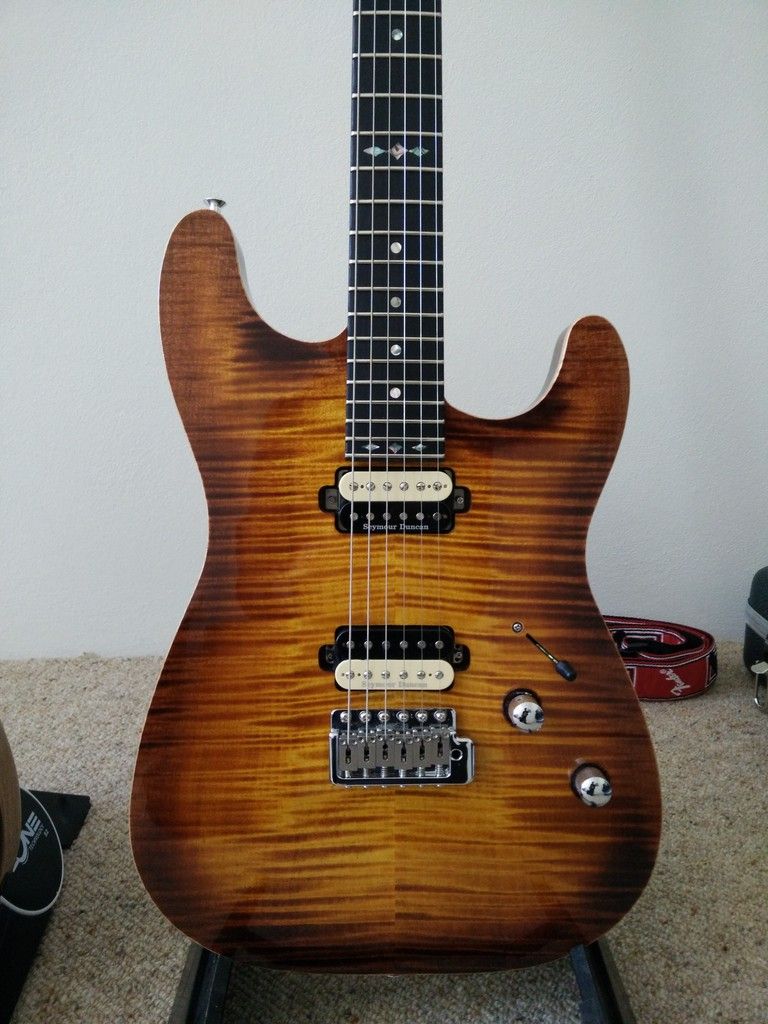

So I hereby present to you, my second build. I will take better pictures with my DSLR on a better day of course. I just spent the last 2 days trying to wire it together, only to find out the problem was with the pot, not my wiring!
Specs:
Hardware:

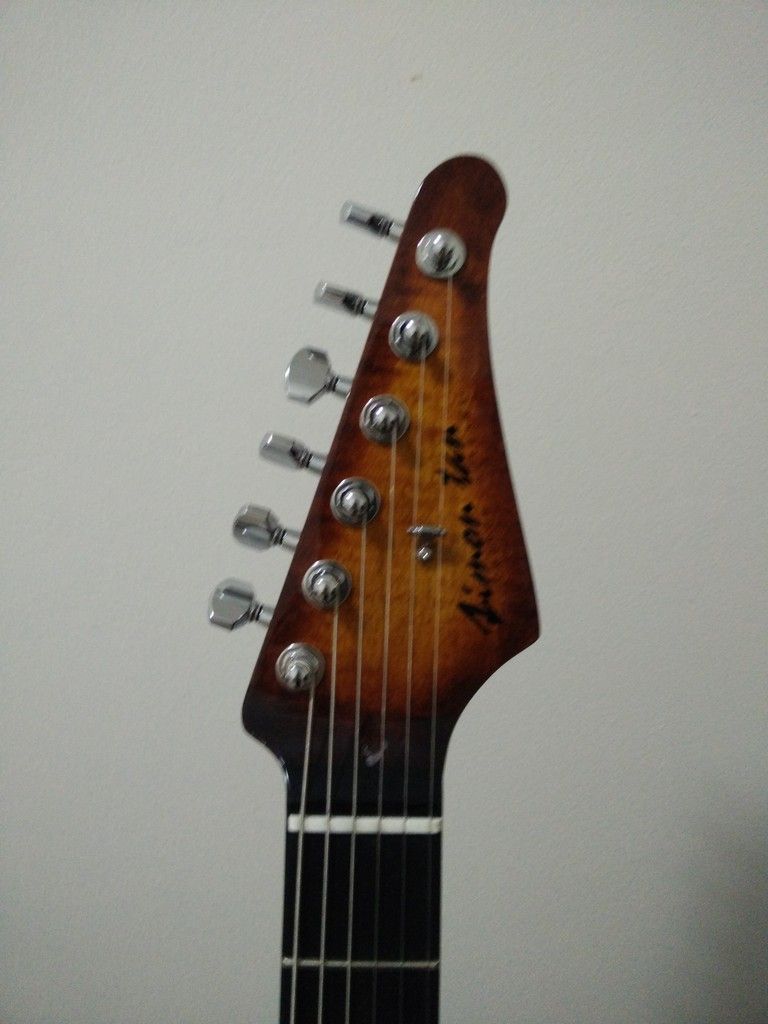

Gotoh SG318 tuning machines
Kluson modern string retainer

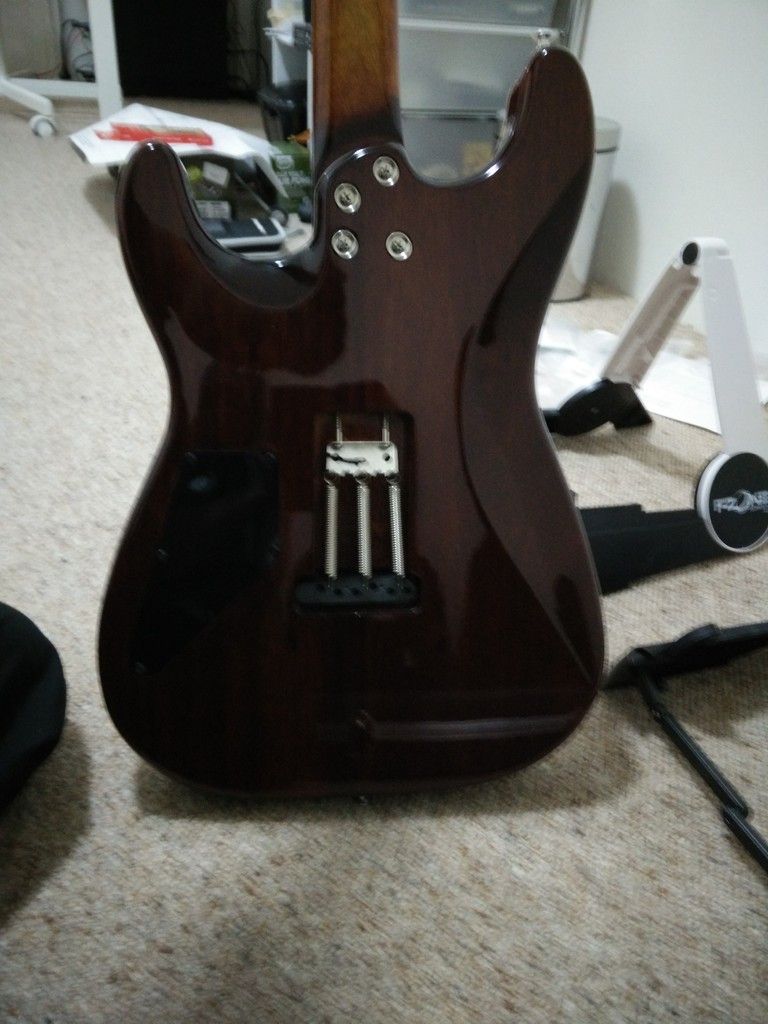

Wilkinson 5+1 contemporary tremolo
Electronics:

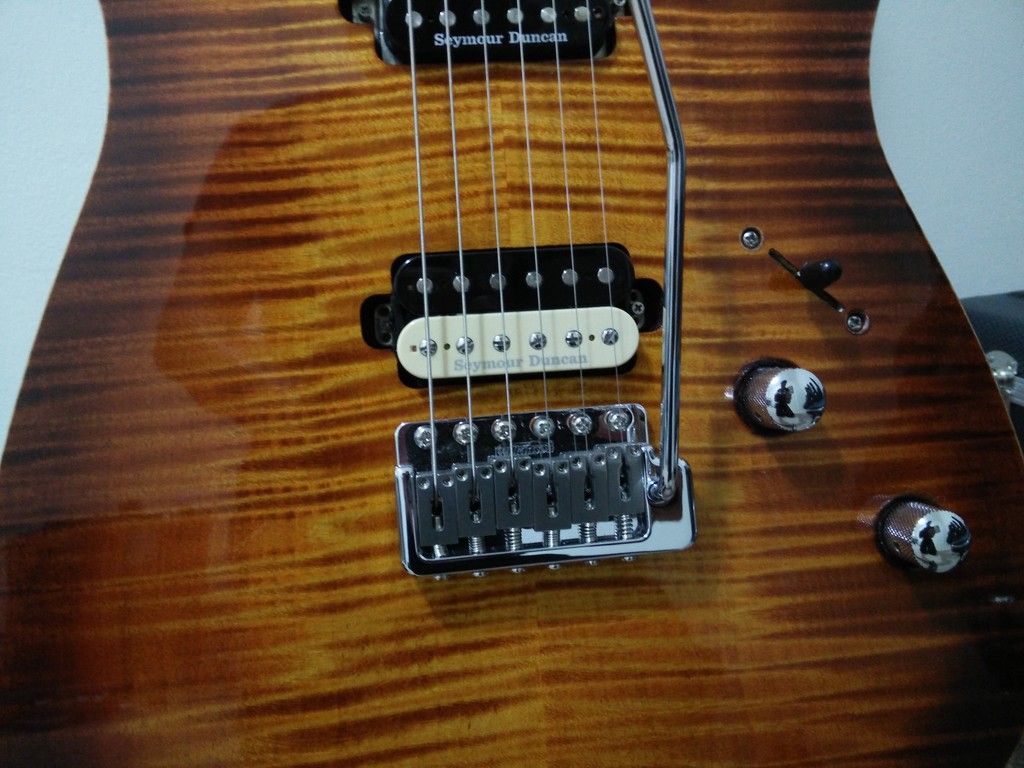

Seymour Duncan JB (trembucker) in the bridge

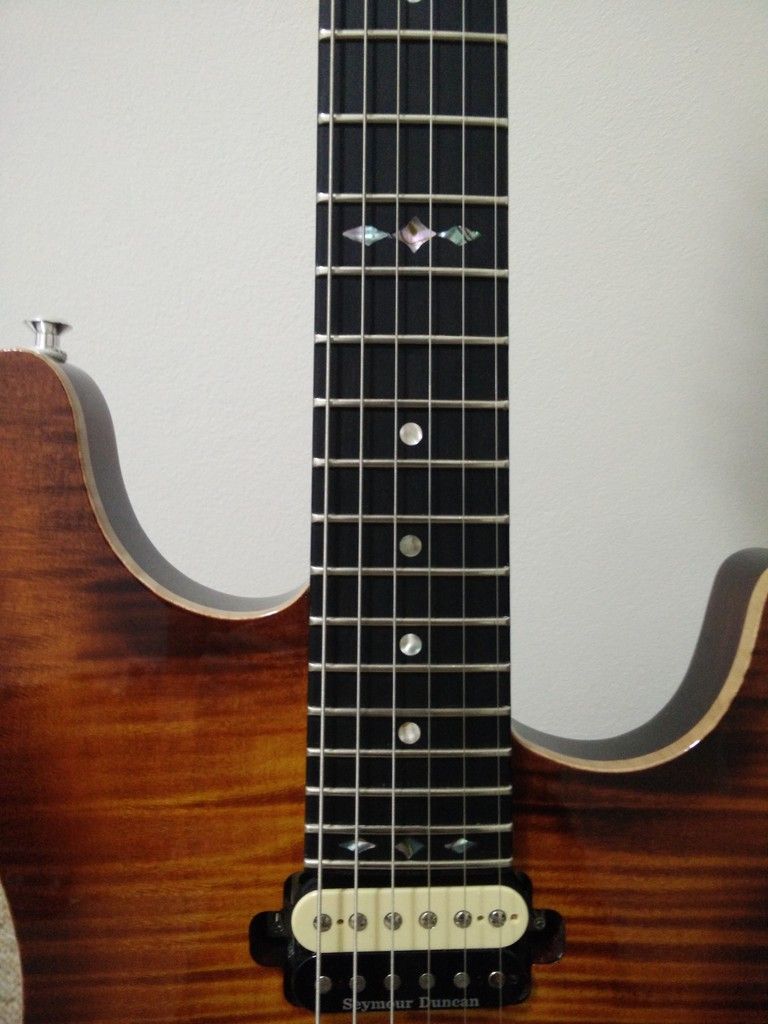

Seymour Duncan Jazz in the neck
5 way super switch wiring: 1. bridge, 2. bridge (north) + neck (south), 3. bridge + neck, 4. neck (north) + bridge (south), 5. neck
500K audio Push pull volume pot, with a blower switch to bypass all electronics and send the bridge pickup straight to the output jack, plus treble bleed mod.
500K audio tone pot with Fender's grease bucket tone circuit.
