Series / Parallel & Phase Switching with Push-Pull Pots

[Bakersdozen]

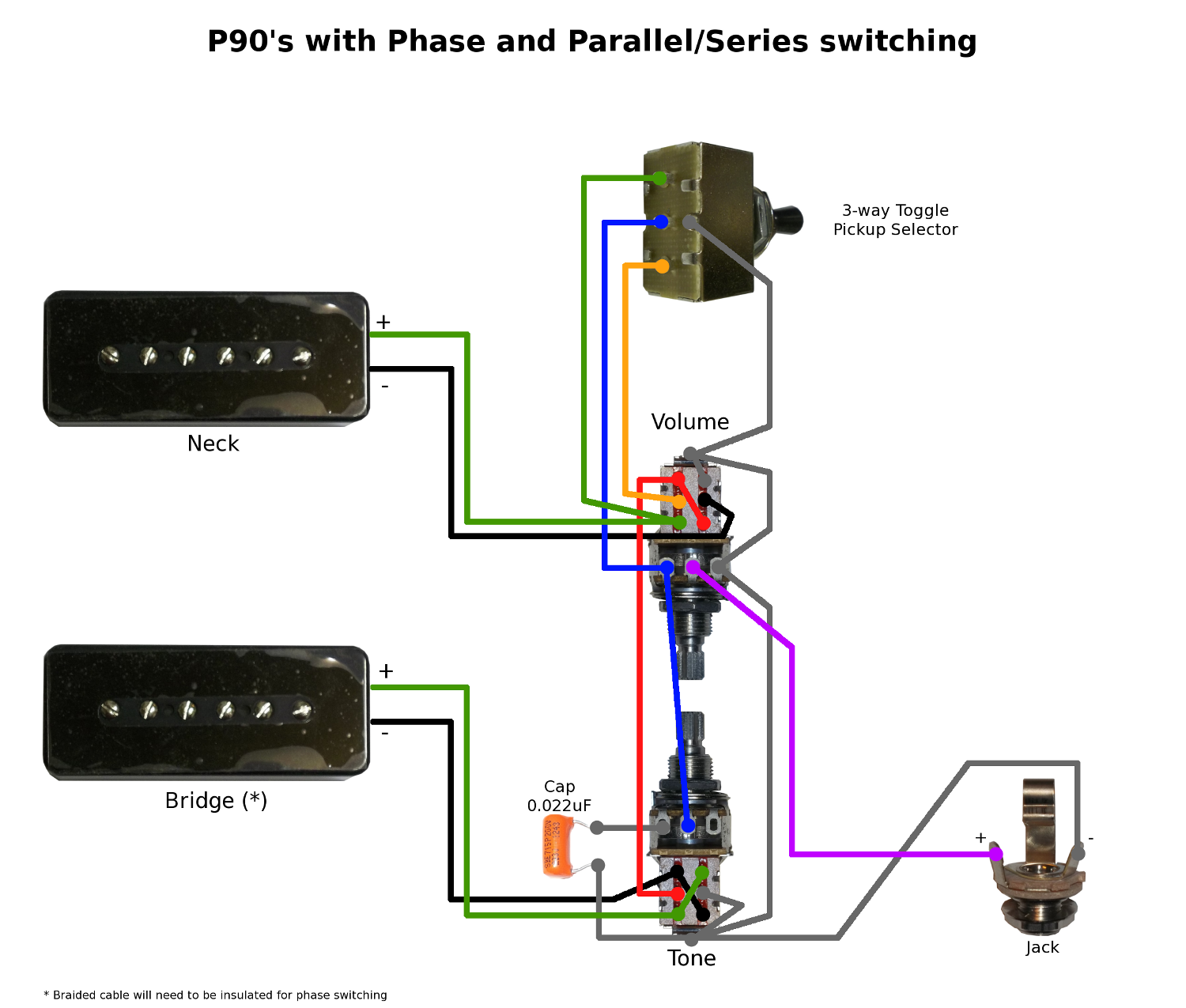

Here's one with the components for anyone interested, just to clarify the pot lug connections.

When the volume push/pull is down you have 'parallel mode' with the standard Bridge/Both/Neck on the pickup selector. With the volume push/pull up in 'series mode' it just gives you Bridge + Neck in series, the pickup selector has no effect.

One quick question if I could Weirdy...

If I wanted to skip the phase part and just use your series/parallel part. I presume the Bridge + would go straight to the top left of the push/pull switch and the Bridge - would go straight to ground?

Sorry for de-railing the OP's thread.

[Bakersdozen]

Thanks Weirdy! Much appreciated. This will come in super handy

[WeirdBits]

Correct. Bridge - goes straight to ground and Bridge + would replace the red wire on the phase push/pull (top left to bottom right lugs).

[Bakersdozen]

Correct. Bridge - goes straight to ground and Bridge + would replace the red wire on the phase push/pull (top left to bottom right lugs).

Thanks mate, appreciate the clarification.
