Next I had to recess the plate.
So first I marked the outline:
Then routed with the dremel (I love that thing!):

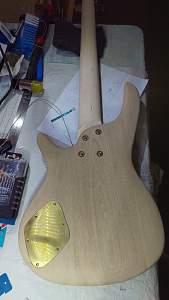

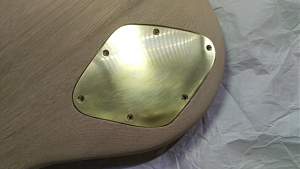

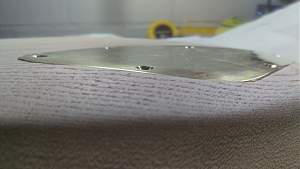

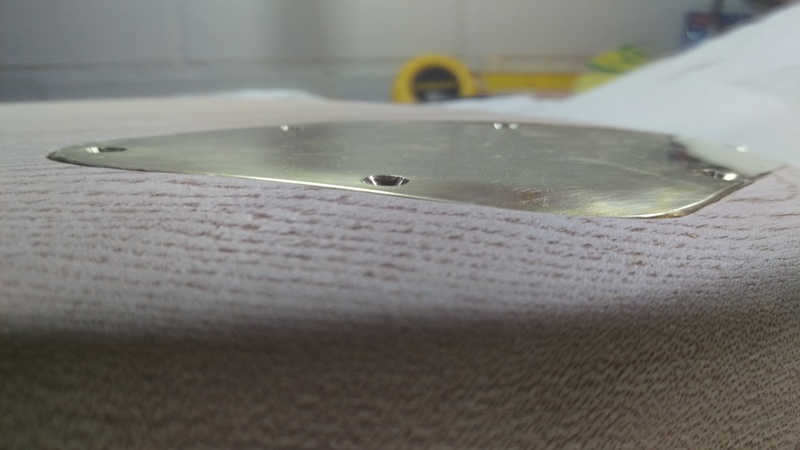

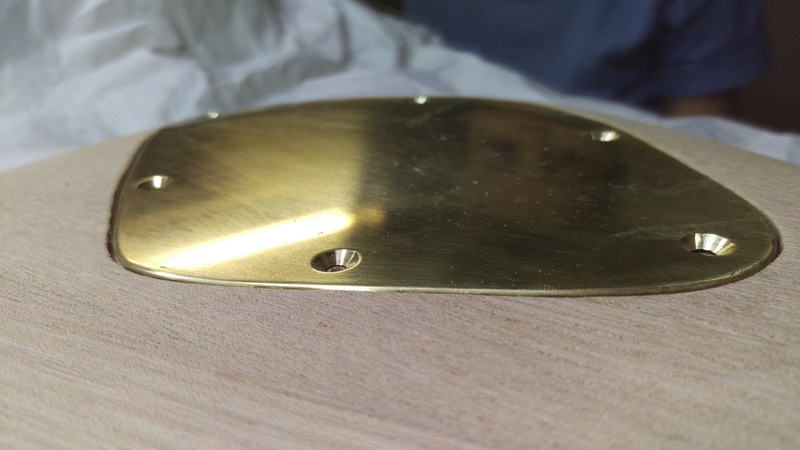

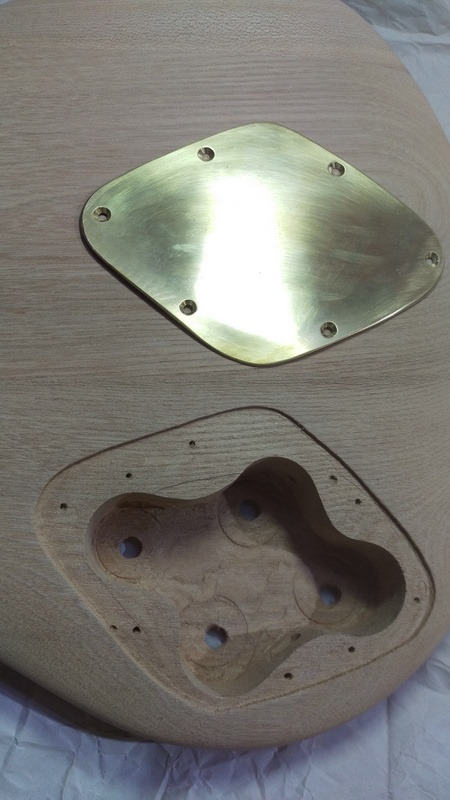

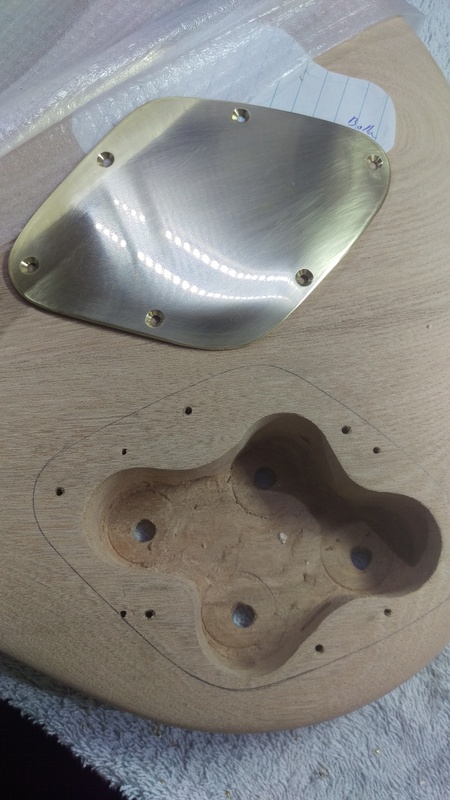

And here's the plate in place:
Not a perfect routing job, it could be tighter in places. But it was my first one, and I'm pretty happy with the result!
#1- STA1M - Completed Jan16 - GOTM Feb16 - Here
#2- IB5 - Completed Aug16 - Here
#3- 335 style 12 strings - 3rd build - Almost done - Here
No #- SG1 'Franck Zappa' - Completed Apr16 for a friend - No build diary (yet?)
#4- 'The Red Plywood Strat' - Completed Aug16 - Here
#5- ST-1JR Star Wars - Completed Dec16 - Here
#6- SG 3 pickups - Almost done - Here
#7- JBA-4M JPJ Bass - Completed Mar18 - Here
Once the cover plate was sorted, next step was to install the bridges.
I forgot how hard it is to exactly line up individual items... whether on a wall, or on a guitar!

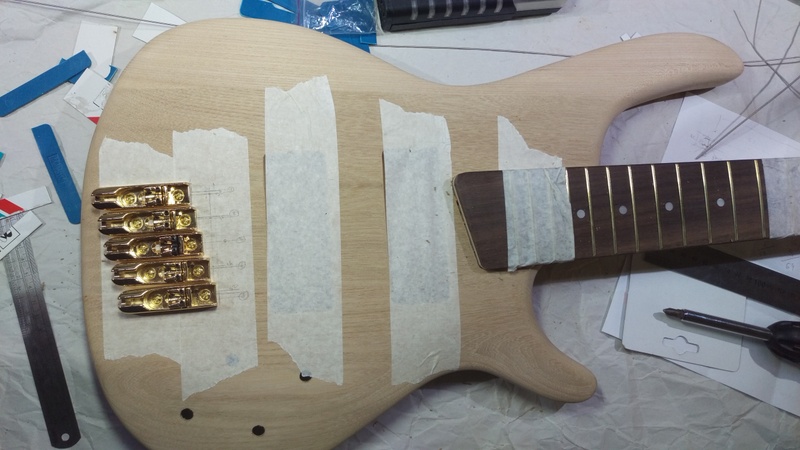

I measured it all up, and checked with the high and low string and all was great:
And then I went to drill them as close to exactly as I thought...
But a single mm out of line here and there means that they were not aligned and it was pretty visible:

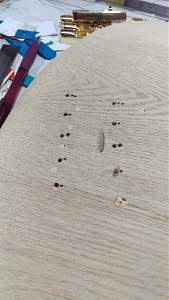

So I tried again, moving everything toward the neck by 3mm (I had plenty of spare), and here's an IB-5 version Swiss cheese:

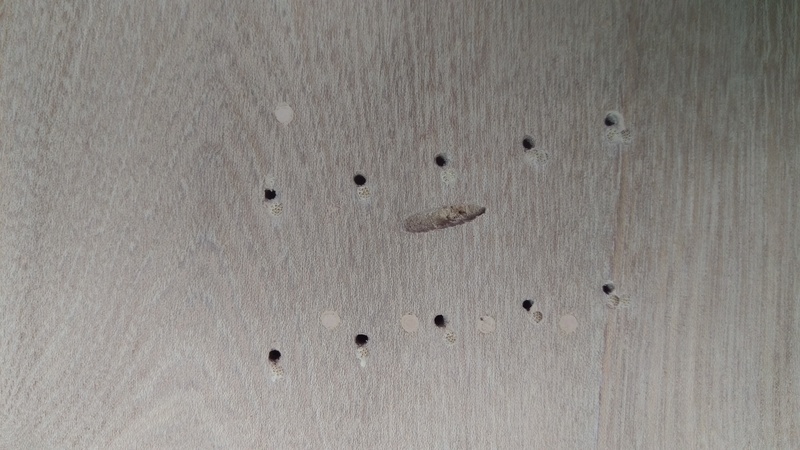

I filled the old holes with wooden skewers sticks and sanded them flat. They won't be visible anyway, so not too stressed about these...

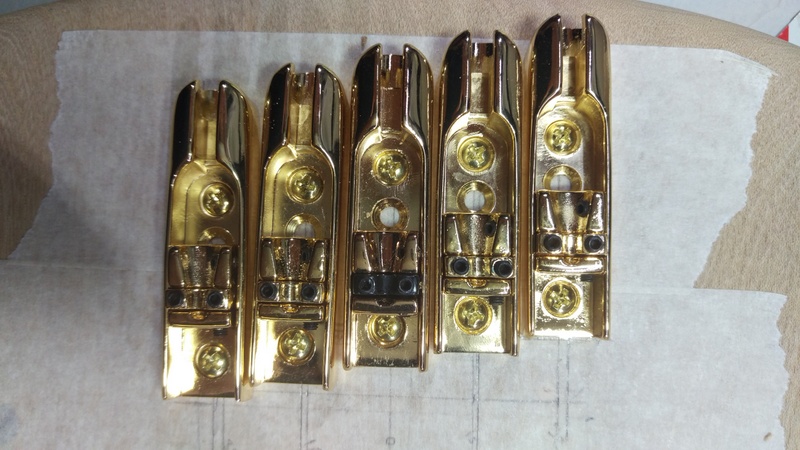

And then I installed the bridges again. Not perfect, but better than the first time and I really can't keep trying to make it perfect... I'll have to live with that:
#1- STA1M - Completed Jan16 - GOTM Feb16 - Here
#2- IB5 - Completed Aug16 - Here
#3- 335 style 12 strings - 3rd build - Almost done - Here
No #- SG1 'Franck Zappa' - Completed Apr16 for a friend - No build diary (yet?)
#4- 'The Red Plywood Strat' - Completed Aug16 - Here
#5- ST-1JR Star Wars - Completed Dec16 - Here
#6- SG 3 pickups - Almost done - Here
#7- JBA-4M JPJ Bass - Completed Mar18 - Here

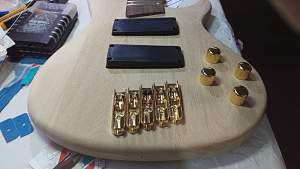

And finally, I was able to do an almost complete dry build:

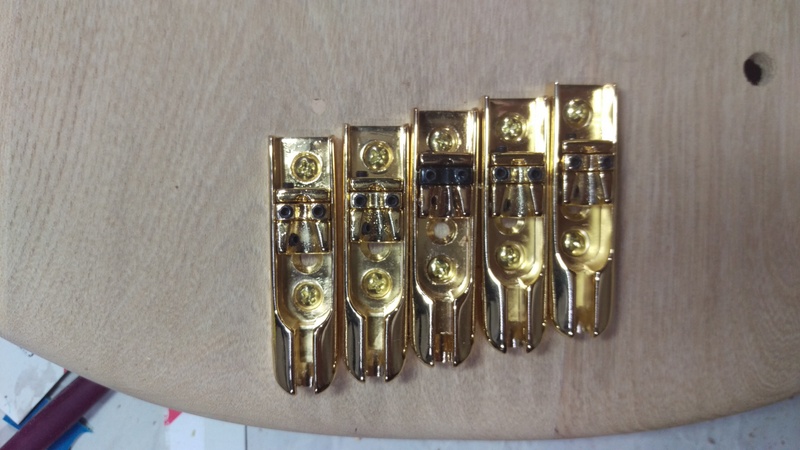

Pretty happy with how the gold hardware looks. The eBay supplier managed to ship me one of the bridges with a different saddle, but they're meant to send me another one, we'll see...
#1- STA1M - Completed Jan16 - GOTM Feb16 - Here
#2- IB5 - Completed Aug16 - Here
#3- 335 style 12 strings - 3rd build - Almost done - Here
No #- SG1 'Franck Zappa' - Completed Apr16 for a friend - No build diary (yet?)
#4- 'The Red Plywood Strat' - Completed Aug16 - Here
#5- ST-1JR Star Wars - Completed Dec16 - Here
#6- SG 3 pickups - Almost done - Here
#7- JBA-4M JPJ Bass - Completed Mar18 - Here
I also wanted to prepare the neck before I started applying Dingotone.

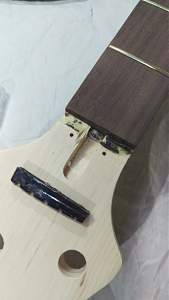

So I removed the plastic nut (I got a bone one cut by DB):
Then I leveled the frets with my trusted expensive fret leveling tool (a bit of wood with 240grit sandpaper stuck with double sided sticky tape):

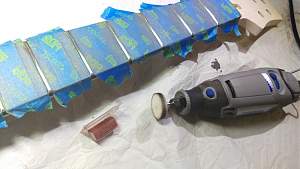

I then reshaped them with a small file and polished them with sandpaper first, and then with the dremel with the polishing wheel. They're pretty shiny now. I'll do a final polishing at the end anyway but I wanted to get them in a good shape to start:
#1- STA1M - Completed Jan16 - GOTM Feb16 - Here
#2- IB5 - Completed Aug16 - Here
#3- 335 style 12 strings - 3rd build - Almost done - Here
No #- SG1 'Franck Zappa' - Completed Apr16 for a friend - No build diary (yet?)
#4- 'The Red Plywood Strat' - Completed Aug16 - Here
#5- ST-1JR Star Wars - Completed Dec16 - Here
#6- SG 3 pickups - Almost done - Here
#7- JBA-4M JPJ Bass - Completed Mar18 - Here
I then went back to the bridge as I had not worked out how to shield these individual bridges...

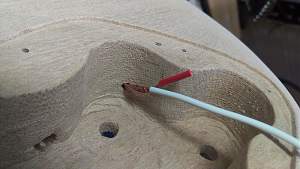

For the 2 x higher strings, I managed to drill straight down and find the hole that was pre-drilled in the factory, that goes from the middle bridge to the control cavity.

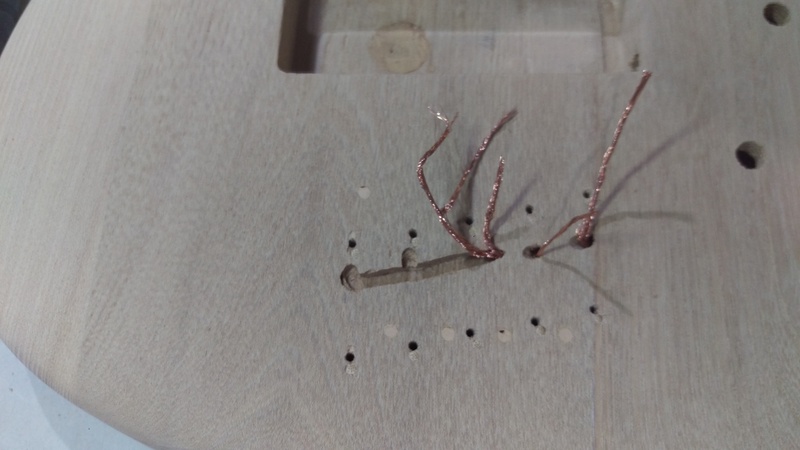

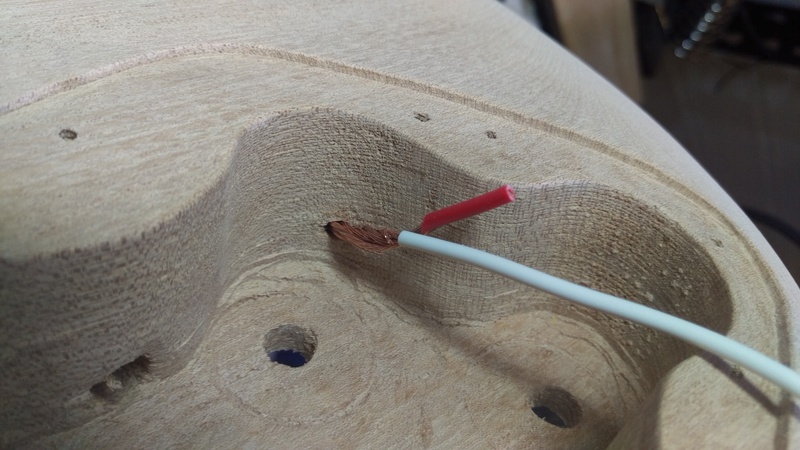

I ran speaker cable in these holes:
I then had to find a way to connect the 2x lower strings, so I routed a channel between them and the middle one and ran more speaker cable:

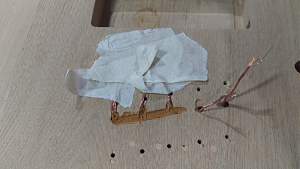

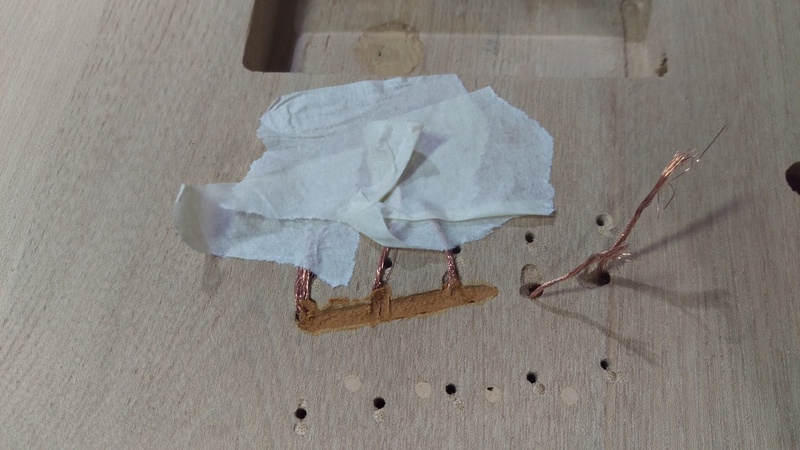

I then only had to fill this channel and level it (final sanding will make it smooth):

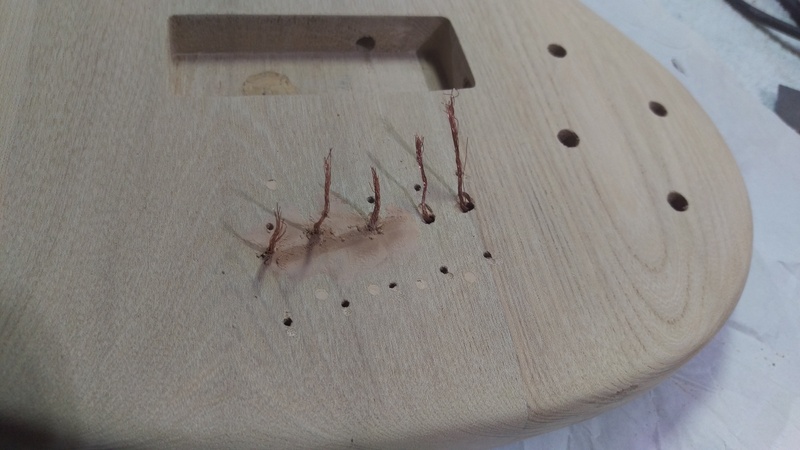

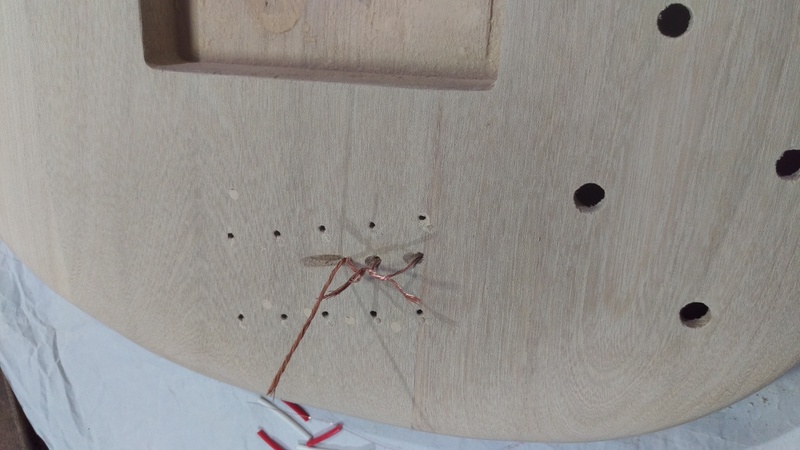

These 5x cables meet in the control cavity where I twisted them together.
I tested them and I've got good continuity between the control cavity and each bridge wire, so I should be good there!
After that I finished sanding, and I'm now ready to start grain filling and then staining!
