    Green shed don't sell it. They have the Feast & Watson version which I tried with good results on my red plywood strat. But it's oil based so gives a slight yellow tint. I was keen to try the Minwax water based one.

    Masters is just to far from me...
    #1- STA1M - Completed Jan16 - GOTM Feb16 - Here
    #2- IB5 - Completed Aug16 - Here
    #3- 335 style 12 strings - 3rd build - Almost done - Here
    No #- SG1 'Franck Zappa' - Completed Apr16 for a friend - No build diary (yet?)
    #4- 'The Red Plywood Strat' - Completed Aug16 - Here
    #5- ST-1JR Star Wars - Completed Dec16 - Here
    #6- SG 3 pickups - Almost done - Here
    #7- JBA-4M JPJ Bass - Completed Mar18 - Here

  2. #2
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    no worries Fred, well Nitro may see your query and help you. I've never used it. Otherwise try any other local hardware or maybe a larger paint shop
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  3. #3
    Overlord of Music andrewdosborne's Avatar
    Join Date
    May 2014
    Location
    Sydney, NSW
    Posts
    2,751
    I think I scored some Minwax (some time ago) in my local Bunnings. Rusty tin (ok inside), on sale as it looked like it had been on the shelf for ever
    Current Projects
    #Planning 5 String Bass

  4. #4
    Minwax Wipe-On Poly has both Oil and Water based versions. The place I used to get it from no longer carry it, but try: Where to buy...
    Scott.

  5. #5
    Mentor FredA's Avatar
    Join Date
    Sep 2015
    Location
    Surry Hills, NSW
    Posts
    500
    No worries. Thanks heaps for these links! I'm going to check these out!
    #1- STA1M - Completed Jan16 - GOTM Feb16 - Here
    #2- IB5 - Completed Aug16 - Here
    #3- 335 style 12 strings - 3rd build - Almost done - Here
    No #- SG1 'Franck Zappa' - Completed Apr16 for a friend - No build diary (yet?)
    #4- 'The Red Plywood Strat' - Completed Aug16 - Here
    #5- ST-1JR Star Wars - Completed Dec16 - Here
    #6- SG 3 pickups - Almost done - Here
    #7- JBA-4M JPJ Bass - Completed Mar18 - Here

  6. #6
    Mentor nitroburner1000's Avatar
    Join Date
    Jun 2016
    Location
    Mount Gambier Australia
    Posts
    1,171
    NEXT STEP..
    The veneer had a few ripples in it so my bro in law said to use a damp cloth over the top and use a steam iron to flatten them out, he said i can do that because i used a water based glue.
    It worked a treat. because i didnt have many clamps i screwed some timbers to the roof of the shed, cut timbers and after putting a piece of melamine over the top, used the timber as braces.

    Attachment 14665

    After all was dry i checked the surface, some small cracks had appeared and the middle join was slightly opened. I used superglue and some walnut dust to fill the middle join.
    Click image for larger version.

Name:	IMAG2818 (Copy).jpg
Views:	226
Size:	96.1 KB
ID:	14667
    Fender electric Fat Strat mim. (Bought)
    Maton Electric Acoustic EM325C
    Pitbull Guitars ST-1 ( finished) http://www.buildyourownguitar.com.au...ead.php?t=5970
    Pitbull Guitars SG-2 ( Finished) http://www.buildyourownguitar.com.au...ead.php?t=6124

    Pitbull Guitars JM-1 (Finished. 2018 June GOTM))http://www.buildyourownguitar.com.au...ead.php?t=7150
    Pitbull Guitars TL-1 (In production) [url]https://www.buildyourownguitar.com.au/forum/showthread.php?t=8676

  7. #7
    Mentor nitroburner1000's Avatar
    Join Date
    Jun 2016
    Location
    Mount Gambier Australia
    Posts
    1,171

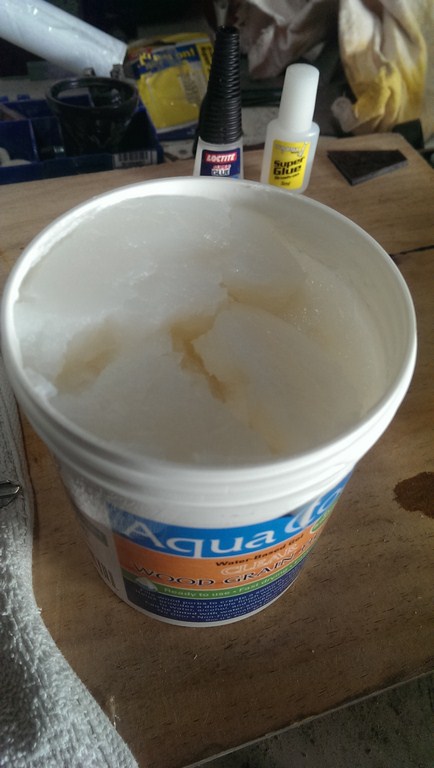

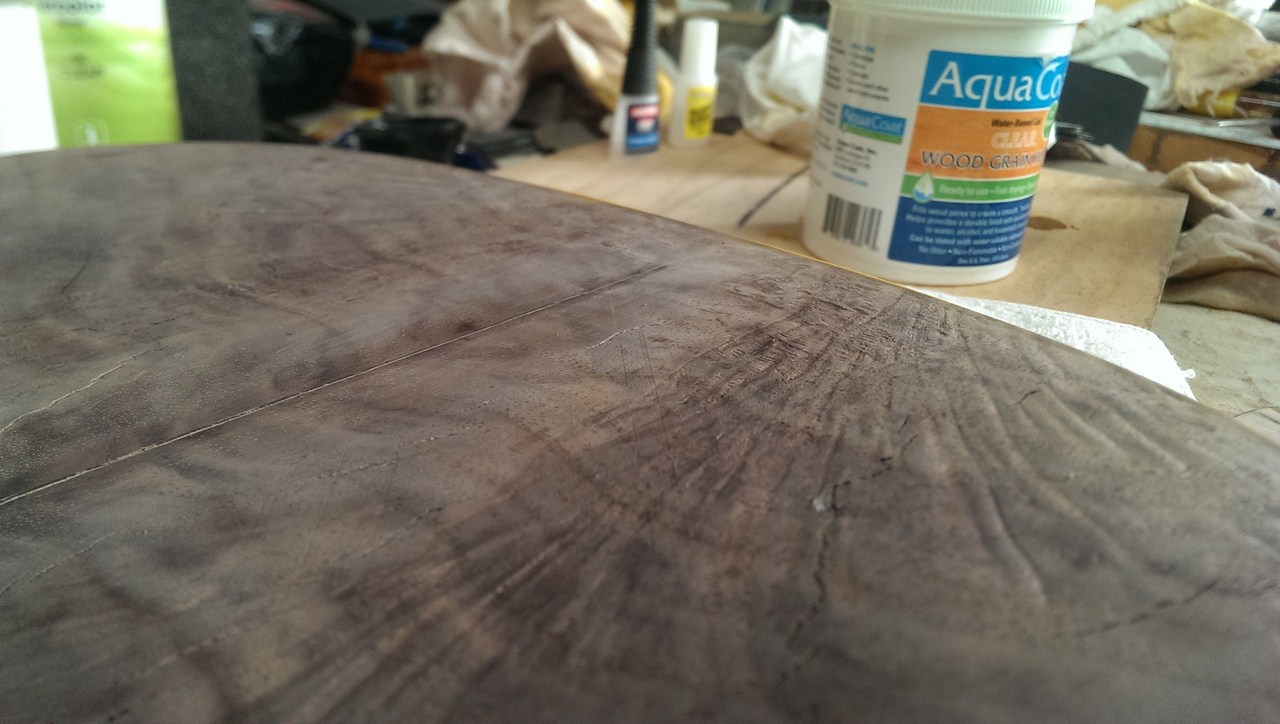

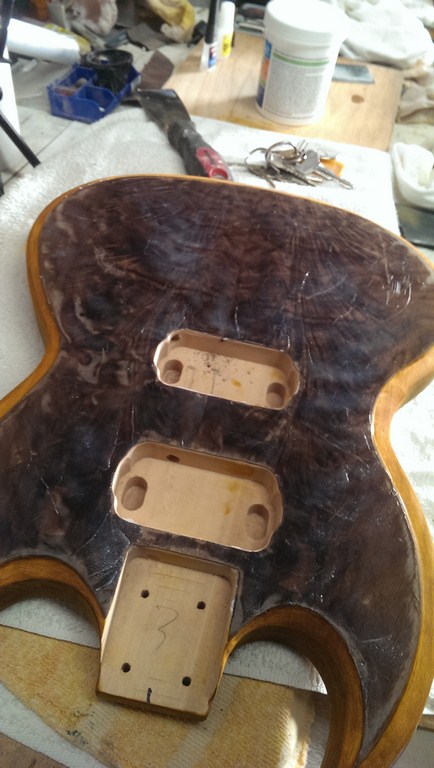

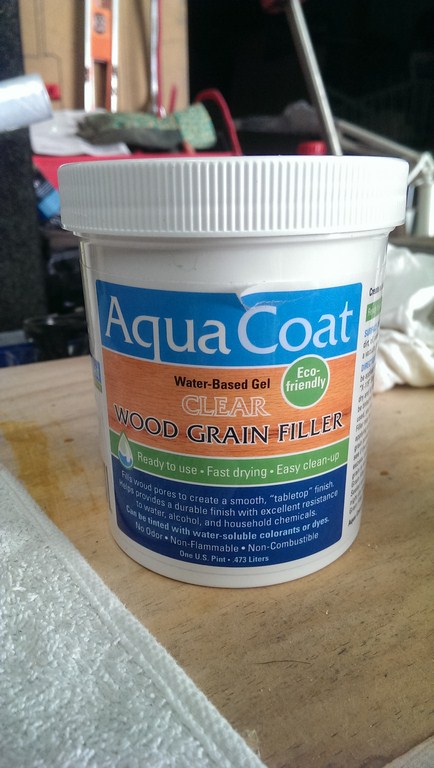

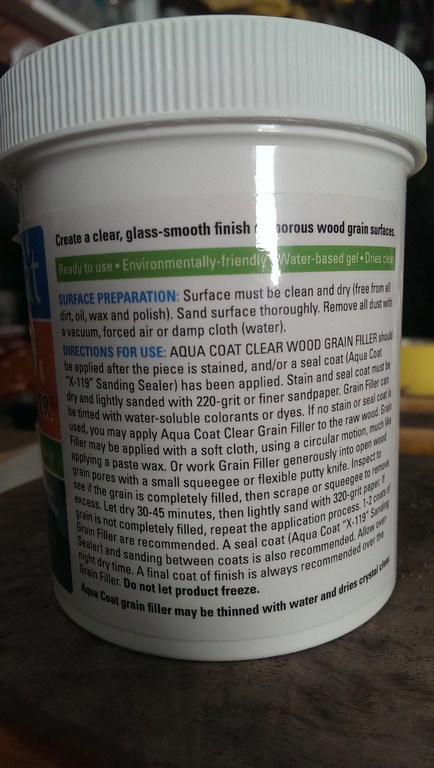

    With this guitar i want it to retain all the grain features, cracks, dents and undulations but at the same time look flat and smooth. To do this i looked round for a clear grain filler and found one from America but i got it from an Australian supplier.

    Click image for larger version.

Name:	IMAG2815 (Copy).jpg
Views:	210
Size:	109.9 KB
ID:	14668 Click image for larger version.

Name:	IMAG2819 (Copy).jpg
Views:	205
Size:	114.9 KB
ID:	14669 Click image for larger version.

Name:	IMAG2820 (Copy).jpg
Views:	216
Size:	85.0 KB
ID:	14670

    Its crystal clear, non toxic, water based and can be sanded in a few hours after application. You can then put any product over the top. Water based clears, Thinners based, nitro, 1k or 2K, poly or turps based.
    Fender electric Fat Strat mim. (Bought)
    Maton Electric Acoustic EM325C
    Pitbull Guitars ST-1 ( finished) http://www.buildyourownguitar.com.au...ead.php?t=5970
    Pitbull Guitars SG-2 ( Finished) http://www.buildyourownguitar.com.au...ead.php?t=6124

    Pitbull Guitars JM-1 (Finished. 2018 June GOTM))http://www.buildyourownguitar.com.au...ead.php?t=7150
    Pitbull Guitars TL-1 (In production) [url]https://www.buildyourownguitar.com.au/forum/showthread.php?t=8676

  8. #8
    Mentor nitroburner1000's Avatar
    Join Date
    Jun 2016
    Location
    Mount Gambier Australia
    Posts
    1,171

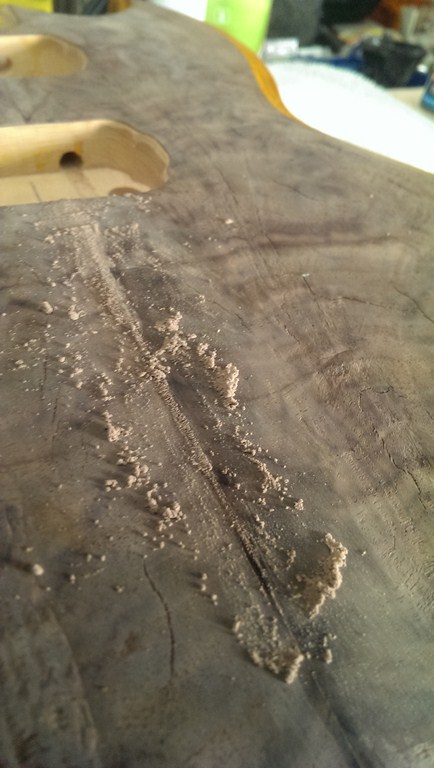

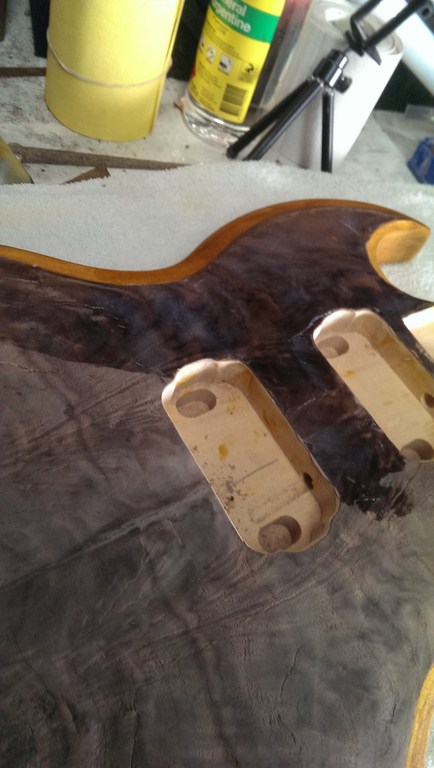

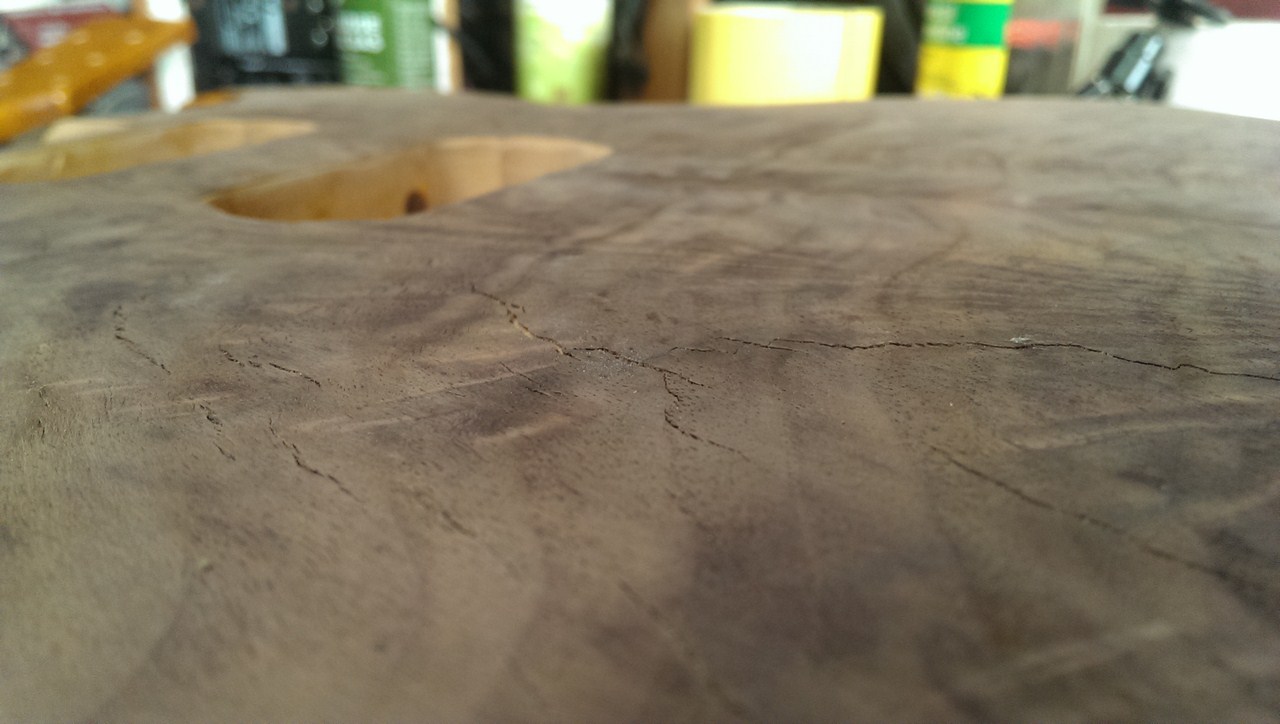

    Top of veneer showing cracks

    Click image for larger version.

Name:	IMAG2816 (Copy).jpg
Views:	208
Size:	149.0 KB
ID:	14671 Click image for larger version.

Name:	IMAG2817 (Copy).jpg
Views:	202
Size:	183.2 KB
ID:	14672

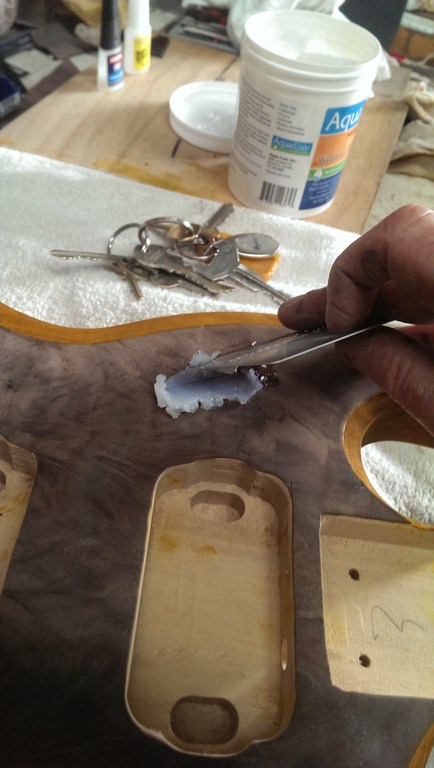

    1st coat applied with a credit card, a little goes a long way.

    Click image for larger version.

Name:	IMAG2821 (Copy).jpg
Views:	214
Size:	89.5 KB
ID:	14673 Click image for larger version.

Name:	IMAG2822 (Copy).jpg
Views:	223
Size:	90.6 KB
ID:	14674 Click image for larger version.

Name:	IMAG2823 (Copy).jpg
Views:	220
Size:	105.6 KB
ID:	14675
    Fender electric Fat Strat mim. (Bought)
    Maton Electric Acoustic EM325C
    Pitbull Guitars ST-1 ( finished) http://www.buildyourownguitar.com.au...ead.php?t=5970
    Pitbull Guitars SG-2 ( Finished) http://www.buildyourownguitar.com.au...ead.php?t=6124

    Pitbull Guitars JM-1 (Finished. 2018 June GOTM))http://www.buildyourownguitar.com.au...ead.php?t=7150
    Pitbull Guitars TL-1 (In production) [url]https://www.buildyourownguitar.com.au/forum/showthread.php?t=8676

  9. #9
    Mentor nitroburner1000's Avatar
    Join Date
    Jun 2016
    Location
    Mount Gambier Australia
    Posts
    1,171

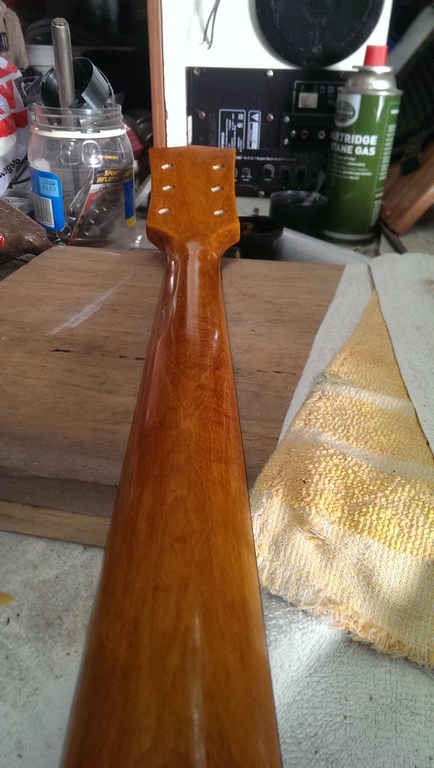

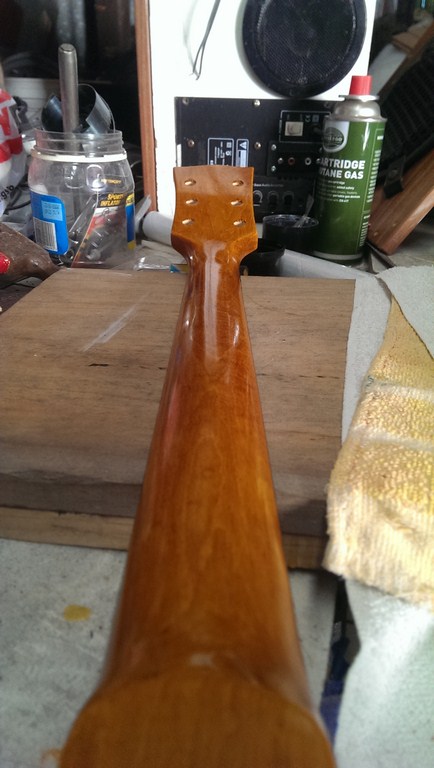

    4th coat of wipe on poly to the neck

    Click image for larger version.

Name:	IMAG2824 (Copy).jpg
Views:	226
Size:	94.2 KB
ID:	14676 Click image for larger version.

Name:	IMAG2825 (Copy).jpg
Views:	200
Size:	108.5 KB
ID:	14677
    Fender electric Fat Strat mim. (Bought)
    Maton Electric Acoustic EM325C
    Pitbull Guitars ST-1 ( finished) http://www.buildyourownguitar.com.au...ead.php?t=5970
    Pitbull Guitars SG-2 ( Finished) http://www.buildyourownguitar.com.au...ead.php?t=6124

    Pitbull Guitars JM-1 (Finished. 2018 June GOTM))http://www.buildyourownguitar.com.au...ead.php?t=7150
    Pitbull Guitars TL-1 (In production) [url]https://www.buildyourownguitar.com.au/forum/showthread.php?t=8676

  10. #10
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    looking sweet as Nitro, that neck is looking pretty shiny after 4 coats, are those pics after it's cured or just applied ?
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in
