Originally Posted by Andy40
Fair enough, Simon.
You'll also note from the photo that the factory drill hole for the earth wire happens to come out right where the G string comes through. Its not a major drama, but its not preferable. It would be better if the factory had the earth wire hole come out closer to the pick guard or just left it for the Kit punter to put in.

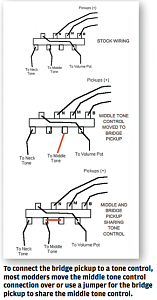

I found this on the interweb regarding the wiring a tone control to the bridge pup, any reason this wouldn't work?
I reckon that should work fine, in that pic you posted, the middle diagram is how the pickup switch is wired for the Eric Johnson Signature Strat, he uses a .1uF tone cap instead of the usual .022uF though, I personally can't see why the bottom diagram wouldn't work and if you wire up the selector switch that way then you should have the tone control nearest to the volume control working on both the neck and middle pickup, and the other tone control working on the bridge pickup.
