SG-2 by Nitroburner1000

[Tweaky]

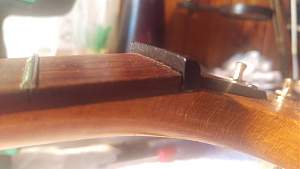

The new graphite nut seems very high, at least compared to the strat so i will have to resize it i think.



Edit..... Does anyone know offhand how high from the fretboard the nut is supposed to be?

I've just measure my very recently purchased MIJ Tokai SG., which is the best setup I've ever had on a new guitar, and I won't be changing it.

The first fret height is .88mm
Height of nut at
Low E 2.35mm
A - 2.25mm
D -2.03m
G - 1.85
B - 1.77mm
High E - 1.55mm

All the above measurements are from fretboard to the top of the nut, they don't include the nut slot depths

[nitroburner1000]

I've just measure my very recently purchased MIJ Tokai SG., which is the best setup I've ever had on a new guitar, and I won't be changing it.

The first fret height is .88mm
Height of nut at
Low E 2.35mm
A - 2.25mm
D -2.03m
G - 1.85
B - 1.77mm
High E - 1.55mm

All the above measurements are from fretboard to the top of the nut, they don't include the nut slot depths

Thanks tweaky, that will prove very helpful.
