I like no load pots, they take all the load off your pickup when full on, giving you just your nice clean pickup sound.
Heres how i do it.

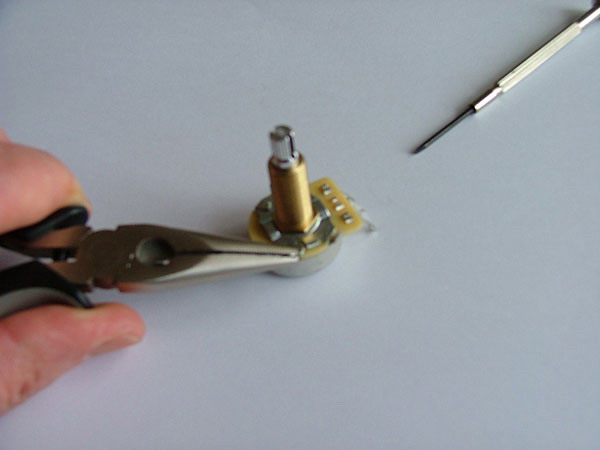

Pull the tabs back on the pot
Pull the pot apart, it comes apart easy
Scrape some of the carbon from the left side of the sweeper as marked
Wire into the tone control on your harness your choice which one or all
You can make one for your volume, it will mean at 10 you have no sound at all, i have a mod to get around this but i dont see the point, the low resistance load to the pickup will damp the electrical resonance and result in a lot of treble loss at lower volume setting
