    Stereo (barrel) jack socket terminals

    The active and ground terminals for the PBG Stereo Jack Socket used in the IB-5 kit have created some confusion in the past so I thought I would post a thread.

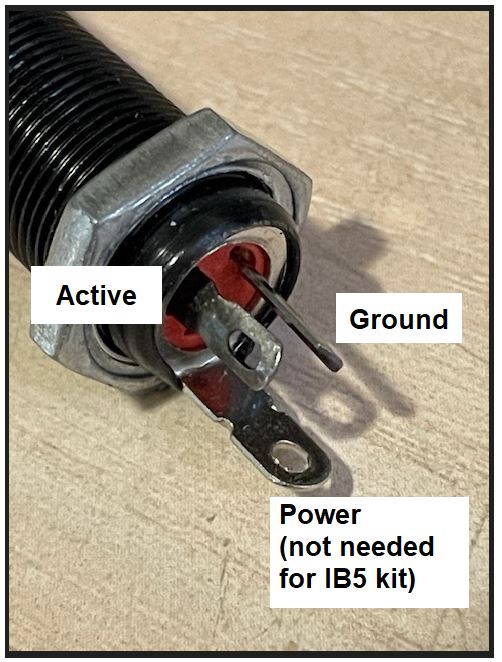

    The shortest terminal is the active terminal. The middle length terminal is the ground terminal. The longest terminal is the Power terminal (which is not used in the IB-5 kit).
    Attached Thumbnails Attached Thumbnails Click image for larger version.  Name: IMG_2375.jpg  Views: 1482  Size: 130.1 KB  ID: 45524   Click image for larger version.  Name: IMG_2375 labelled.JPG  Views: 1487  Size: 70.0 KB  ID: 45525   Click image for larger version.  Name: IMG_2377.jpg  Views: 1485  Size: 99.6 KB  ID: 45526
