RC-4L wiring diagram ???????
Hello Bass builders out there. I need help with finding a wiring diagram for a Pitt Bull RC-4L. It's the LEFT-handed Ricky model--which has been discontinued. Do have the RIGHT-handed diagram, but, since I'm electronically challenged, I can't reverse it in my mind. OK, thanks...........Bruno A
Hi Bruno,
I have never picked up a lefty guitar. I assume lefty's turn the volume pots anticlockwise (from the top of the guitar) to make them louder?

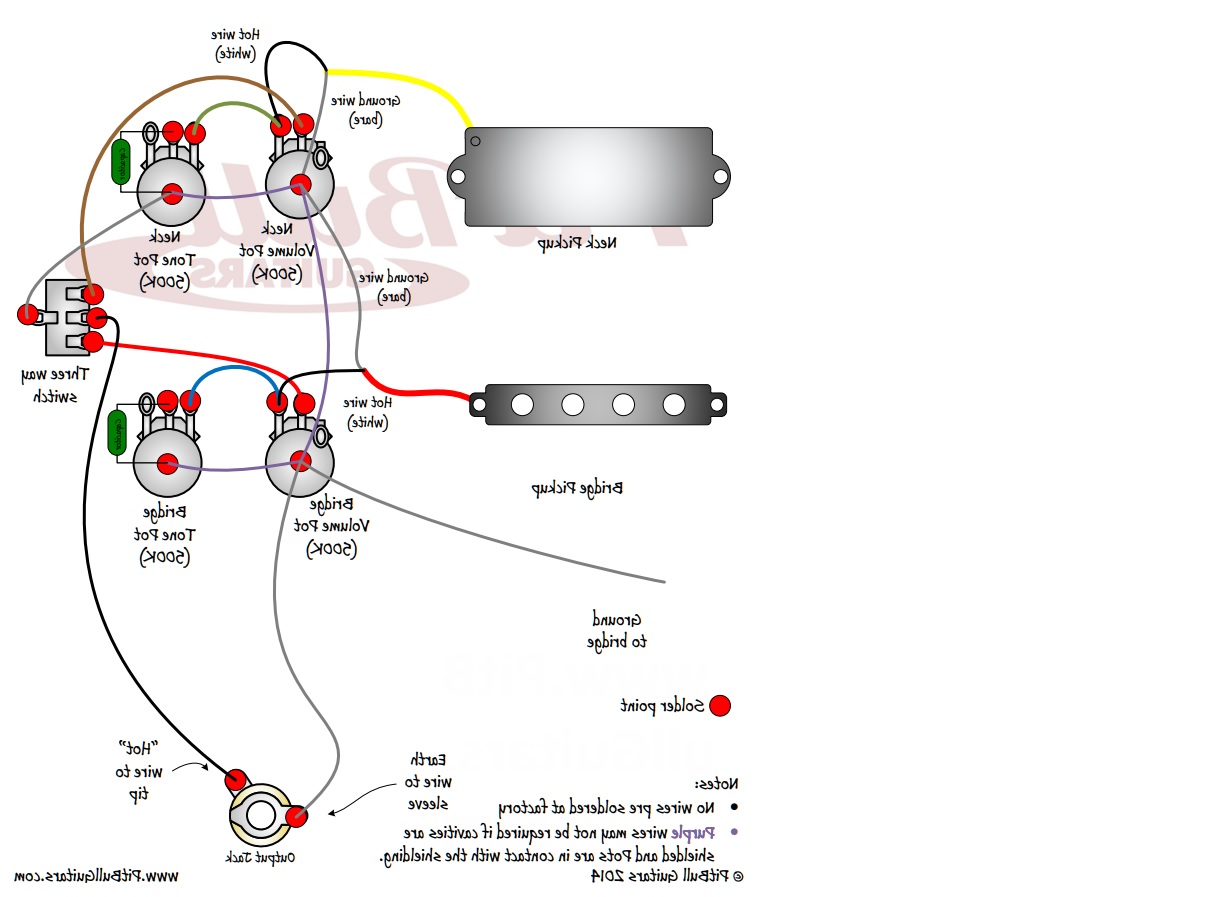

I hope I have this correct. So, I think the wiring diagram just needs to flip horizontally! I hope you can read backwards writing.
Edit: not sure how that works with the non-linear tone pots!? Hopefully others will pitch in!
Last edited by Trevor Davies; 10-01-2023 at 09:49 AM.
PitBull Builds: FVB-4, LP-1SS, FBM-1, AG-2, TB-4, SSCM-1, TLA-1,TL-1TB, STA-1HT, DSCM-1 Truckster, ST-1, STA-1, MBM-1, MBM custom, GHR-1 (Resonator).
Scratch Builds: Pine Explorer, Axe Bass, Mr Scary, Scratchy Tele's.
The little voices in my head keep telling me "build more guitars"
Thank you, Trevor. I'll work on it and let you know what I find out. Really appreciate your input.......B
And thanks for making it easy to blow it up and print out.
