  1. #1
    Quote Originally Posted by gavinturner View Post
    Great advice from Waz. One other thing I have found is a drop of dishwashing detergent in the water helps to keep your sandpaper unclogged longer. Good Luck.

    cheers,
    Gav.
    Thanks Gavin,

    I've got a bit of a way to go with this wet and dry but I'll take your advice with the dishwashing detergent. Thank you.

    I checked out your blog site and wow you have some really awesome builds.

  2. #2

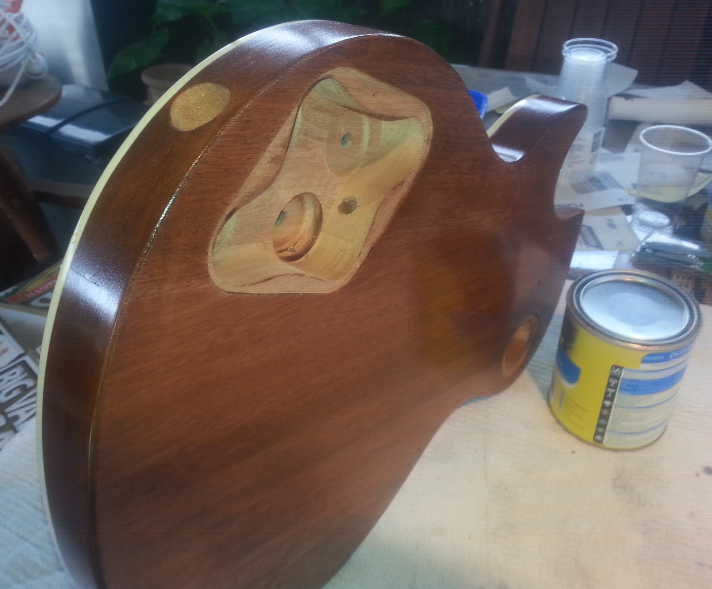

    Ok so here's an update. These pictures are with 9 coats of Tru-oil with no sanding at all.

    Click image for larger version.

Name:	28.png
Views:	656
Size:	564.0 KB
ID:	12282

    Click image for larger version.

Name:	29.png
Views:	663
Size:	821.2 KB
ID:	12283

    Click image for larger version.

Name:	30.png
Views:	687
Size:	525.2 KB
ID:	12284

  3. #3
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    looking good Alkay, how many more naughty oil coats you planning ? Should have enough coats to let it cure and wet sand it I'd say
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  4. #4
    Quote Originally Posted by wokkaboy View Post
    looking good Alkay, how many more naughty oil coats you planning ? Should have enough coats to let it cure and wet sand it I'd say
    .....haha probably hundreds after the above mistake I just posted. It's really disappointing. It was looking really nice.

  5. #5
    Here's a picture before I tried the wet and dry 1200.

    Click image for larger version.

Name:	31.png
Views:	663
Size:	284.2 KB
ID:	12285

    -------------------------------------------------------------

    ....and now for the mistake. I thought I followed everyone's advice and also checked some videos too for tips.

    I wet and dry sanded a small section of the side of the body from the neck to near the pickup selecter cavity area.
    Wet and dry was soaked overnight in water and dishwashing detergent.

    The section I sanded has left streaks in the finish. I used cork sanding block and made 4 smooth even passes in the same direction.

    This was looking like a beautiful finish before I attacked it. I appreciate any help.


    Cheers,

    Alkay.

    I hope you can see the damage in the picture.

    Click image for larger version.

Name:	32.png
Views:	666
Size:	196.5 KB
ID:	12286

  6. #6
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    Hi Alkay bit hard to see in the bottom photo. What grit paper did you use to wet sand ? EDIT just read you used 1200 grit

    how long since the last coat of tru oil when you wet sanded ?

    my guess is the tru oil maybe hadn't fully cured
    Last edited by wokkaboy; 28-06-2016 at 12:03 PM.
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  7. #7
    Quote Originally Posted by wokkaboy View Post
    Hi Alkay bit hard to see in the bottom photo. What grit paper did you use to wet sand ? EDIT just read you used 1200 grit

    how long since the last coat of tru oil when you wet sanded ?

    my guess is the tru oil maybe hadn't fully cured
    Hi wokkaboy,

    I uploaded a better image so you can see. What do you think I should do to fix this?

  8. #8

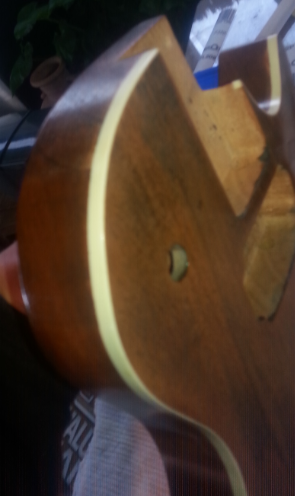

    Heres a better picture so you can see the damage of the 1200 wet and dry sanding.

    9th coat of Tru-oil went on 25/06/16. It has been drying in the lounge room near the fire place which is on mostly 24/7.
    How long should have I waited?

    Click image for larger version.

Name:	33.png
Views:	670
Size:	493.2 KB
ID:	12287

    Cheers,

    Alkay.
    Last edited by Alkay; 28-06-2016 at 12:12 PM.

  9. #9
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    that's weird Alkay, so is the perpendicular line below your finger a join in the timber or a line where you stopped sanding ?

    my guess is the TO didn't cure properly, still waiting to hear how long you let it cure before sanding

    EDIT just read your edited post so Saturday was the last coat, you need to wait at least a week probably 2 weeks in winter before wet sanding. Where do you live Alkay ?

    DB's rule is let any finish cure for minimum 3 weeks before wet sanding and polishing
    Last edited by wokkaboy; 28-06-2016 at 12:20 PM.
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  10. #10
    Quote Originally Posted by wokkaboy View Post
    that's weird Alkay, so is the perpendicular line below your finger a join in the timber or a line where you stopped sanding ?
    It's a join in the timber and also where I sanded from towards the neck pocket(about 110mm).

    my guess is the TO didn't cure properly, still waiting to hear how long you let it cure before sanding
    Ok bummer, I got confused. I thought I wait three weeks before applying the Meguiars ultimate compound.

    EDIT just read your edited post so Saturday was the last coat, you need to wait at least a week probably 2 weeks in winter before wet sanding. Where do you live Alkay ?
    I'm in country VIC near the Grampians about 3 hours drive west of Melbourne.

    DB's rule is let any finish cure for minimum 3 weeks before wet sanding and polishing
    OK noted again, haha. I'll get there one day haha.

    So what is your recommendation? I'd rather not sand the whole body back and risk more issues.

    Cheers,

    Alkay.
