EX-1 vs EX-5 - pics that show the differences

Hi Folks, not sure how many people would contemplate building both Explorer styles and have attached some photos to show the slight differences.

Other than one being a set neck 6 string guitar and the other a bolt on neck 5 string bass there are a couple of distinct differences.

(1) Position of output socket which is a direct result of where the (2) control cavity has been routed, which in turn relates to (3) where controls are located on the top. Otherwise they are identical in thickness, shape, and bodies weigh pretty much the same.

Attachment 7928Attachment 7929Attachment 7930Attachment 7931Attachment 7932

Obviously where and how the neck joins the body and also the necks themselves are the glaringly obvious differences and will post photos of those tomorrow.

Following neck shots have fret boards covered up as still finishing off but getting closer to fitting them to their respective bodies. Will post those shots as well to help show the differences.

In these shots the most obvious thing is the Bass neck being much longer as it has to accommodate 9.25" more scale length and surprisingly it is not too much wider across the fret board however it appears shallower with a slimmer profile compared to guitar equivalent.

The pointy headstock is closer to original design on the EX-5 and also has more rake. Probably the only disappointing feature of the EX-1 is the standard headstock which is quite blunt and stubby looking, not as angular as the original.
Attachment 7953Attachment 7954Attachment 7955Attachment 7956Attachment 7957

More neck shots.....
Attachment 7958Attachment 7959Attachment 7960Attachment 7961

cool comparison, thanks

nice comparison Waz, handy info for anyone thinking about either kit.
They are both looking sweet as nice shine !

Thanks for the info Waz. It's great to see your two axes side by side!

cheers,
Gav.

Thanks Guys, hope to eventually show a bit more of them both side by side right through to completion. Maybe I am not the only one who thought about building both Explorers and hope this helps anyone considering either kit.

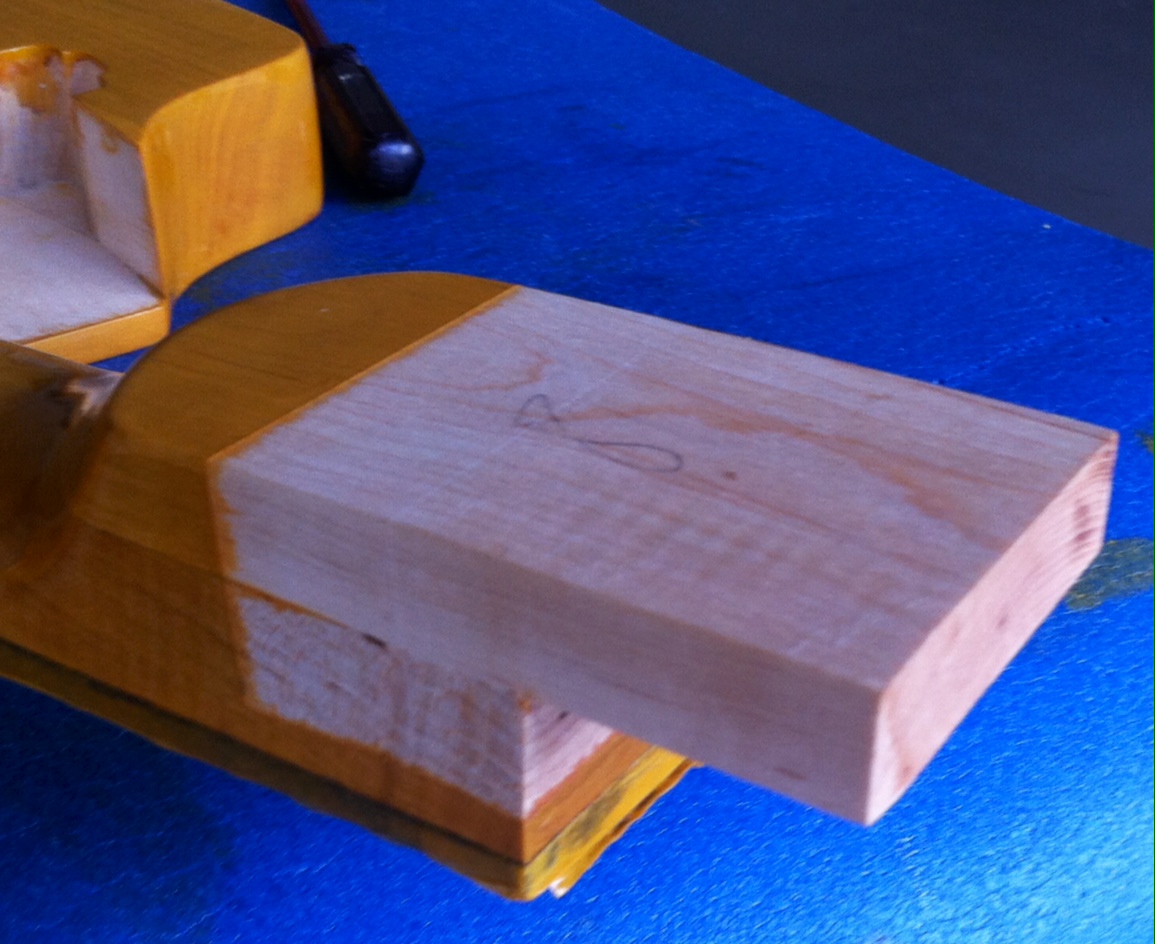

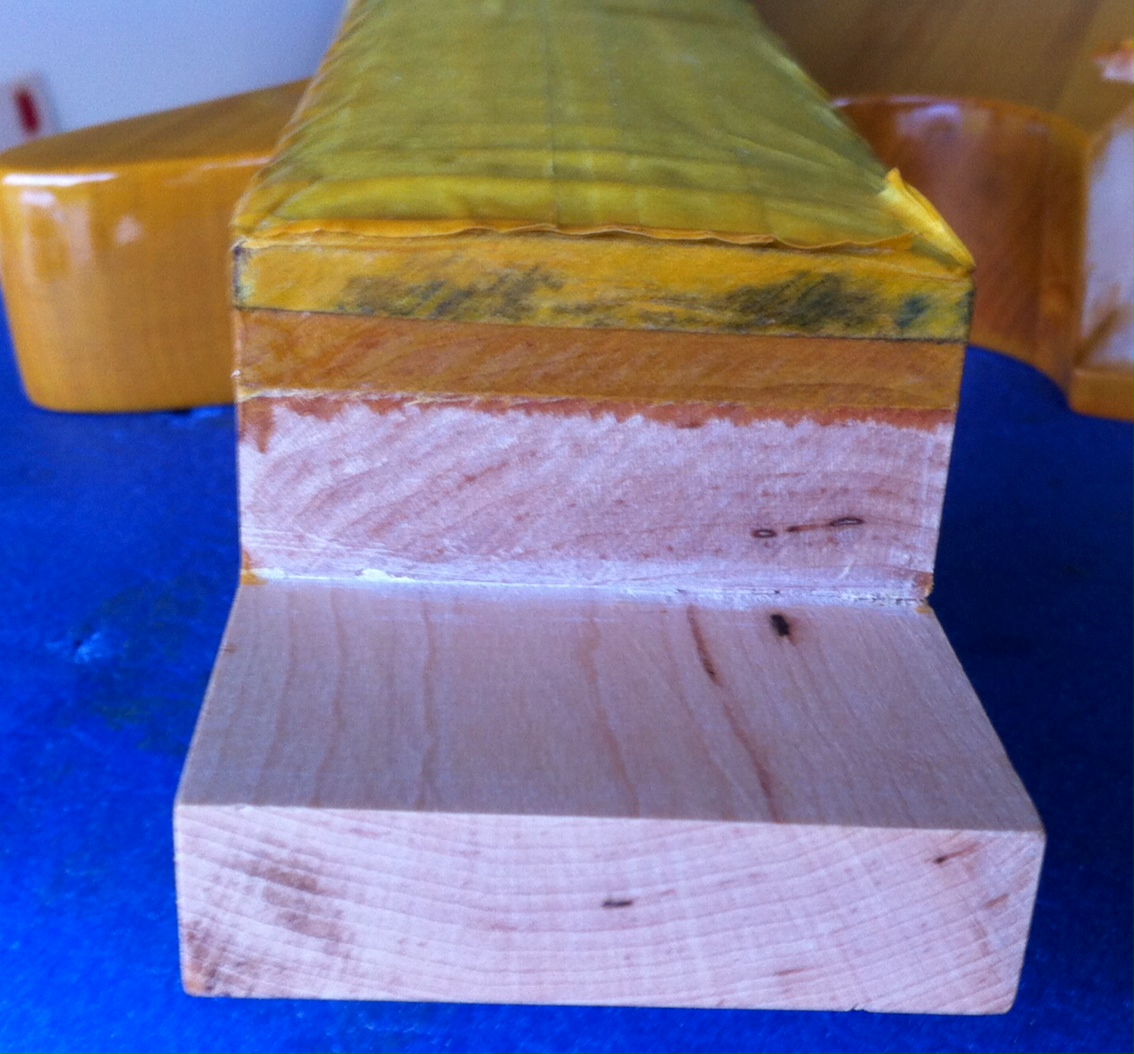

Removed tape in readiness for attaching necks to their respective bodies and thought I would share pics of the neck ends that go into the pockets before they are permanently fixed. Plenty of shots......EX-1 Neck Pocket
Attachment 8861Attachment 8862Attachment 8863Attachment 8864Attachment 8865

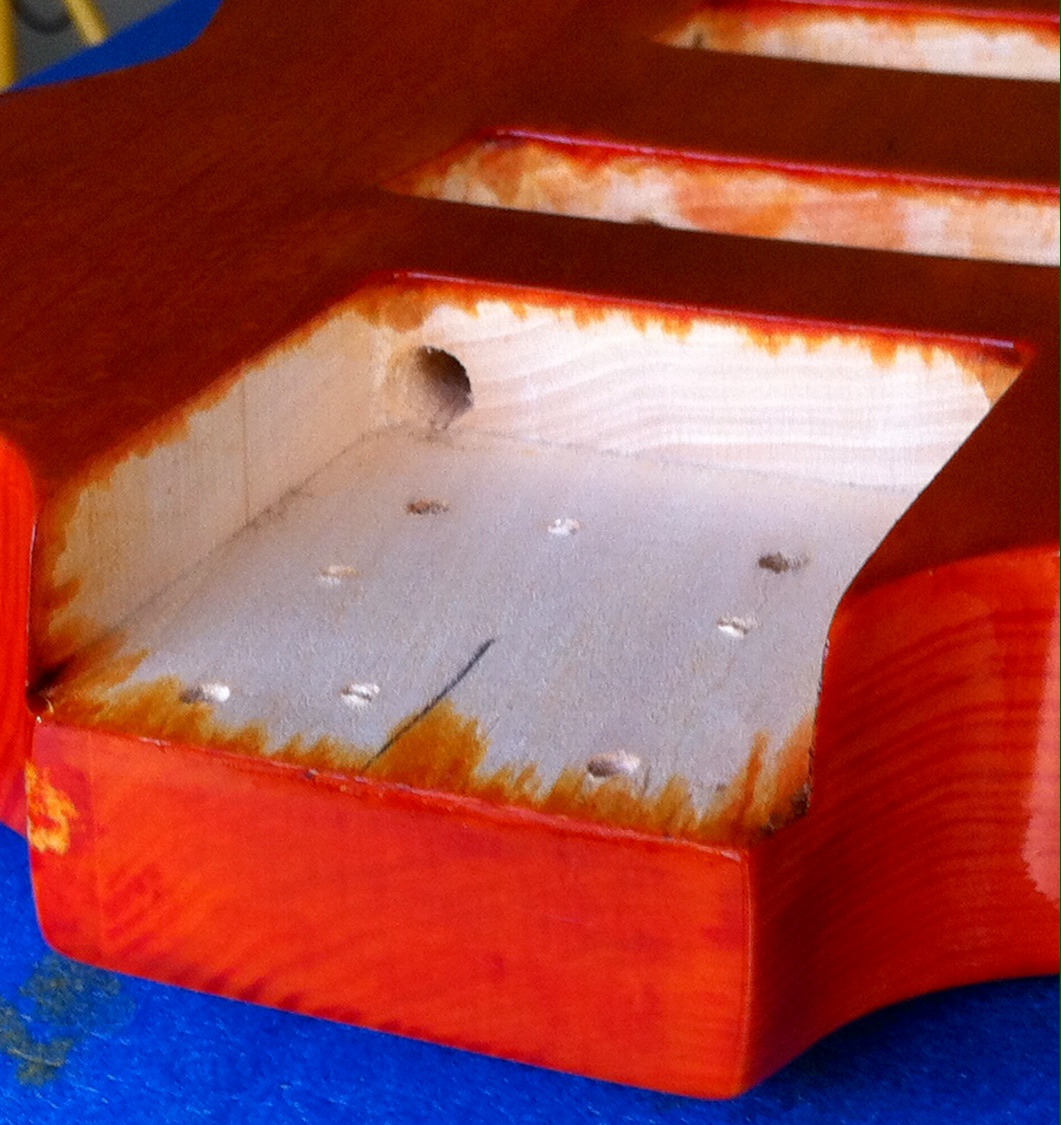

EX-5 Neck Pocket....
Attachment 8866Attachment 8867Attachment 8868Attachment 8869

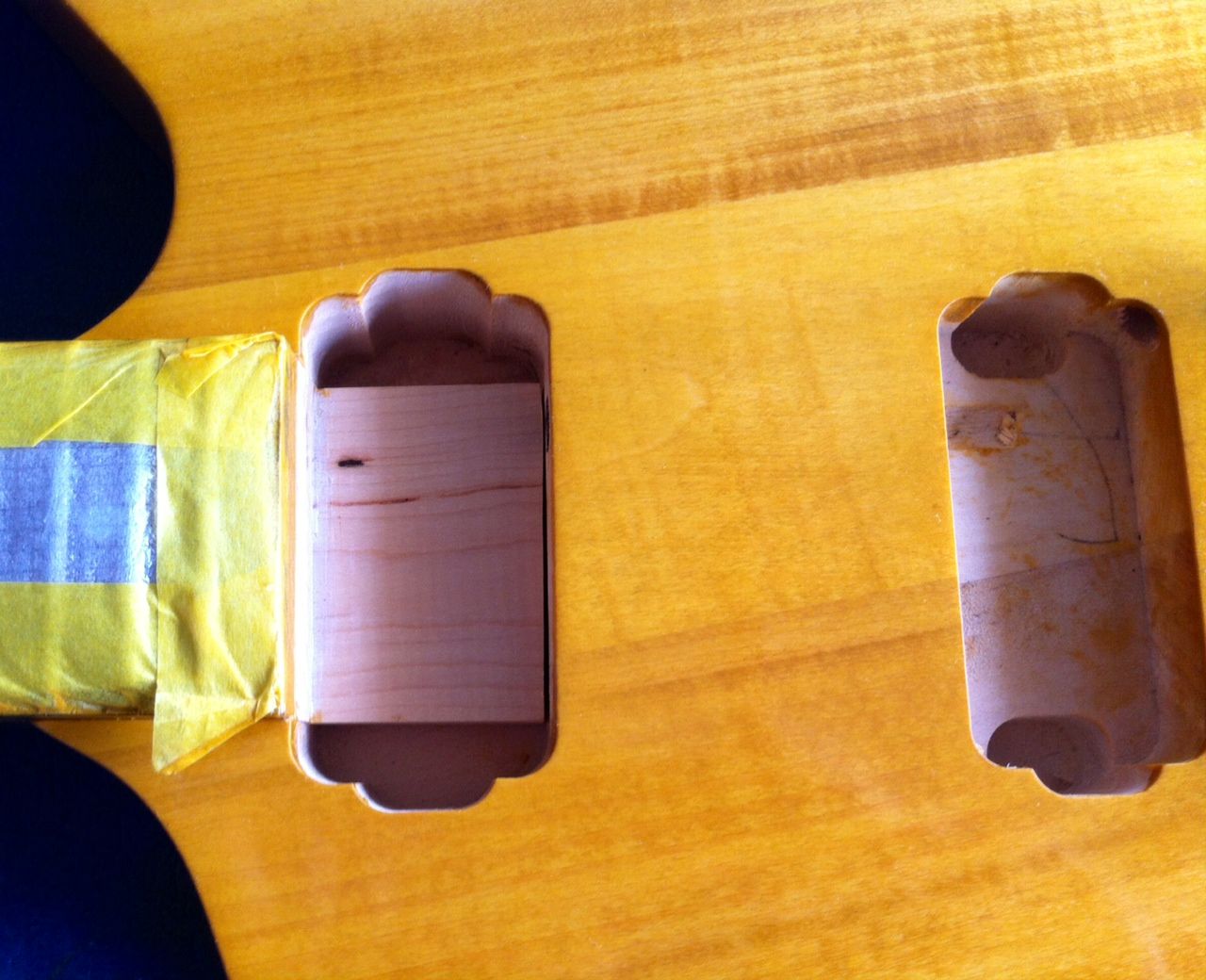

EX-1 neck glued in....
Attachment 8870Attachment 8871Attachment 8872Attachment 8873Attachment 8874

Attachment 8876
EX-5 Neck temporarily fitted to assist with where to locate bridge and drill mounting holes.....
Attachment 8880Attachment 8881Attachment 8882Attachment 8883

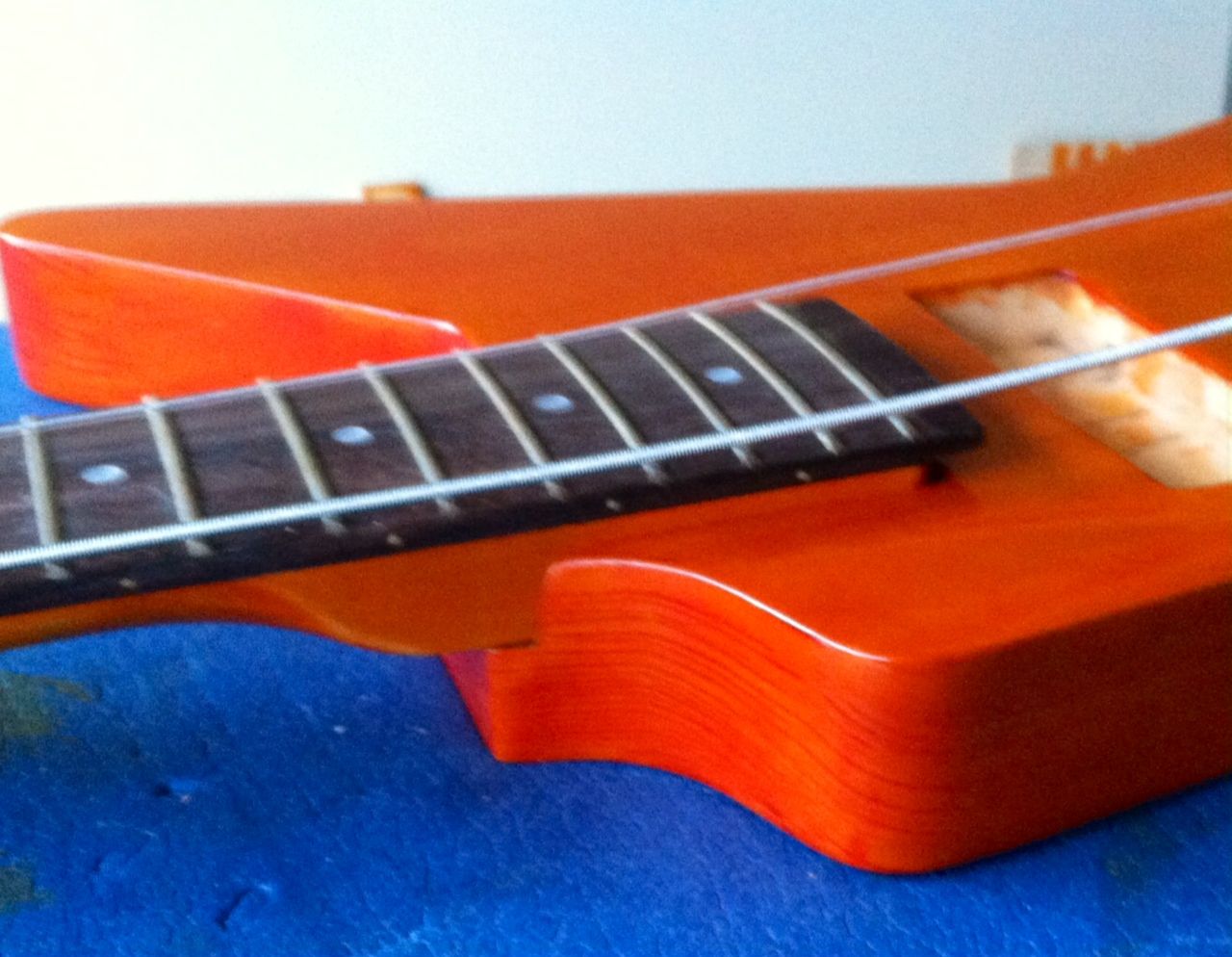

Bit of a gap underneath end of fret board on the EX-5...
Attachment 8884

EX-5 has been finished for about a month or so and just sitting in the corner letting the neck settle down before a fine tune of the action and intonation.

Progress on the EX-1 has been slow and steady and hope to have it wired up and finished before end of the weekend. Here is a shot of the siblings after most of the hardware was fitted to the EX-1.
Attachment 10337
