ST1-M Mashup "Fang"

So... if you were following my JM1 Mashup thread where I used parts off an ST1-M kit to build a custom jazzmaster you might have been thinking "what about the ST part?"

wonder no more.... here's part II "Fang"

http://img.photobucket.com/albums/v7...psc9zx1duu.jpg

ST body with the JM neck...

http://img.photobucket.com/albums/v7...psxpiv0vgo.jpg

I've got some holes to fill and some new ones to make to fit the JM controls on.

I'm using a bunch of left over parts and things ive got laying around, theres no intention to make this one the standard definition of 'pretty'

Oh man I like it allready....but I have been known to do odd things like shoehorning a Gibson P90 into a Squire Stratocaster ;)
ROCK on!

looks like another interesting build Mick, I'll be following this one (in black and white) haha

cut and plug, glue and clamp, drink and wait :)

http://img.photobucket.com/albums/v7...psbanqleee.jpg

finished off a few other projects so Fang is back on the bench... today I adjusted the horns.

http://img.photobucket.com/albums/v7...pses3xf08j.jpg

http://img.photobucket.com/albums/v7...psos63wugc.jpg

nice mods to the horns Mick, are you using a smaller pickguard from gluing blocks in the control cavity ?

Nice curvature.

Quote:

---

Originally Posted by wokkaboy

nice mods to the horns Mick, are you using a smaller pickguard from gluing blocks in the control cavity ?

---

Yeah mate, going to cut a custom one.... thinking pearl at this stage

glues dry! time to scribble some lines then hook in with the router!

http://img.photobucket.com/albums/v7...pszju4aoy7.jpg

http://img.photobucket.com/albums/v7...pszo7o6qu0.jpg

All trem covers should be recessed!

http://img.photobucket.com/albums/v7...psefvqikck.jpg

also... first coat of primer

Nice chop shop job going on, it looks good so far.

looks very cool Mick, these mods are very cool. So it will have a JM-1 type control plate ?

Great build MICK, this looks very cool

Quote:

---

Originally Posted by wokkaboy

looks very cool Mick, these mods are very cool. So it will have a JM-1 type control plate ?

---

Correct! :)

Also.... who was it on here that could cut custom pickguards?
I've searched and searched and have had no luck :(

Quote:

---

Originally Posted by zeromick

Also.... who was it on here that could cut custom pickguards?
I've searched and searched and have had no luck :(

---

pabs i think? i am after a few myself.

Quote:

---

Originally Posted by tonyw

pabs i think? i am after a few myself.

---

Me thinks you might be right... legend man! thanks

Yo. Send me a PM and we can sort something out. :)

Time to pull the JM-1 electrics out of their old pickguard and drop them into the place holder pickguard while I get all mad scientist on things

http://img.photobucket.com/albums/v7...pshqvucjl5.jpg

http://img.photobucket.com/albums/v7...psuhonaudg.jpg

I laminated the control cover yesterday, still have to tidy it up a bit but I think it looks clean along with being recessed :)

http://img.photobucket.com/albums/v7...psthvcnqs7.jpg

I'm with you on the recessed control covers. This was the first ever effort I had with guitar body building in my teens, the only disappointments i had with it were some dubious shaping (See the variable fit gap, and the fact that the remnants i made it from were not big enough to allow for the centre laminate line to match up to the body.
Attachment 9078

Edit: this was my original FrankenWashie, (Washburn MG42 Neck with ibanez soloist style custom body) which is currently being pulled apart to have some of the more glaringly obvious fit and set up issues addressed.

@ Mick what's the trem cover timber ? looks great recessed

@ Franken, looks cool but an odd shape cover as you say

Quote:

---

Originally Posted by wokkaboy

@ Mick what's the trem cover timber ? looks great recessed

---

Cheers man, yeah it's just some 0.5mm European maple... it actually matches the tone of the basswood pretty well :)

Quote:

---

Originally Posted by FrankenWashie

I'm with you on the recessed control covers. This was the first ever effort I had with guitar body building in my teens, the only disappointments i had with it were some dubious shaping (See the variable fit gap, and the fact that the remnants i made it from were not big enough to allow for the centre laminate line to match up to the body.
Attachment 9078

Edit: this was my original FrankenWashie, (Washburn MG42 Neck with ibanez soloist style custom body) which is currently being pulled apart to have some of the more glaringly obvious fit and set up issues addressed.

---

Damn man that looks tidy!
nice work

@Wokkaboy, the controls are the little section at bottom left, the bulk of the cover is the rear entry of the PUPs. At the time I didn't want to have two covers, in retrospect it probably would have been easier to do it as separate pieces.

@Zeromick, cheers bud! Look forward to seeing your progress.

http://img.photobucket.com/albums/v7...ps7qfbolwm.jpg

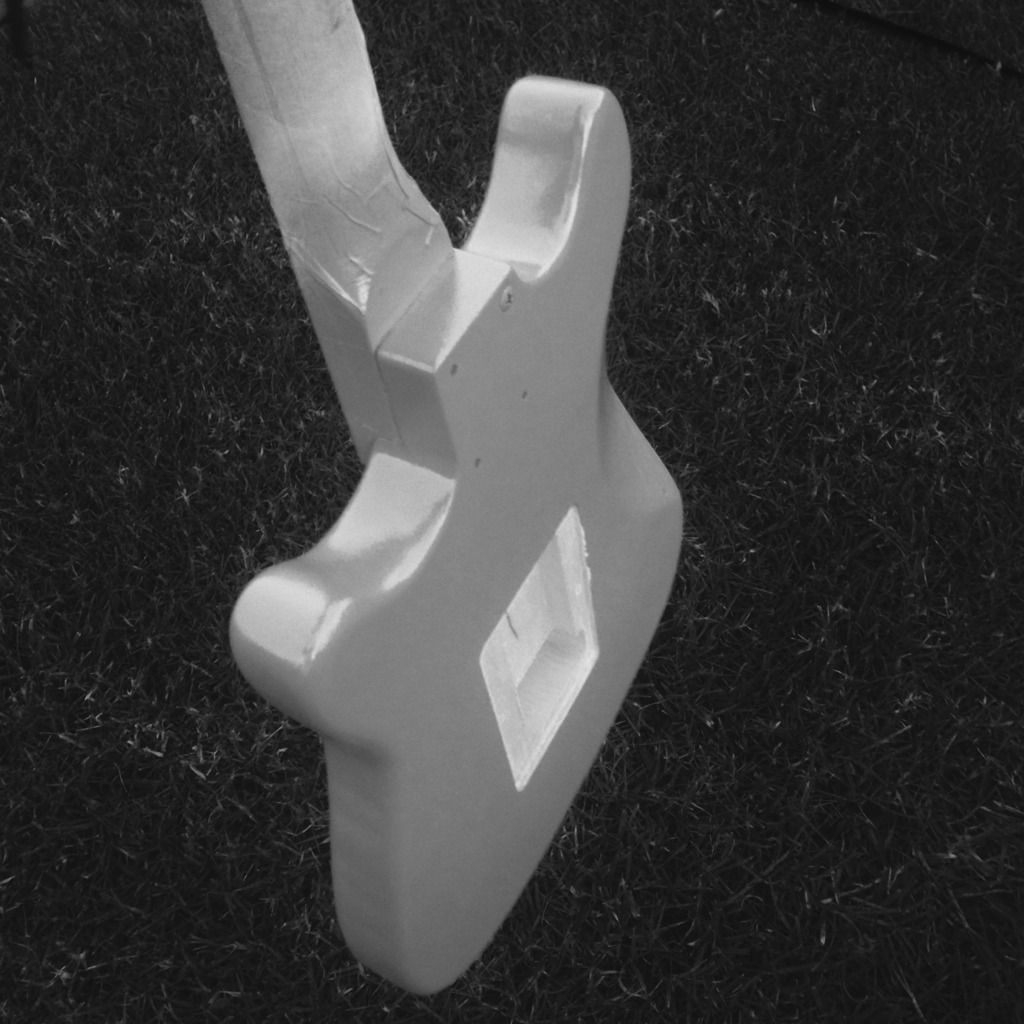

Fang got some colour today :)

also shot some poly on the neck so im slowly creeping along on the build.

Mick you love torturing the forum - shot colour on the axe and the pic is in black and white !

That's not the first time I've been called a tease hahaha ;)

Well we can see it's a solid colour, and it's not black, nor white. It's a mystery mid-tone colour!

Well, that makes two colours off the list..... So if we simplify it to just RGB based values for colour then we have another odd 16,799,998 to go!

The body contrasts well with the background :D

Quote:

---

Originally Posted by tonyw

The body contrasts well with the background :D

---

that would be my very lush, very green and freshly mowed lawn, which is sadly a slowly dying Aussie tradition of lawn pride.

Quote:

---

Originally Posted by zeromick

that would be my very lush, very green and freshly mowed lawn, which is sadly a slowly dying Aussie tradition of lawn pride.

---

Hear you there Mick, mine used to be absolutely mint, then i got a water bill with the new rates, so i mow dust and daisies these days.

Quote:

---

Originally Posted by tonyw

Hear you there Mick, mine used to be absolutely mint, then i got a water bill with the new rates, so i mow dust and daisies these days.

---

Nice job on this axe Mick. Looking forward to the final reveal! Same here with the garden, now all natives and dusty lawn..

The first time I spent money on this build was for a 3 way toggle switch... which turned up today so I gots to doing some wiring!

http://img.photobucket.com/albums/v7...psjuhweopb.jpg

simple controls for this one, a volume for each pickup and a 3 way switch, no useless tone knobs ;) haha

looks good Mick, those switches are nice.

Is anyone else really hanging for a colour shot here? You know its going to be a speccy, and the suspense is killing me!

I'm guessing its a nice 80% grey

Its been a while....

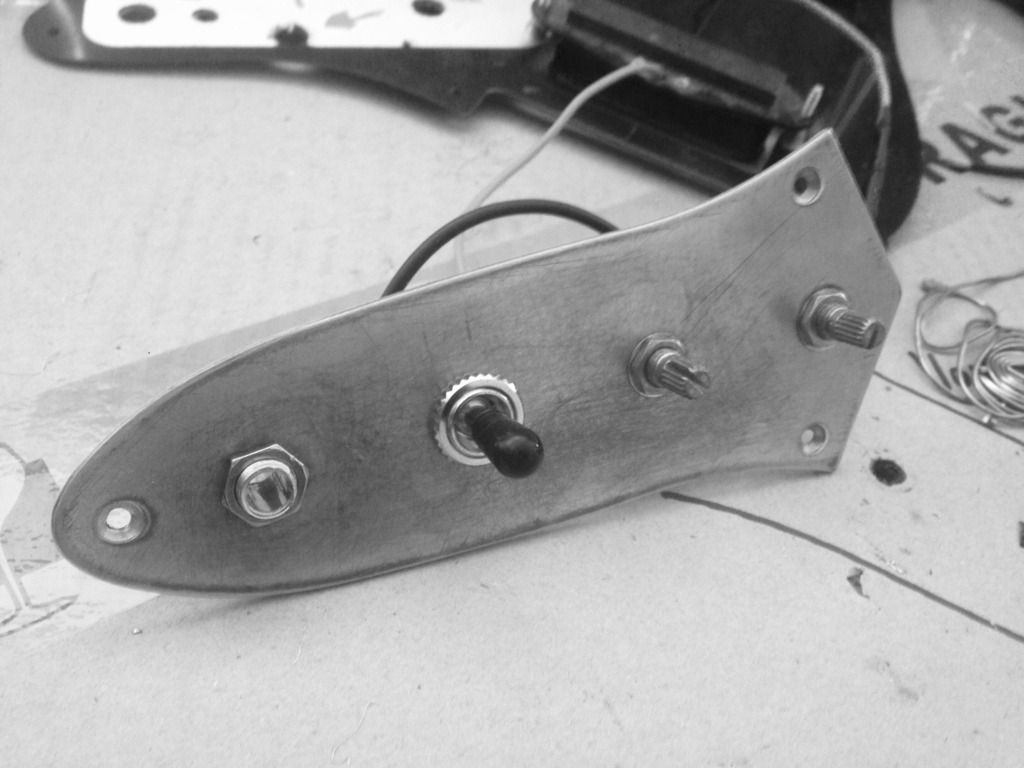

got the electrics done I think, neck is ready to go as well.

http://img.photobucket.com/albums/v7...ps5opnpiyg.jpg

Love your threads Mick, this is looking really good
