LP #1 Build

Thanks DB and Woks

As above, i usually do a star ground to my pots and all my earths join up together.

I recently had ground loop problems in a build with 2x HB's, 2x T, 2x V; some grounds were on tone pots, others on the bridge volume pot. After researching online, I rewired so there's only one route for the ground. I reckon a star ground would be neater than the messy lump of soldered wires on my bridge volume pot, but at least I've lost that buzz.

good result Wolfred. Is the control cavity copper shielded ? If not then all the pots needed to be grounded so maybe that was your problem

Quote:

---

Originally Posted by wokkaboy

good result Wolfred. Is the control cavity copper shielded ? If not then all the pots needed to be grounded so maybe that was your problem

---

No, Wokka, a hollow bodied starcaster from DIY. Difficult to contemplate shielding. But it sounds great, GFS gold foil pups and 50's wiring, so no need for treble bleed circuits.
I originally had a star type ground and then realized when I stuffed it all through the F hole, the ground star would be staring at me through the F hole, could have still done it, but using the bridge volume pot seemed simpler if uglier.

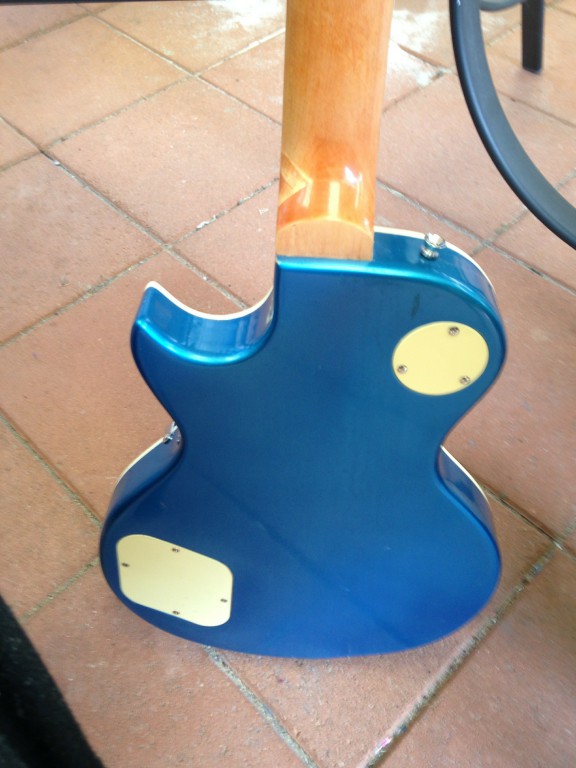

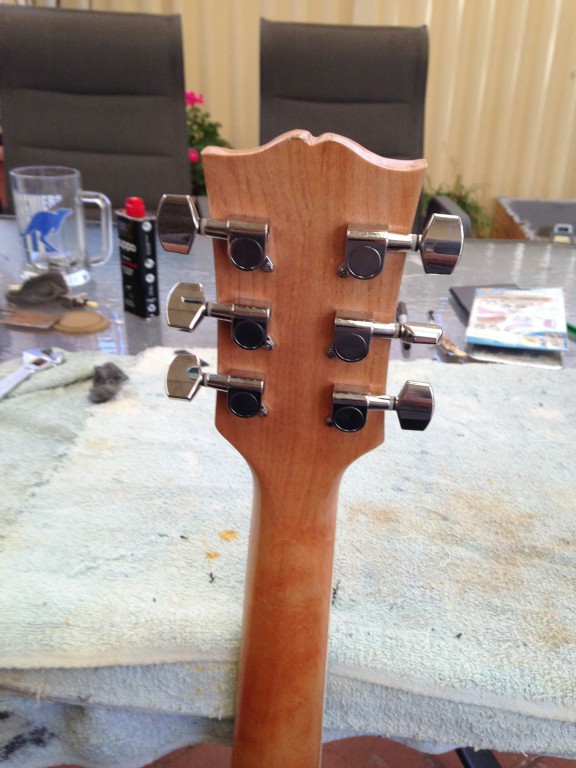

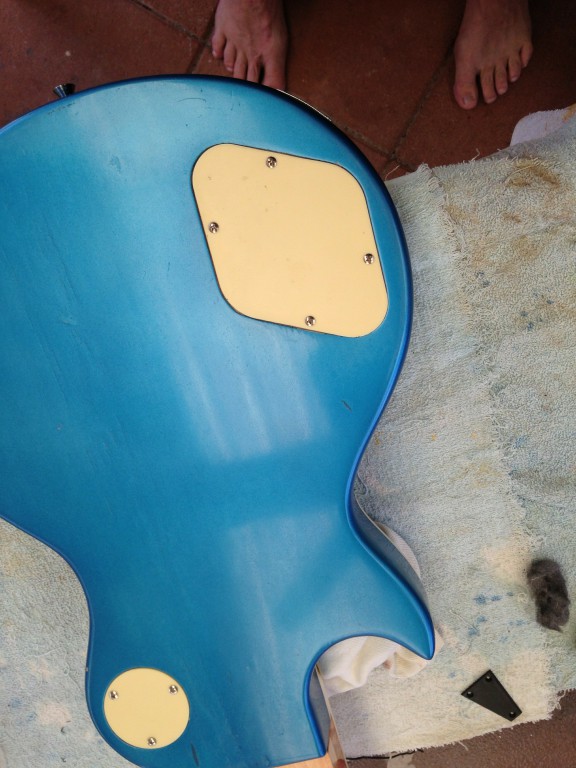

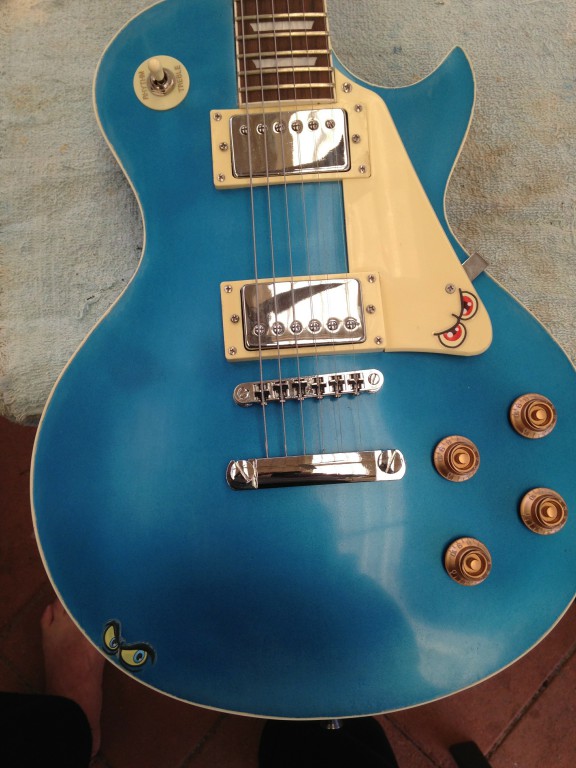

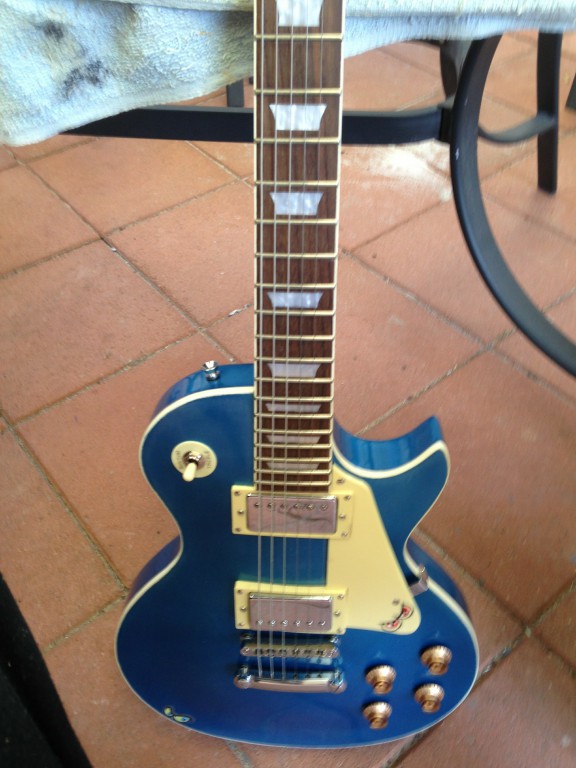

Well I've finally got around to finishing my Lake Placid Blue LP for my grandson. All the parts are stock except for pots, caps & bone nut. I'm very happy with the result for a beginner and am thinking of my next project (Maybe an ES-335). Here's some pixs of the finished guitar.
Attachment 12001 Attachment 12002
Attachment 12003 Attachment 12004
Attachment 12005

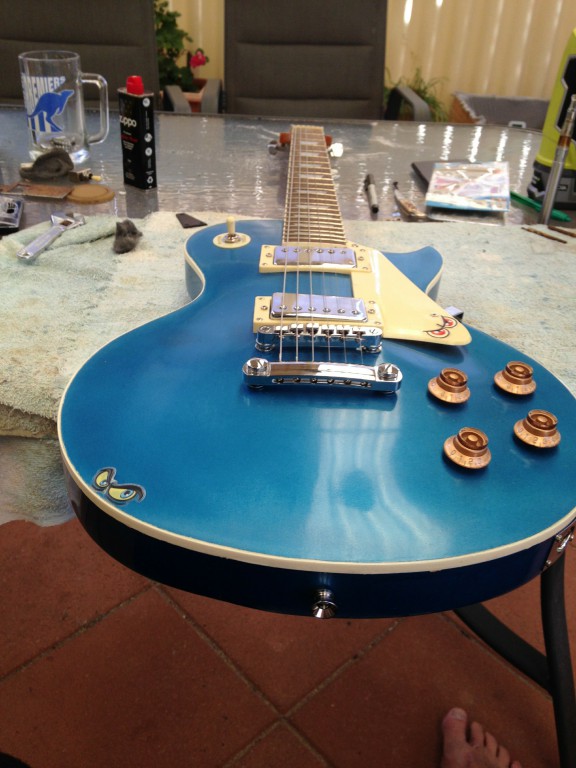

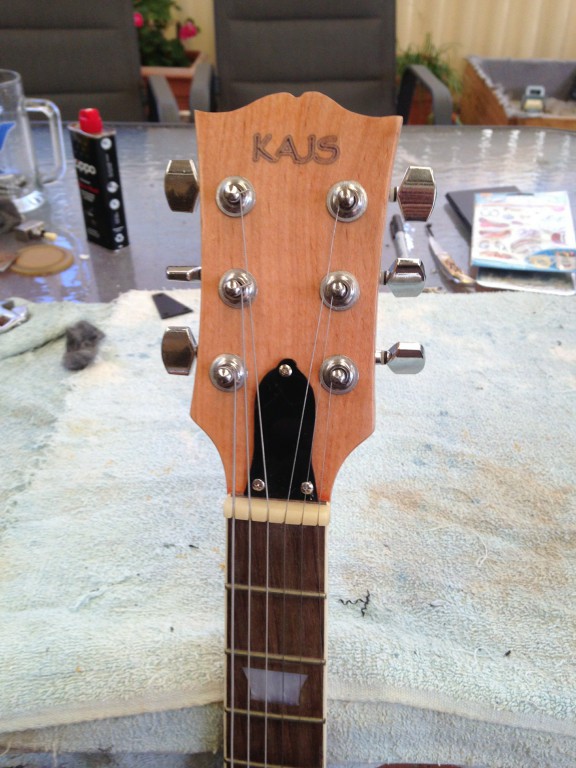

Here is some more
Attachment 12006 Attachment 12007

Great result Salo, that blue looks fantastic, he will love it for sure

Great colour.

Looks fantastic! Bravo!

I hope that can of zippo fluid isn't for "doing a Hendrix" :D
