Simon's Super Strat Scratch Build.

Once the fretboard was placed on, it slid right into place because the nails helped align it.

Then I scrambled for every clamp I ever owned - only 7 in total. Clamps are expensive so I'll have to collect them slowly.
http://i23.photobucket.com/albums/b3...pspev70c2n.png

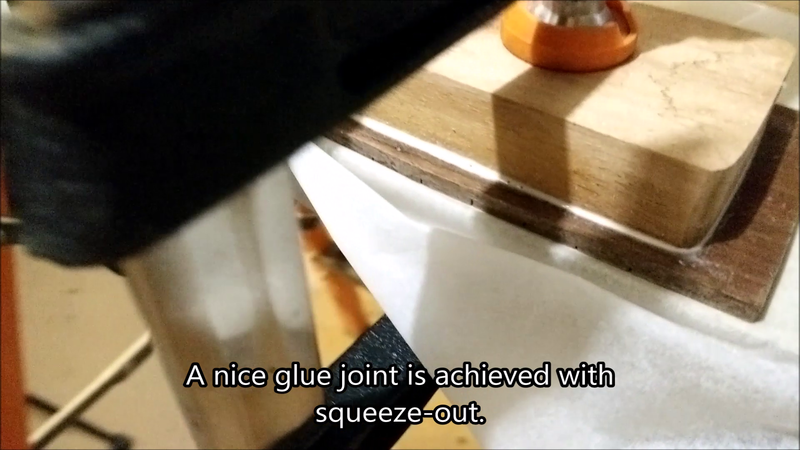

I managed to get even glue squeeze out. This means my joint was well prepared and I was very pleased. It was extremely satisfying seeing the glue squeeze out as I clamped it down. I also wiped off the excess with wet paper towels to help more glue to be squeezed out.
http://i23.photobucket.com/albums/b3...psvuqg6pmy.png

That's it for today. I'm leaving all the clamps on for 24 hours.

So far so good!

Quote:

---

Originally Posted by SIMpleONe89

Oh no you spotted me wearing thongs! Was hoping no one saw that! But yes they are all unplugged and so far I've not had any accidents in the garage!

---

Must be a Queenslander as they are standard issue safety boots up here haha.

Quote:

---

Originally Posted by wazkelly

Must be a Queenslander as they are standard issue safety boots up here haha.

---

Those are cultural artefacts Waz, the Traditional footwear of many island nations.

Goes with the glad wrap i saw around the eyes of a welder in India

http://talentclick.com/wp-content/up...2013/09/10.jpg

This is looking great so far, I'm definitely going to keep following this thread as I'm very interested in seeing how this build pans-out and also checking out the finished guitar, the woods you've used look really nice too, especially the one for the top of the body since it has a lovely grain pattern, keep up the good work on it mate.

Thanks guys. At the moment I'm still contemplating on the fretboard inlays but hopefully I'll have more progress by the weekend.

Great work simon and a great write up! I dont quite understand how the nails help align the fretboard but i'll do some digging on that one.

Cheers,
Gav.

Quote:

---

Originally Posted by gavinturner

Great work simon and a great write up! I dont quite understand how the nails help align the fretboard but i'll do some digging on that one.

Cheers,
Gav.

---

So basically the nails are fixed to the neck and if you align the fretboard with the centre line and press down hard, they should leave an indentation on the fretboard where the nails are. Then you take a drill bit and drill where the indentation is, you end up with a hole that is aligned with the nail on the fretboard. After you glue up the fretboard, the nails will fit into the holes in the fretboard, keeping it from sliding as the glue acts as a lubricant. The nails basically hole the fretboard into place.

Sorry if I can't explain it well but I'll let David Fletcher do the explanation:
https://www.youtube.com/watch?v=67axCaw9Bdc
Watch from 11:08 onwards.

Managed to work on the neck this weekend.

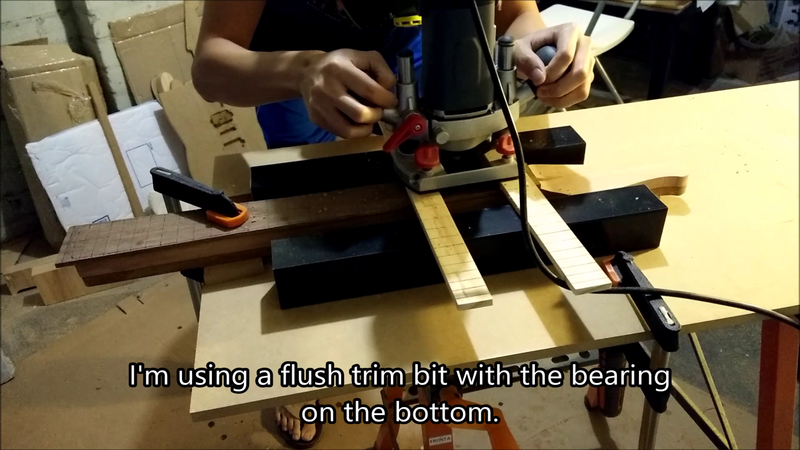

After the glue dried, I trimmed the fretboard flush with a bottom bearing flush trim bit.
http://i23.photobucket.com/albums/b3...pscwwz9lh7.png
I used a router sled to stabilise the router because I don't want to risk tearing into the neck.

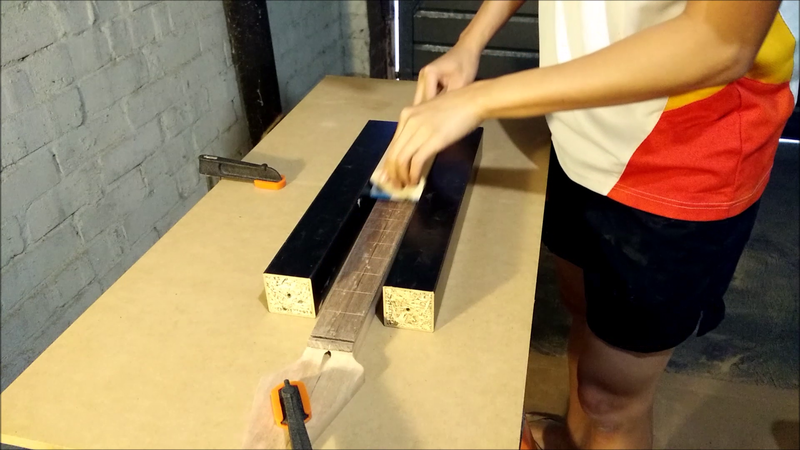

After that, I had to radius the fretboard. I used a 14" sanding block with 80 grit. Sanding is a boring and tedious process, but it's important. Someone once said guitar building is 95% sanding.
http://i23.photobucket.com/albums/b3...ps60ef6wtw.png

http://i23.photobucket.com/albums/b3...psuspjcz96.png

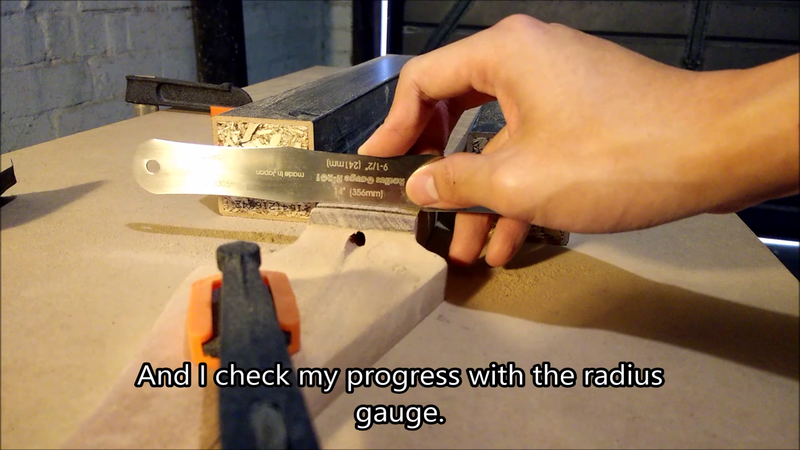

I used a radius gauge to check my progress. I think it took me about 2 hours to radius the fretboard.
