Hi bud, great to be back. Hope to be on regularly seeing as im building again.
Phoenix themed? Love a good mythical creature and dig your scratch plate. Welcome back.
Cheers mate, wanted something very different that didnt conform to any standards. Also wanted to try adding a veneer. Sorta glam, retro mythical mix.Quote:
Originally Posted by DarkMark
Welcome back dude.
Sent from my iPhone using Tapatalk
thanks Bud. Got the bug again.Quote:
Originally Posted by OliSam

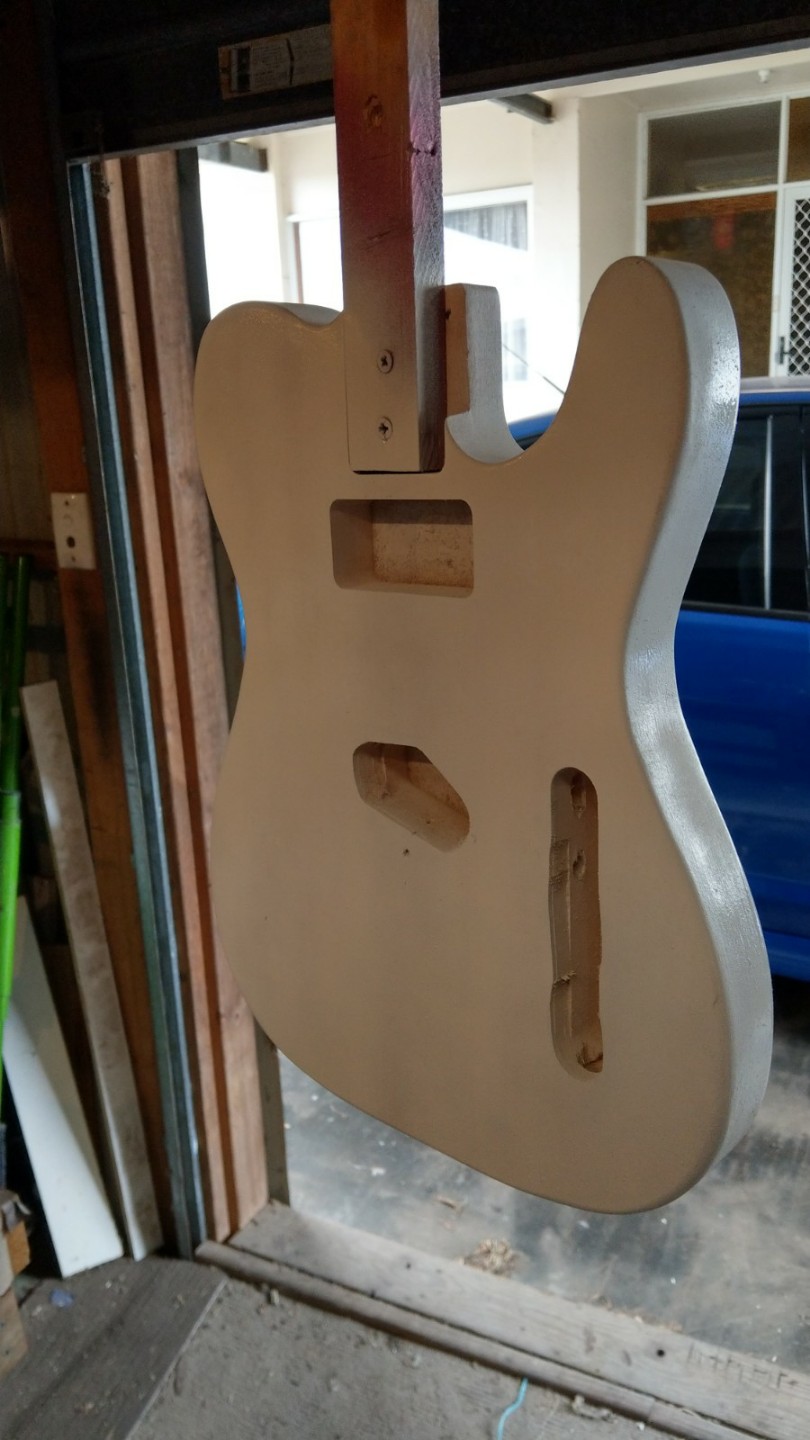

So tonight i sprayed the first coat of sealer primer to the body.
Attachment 39368 Attachment 39369 Attachment 39370

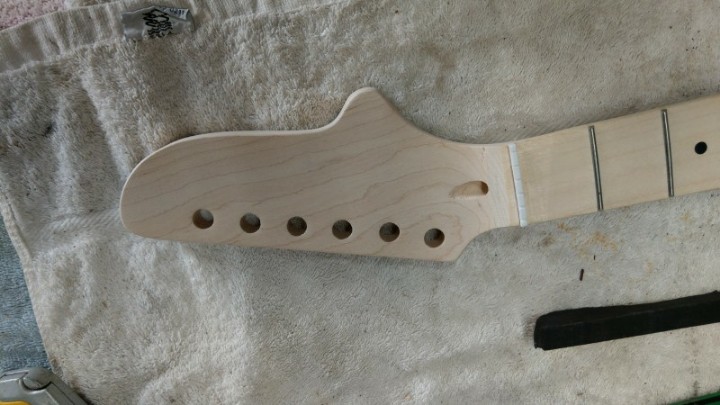

Next i reshaped the headstock, i grew to hate the shape over the last few months. Too big, i want it more streamlined, plus its the exact replica of the small horn on the body. Matches well.
Before and after photos.
Attachment 39371 Attachment 39372
Welcome back Nitro
Cheers mate, its good to be back! Did ya miss me,yea while i was away........ooppss, fading back into the 70's, sorry...lolQuote:
Originally Posted by robin
So time for a good sand to see what im working with. Lots of little imperfections show up with the first sand, scratches, bumps irregularities etc.
Good sanding and a few more coats of primer should do it.
Attachment 39452 Attachment 39453 Attachment 39454
Attachment 39455

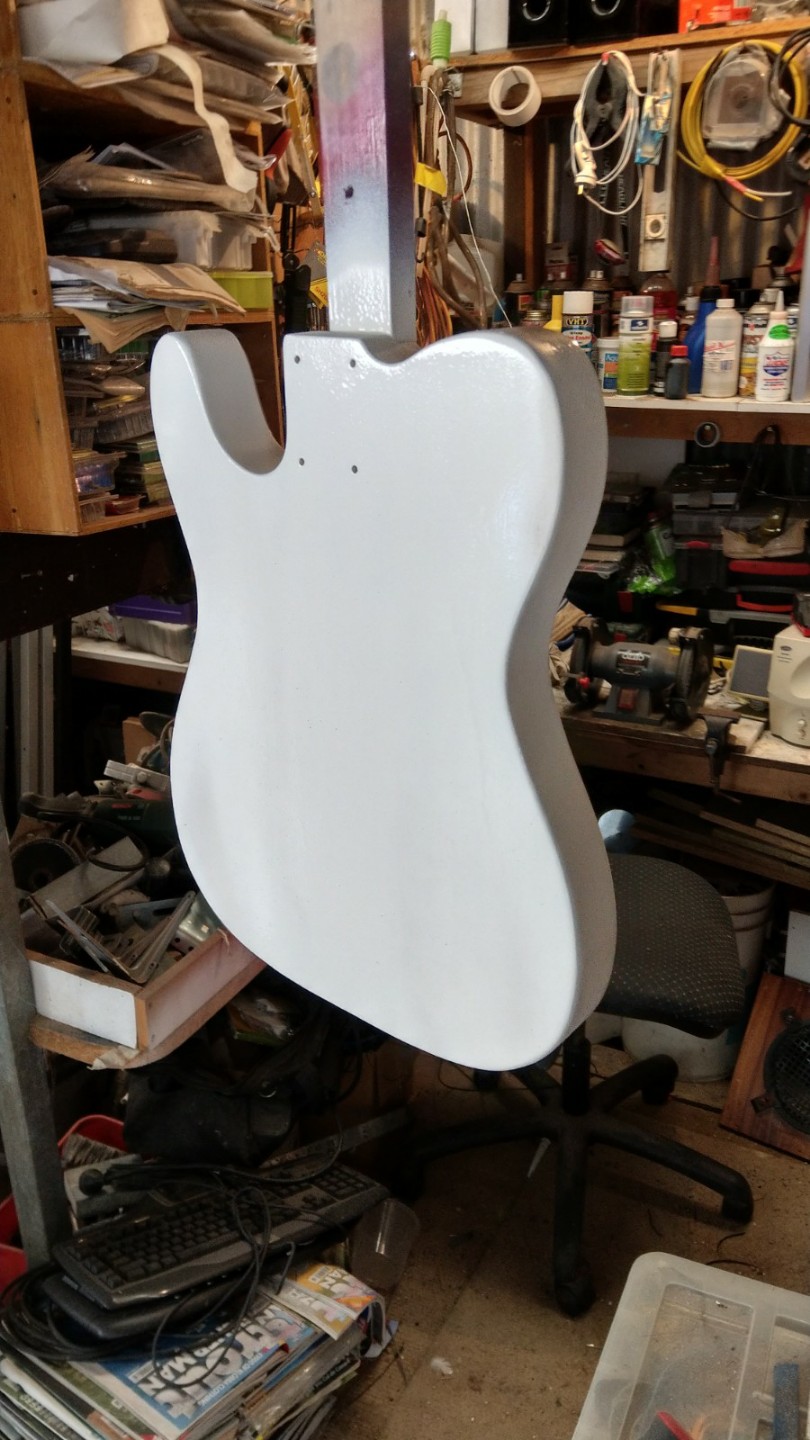

Now time for more coats of primer, them a good sand and then im ready for a thin coat of body filler.
Attachment 39456 Attachment 39457 Attachment 39458

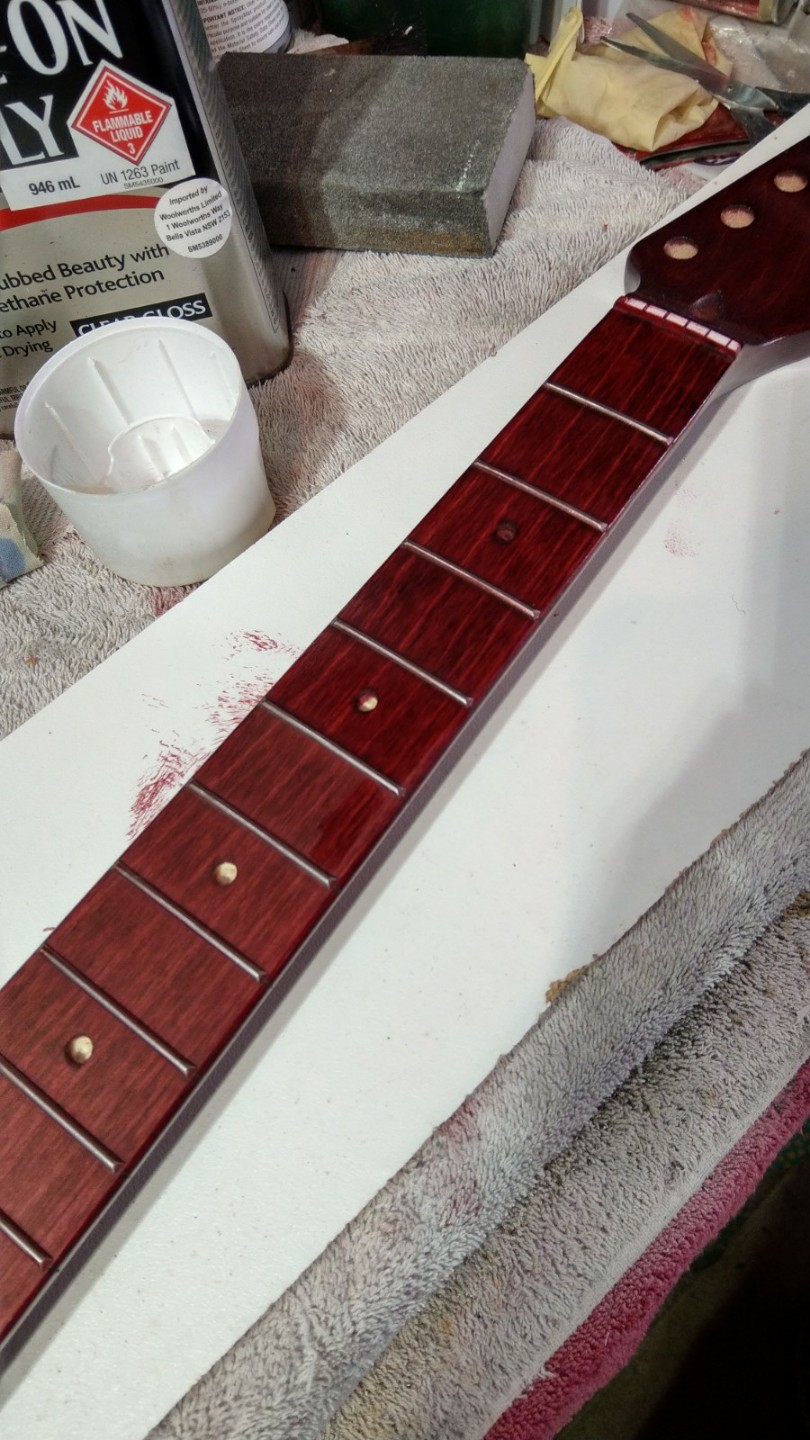

So while i was waiting for the body filler to dry i looked for my pots of stain for black which i had decided to stain the fretboard with and came upon RED MAHOGANY!
I couldnt go past it, didnt even get to the black, i had to try the mahogany.

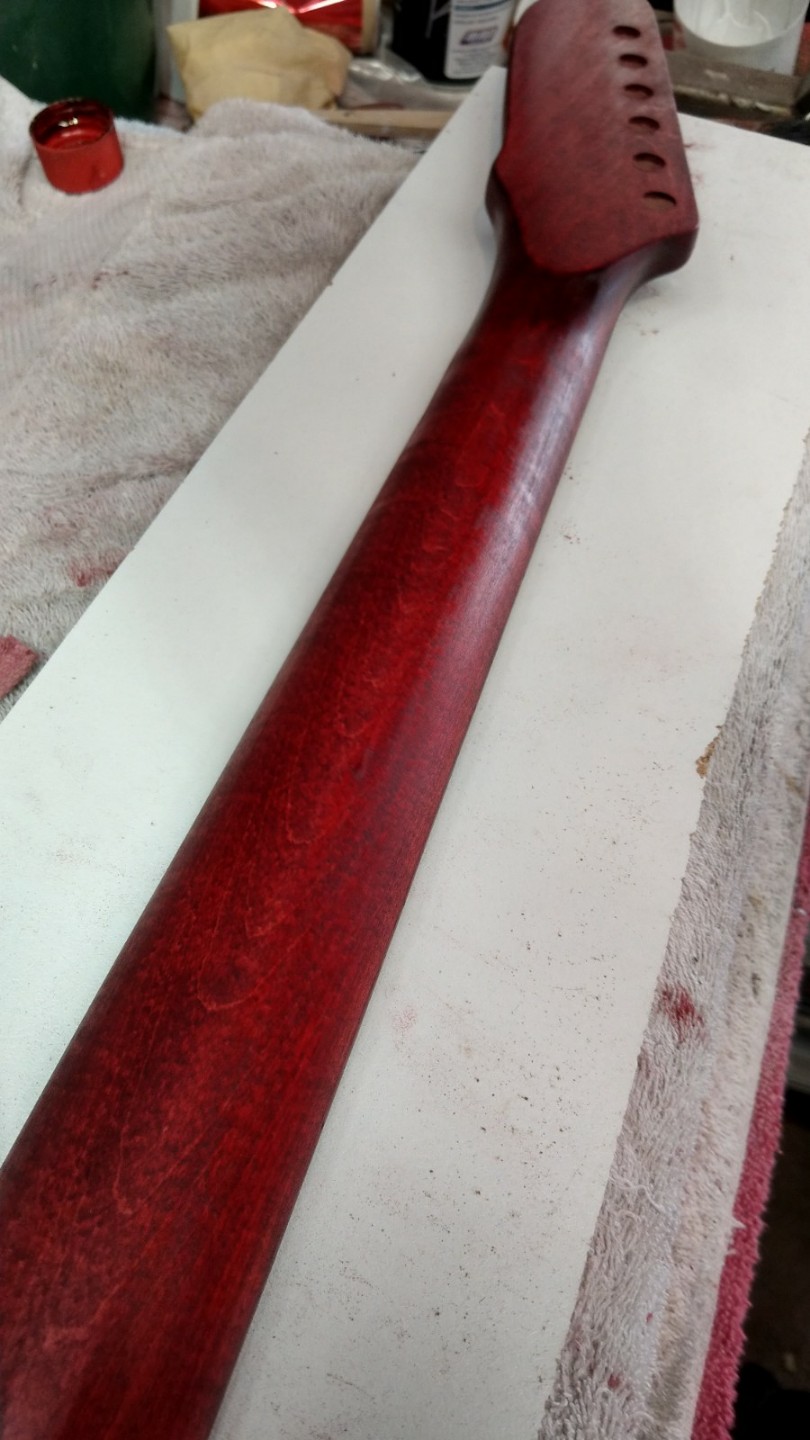

4 coats of stain later, not just on the fretboard but all the neck i had fallen in love. BLACK AND RED, the perfect marriage, at least in my opinion. And it was a dark shade not a cherry red, will match with my theme, dark, mean and classy. At least i hope so....
Then i had to put on 1 coat of poly just to check the depth of the stain....yumm. Perfeck!
Should look great after 20 coats or so.
Attachment 39500 Attachment 39501 Attachment 39502
Attachment 39503 Attachment 39504
That looks extremely tasty
Sent from my Pixel 4 using Tapatalk
looks great! love it.
Nice colour!
Thanks guys, thats the thing with guitar building, your plans can go out the window at any second.
That Red fretboard looked SICK!Quote:
Originally Posted by nitroburner1000
Totally agreeQuote:
Originally Posted by FrankenWashie
Sent from my SM-A520F using Tapatalk
Cheers guys. I recon the white pearl fret dots will match well. In the meantime a few complications, as usual.

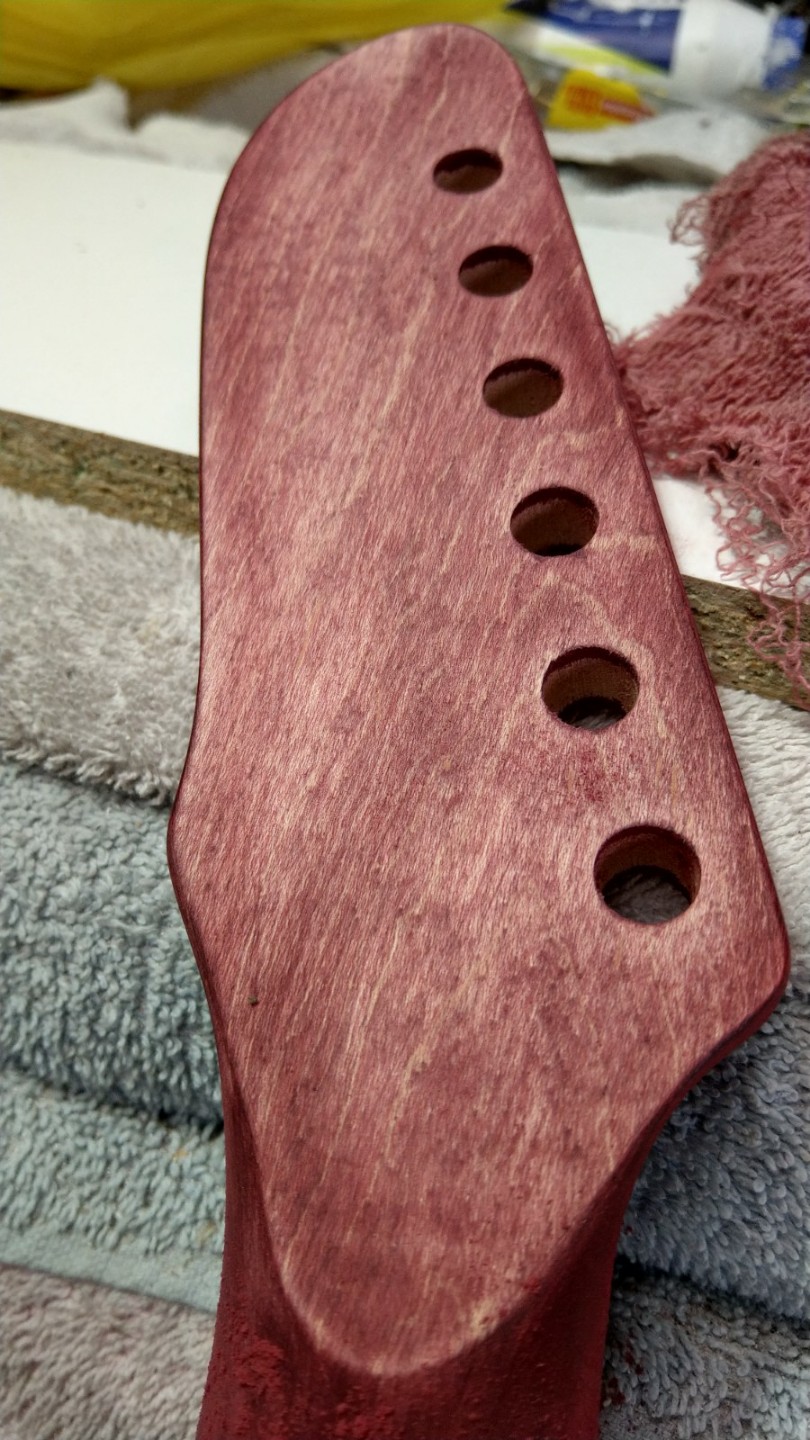

A resand of the headstock to eliminate small crossgrain scratches and a primer undercoat paint reaction that will need resanding on the body. Will post pics later.
It's always something with these things!Quote:
A resand of the headstock to eliminate small crossgrain scratches and a primer undercoat paint reaction that will need resanding on the body.
Tell me about it, but 9 times out of 10 it can be fixed, and the other one the guys on here help with.Quote:
Originally Posted by McCreed
So scratches all sanded, not worried about the stain and clear as it will act as a sealer.
Attachment 39806 Attachment 39807

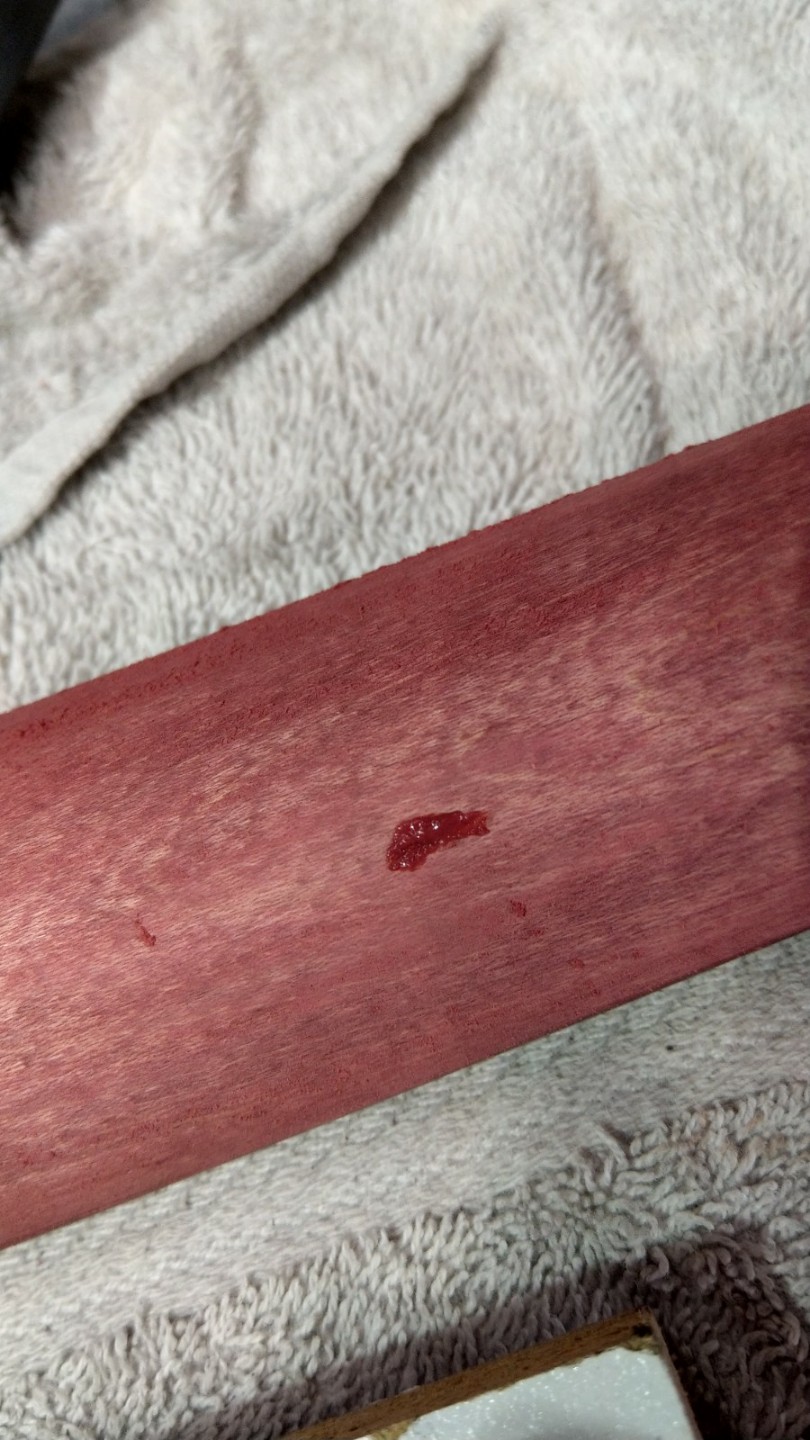

SECOND PROBLEM....... looking closely at the neck i noticed a dent in it... bummer.
Attachment 39808 Attachment 39809
TWO SOLUTIONS.... wet cloth and steam iron or wood dust and glue. It was easier as i had sanded the stain and clear off.

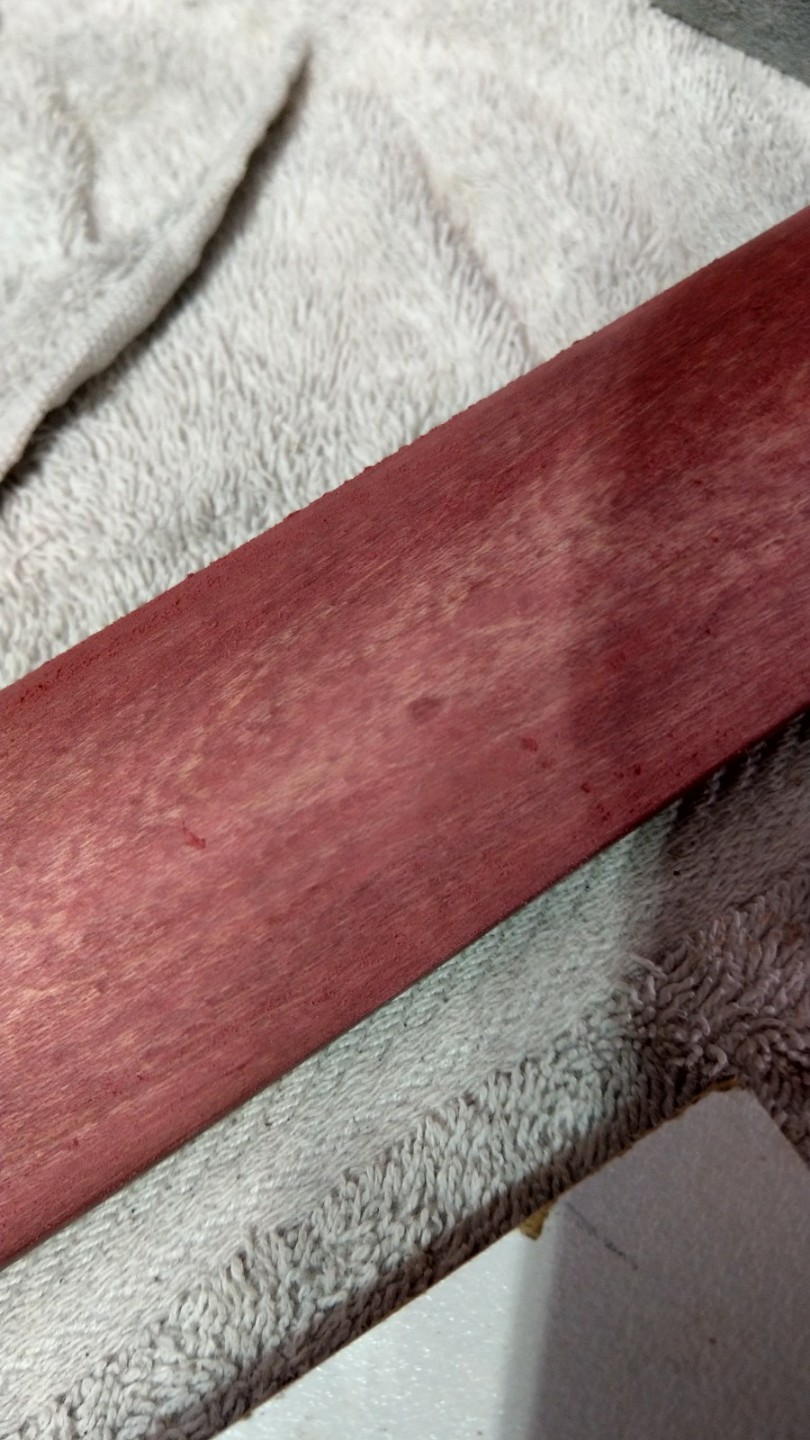

I had to use both, steamed it first then used a mixture of stained wood dust and wood glue, a light sand and a restain, worked a treat, whew, thank goodness.
Attachment 39810 Attachment 39811 Attachment 39812 Attachment 39813 Attachment 39814

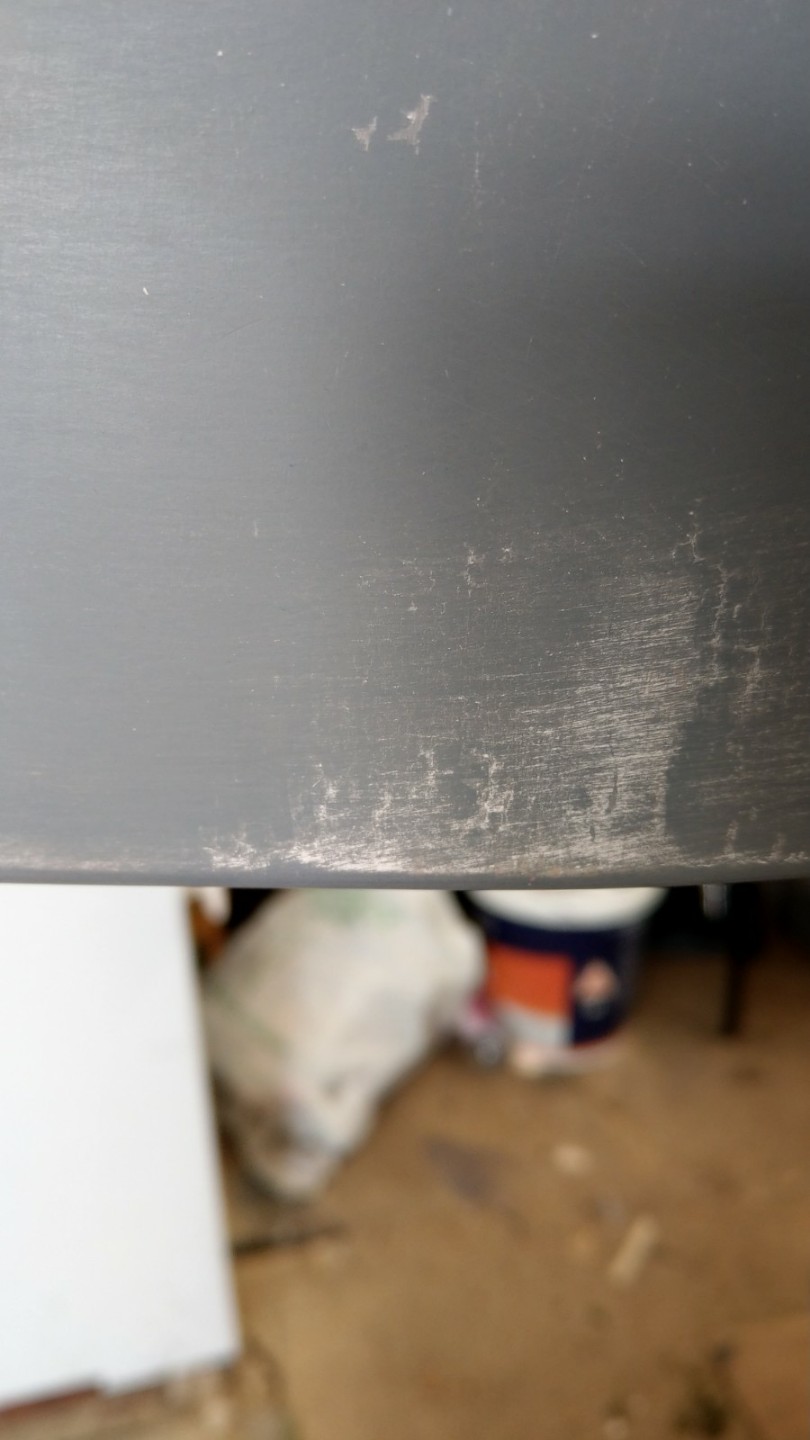

So just went and checked the body, its had about 3 coats of primer a fine fill body filler and 3 coats of undercoat, thats when i had a paint reaction, problem is i didnt know if it was from the filler or undercoat although i had my suspicions.
Attachment 39815 Attachment 39816 Attachment 39817
The reaction on the timber hanger i think, was from heavy buildup.
So sprayed another mist coat of grey undercoat on the reacted area, it crinkled up straight away. Well there goes the idea of multiple mist coats.
I scraped some off and a lot of filler came with it so i sealed the rest with white primer. That was ok, no reaction.
So grey reacts to white not the other way round. Will change the undercoat me thinks.
Attachment 39818 Attachment 39819
So fixed the crackle problem, incompatible spray bases. I used a high build acrylic primer and no probs this time. Will now build up the coats.
Attachment 39839 Attachment 39840
Next the tedious task of building up coats of wipe on poly to the neck and fretboard, between 20 and thirty i hope. Only 6 so far and 1 on the fretboard.
Attachment 39841 Attachment 39842 Attachment 39843
Attachment 39844
Twelve coats on the neck, 5 on the fretboard. Sanding with 400 between every 3 coats now.
Body had 3 mysterious dents in it, funny how they appear out of thin air. Another fill and sand, then re undercoat.
Attachment 39985 Attachment 39986 Attachment 39987
So ordered chrome tuners with white pearl tuning pegs. WHITE... I DONT THINK SO!
Tell me guys do they look white to you?
Attachment 39988
Oh yea, i wrote back to the guy saying he sent me grey, he replied.....
Dear Mitchell,
We are sorry to hear that the color of the item you received is not as described. However, please note that the actual item may look a little bit different from the picture due to lighting effects, monitor's brightness or contrast settings. Considering that the color does not affect the function, we would like to partial refund 3 USD to you as compensation (instead of asking you to return it for exchange or full refund), hence we can resolve the problem quickly and more efficiently. Please let us know if this will be ok with you.
We sincerely apologize for the inconvenience caused
So ive got about 5 sets of tuners in different colours and finishes and a set of tuning knobs in real white pearl.
So after dismanling all of them i found a set with similar hole and screw sizes. About .02 too small. So i filed down the tuner spline and gently tapped them on. Perfect, the screws fitted perfectly as well. So now i have my own customised tuners with oversized tuning pegs. YES!
Attachment 39989 Attachment 39990 Attachment 39991
Attachment 39992 Attachment 39993
The last picture is a comparison of the ones i made and the one from ebay. White my A#*e!
Mix & match!
I love it when this works (sometimes it just doesn't). Adds to the uniqueness of an instrument.
I hear ya, i tried 4 sets and tried drilling out the peg holes before filing down the splines it worked, cheersQuote:
Originally Posted by McCreed
So back to it....still working on the neck, have about 15 coats on the back and head. Fretboard needs another 5 or 6 then it will be done.
Attachment 40993 Attachment 40994 Attachment 40995
Attachment 40996 Attachment 40997
Next a quick sand of the body and 3 coats of a G.M Holden colour, Phantom Mica, black with minute flecks of red, blue and green.
Then a week to dry, very wet here at the moment, inspection then more coats before the final 2k finish.
Attachment 40998 Attachment 40999 Attachment 41000
Attachment 41001
I've missed seeing the start of this build. All very interesting.
Can I ask if you've checked whether two of those large-button tuners will fit side-by-side on the headstock when the buttons are parallel with the headstock? From the photos it looks like it could be a very tight fit and there's a possibility they could clash and you can't turn them. You never know what angle they'll end up at when the guitar is in tune.
Yea all is good. But i want opinions on doing something different, putting 3 aside on a 6 inline headstock using oversized pegs.Quote:
Originally Posted by Simon Barden
Pretty radical but i like different.
SO DOES THIS LOOK GOOD OR IS IT CRAP? ALL CRITICISM EXCEPTED AND NEEDED. THANKS
Attachment 41015 Attachment 41016 Attachment 41017
Btw, they are not going on this neck but the red one pictured above, couldnt fit them as it is still wet.
Personally, I wouldn't do the large buttons on my guitar. I find tuning is a real PITA if the button don't have enough space between each other, and I have small hands and fingers. I would imagine someone with sausage fingers, the difficulty would increase exponentially.
BTW, I am in no way implying that you yourself have said sausage fingers...
Lol, i was blessed with small hands, but i appreciate the criticism. What about the 3 aside, too weird?Quote:
Originally Posted by McCreed
Too wrong mechanically.
With normal tuner orientation, the string tension pulls the string post so that the gear at its base is pulled against the worm gear on the button shaft and minimises any slack or wear on the gears.
Reverse this, and the gears are pulled apart by string tension, so you end up with more backlash, and the tuners become looser and looser as time goes by. It might work for a while when the tuners are new, but with use, you’ll have three dodgy tuners quite quickly.
