Very cool man.
Printable View
Very cool man.
Thanks. I am really excited to get it boxed and onto the board.Quote:
Originally Posted by Andy40
I still have some tweaking to do with different FETs and the trimmer voltage, but that will wait until after boxing.
And it's done. I normally run compression after drives, partly on the idea that it preserves the pick sensitivity of the overdrive, but also because I have been using the digital compression built into the THR. Putting the Lemon Squeezy at the front, just after the buffer and tuner. I can use it as a compressor-boost thingy into the overdrives. Or at least that's the plan for now.
Attachment 34854

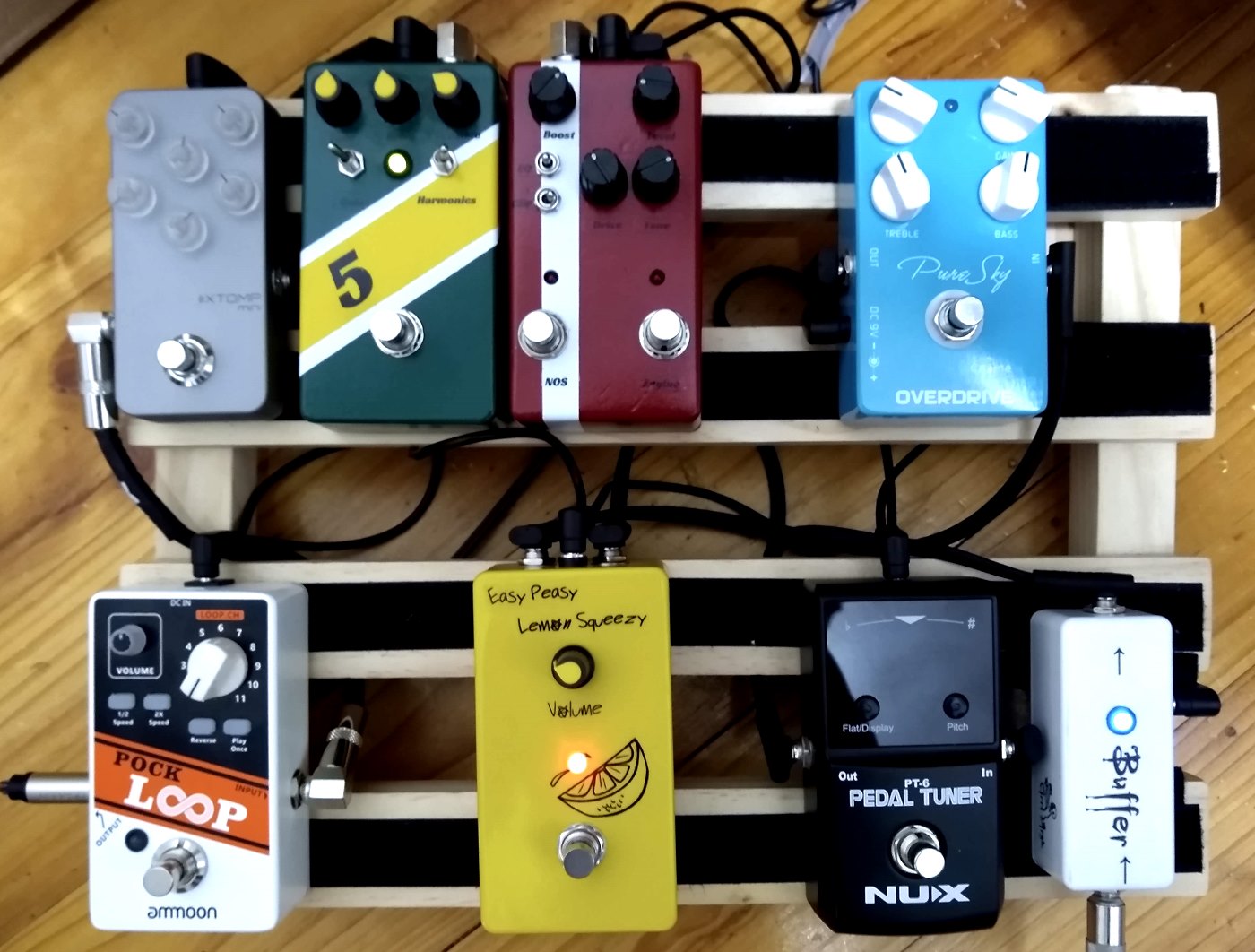

And on the board (which still has room for the Red Llama and Phase 45 that I will be building once parts arrive). Once they get built I will probably evict the Pure Sky (Sweet Baby has already left the building):
Attachment 34855
I like the idea of running a board only with pedals I built myself, but I won't ever build a tuner or looper, and the Xtomp is too much fun (right now it's at the end of the signal chain just before the looper - that way I can use it for distortion, phaser, chorus, delay etc).
Let me know if you need a Red Llama PCB. I've got a spare:D
Thanks Andy, but I have already started on the stripboard. Once I make the cuts it's hard to use the board for anything else. I won't get it finished for a while though since the IC chip is likely months away.Quote:
Originally Posted by Andy40
No worries mate, its a pretty simple circuit
So @Andy40, the Red Llama, would you say it is an overdrive, a distortion, or a fuzz? In the clips I have heard it sounds like a medium gain soft-clipped overdrive at low gain settings, but then moves well into crunchy fuzz territory at higher settings.Quote:
Originally Posted by Andy40
Sorry just saw this. The thing about the Red Llama is that it sounds different depending on the amp used. Based on that, I'd say its a very powerful overdrive which is capable of what you have described. Obviously you can use it as a clean boost with fairly minimal colour to the tone. When you start playing with the gain you can start at crunch, which increases to a driven marshally type sound. I've not spent a lot of time in the really high register of the gain so i'll check later today.
