11-12-2018, 06:26 PM
Bakersdozen

Quote:

Originally Posted by Marcel

I got one of those Musiclily bridges and couldn't use it on my PRS-1H build as it sat too high. Even with the posts wound all the way in my action at the 12th fret was still 4mm.

Sadly as an experiment I tried the same bridge on my PRS SE245 and got a similar result. Both my guitars currently sport the fixed intonation bridges and the adjustable bridge sits in my parts box...

Doing some final rounds to get scale length, neck angle and ensure I don't run into the same issues. With the bridge right on the deck, the strings touch the 24th fret, so I've got plenty of clearance to bring it up. The pics are with the bridge sitting about 2mm off the deck and that gives me less than 1mm at the 24th fret. Plenty of room to adjust when setting up.

https://uploads.tapatalk-cdn.com/201...ebca3fbafc.jpg

https://uploads.tapatalk-cdn.com/201...f6c0f1753b.jpg

https://uploads.tapatalk-cdn.com/201...37dac0dcca.jpg

https://uploads.tapatalk-cdn.com/201...cdf7dd46f9.jpg

https://uploads.tapatalk-cdn.com/201...cf6ee08e8c.jpg

Quote:

Originally Posted by kuanjb

The measurements for mine also look fine. In fact the Musiclilly bridge looks to be a tiny bit shorter than the one supplied with the kit. The bridge itself is about the same height but has string indents which make it shorter. Plus the bottom of the post screws are thinner and the top of the post inserts is thinner allowing the bridge to sit lower than the supplied bridge. So all up about 2mm lower for mine.

Winning!
11-12-2018, 09:01 PM
Marcel

Cool Bananas...

I dug my bridge out of the box and it looks different to yours. A browse of Ebay sellers quickly confirmed that I have a "Bad Ass" adjustable wrap around bridge which at its highest point is 16mm tall for the D an G strings and a mountainous 14.75mm tall for the two E strings. Add a touch of height adjustment just so the bridge is slightly off the deck and it all goes wrong very fast.

Just measured my PRS SE245 with the original bridge fitted and adjusted and it turns out that in a pinch I could just use this 'Bad Ass' bridge though it definitely would be hard down on the deck. Would look odd too as the PRS machine heads are chrome and the Bad Ass bridge is Gold...
12-12-2018, 04:45 AM
Bakersdozen

Quote:

Originally Posted by Marcel

Cool Bananas...

I dug my bridge out of the box and it looks different to yours. A browse of Ebay sellers quickly confirmed that I have a "Bad Ass" adjustable wrap around bridge which at its highest point is 16mm tall for the D an G strings and a mountainous 14.75mm tall for the two E strings. Add a touch of height adjustment just so the bridge is slightly off the deck and it all goes wrong very fast.

Just measured my PRS SE245 with the original bridge fitted and adjusted and it turns out that in a pinch I could just use this 'Bad Ass' bridge though it definitely would be hard down on the deck. Would look odd too as the PRS machine heads are chrome and the Bad Ass bridge is Gold...

Based off your build diary, I had a feeling you may have got these confused, but you had me a little paranoid... I did plan to do these final checks again before finishing and setting the neck. I'm glad I did. Always pays to triple check these things before mating them for life.
12-12-2018, 05:17 AM
Sonic Mountain

Coming together well. Having the neck angle and straightness sorted is a big step.
12-12-2018, 05:18 AM
Bakersdozen

Quote:

Originally Posted by Sonic Mountain

Coming together well. Having the neck angle and straightness sorted is a big step.

Thanks mate, and a huge "relief" that's it's going to work lol
12-12-2018, 05:57 AM
Marcel

1 Attachment(s)

Something that's not visible in my build diary is how I ensured that the neck is/was in the correct place when I set it...

When dry I found the correct location for the nut and 12th fret relative to the bridge. I then created a block spacer (in my case a tiny piece of plywood) to fit in the gap between the neck tongue and the back of the first PU cavity. Essentially I extended the neck tongue to the back of the hole.

After glueing the spacer block in place in the PU hole I could then be sure the neck would be in the correct place when I set it eliminating the need to do bridge to 12th fret measurements during the actual neck setting process.

A picture tells a thousand words.
12-12-2018, 06:14 AM
Bakersdozen

Quote:

Originally Posted by Marcel

Something that's not visible in my build diary is how I ensured that the neck is/was in the correct place when I set it...

When dry I found the correct location for the nut and 12th fret relative to the bridge. I then created a block spacer (in my case a tiny piece of plywood) to fit in the gap between the neck tongue and the back of the first PU cavity. Essentially I extended the neck tongue to the back of the hole.

After glueing the spacer block in place in the PU hole I could then be sure the neck would be in the correct place when I set it eliminating the need to do bridge to 12th fret measurements during the actual neck setting process.

A picture tells a thousand words.

Great tip thanks Marcel. I was thinking along the same lines, however it didn't dawn on me to do this prior to setting. The heel on my neck unfortunately isn't a flush 90° angle, so it will take some creativity to get the spacer shaped correctly.

Fortunately, for me the scale length is perfect when I align the end of the fretboard with the neck side of the pickup rout. So I already have a good marker [emoji3]
12-12-2018, 06:21 AM
Marcel

Quote:

Originally Posted by Bakersdozen

Great tip thanks Marcel. I was thinking along the same lines, however it didn't dawn on me to do this prior to setting. The heel on my neck unfortunately isn't a flush 90° angle, so it will take some creativity to get it shaped.

Neither was mine. I took the plunge and squared off the end of the neck tongue, which gave me a nice even 7mm gap all the way across that the ply snugly filled.

When I set the neck the excess glue 'solidified' the tiny chunk of ply.... In my axe the neck is pretty damn solid in the body now....
12-12-2018, 06:39 AM
Bakersdozen

Okay, thanks. That sounds easily do-able. Better to be able to fit a square spacer in.
21-12-2018, 07:55 PM
Bakersdozen

Some progress...
Fitted the Grover's, measuring tusq nut, playing around with TRC ideas, added bridge posts and wiring has started.https://uploads.tapatalk-cdn.com/201...54a52893f4.jpg https://uploads.tapatalk-cdn.com/201...71d5741b02.jpg https://uploads.tapatalk-cdn.com/201...c9611d831a.jpg
22-12-2018, 05:08 AM
Richy17

This is looking great. I really like the colour. Is that carbon fibre on the trc? Looks nice too
22-12-2018, 05:23 AM
Andy40

Ohhhh electronic trickery!!!!
22-12-2018, 05:27 AM
Bakersdozen

Quote:

Originally Posted by Richy17

This is looking great. I really like the colour. Is that carbon fibre on the trc? Looks nice too

Thanks Bud! Yep, just a CF wrap. Was playing around with a few scraps I had leftover. Doesn't look too bad, but I'll have to see what it looks like when fully assembled.
22-12-2018, 05:29 AM
Bakersdozen

Quote:

Originally Posted by Andy40

Ohhhh electronic trickery!!!!

You know it! Gonna be fun getting it all into the semi hollow lol
22-12-2018, 05:34 AM
Fretworn

Looking good.
22-12-2018, 12:14 PM
DarkMark

I really like the darker edging stained against the purfling. You’re giving me ideas.
22-12-2018, 04:40 PM
Bakersdozen

Elektrickery continues...https://uploads.tapatalk-cdn.com/201...9d0650474a.jpg
22-12-2018, 04:49 PM
Andy40

Holy moley those scissor clamps are serious buiness!

I use the rubber tubing method or the fishing line method
22-12-2018, 05:12 PM
Bakersdozen

Quote:

Originally Posted by Andy40

Holy moley those scissor clamps are serious buiness!

I use the rubber tubing method or the fishing line method

Oh yes I'll probly be using those methods too, we will see. Oxygen tubing works well [emoji3] scissor clamps really help with locating the switches and also work well for a soldering helping hand
22-12-2018, 05:15 PM
DarkMark

Quote:

Originally Posted by Andy40

Holy moley those scissor clamps are serious buiness!

I use the rubber tubing method or the fishing line method

I would think Igor has a pair handy.
22-12-2018, 05:26 PM
Bakersdozen

Quote:

Originally Posted by DarkMark

I would think Igor has a pair handy.

Wouldn't surprise me in the least haha
23-12-2018, 12:33 PM
Bakersdozen

Elektrickery all sorted (and working) and neck setting underwayhttps://uploads.tapatalk-cdn.com/201...c3ea045538.jpg
Only buggered up the colour of 2 wires (will be able to see them obviously thru the f holes. Maybe I will colour them or wrap some black tape around them. And somehow managed a few nicks in the finish around the switches although I was being super careful and had it protected. Oh well, it was never going to be a showroom guitar anyways (many many other small imperfections / boo boos). Just a decent player that looks good - from a distance [emoji3] No Bette Midler jokes please.
23-12-2018, 03:51 PM
Andy40

Looks good with those extra switches though. are you gluing the neck after electrickery? or at the same time (I can't tell)
23-12-2018, 04:34 PM
Bakersdozen

Quote:

Originally Posted by Andy40

Looks good with those extra switches though. are you gluing the neck after electrickery? or at the same time (I can't tell)

After, bro. Thanks . Finished the elecs last night and neck set today. Good times. Was pretty stoked I got the elecs in without anything going bad. I did have to trouble shoot once, when when the treble bleed circuit was touching ground. I pressed it up into wrong spot when locating the pot. Sorted that out quick tho.
24-12-2018, 11:02 AM
Bakersdozen

Neck mated for life. Pups installed. Strap buttons on. TRC on. Knobs in place. Fret gunk cleaned. Now she looks like a guitar!

Next on the list is to wax fretboard, string up and sand down the sides of the tusq nut to fit, adjust pickup height, check neck relief and see how she plays. I'll probly then string up with proper strings to intonate.

Also waiting for my guitar family domed output Jack cover thing to arrive. Should look a bit cleaner than stock one. Just been sitting in customs for ages, cleared now but won't arrive till post Xmas. Very impressed with the speed of that order, just AusPost letting me down...They got it out the door and in the country super quick. Quickest AliExpress order I've had by far. https://uploads.tapatalk-cdn.com/201...44a0749c41.jpg
24-12-2018, 12:51 PM
kuanjb

Looks good. What sort of finish did you use? Spray can, wipe on PU, oil? And what did you use to polish?

I'm currently using a wipe on poly on my build. Haven't put on a coat for a few weeks though even though I'm no where near finished. I'm finding it hard to get a smooth finish. The warmer weather now might help though.
24-12-2018, 12:54 PM
Bakersdozen

Quote:

Originally Posted by kuanjb

Looks good. What sort of finish did you use? Spray can, wipe on PU, oil?

Sent from my LG-H930 using Tapatalk

Thanks Man. Spray on PU. Cabbots exterior gloss. Comes up a treat.
24-12-2018, 01:46 PM
DarkMark

Congratulations on an awesome looking guitar.
24-12-2018, 02:06 PM
Bakersdozen

Quote:

Originally Posted by DarkMark

Congratulations on an awesome looking guitar.

Cheers brother!
24-12-2018, 04:06 PM
Andy40

Mate that looks the business eh.
BTW you got a link to that jack?
24-12-2018, 04:33 PM
Bakersdozen

Quote:

Originally Posted by Andy40

Mate that looks the business eh.
BTW you got a link to that jack?

Here you go dude

https://s.click.aliexpress.com/e/cCImYGGt

Hope that works - link is a bit funny cause I have the app installed. Pic attached. Or search for

1 Piece GuitarFamily Metal Jack Plate For Electric Guitar ( #0445 )

It's the dome one not flat or oval. Recesses into the Jack hole.

Did you happen to get my Tapatalk message? Was just asking for your natural tele build diary link. Can't find it for the life of me...
https://uploads.tapatalk-cdn.com/201...79d2ae5861.jpg
25-12-2018, 07:11 PM
Andy40

Hey BD,

Thanks for that. Very cool recessed jack, I might look into it.

Sorry, no I didn't get the message.

Link for you

http://www.buildyourownguitar.com.au...ead.php?t=7490
26-12-2018, 10:16 AM
Bakersdozen

Quote:

Originally Posted by Andy40

Hey BD,

Thanks for that. Very cool recessed jack, I might look into it.

Sorry, no I didn't get the message.

Link for you

http://www.buildyourownguitar.com.au...ead.php?t=7490

Dang, thats why I couldn't find it lol. It was a semi sctatchy. Thanks mate!
29-12-2018, 03:13 PM
Bakersdozen

Hey Andy40, here's a pic of the recessed Jack installed. Might suit a side with less curve better, but I still prefer the look to a plate.https://uploads.tapatalk-cdn.com/201...f401b965cf.jpg
29-12-2018, 04:04 PM
Andy40

Yeah it looks mint BD. I likey:cool:
29-12-2018, 04:53 PM
Bakersdozen

Quote:

Originally Posted by Andy40

Yeah it looks mint BD. I likey:cool:

And a very cheap upgrade option as well. Only a few bucks from my new favourite AliExpress dealer. Totally stoked with the cost, quality and postage speed of their stuff.
08-01-2019, 11:31 AM
Bakersdozen

5 Attachment(s)

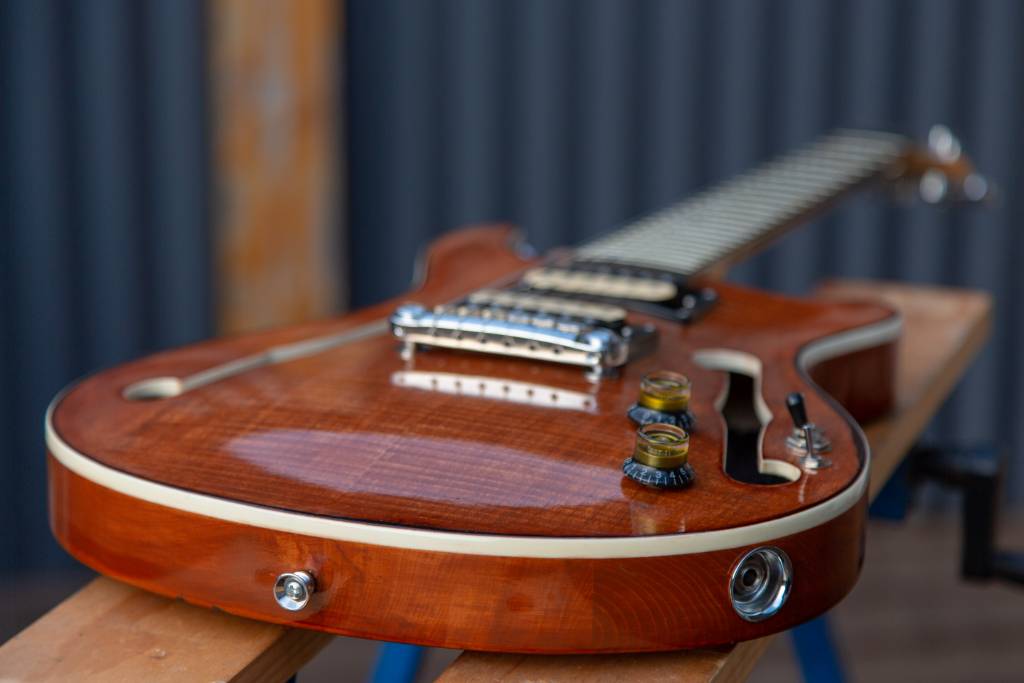

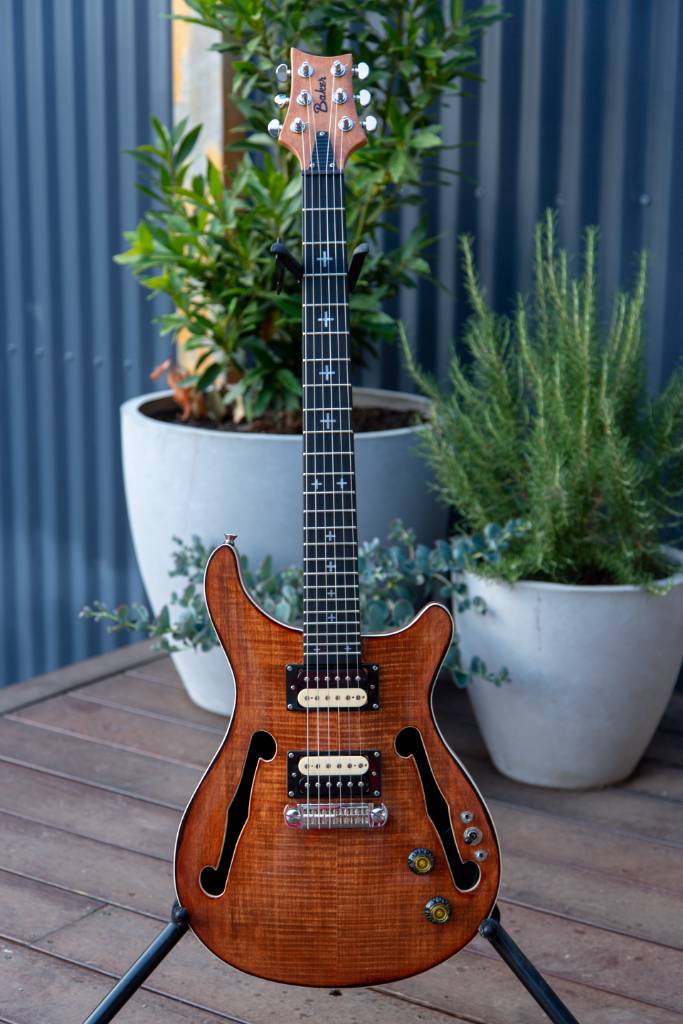

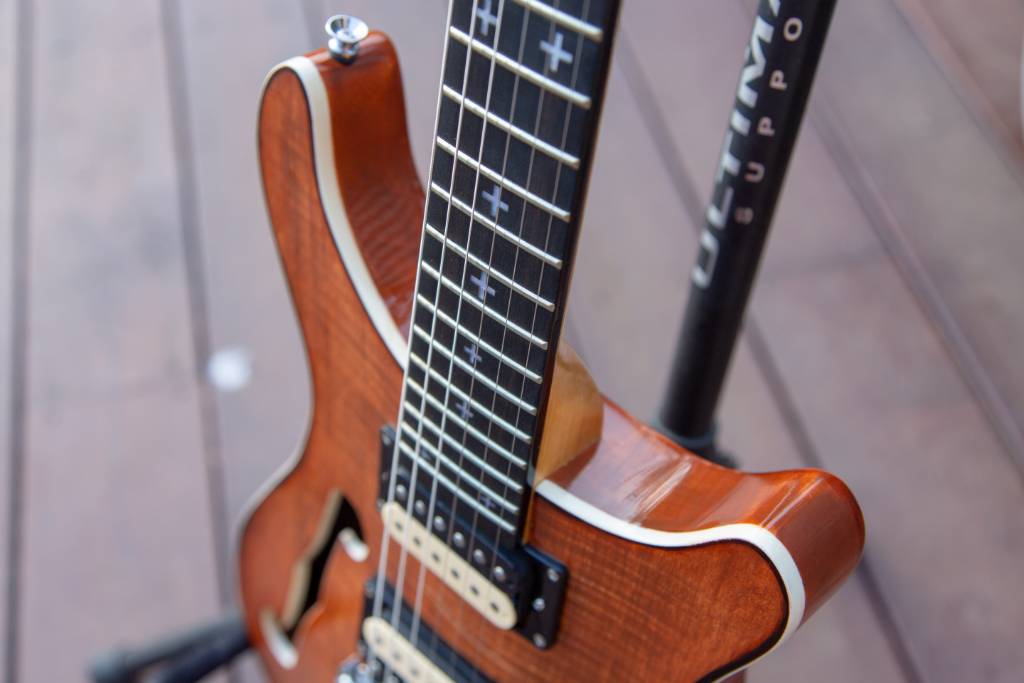

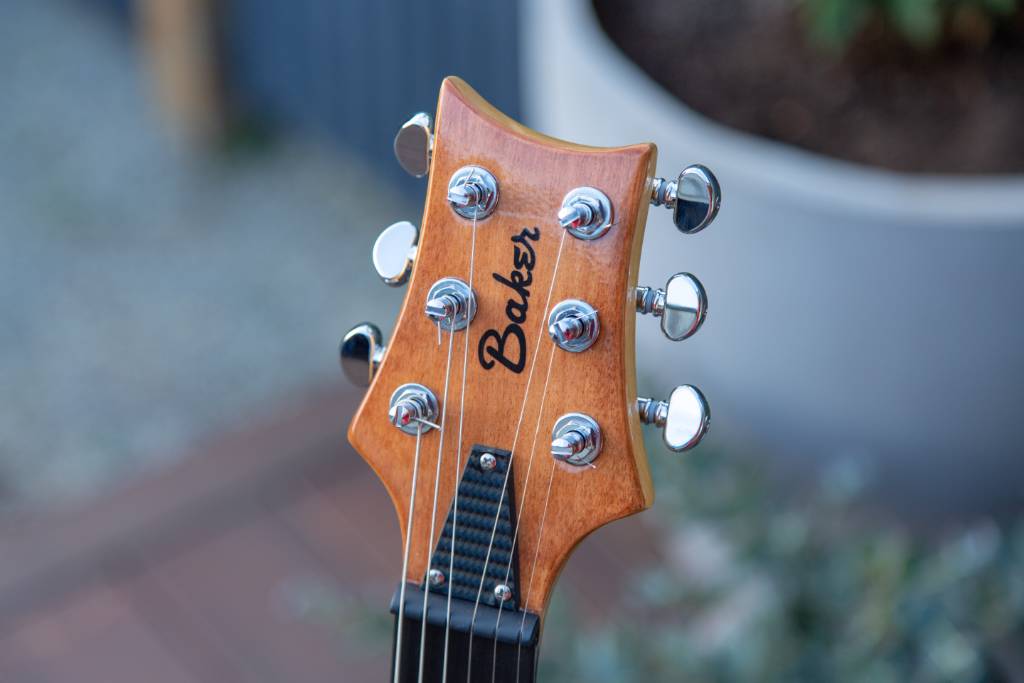

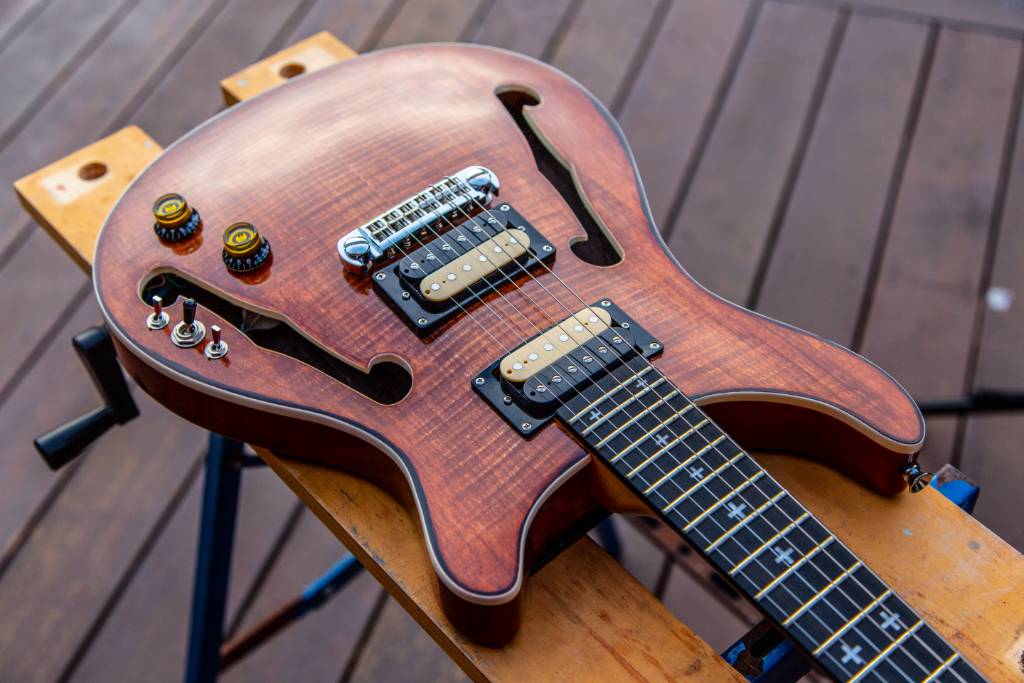

Aaaand she's finished. Intonated beautifly and holding tune like a boss. Although I do feel it's more of a he because my 3.5 yr old daughter named it "Browny Boy" ever since it got stained.

Feels lovely to play and sounds great. Super happy I decided to add the series/parallel switches to vary up the sonic options. The extra little bits of effort put in, like rounding off the square edges of the fretboard etc., really pay off on making it feel great under the hands. I'll throw up an audio demo in the next little while. And I'll put up a few more extra photos as a gallery too soon.

Thanks all for your help and guidance along the way. There will be plenty more questions coming your way, don't worry about that.

Attachment 29637
Attachment 29638
Attachment 29639
Attachment 29640
Attachment 29642
08-01-2019, 11:37 AM
FrankenWashie

Nice, first entry for Feb GOTM?
08-01-2019, 11:46 AM
Bakersdozen

Quote:

Originally Posted by FrankenWashie

Nice, first entry for Feb GOTM?

Possibly, hadn't really thought about that lol
08-01-2019, 12:09 PM
Andy40

Final shots look great BD. Can you do a quick summary of what is stock and what is upgraded. I went hunting through the Build diary and couldn't find what pups you ended up using and how the electrickery works.
Mine's taking ages, but I think its one of those builds that needs time put in.
