Building a BC-1 guitar for my son

Hi everyone! I'm now into full assembly mode and thought I'd share pixs of how I'm doing. The paint looks nice, I've copper-tape shielded up the wazoo, and made a special copper plaque with a pick from the guitarist of a band he likes.

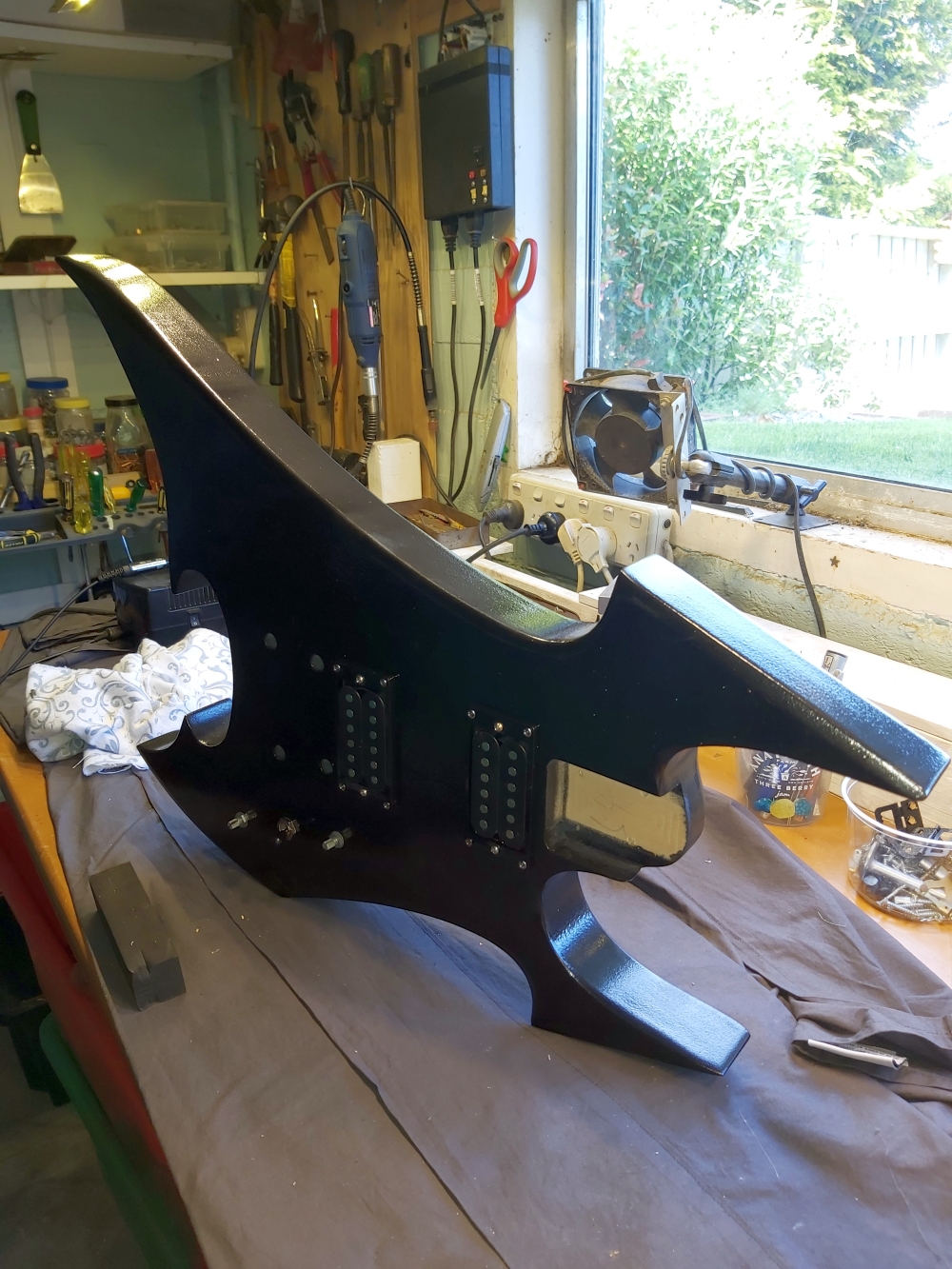

I do have a question abou the two strap mount points. Because the guitar's a non-standard (eg Strat) kind of shape, I'm ot sure where to put the rear mount point. See pic 5. I've put a blue-green square where I think the front one should go. What do you think about the rear one?

The Pitbull video I watched said in line with the neck etc, all the way to the rear of the guitar. But I'm not sure that will work in this case?

thanks for your thoughts!

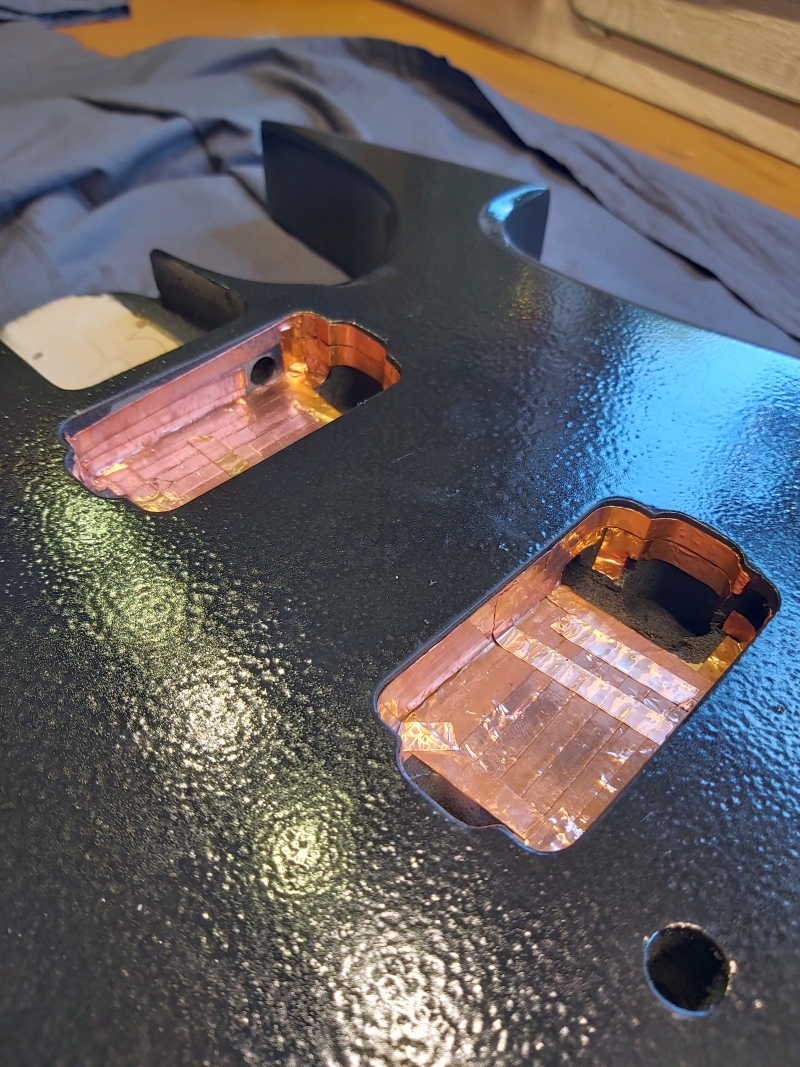

Attachment 45397Attachment 45398Attachment 45399Attachment 45400

Jesus and Mary Chain 👍

Quote:

---

Originally Posted by Barno

I do have a question abou the two strap mount points. Because the guitar's a non-standard (eg Strat) kind of shape, I'm ot sure where to put the rear mount point. See pic 5. I've put a blue-green square where I think the front one should go. What do you think about the rear one?

The Pitbull video I watched said in line with the neck etc, all the way to the rear of the guitar. But I'm not sure that will work in this case?

thanks for your thoughts!

---

Hi Barno,
check out the pictures at https://bcrich.com/product/beast/

They have the strap buttons a bit further back on the front horn and the other on the back. Not sure if I would have it quite so high on the rear - I think I would have placed it on the side of the body (not the back), maybe a bit like on a flying V.

That's right! Legends :-)

Quote:

---

Originally Posted by Trevor Davies

Hi Barno,
check out the pictures at https://bcrich.com/product/beast/

They have the strap buttons a bit further back on the front horn and the other on the back. Not sure if I would have it quite so high on the rear - I think I would have placed it on the side of the body (not the back), maybe a bit like on a flying V.

---

Oh wow - thanks Trevor. I never thought to put them on the back!

I think I'll bput the one at the front on (at the back of the guitar) and then say to my son we'll experiment and let him choose the location for the rear one. I agree, I think it needs to go down a bit.

Great resource - and thanks again!

Tonight is adding the 6 x nuts to the head - that bit should be ok.
Tomorrow testing the pickups and adding the bridge... that should be fun 👍🤣

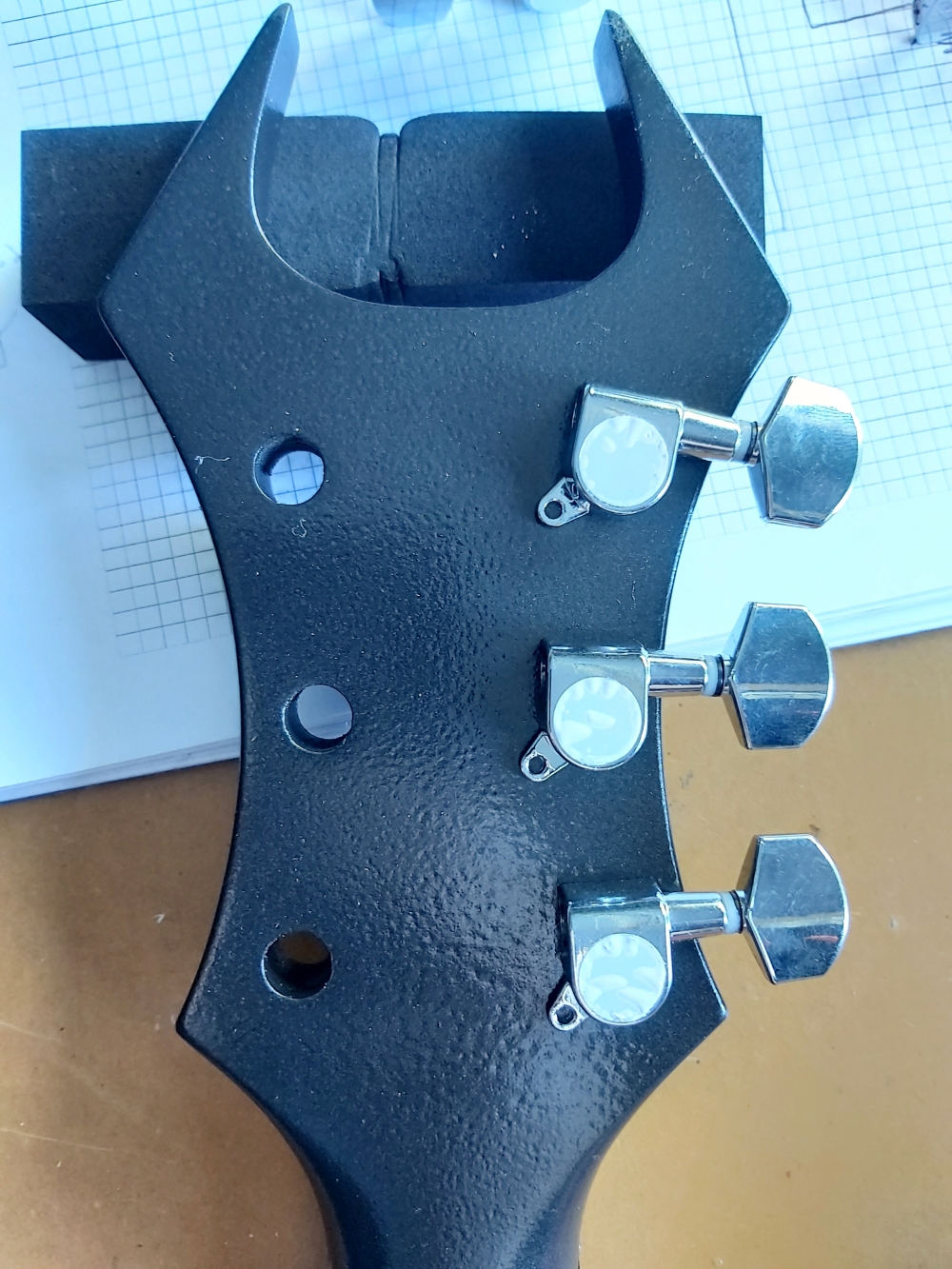

Tonight I'm adding the headnuts. I watched the Pitbull video for a 3-a-side - there's a preference to lining up the little screw holes in a tidy line. Because of the curved shape that my son's guitar head has, and indeed the holes, this won't be possible.

I think the best I can do is mount them tidily, so the bottom and topmost ones don't come in contact with the actual head when they're being turned.

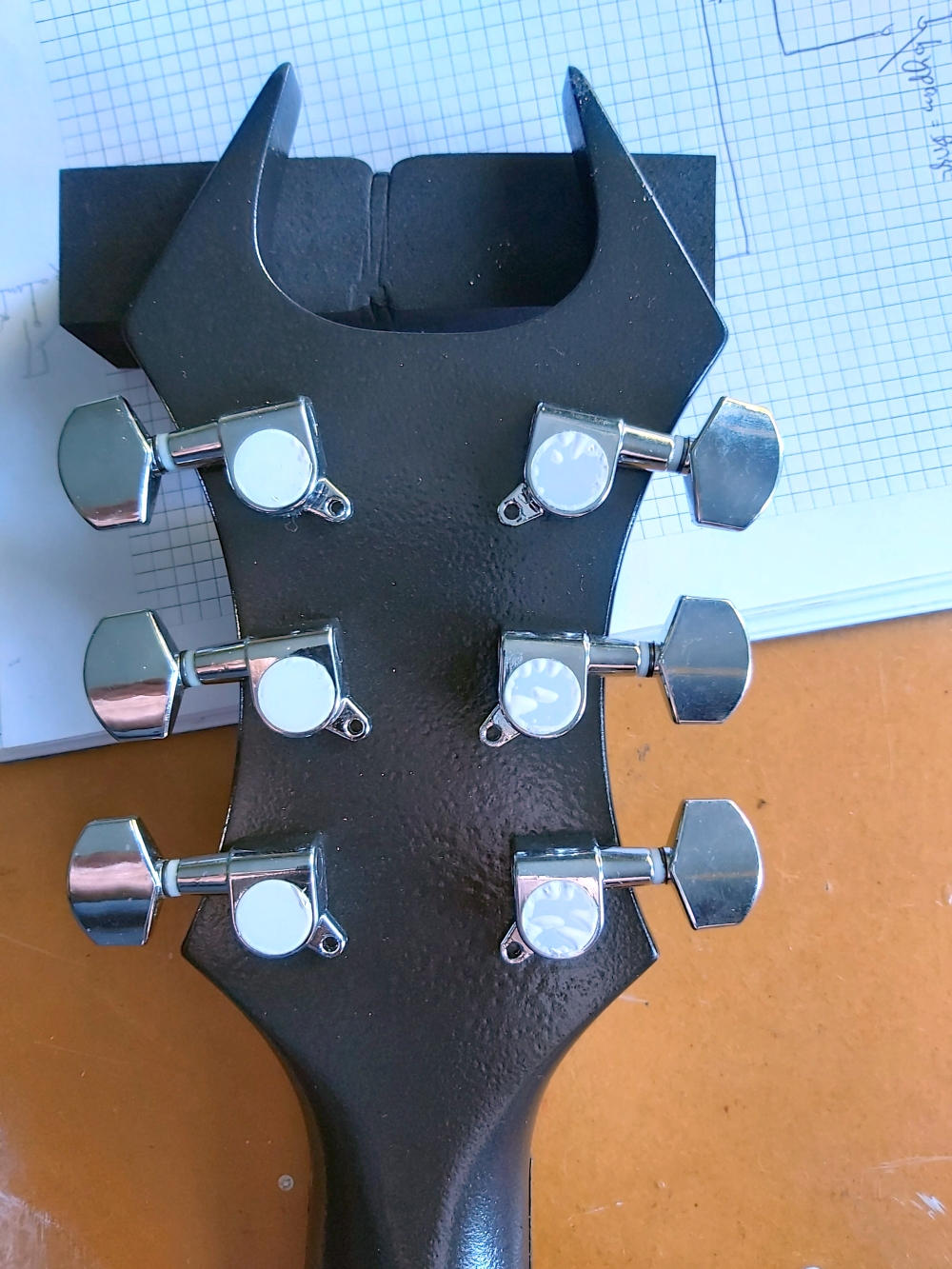

I've attached a couple of pix to show what I mean and see if there's anything stupid I'm doing. You can see in picture B the holes aren't even in a straight line, so they'll never line up! I understand there are left and right hand ones; I think I have them on the corect side!

Attachment 45403Attachment 45404

Quote:

---

Originally Posted by Barno

Tonight I'm adding the headnuts. I watched the Pitbull video for a 3-a-side - there's a preference to lining up the little screw holes in a tidy line. Because of the curved shape that my son's guitar head has, and indeed the holes, this won't be possible.

I think the best I can do is mount them tidily, so the bottom and topmost ones don't come in contact with the actual head when they're being turned.

I've attached a couple of pix to show what I mean and see if there's anything stupid I'm doing. You can see in picture B the holes aren't even in a straight line, so they'll never line up! I understand there are left and right hand ones; I think I have them on the corect side!

Attachment 45403Attachment 45404

---

The tuners are placed on the correct sides.

I agree that all you can do is mount them tidily! The website, from post 43, also shows the headstock and tuners - they have the winders all parallel to each other. I do not think that is possible for your top tuners as the winders will hit the headstock!

Quote:

---

Originally Posted by Trevor Davies

The tuners are placed on the correct sides.

I agree that all you can do is mount them tidily! The website, from post 43, also shows the headstock and tuners - they have the winders all parallel to each other. I do not think that is possible for your top tuners as the winders will hit the headstock!

---

Hi Trevor - that's what I thought! So as tidy as possible, that's how I'll mount them. When I tried to straighten them, they did indeed want to hit the headstock.

Tested the pickups last night - they're working fine.

Tonight I'll get those headnuts sorted.

thanks!

Tonight is the bridge (nervous about that), and apparently there's a wire I have to feed through from the electric cavity somewhere, and then push a bridge post onto it?

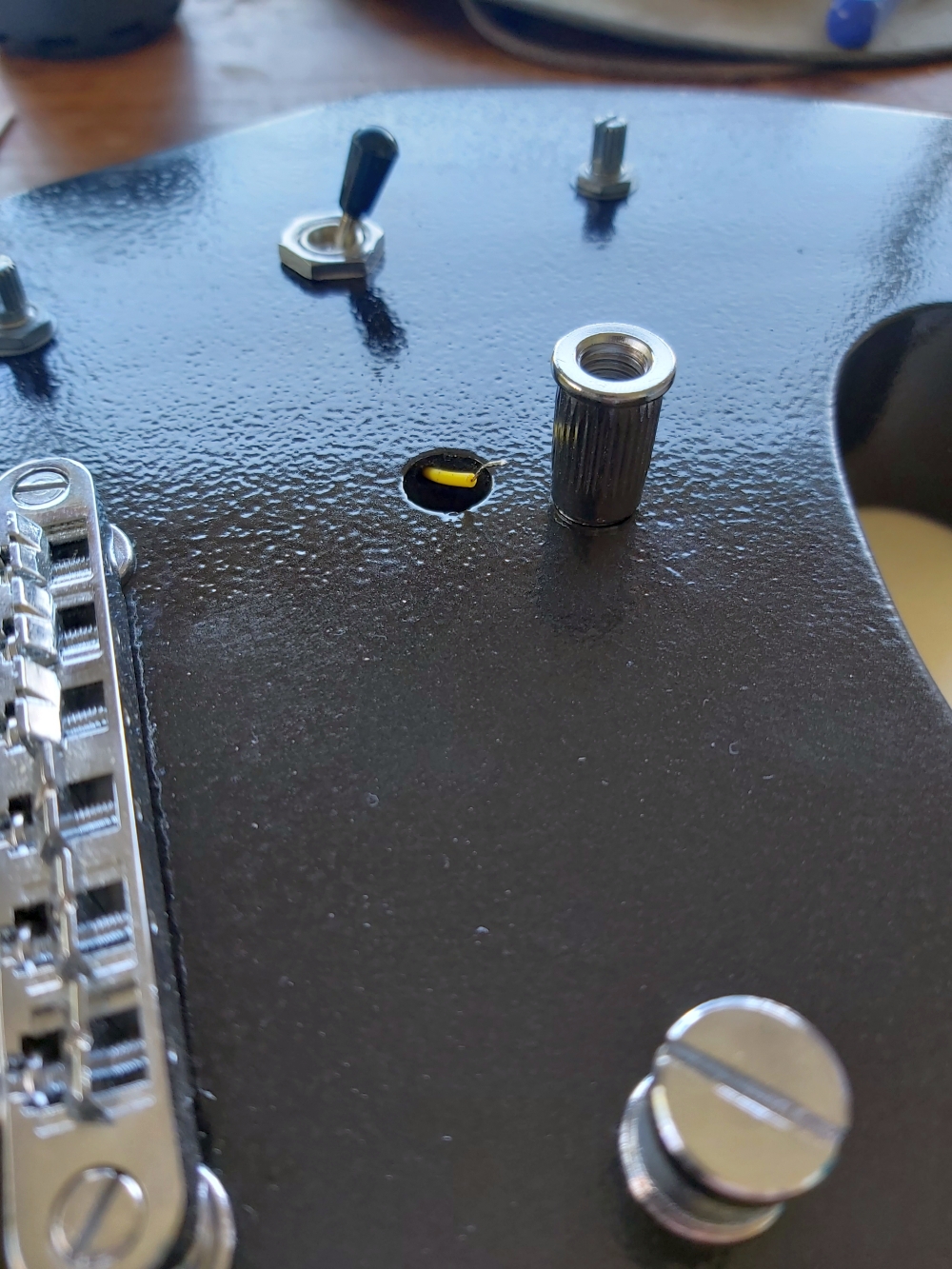

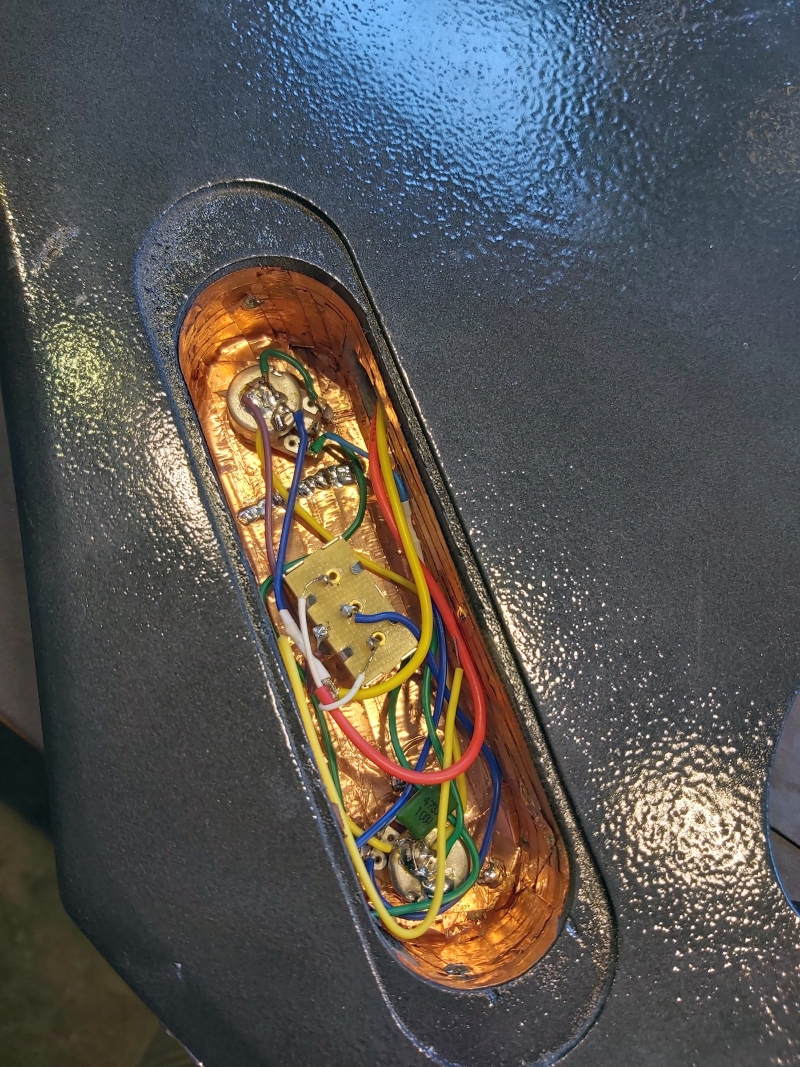

I have 3 of the 4 posts for the bridge etc. I have my ground wire stuck through into the hole where I'm going to hammer the last bridge screw mount....

....but do I just poke the wire through and hope some of it connects with the bridge post as I hammer it in?
Is there more to it than that?

I've attached a photo.

I'm nearly there... I have 5 days left to add the bridge, bolt on the neck, put on some strings, learn about intonation.

And have a beer.Attachment 45412

"....but do I just poke the wire through and hope some of it connects with the bridge post as I hammer it in?
Is there more to it than that?"

That is it! I usually strip the end to about 1.5 cm of wire and splay it out a bit. Hammer the post in, and pray! Only poke the bare wire through to the post hole.

Not sure if others do it but I sometimes give the chrome stud a bit of a rough sand where the wire is to get a better connection. That’s gonna be a east of a BC when it’s done.

Quote:

---

Originally Posted by vh2580

Not sure if others do it but I sometimes give the chrome stud a bit of a rough sand where the wire is to get a better connection. That’s gonna be a east of a BC when it’s done.

---

I haven't done this, but it strikes me as a very good idea ;-)

Funny, I just answered this same question for another post (pun not intended...maybe).

https://www.buildyourownguitar.com.a...t=12377&page=2

I pray too, but mostly that the multimeter shows me continuity. ;-)

Quote:

---

Originally Posted by fender3x

I haven't done this, but it strikes me as a very good idea ;-)

Funny, I just answered this same question for another post (pun not intended...maybe).

https://www.buildyourownguitar.com.a...t=12377&page=2

I pray too, but mostly that the multimeter shows me continuity. ;-)

---

Yes I posted on another thread after some research, and then thought I should addit to my Build Diary.

Well, I'm off to give it a go!

It worked!
(The fender3x "splay the wires" (tm) technique)
I have continuity on both pots, the shielding on the exterior of the jack, the shielding inside the pots and switch cavity, and of course the bridge [phew]

So a stupid question but I'll ask so I don't wreck anything - the large saddle plus the bridge - do they literally just sit on the four posts I've hammered in? If I turn over the guitar to screw the neck in they'll fall out, so I'll take them out.

When that neck is on, I'm guessing the tension of six tight strings will hold both pieces of metal in place. Is that about right?

I am close to finishing it - I have three days left to get the neck and strings on, check intonation, and tune. And a sort of test - I'm a left-handed player, but I should be able to mash out something!!

Potential problem - right at the end!!

OK I'm a bit stuck now.

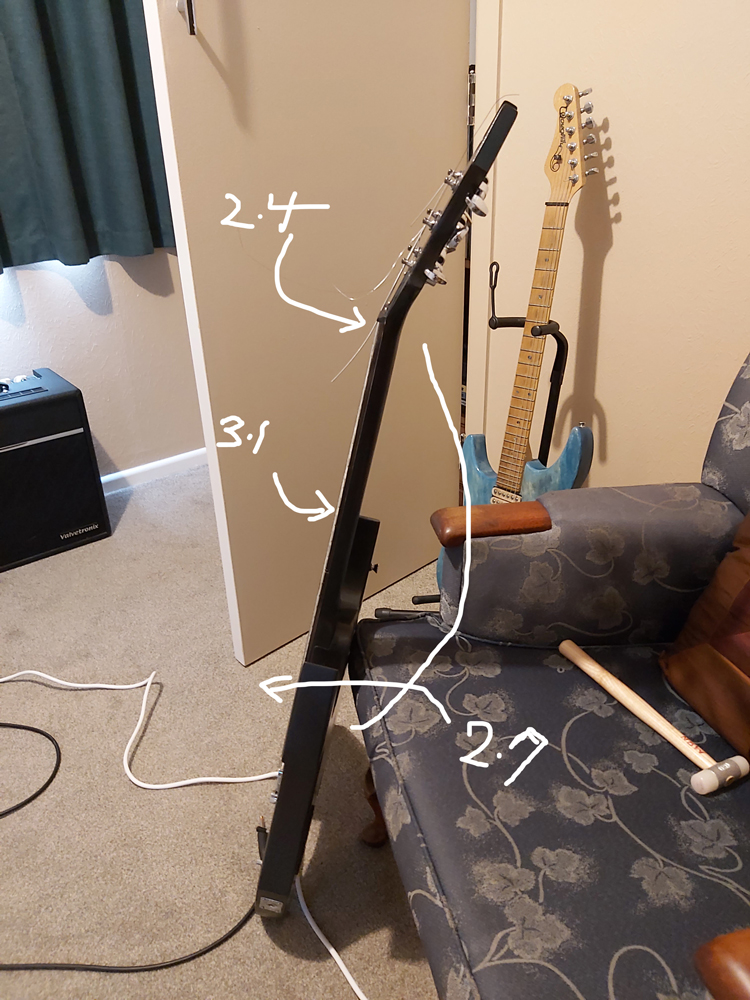

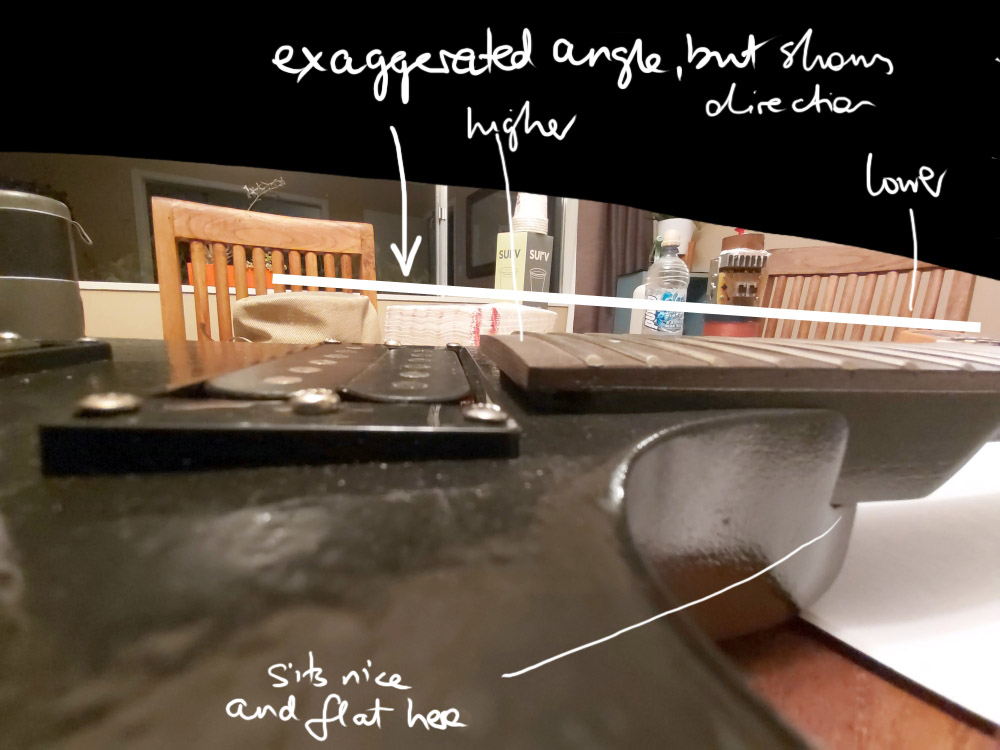

I bolted the neck on, but it looks like its got quite a downward tilt starting from the neck bolts closest to the pickups, then fading down out to the head!!

I did check the fitting before painting and it seemed reasonable. I tried a gentle tap with a nylon hammer, then rescrewed, it didn't seem to make too much difference at all :eek:

So I'm sort of stuck, should I put some strings on and see if it's ok - I doubt the tensioned up strings would lift the head end up a bit (would they?) as they'd be competing against the 4 neck-to-body bolts.

Or, should I try to carefully sand inside where the neck fits into the body?

I've attached 3 photos to show as best I can. ANy help for this final push really appreciated!!

thanks
Attachment 45419Attachment 45420Attachment 45421

p.s. I can take more pictures if that helps the analysis

I did note from your earlier comment Trevor you thought maybe a small angle e.g 4 degrees would be ok... it just "looks" wrong to me at the moment, albeit with no strings on

Quote:

---

Originally Posted by Barno

...

So a stupid question but I'll ask so I don't wreck anything - the large saddle plus the bridge - do they literally just sit on the four posts I've hammered in? If I turn over the guitar to screw the neck in they'll fall out, so I'll take them out.

When that neck is on, I'm guessing the tension of six tight strings will hold both pieces of metal in place. Is that about right?

...!

---

Yeah, the bridge and stop bar just sit on the posts. The string tension will hold them tightly in place.

The pictures in post #56 look right. I would not sand the neck foot or neck pocket. Put the strings on and see.

There is a lot of adjustment for the bridge height.

I'm assuming the neck/fretboard is straight (that is - not curved).

Quote:

---

Originally Posted by Trevor Davies

The pictures in post #56 look right. I would not sand the neck foot or neck pocket. Put the strings on and see.

There is a lot of adjustment for the bridge height.

I'm assuming the neck/fretboard is straight (that is - not curved).

---

Morning Trevor thanks for the reply
I put a straight edge on the fret boards - it is really straight. Maybe a fraction of a millimetre gap between edge and fret at the head end, but apart from that - straight.

OK I'll put some strings on tonightand see how it goes!

1+ on TD's post.

FWIW I would put the strings on, and do a full set up (set the truss rod and the action) before doing anything else. Only shim or sand if you have to.

If it comes to that, you can put a veneer shim on the two holes on the nut side of the pocket to adjust the angle. Simpler than sanding ;-)

But I don't think it'll come to that.

Quote:

---

Originally Posted by fender3x

1+ on TD's post.

FWIW I would put the strings on, and do a full set up (set the truss rod and the action) before doing anything else. Only shim or sand if you have to.

If it comes to that, you can put a veneer shim on the two holes on the nut side of the pocket to adjust the angle. Simpler than sanding ;-)

But I don't think it'll come to that.

---

It's reversible and much more accurate than sanding

Quote:

---

Originally Posted by fender3x

1+ on TD's post.

FWIW I would put the strings on, and do a full set up (set the truss rod and the action) before doing anything else. Only shim or sand if you have to.

If it comes to that, you can put a veneer shim on the two holes on the nut side of the pocket to adjust the angle. Simpler than sanding ;-)

But I don't think it'll come to that.

---

Well, I got close.

A bit of a problem now.

Trevor was right, throw some strings on it - it actually came up really well. Almost perfectly flat and straight - maybe the slightest convex curve; very faint almost indiscernible.

What is a problem is one fret, the 12th. I had trouble with it earlier, it was slightly raised when I was starting to work on it.

Now, it's raised so playing anything lower than that fret on the E, A, D strings sticks on that fret and rattles. It's not too bad on the G, and not really noticeable on the top E and A. In fact though, playing the note just after the (lower) E where the fret is, then one note down, it's exactly the same note because of the height!

This model of guitar doesn't allow to adjust the action / height as far as I can tell (there're intonation screws which I'm leaving until I resolve the fret issue)

I trying carefully tapping on the fret with a nylon hammer - no luck.

The only three things I can think of doing are:

1. Trying to file a fair bit of the fret off, by loosening the strings and very gently with a needle file try to lower it.
2. I'm not sure if adjusting the neck screw will help (?)
3. Taking it to a guitar shop after his birthday and asking for them to replace the raised fret.

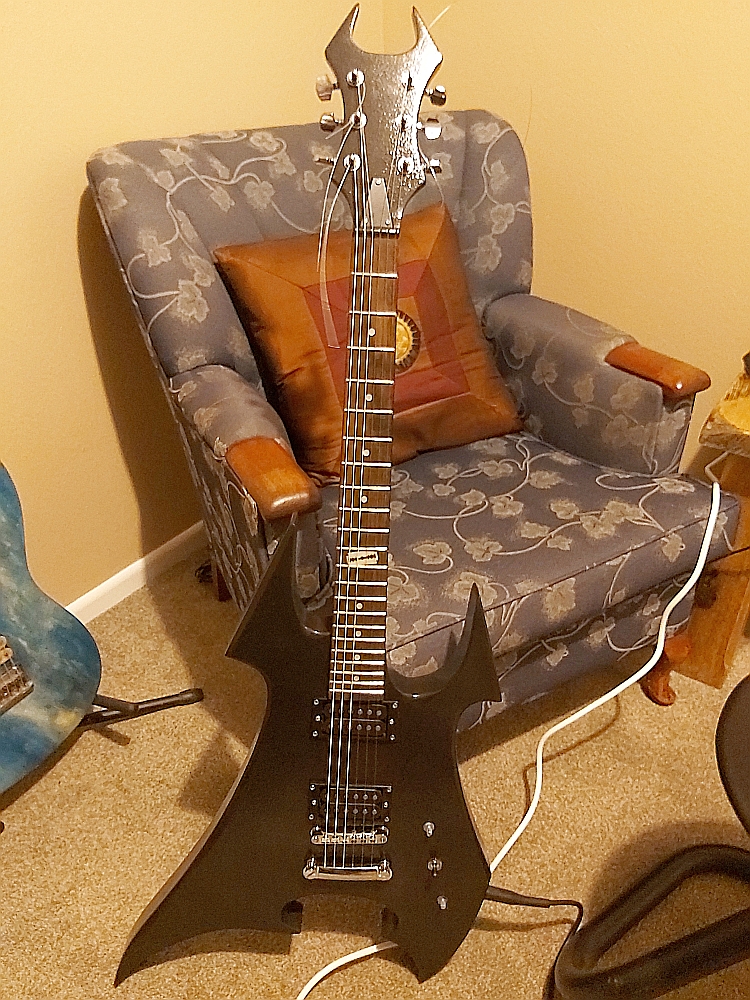

I've attached a pic. And one of the finished (almost) guitar. The wiring and everything is fine; it has a nice sound. No hum or anything - the ground wire etc went well. Downside - you can kind of only use 1/2 of the guitar....

I'm leaning toward option 1 until I can find someone to have a go on option 3.
Happy to try option 2 if anyone thinks it's worthwhile

Off to sleep now, the guitar has beaten me today. I'll check in tomorrow

Attachment 45427Attachment 45428

Hi Barno, it is looking great!

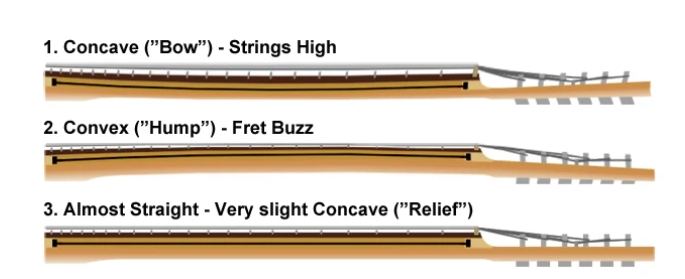

The neck should be slightly concave with the strings on. Also, have you gone through the process for setting the action (string height)? It is difficult to tell in the picture if the strings are at a good height.
Maybe the truss rod could be tightened to increase the concave curvature of the neck. The bridge may also be raised a bit using the screw in posts. These will raise the strings a bit!

As far as the 12th fret goes.

I'm not sure if it would need to be replaced - but It may need to be filed down a bit! Do you have a 12 inch radius block, fret rocker and fret file? I would not use a needle file. Maybe a small flat file could be used! The frets need to be rounded at the top - I use a fret file for this.

The neck screws should not need adjusting. Option 3 if needed!

I had the same reaction as TD, FWIW. You have tried the hammer trick. I would suggest doing some setup stuff...which needs to be done in a particular order.

First step: Take off the strings and set the truss rod so that the neck is as flat as you can get it. Easiest way to know if it is completely flat is to use a notched straight edge. You can get these cheap, or make one for even less. I saw this one on Temu for $7.50 USD.

Attachment 45429

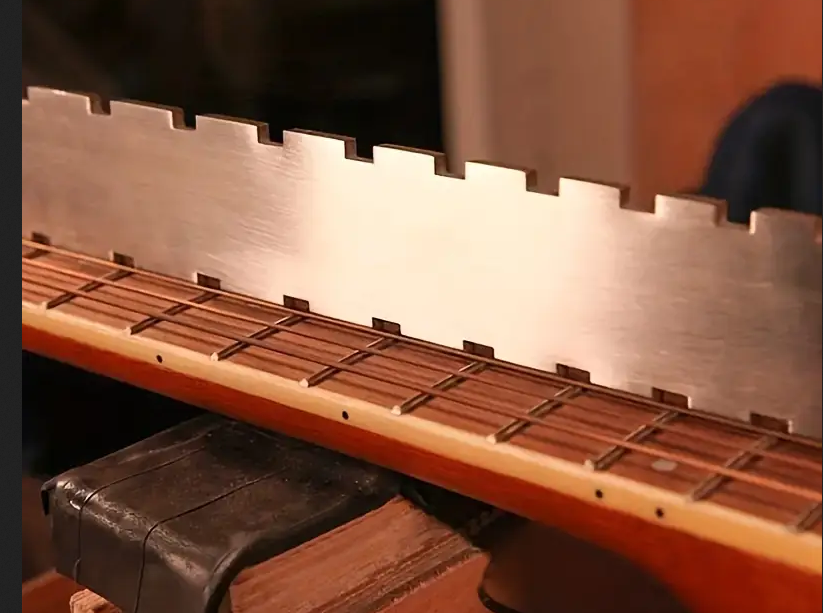

Check the frets with a fret rocker.

Attachment 45430

You can get one cheaply (the one in the kit above from Temu is $11 USD). Lots of youtube on how to use it ;-)

Next step is to level. Most kit necks can use a bit of leveling. You can do this with a radius block as TD suggests. I use tend to use a leveling bar, which in my case is an inexpensive aluminum level bar (about 1m in length) with 320 grit sand paper glued to the bottom. Draw a line in the center of each fret with a sharpie. Slide the leveling bar back and forth over the frets until you can see a little shiny line on all of them at the top of the fret. You don't need to bear down on the bar. The weight of the bar is sufficient. Once you see the shiny line at the top of all the frets they will be perfectly flat.

Next step is to crown the flat spots off the fret tops. This you can do with a needle file or a crowning file, or the sand paper trick in the vid below. I use a Baroque Crowning file for this that I got for about $30 on Amazon... I just saw that Ali Express has them for half that.

Here's a video showing the whole process with, and without, a fret crowning file.

https://www.google.com/search?client...r0VR2CdQM,st:0

Next step is to put the strings back on, and do the set up.

https://www.youtube.com/watch?v=PHHepmTX3So

The video above is one of four on doing a full set up. There are many of these set up videos, but I like the ones by John Carruthers as well as any. Do all steps in the order of the videos.

Once you have done all that, you should not have the problem with at the 12th fret...or anywhere else ;-)

Hi guys for your notes.

Just to recap what I've done (previously) - I did the sharpie marker, straight edge, and very gently sand any high frets - it seemed ok at that point. I had to do very little sanding. The little 12th fret b**std has kind of risen a bit.

I may have got my convex and concave slightly wrong - in fact I think I have. I attach a pic where I measured the gap between the string and the actual fretboard. At the head, it's 2.4mm, and the pickup end 2.7mm, on the 12th fret, 3.1mm. In the second pic, my guitar is like example 3, very very slight bow. So it's not too bad?

I won't be able to buy a special crowning file before Finn's birthday (Saturday) but I could use the technique in that video to see if I can take even 1/2 mm off. It should be just a few bits of masking tape and I have 400,600, 1000 sandpaper. (I have found an online store in NZ that actually sells 250mm length of frets so it might be possible to remove the old fret and replace).

So I've done the levelling already and the frets *were* pretty good.

I looked at all four of John's videos. I can do some of the things he's talking about, after filing a little bit.

1. I can (with strings on, I guess), turn the truss nut (using the allen key provided) 1/8th of a turn clockwise to get the last tiny bit of concave out of the neck.
2. My bridge doesn't allow for strings to be individually adjusted for height. I guess I could take the bridge off and pack it up with a thin washer on each side. This would just make the strings even higher?
3. Video 3 talks about filing through the neck nut - I don't think I'm brave enough to do that (I don't have feeler gauges, proper super-thin guitar files etc)
4. Intonation I can do - Pit Bull had a video explaining how to adjust using open strings then on the 12th fret.Attachment 45431Attachment 45432

Hey Barno

That axe is looking very cool, nice work!

That 12th fret looks like it has become "unstuck" so I think it will probably keep moving about over time through playing and environmental changes etc. (in my limited amateur opinion). I'd say it probably needs to come out and be replaced or reset. If it has been filed to level it before and then is reset, it will probably then be sitting too low compared to its neighbors.

If it were my guitar, I'd take it to Rob Matthews guitar repair in Wellington. He's a great luthier and a top bloke, I highly recommend him. I believe he is operating out of the CBD. You should be able to find him on Facebook to make contact.

I hope that helps! :)

Quote:

---

Originally Posted by Moparnut

Hey Barno

That axe is looking very cool, nice work!

That 12th fret looks like it has become "unstuck" so I think it will probably keep moving about over time through playing and environmental changes etc. (in my limited amateur opinion). I'd say it probably needs to come out and be replaced or reset. If it has been filed to level it before and then is reset, it will probably then be sitting too low compared to its neighbors.

If it were my guitar, I'd take it to Rob Matthews guitar repair in Wellington. He's a great luthier and a top bloke, I highly recommend him. I believe he is operating out of the CBD. You should be able to find him on Facebook to make contact.

I hope that helps! :)

---

Hi Moparnut,
that indeed might be a plan.

My son's birthday is tomorrow, I can give him the guitar with a caveat that it will go for a trip into the CBD for a minor final task.

He's only going to have the guitar for five minutes tomorrow as he and his mates are then likely to get tanked for his birthday. I can just imagine after 18 pints of lager them fooling around with it in the backyard and damaging it.

cheers :)

Well, the guitar is as done as it can be before the birthday tomorrow. Finn will see to see the guitar then I'll take it off him as he and his mates begin their afternoon-evening etc drinks :D

In the post above, there's a guy in my city who can just rectify that annoying fret properly, so that's worth doing.

I've learned a load of really interesting useful things in this build process, and might even end up buying a left-hand hollow body kit one day for me. I can use the things I've learned to make it even better.

So, from me now - THANKS! I've really appreciated the advice and patience of people who have posted to my comments and questions, especially Trevor D and fender3x.

Hopefully I'll be on the board again in time!!

Barney
