Simon...very interesting. I've done a twin humbucker guitar and have the no volume problem. Where can I get a kinman wiring diagram?
Printable View
Simon...very interesting. I've done a twin humbucker guitar and have the no volume problem. Where can I get a kinman wiring diagram?
The 'Kinman' mod is just wiring the bleed capacitor and resistor in series instead of parallel. Different people have different ideas on the optimum cap and resistor value, but a 0.001uF/1pF capacitor and a 130k ohm 1/4 watt resistor seem to be the most popular.

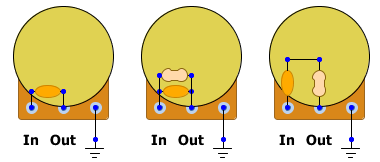

In the diagram below, the first option is simply a capacitor, which works but can lead to the tone getting a lot brighter as the volume is reduced. The second is a capacitor and resistor in parallel, which is the Seymour Duncan/StewMac/PBG kit version, whilst the third is the capacitor and resistor in series and is often known as the 'Kinman' version.
Attachment 18719
I tried the second one on a Strat I rewired recently and that worked nicely, but the Kinman version would work better on a two-volume control guitar. Wazkelly found out with a Jazz Bass (where there is no selector switch and both pickups are permanently in circuit), that the standard treble bleed kits caused the volume drop-out when one pickup volume was turned right down (to select either just the bridge or neck pick-up), which caused me to start looking into these things.
There is a lot of stuff out there on the web about these bleed circuits, and there are quite a lot of variations on values, plus more alternative circuits, some of which seem rather OTT, in search of technical perfection.
that's a nice shine there dedman theirs some work in that body smooth as a baby bum

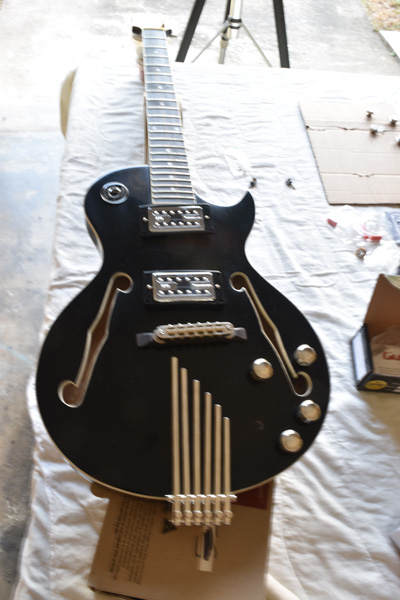

couldn't resist a partial mock up while getting ready to do some wiring
Attachment 18732
Attachment 18733
Fingers! Very nice.
Very you, Dedman. It "looks" like the kind of music you like to listen to.
What a right pain in the butt getting that wiring in through those tiny f holes. glad I went with mini pots! I called them f'n holes a fair bit! Much eaiser on the full size axes. But to my surprise even after all the twisting and turning it passed the "tap" test first time round. Tuners, a clean up of the fret board to get the masking tap glue off and strings tomorrow!
I have to say that since buying a decent soldering station my wiring has improved 100%. Again thanks Doc for the advice on what to buy
No idea what you meanQuote:
Originally Posted by Fretworn
https://www.youtube.com/watch?v=P_kn2rtuc4o

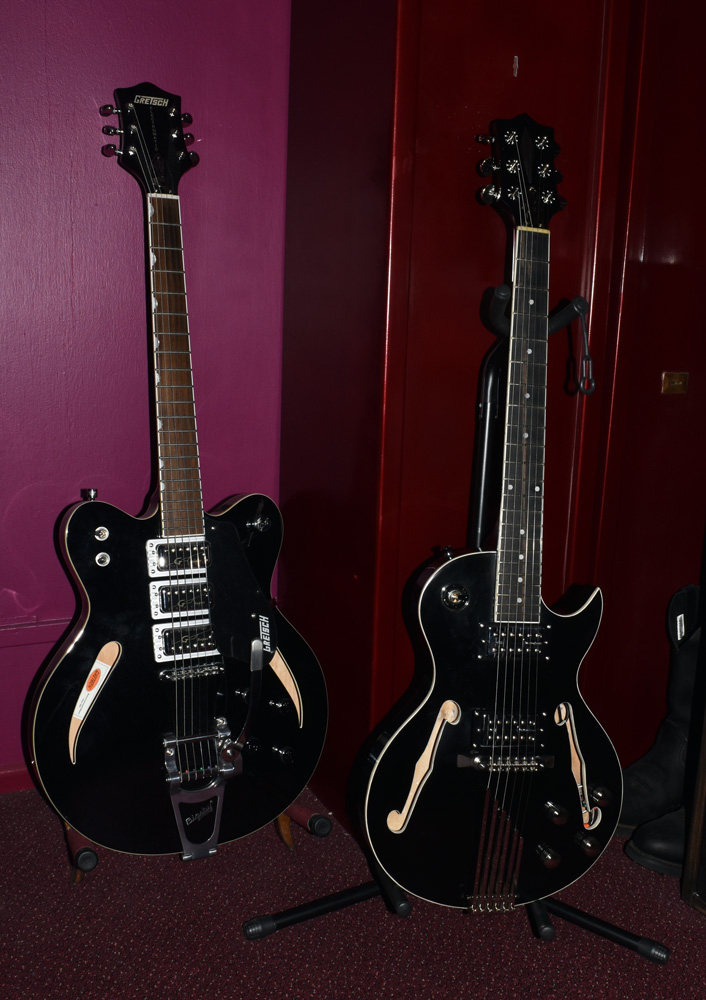

strung and playing :D hangin out with its cuz.
Will leave it for a week, another polish, restring with good strings (Chinese on atm) and will tidy the wiring now that I know it all works correctly. May sand a little bit more off the base of the bridge as well

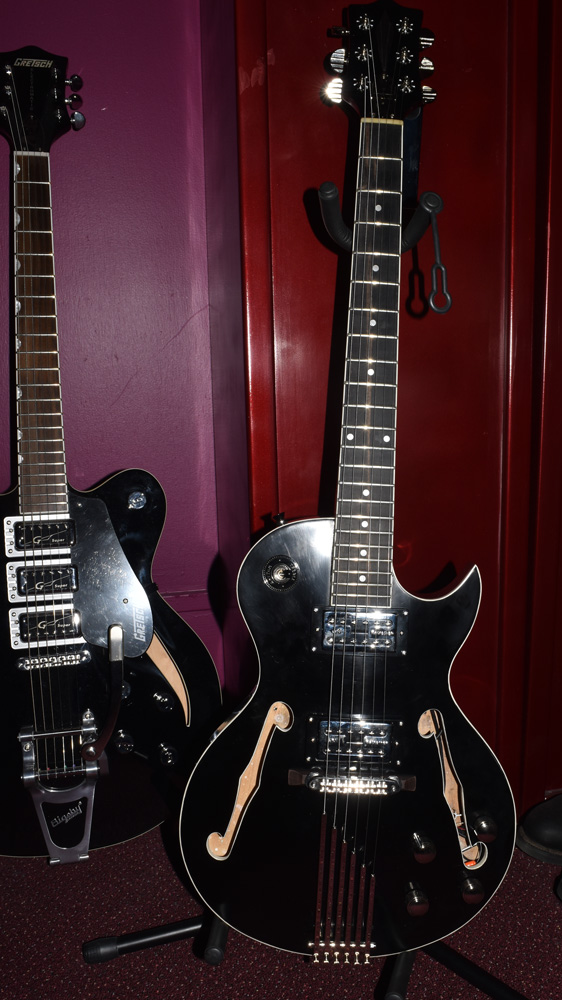

Attachment 18774
Attachment 18775
Looking great, Dedman.
What's it sound like? Has it got much of a semi-acoustic nature to it?
