Mockingbird style- Kurt White

This is why we are pals pabs. I'll text you through some dimensions when I get home and we can see whether it will fit or not, if not I guess we can always cut one :)

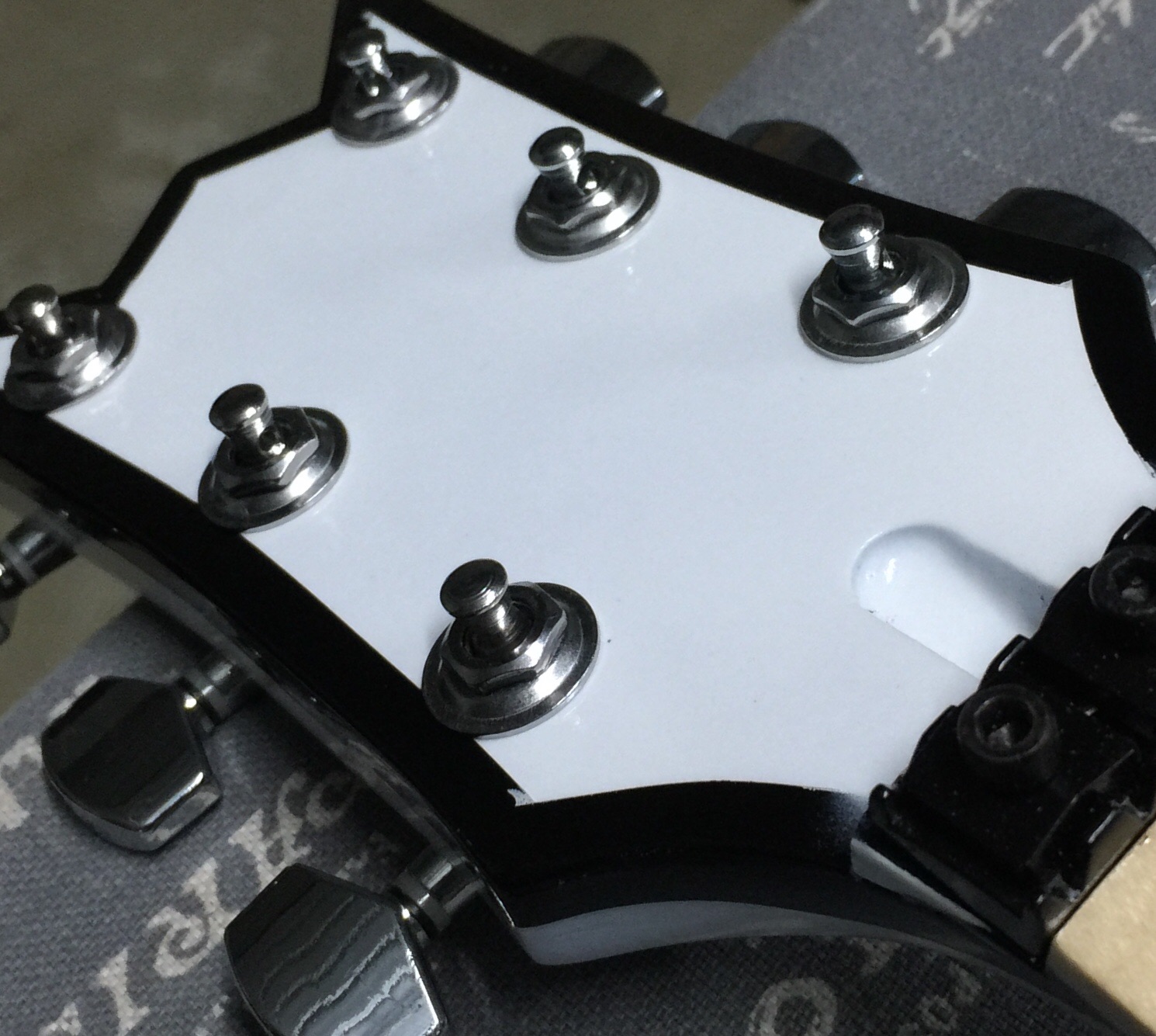

Whilst waiting for some pickups to arrive I have decided to do this.
Attachment 4014

Looks wonderful in my opinion. One of the screws for the locking nut was stripped when I recieved it so I'm currently sourcing a new screw for it. Shouldn't be too hard.

Looking great KurtSlash!

Nice neat job there, coming along nicely.

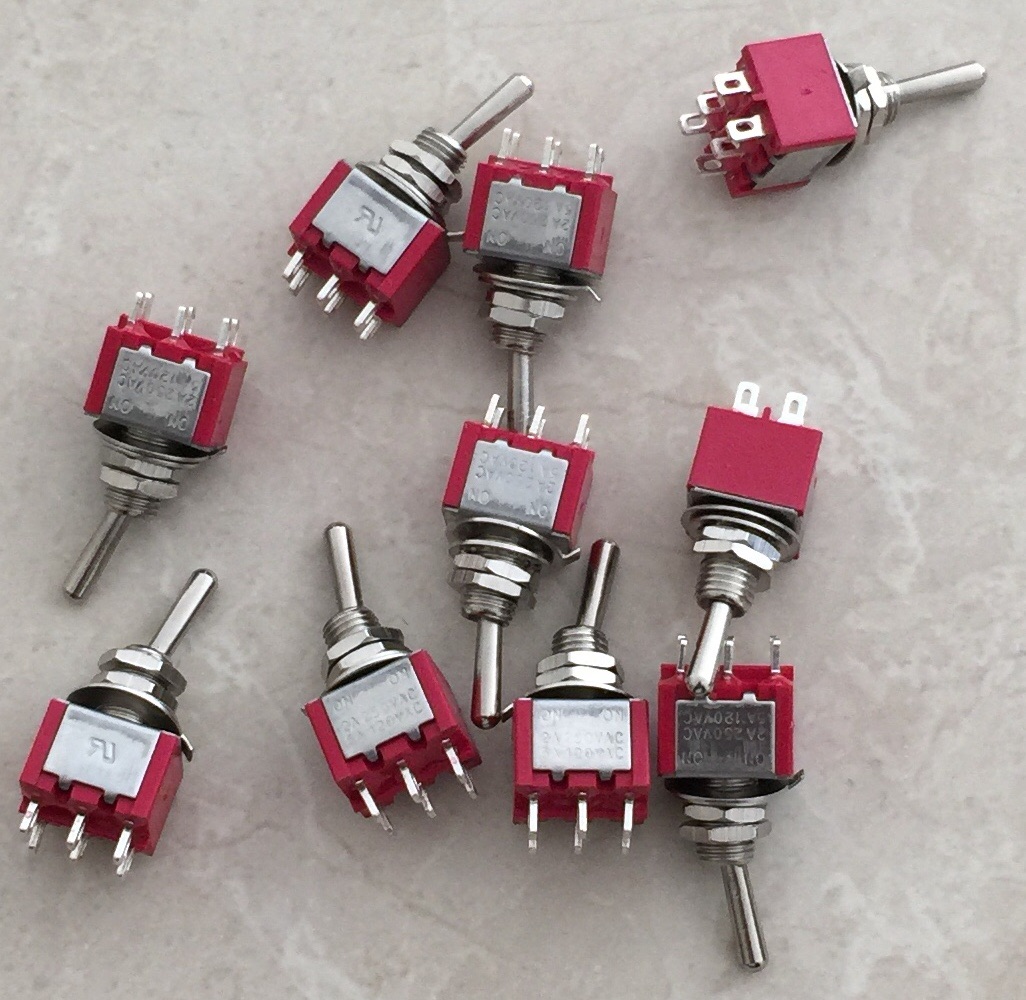

So today I recieved these in the mail
Attachment 4082

I ordered 1 and they sent 10, bonus! So if anybody needs one of these bad boys let me know and I'll send one your way haha.

Of course the first thig I did was to check it fit through the guitars pot holes, and luckily it did, only just, but it fits!

Now im just waiting on some new pickups to arrive from Adam, and the beast shall be on her home stretch

Score! Charge you for 1 or 10? You'll be splitting pups for years.

Only charged me for one, I'll be splitting pickups left right and centre haha. Pickups should be here in a few days wierdy, do we need to wait for them to arrive to do colours on the diagram or no?

Here's a good place to start: Entwistle Humbucker wiring. But, we can work things out once you get them.

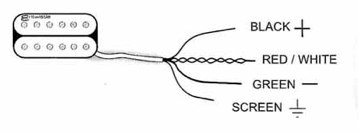

Entwistle colour coding:

Attachment 4096

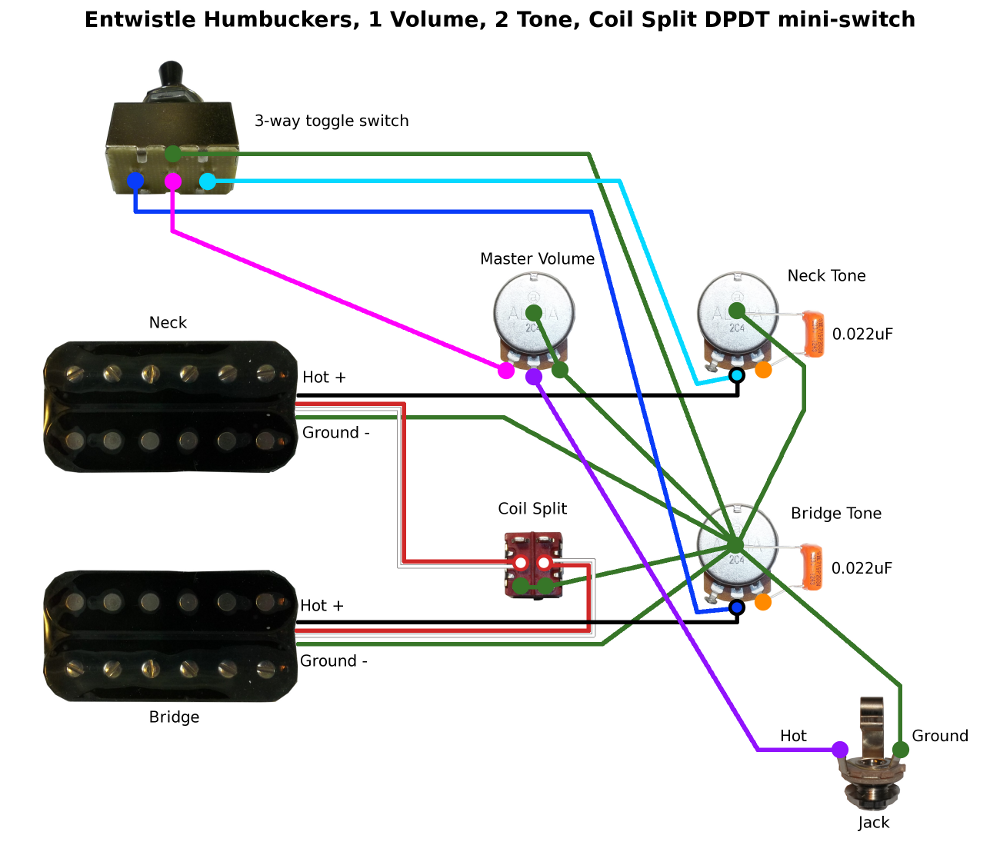

1 Volume, 2 Tone with coil-split:

Attachment 4097
Don't forget the bridge ground wire (connect to back of the pot with the other grounds).

Attachment 4219

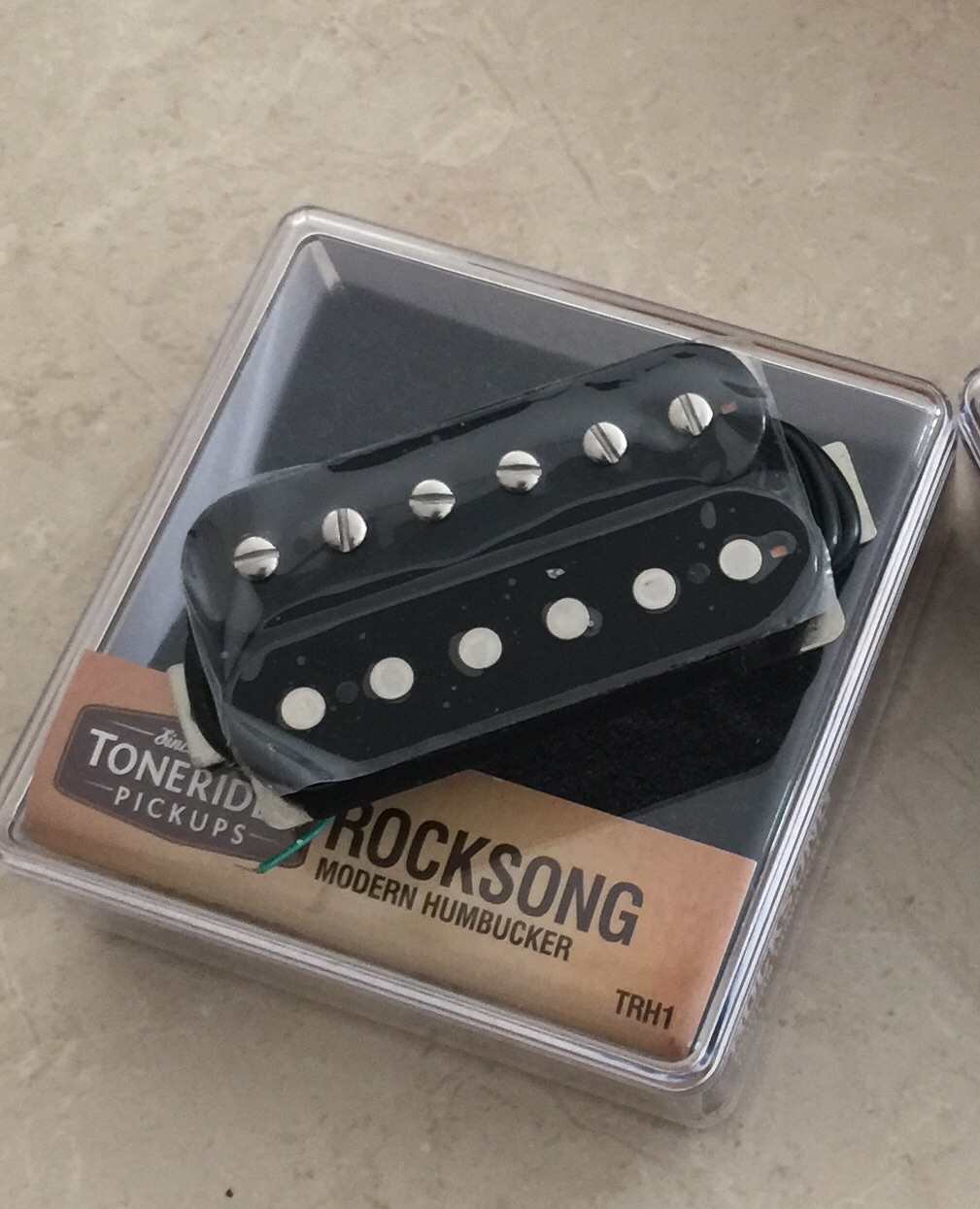

So these bad boys turned up today woohoo!!

Now from what the diagram that came with them says, the red is the slug coil start, black is slug coil finish, green is screw coil start and white is screw coil finish. The 2 finish wires (black and white) have heat shrink around the ends, do I need to remove them? Where do I go with this? Will these wires mean that wierdys diagram is the same even though it's based off an entwhistle pickups?

There is also a bare wire which I would assume is ground?
Also what wore do I use whilst wiring, can I just use the stuff that came in my kit or is there a better wire to use?
