Hi everyone, didn't do a build diary for this guitar, it is now finished but someone wanted to see the build diary so I thought I would post one for it.

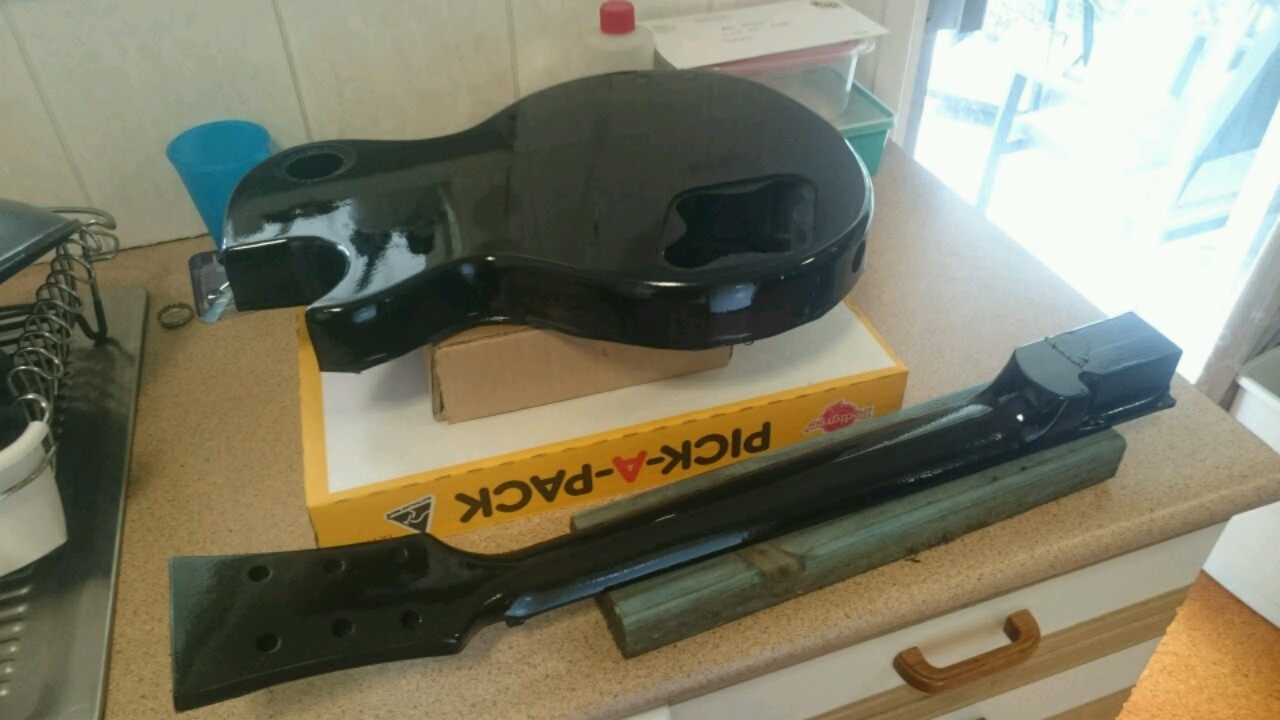

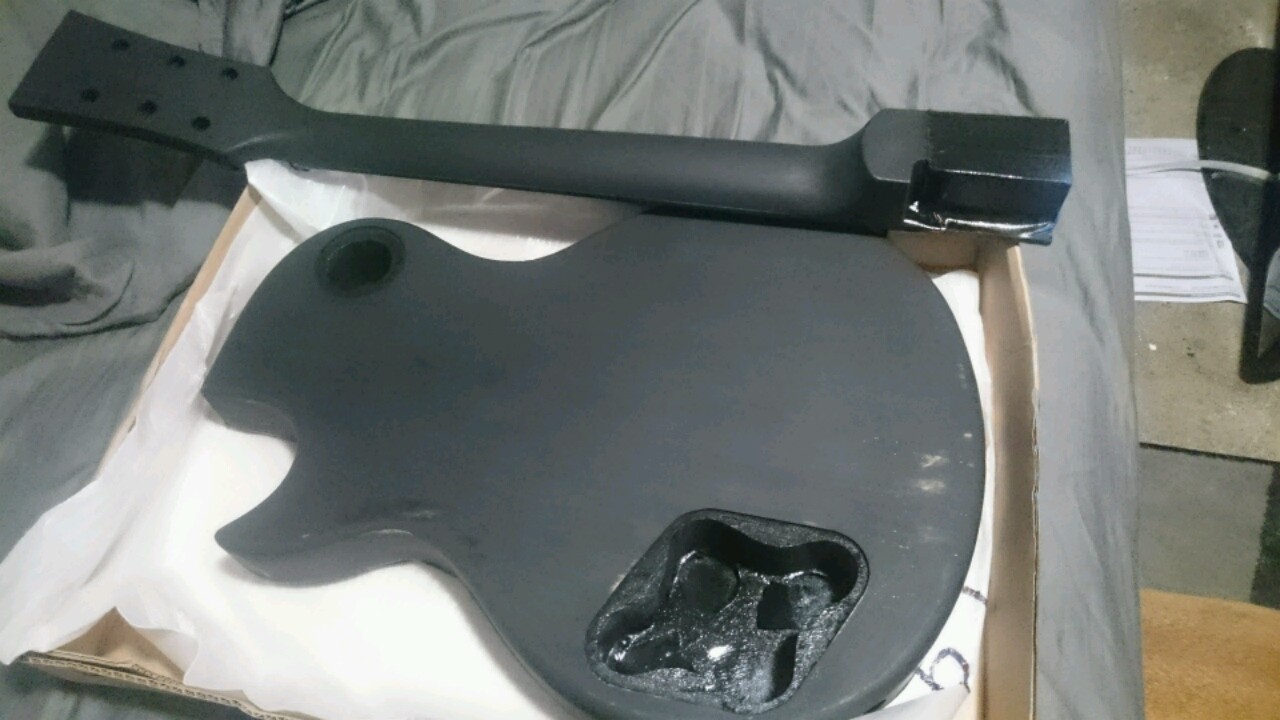

After my surface prep I started by applying the colour to the back and neck.
Attachment 10589Attachment 10590
Attachment 10591

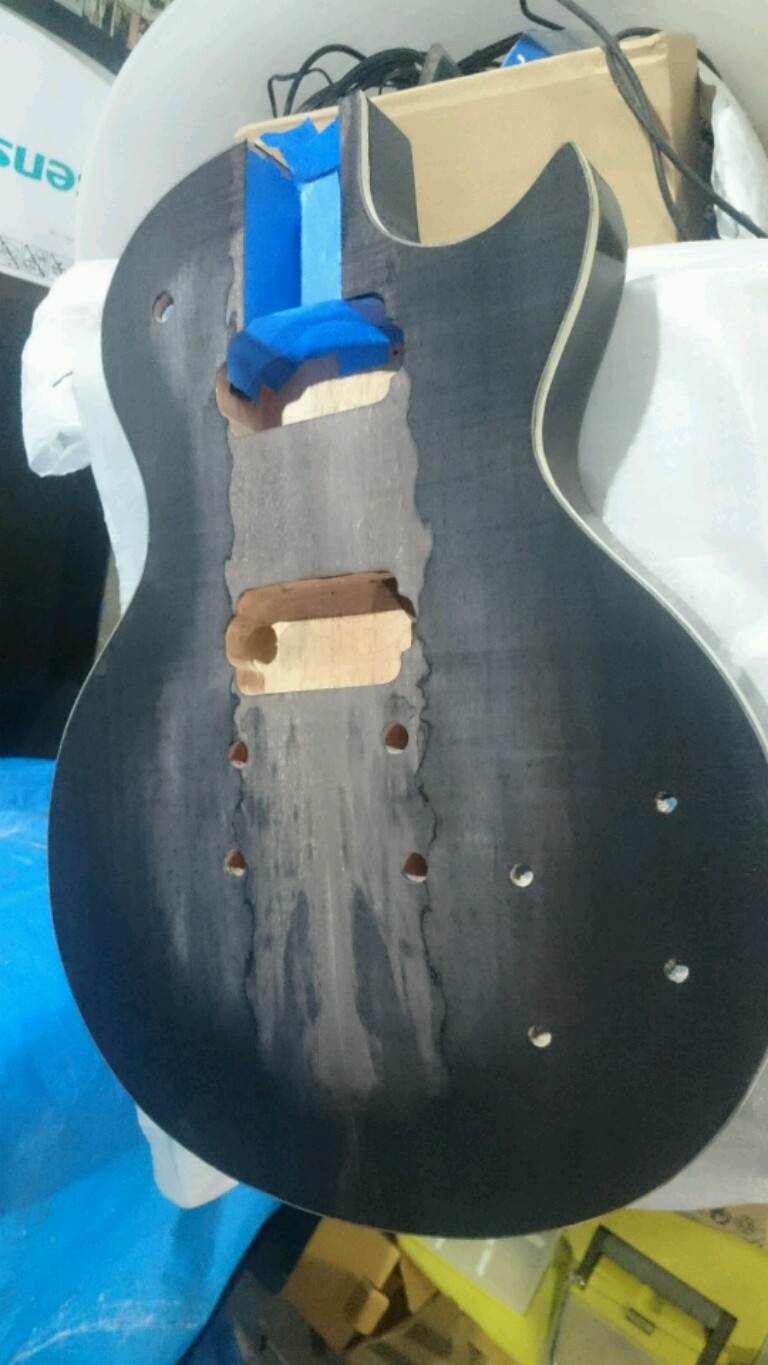

After the colour I got started on the black burst on the top, first step was a light coat of black.
Attachment 10592

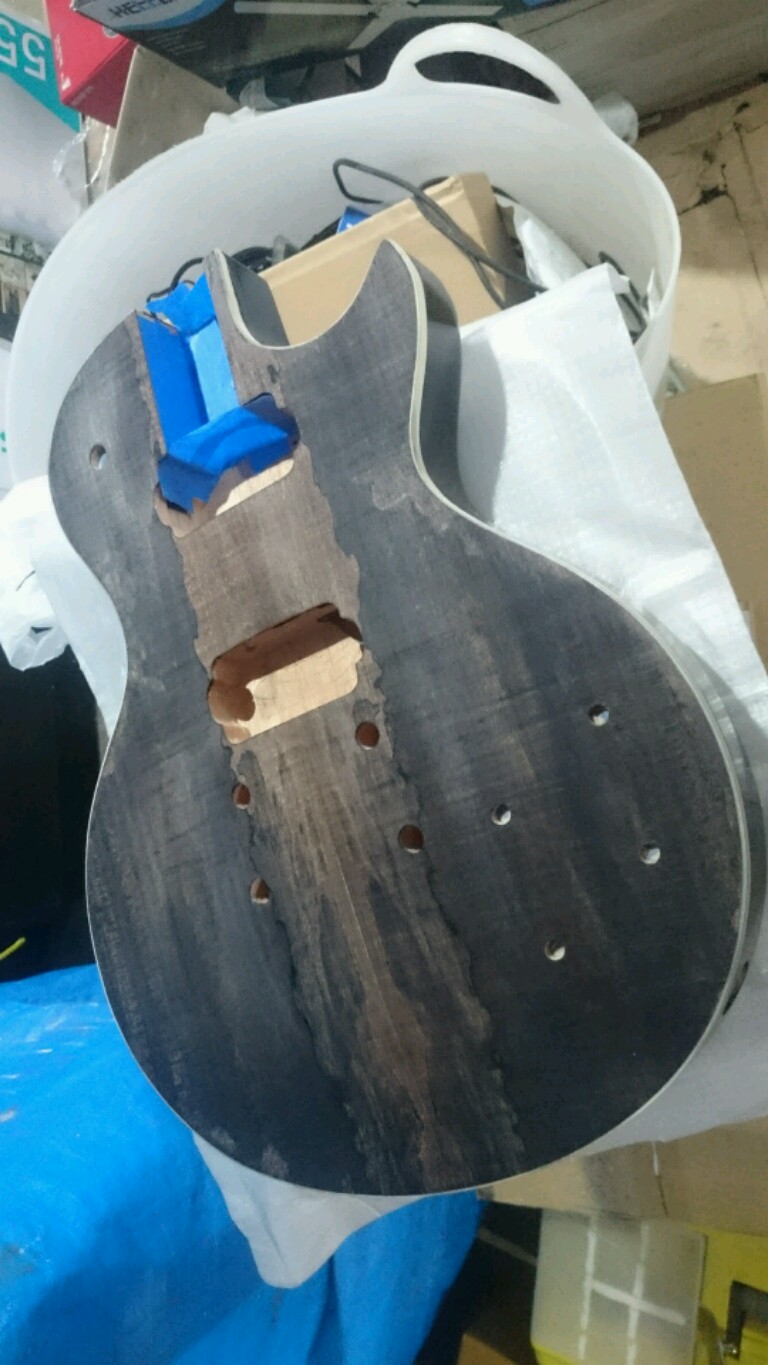

After that had dried I darkened up the edges with a less diluted solution.
Attachment 10597

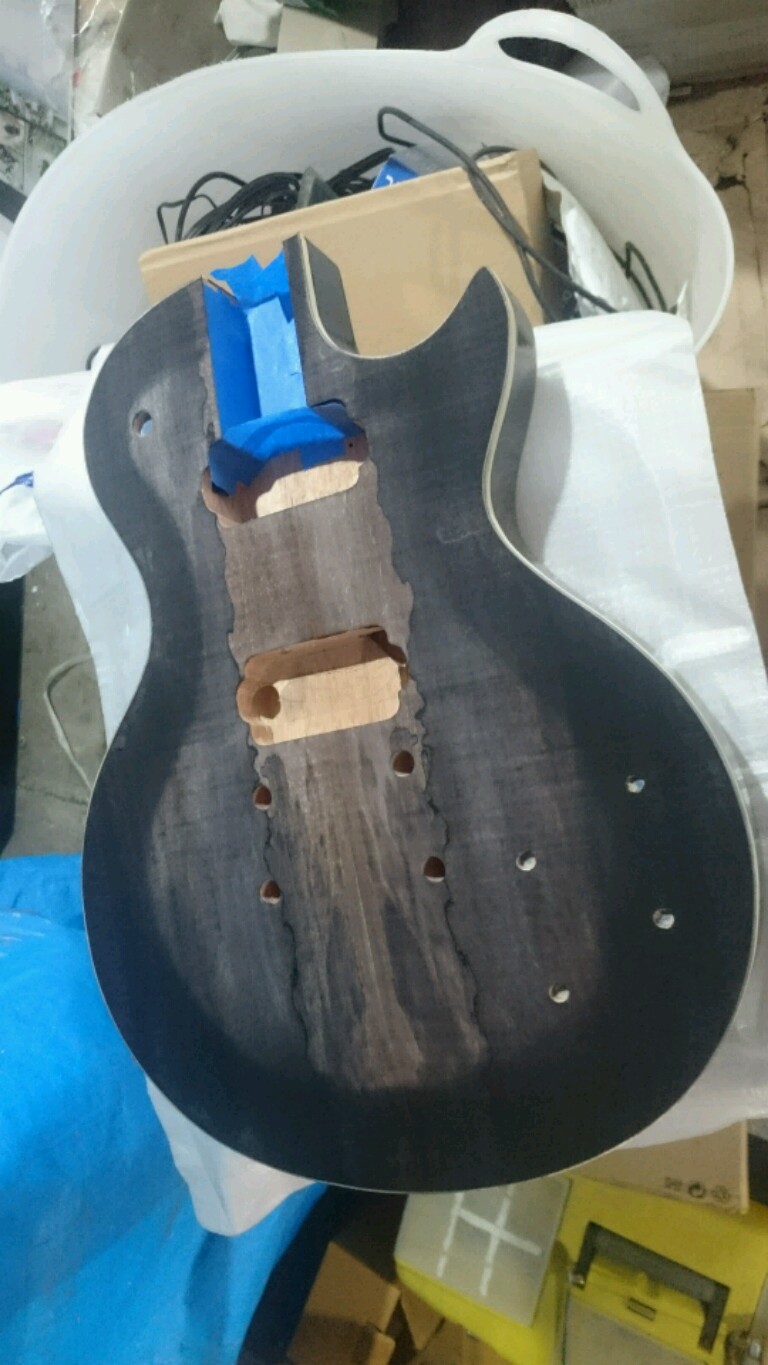

Next up I started blending the fade with a solution diluted halfway between the first two.
Attachment 10598

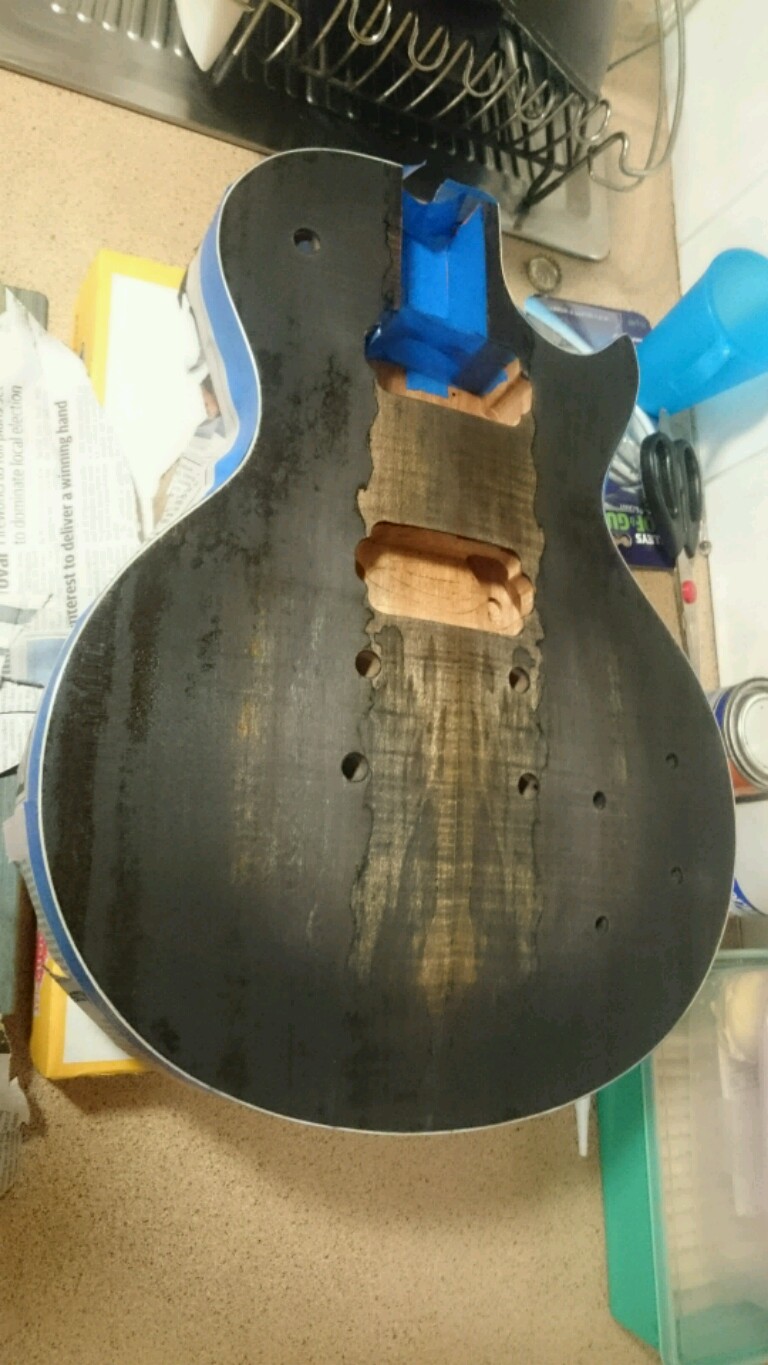

After a bit of work with sandpaper to even it all out more I hit it with some sealer.Attachment 10599

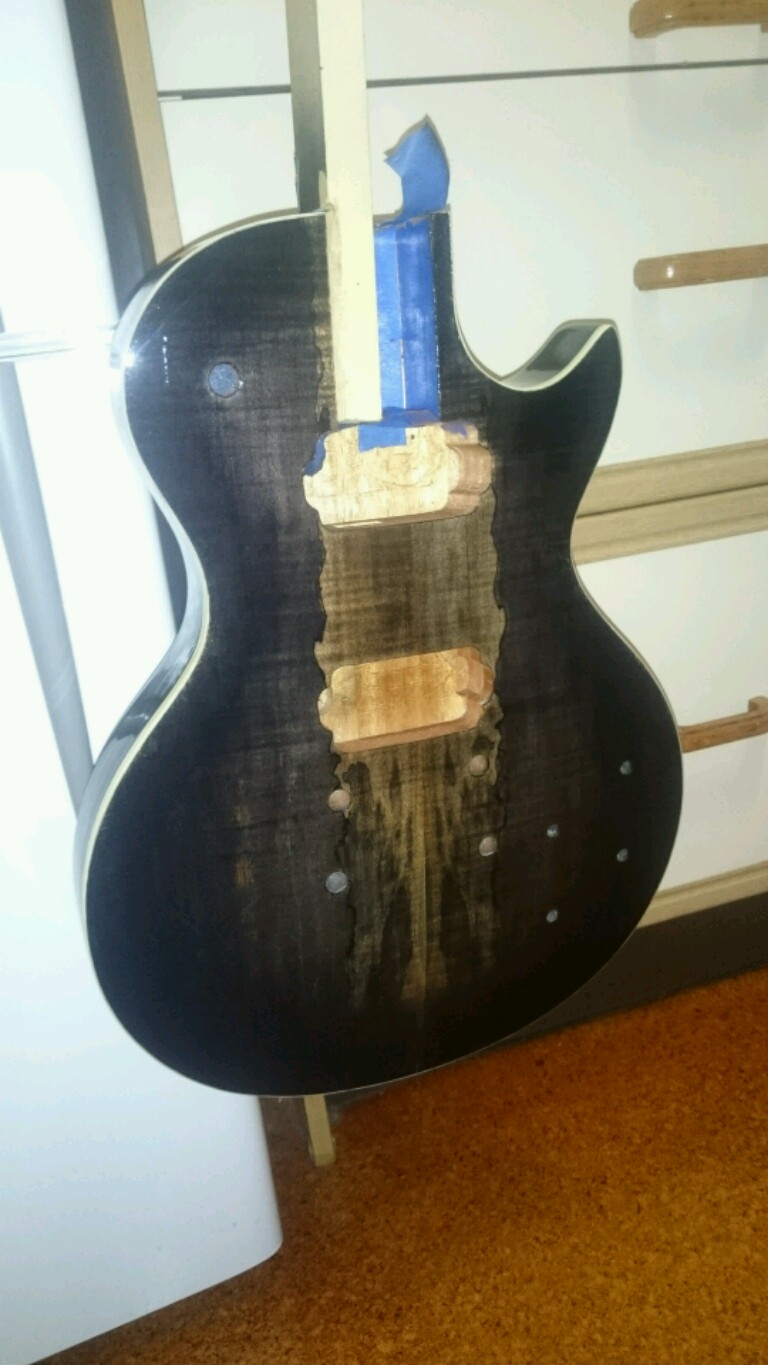

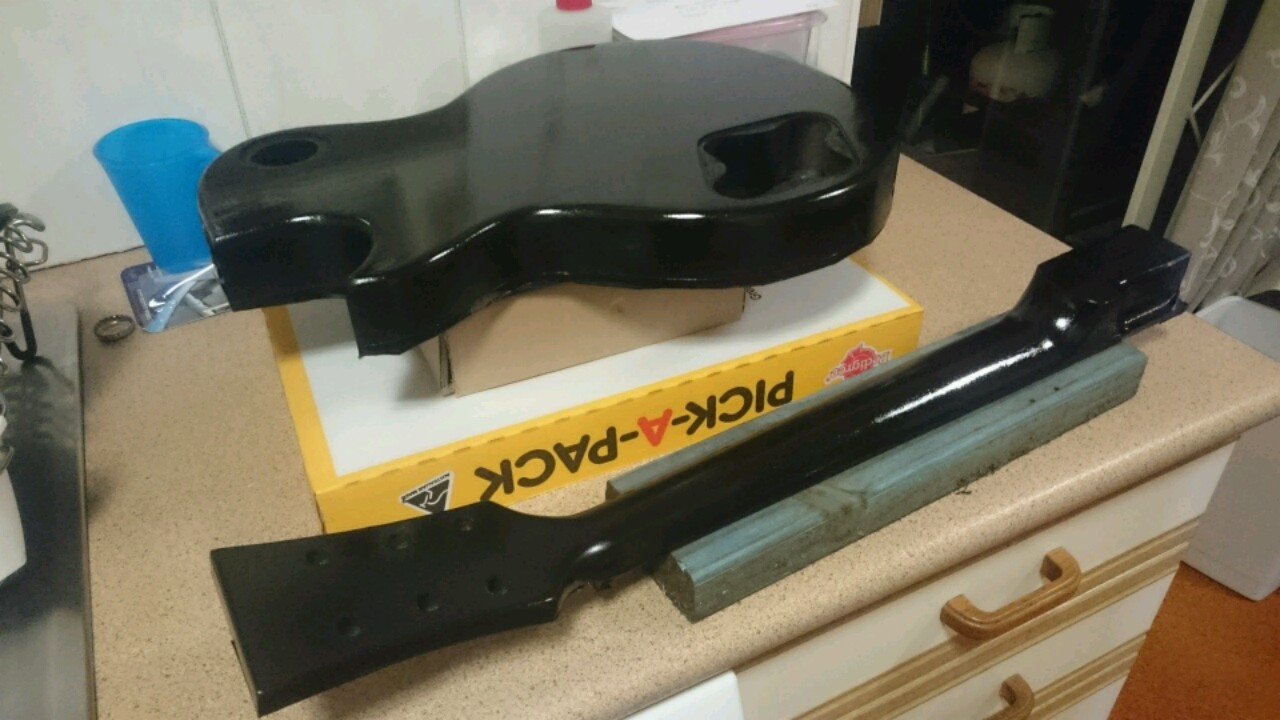

And started building the clear coat.
Attachment 10600Attachment 10601

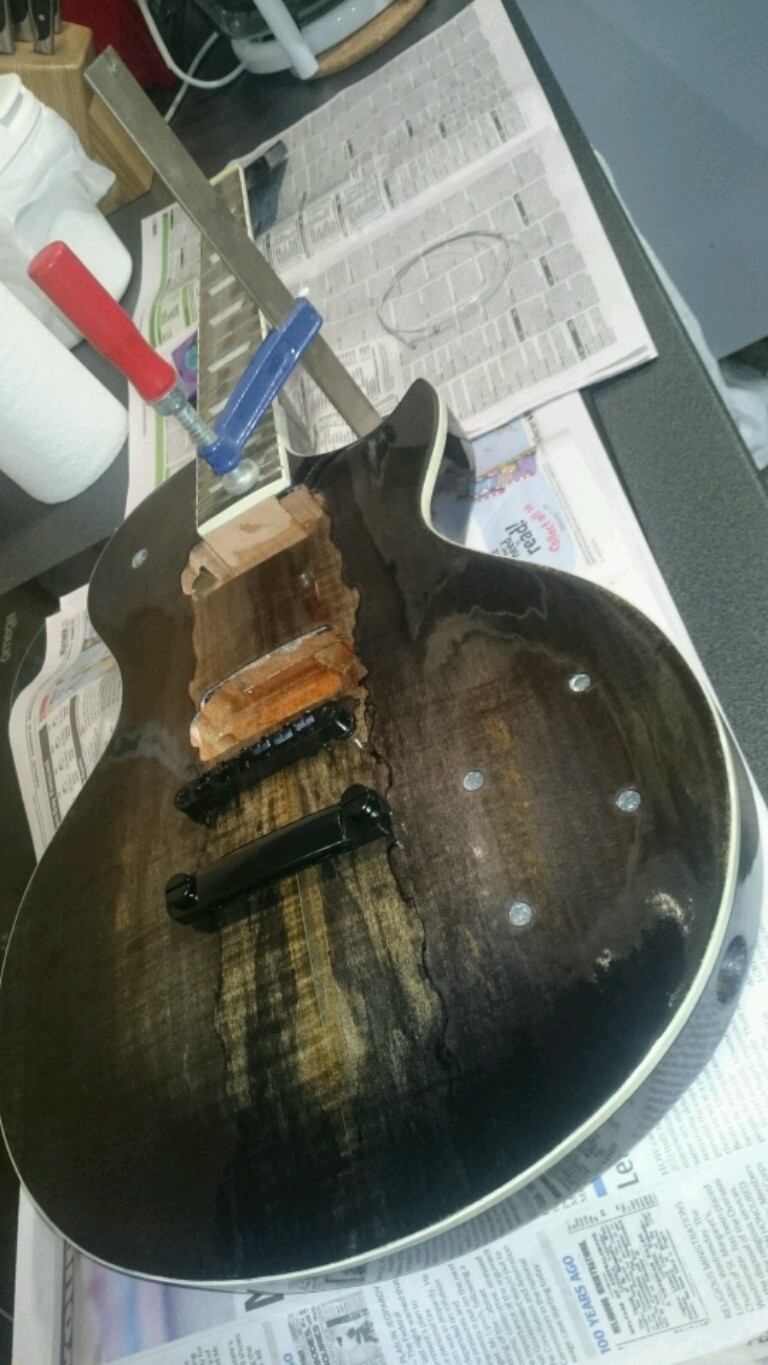

Once that was all done it was time to attach the neck. This is a set neck so I glued it up got it in place and clamped 'er down.
Attachment 10602

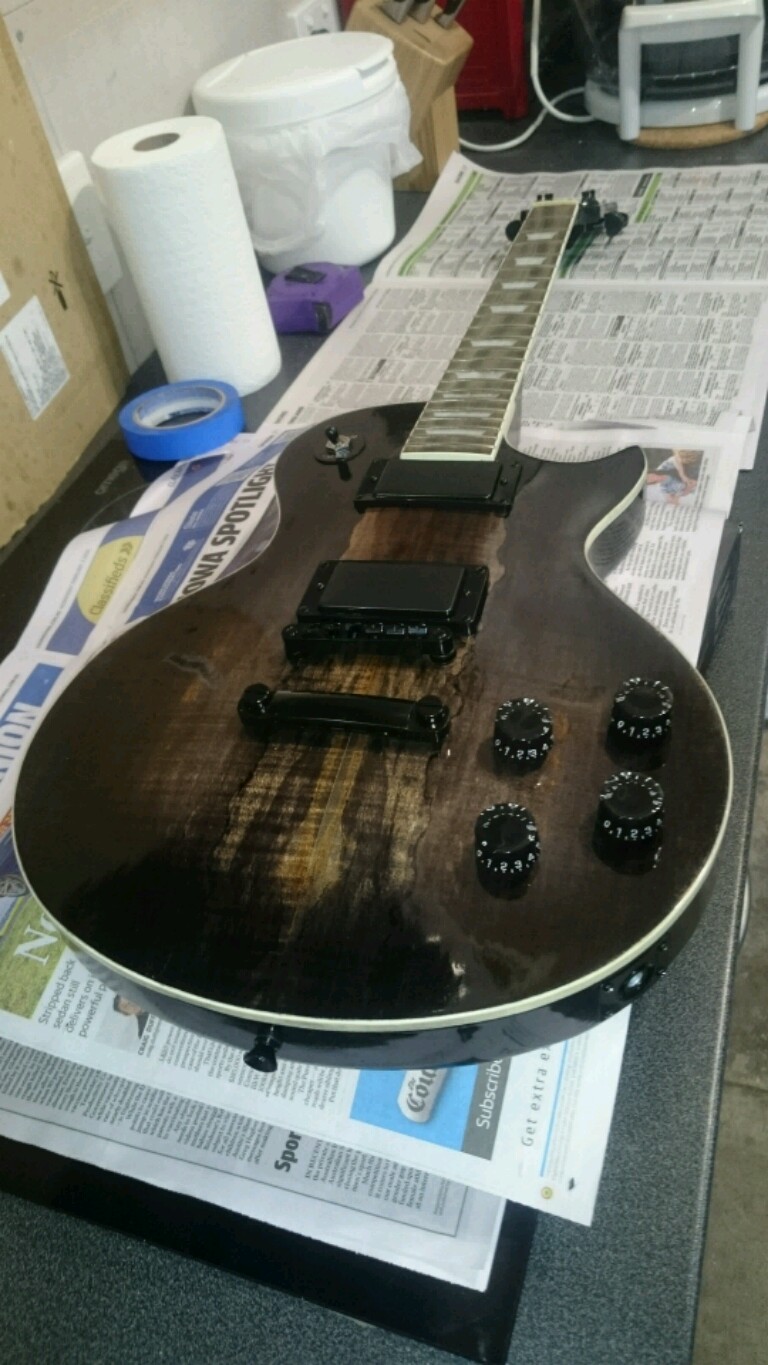

After about 12 hours I threw some electricals at it and then left it another 12 hours before I strung it up.
Attachment 10603

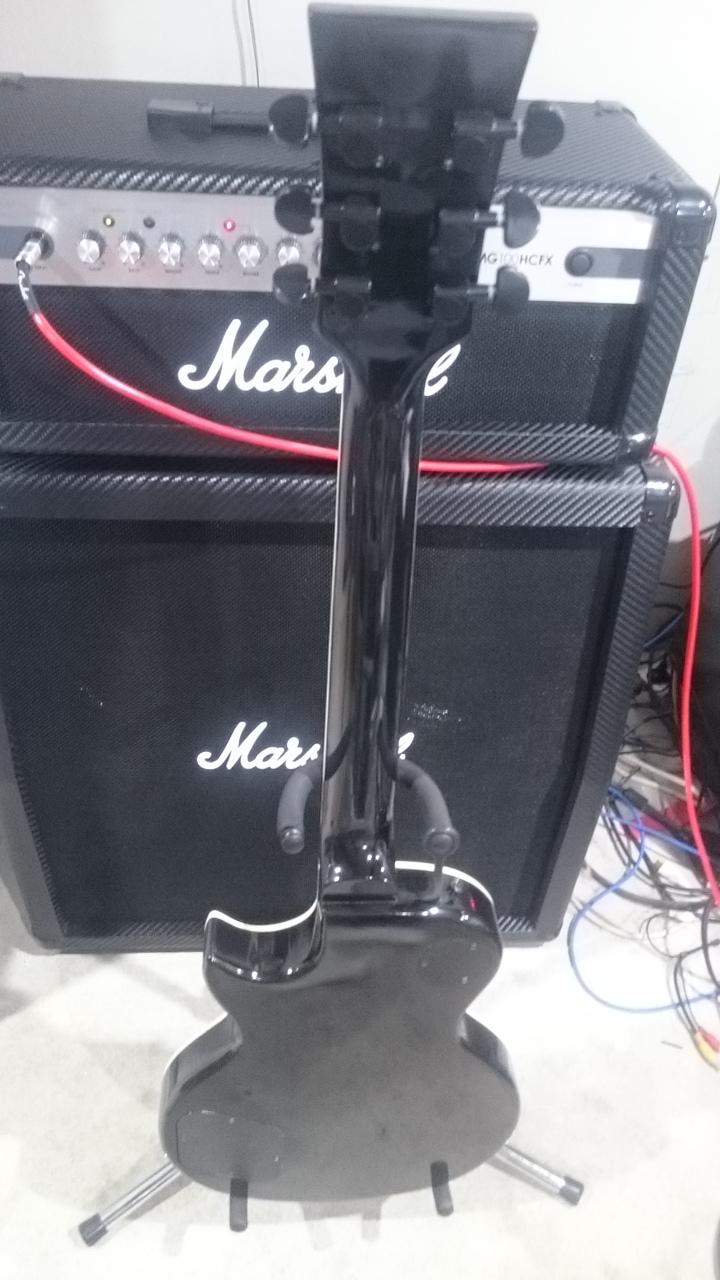

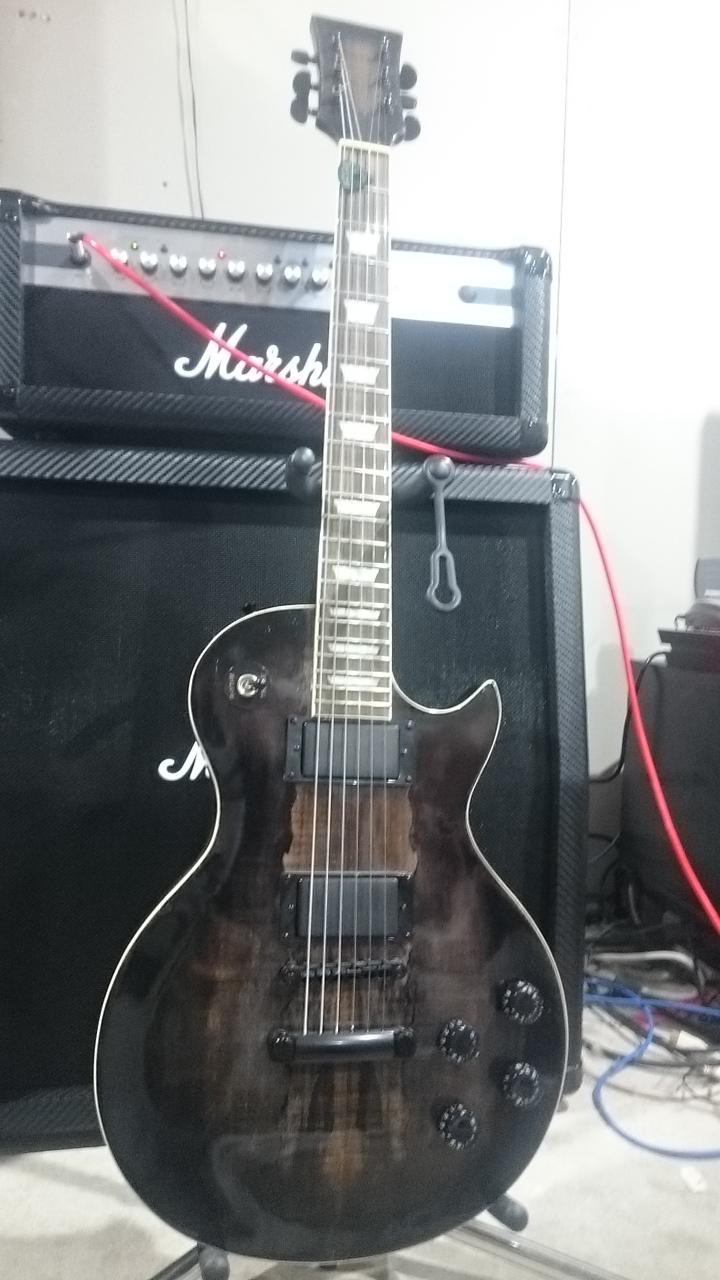

And she was all done.
Attachment 10604Attachment 10605
Anyway cheers for reading, have a good one.
Mulldoe.
Thanks Mulldoe.
If you don't mind me asking what stain/paint did you use and whats the finish?
Its quite a nice combo
Love the black burst Mulldoe - you really did a fantastic job! This is a beautiful looking LP man. The black really compliments the spalted veneer. Any chance of a sound demo?
cheers,
Gav.
Hi Andy, I used a Feast Watson black stain, Rustoleum gloss black rattle can and cabothane gloss polyurethane rattle can.Quote:
Originally Posted by Andy40
Hey thanks Gav, I'm really happy with how this turned out. I actually have a condenser mic on the way from China, once it arrives I will look at doing a sound demo for this and my IB-1. It'll probably be in about 2-3 weeks.Quote:
