    Andy40's SGD-612

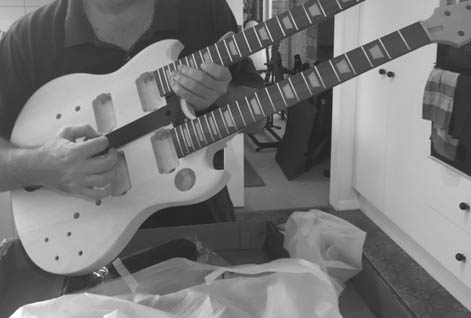

    Well, I took the plunge. As I'm nearing completion on the ol' LP-1SS its time to have a new build on the go. Despite the vote, I considered I needed another build under my belt before I tackle a semi-hollow body. This one, I think is going to test my wiring skills.
    Click image for larger version.

Name:	IMG_6470.JPG
Views:	45
Size:	192.0 KB
ID:	9726
    My plan is to try and keep it as PBG stock as possible with a few tweaks.

    A big special thanks to Tonyw, Wokka and Adam who have not only answered all my nagging PM's but have gone out of their way to supply me with advice and parts for this build I could not get hold of easily.

    When I decided on this build I searched the forums and tagged all previous build threads to get an idea for what I am in for. With the exception of wokks, there's not a lot of info so I'm going to try and do my best at a comprehensive diary for those who may consider this one in the future.

    Links to previous SGD-612 builds
    Wokkas SGD-612 double neck SG - http://www.buildyourownguitar.com.au...ead.php?t=1992

    steve.timmons238 build - http://www.buildyourownguitar.com.au...ead.php?t=3972

    Rhays SGD-612 (EDS 1275) - http://www.buildyourownguitar.com.au...ead.php?t=2069

    Tim's SG twin neck - http://www.buildyourownguitar.com.au...ead.php?t=2105
    Last edited by Andy40; 25-03-2016 at 10:39 AM.
    Build #1 - ST-1 - Completed and upgraded
    Build #2 - LP-1SS - Completed | Co-Winner-May 2016 GOTM | Runner up GOTY 2016
    Build #3 - TLA-1R - Completed
    Build #4 - SGD-612 - Completed | Runner up Feb 2017 GOTM
    Build #5 - ES-1G - Completed
    Current Build #6 - STA-1HT
    Current Build #7 - JBA-4

  2. #2
    Banned tonyw's Avatar
    Join Date
    Dec 2015
    Posts
    1,171
    Good on you Andy for giving it crack, hope it turns out as planned.

  3. #3
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    12,997
    well done Andy you will enjoy this build and it will take longer to build with the twin necks and huge body so longer time till you need another kit so missus should be happy about that !
    I'll be watching this diary closely so ask any questions you have think I can remember most of my 612 build.
    Good luck and take your time

    what are the stain/paint plans ?
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  4. #4
    Overlord of Music FrankenWashie's Avatar
    Join Date
    Jan 2016
    Location
    Glebe, NSW
    Posts
    2,212

    Talking

    I feel that this may become an epic build. I watch on with great interest!

  5. #5
    Overlord of Music Andy40's Avatar
    Join Date
    Oct 2015
    Posts
    2,388
    Wokks, the general plans are as follows:-

    - All electrics will/should be PBG standard [but I may modify the wiring a bit to vintage cloth (as I have heaps) and change the pots to Gotohs as they are relatively inexpensive and they are my preferred pot].
    - I'm replacing the kit humbuckers (which are not covered) with PBG chrome humbuckers and I'm replacing the PBG ceramic magnets with Alnico 5's and will be wax potting them. [if it stuf it I'll jsut put the kit humbuckers back in
    - I'm not going to replace the plastic nut [unless I carve one myself out of bone - presently I have not tools for the job]
    -PBG tuners, necks, inlays, pickguards will be PBG standard
    - I'm going to try a burst for the colour (haven't decided the colour yet) - [I'f I stuff it, I'll just paint it a solid colour.]
    - the finish will be glossy, either tru oil or acrylic

    I wanted the kit as a learning process and I wanted the guitar as a muck around beast of an axe
    Build #1 - ST-1 - Completed and upgraded
    Build #2 - LP-1SS - Completed | Co-Winner-May 2016 GOTM | Runner up GOTY 2016
    Build #3 - TLA-1R - Completed
    Build #4 - SGD-612 - Completed | Runner up Feb 2017 GOTM
    Build #5 - ES-1G - Completed
    Current Build #6 - STA-1HT
    Current Build #7 - JBA-4

  6. #6
    Overlord of Music Andy40's Avatar
    Join Date
    Oct 2015
    Posts
    2,388
    First Mock Build

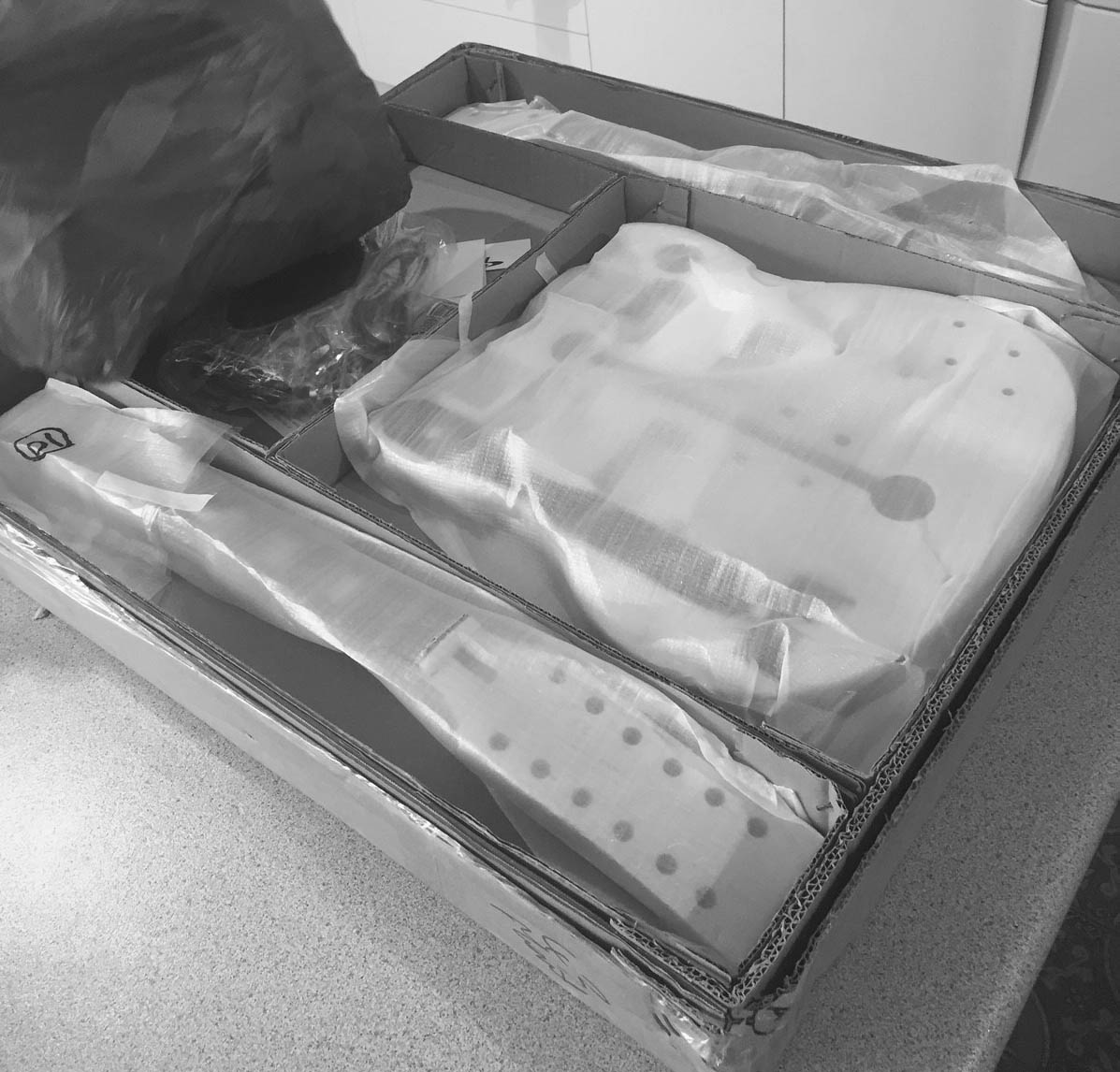

    Right out of the box I can say you get a lot of guitar for your money. I think its one of the more expensive kits, but when you unpack it you appreciate how much you get with it. double the necks, double the pups, triple the tuners and quadruple the wiring!
    Click image for larger version.

Name:	FullSizeRender.jpg
Views:	29
Size:	467.8 KB
ID:	9731

    Before buying this kit, I checked out a few from other suppliers and reviews of those double necks. One of the big plusses of the PBG kit is that the body is Basswood and the necks are maple. Each of the parts are fairly light but when you put them together with the 18 tuners on the headstocks the guitar becomes heavy very quickly. I could not imagine building and playing a mahogany version of this kit, unless I was actively seeking back and neck problems.

    Click image for larger version.

Name:	FullSizeRender_1.jpg
Views:	22
Size:	352.2 KB
ID:	9732Click image for larger version.

Name:	FullSizeRender_2.jpg
Views:	33
Size:	395.5 KB
ID:	9733

    The necks fit snuggly, in fact the 6 string neck fits without holding it! the 12 string, not so much with tuners on the headstock.

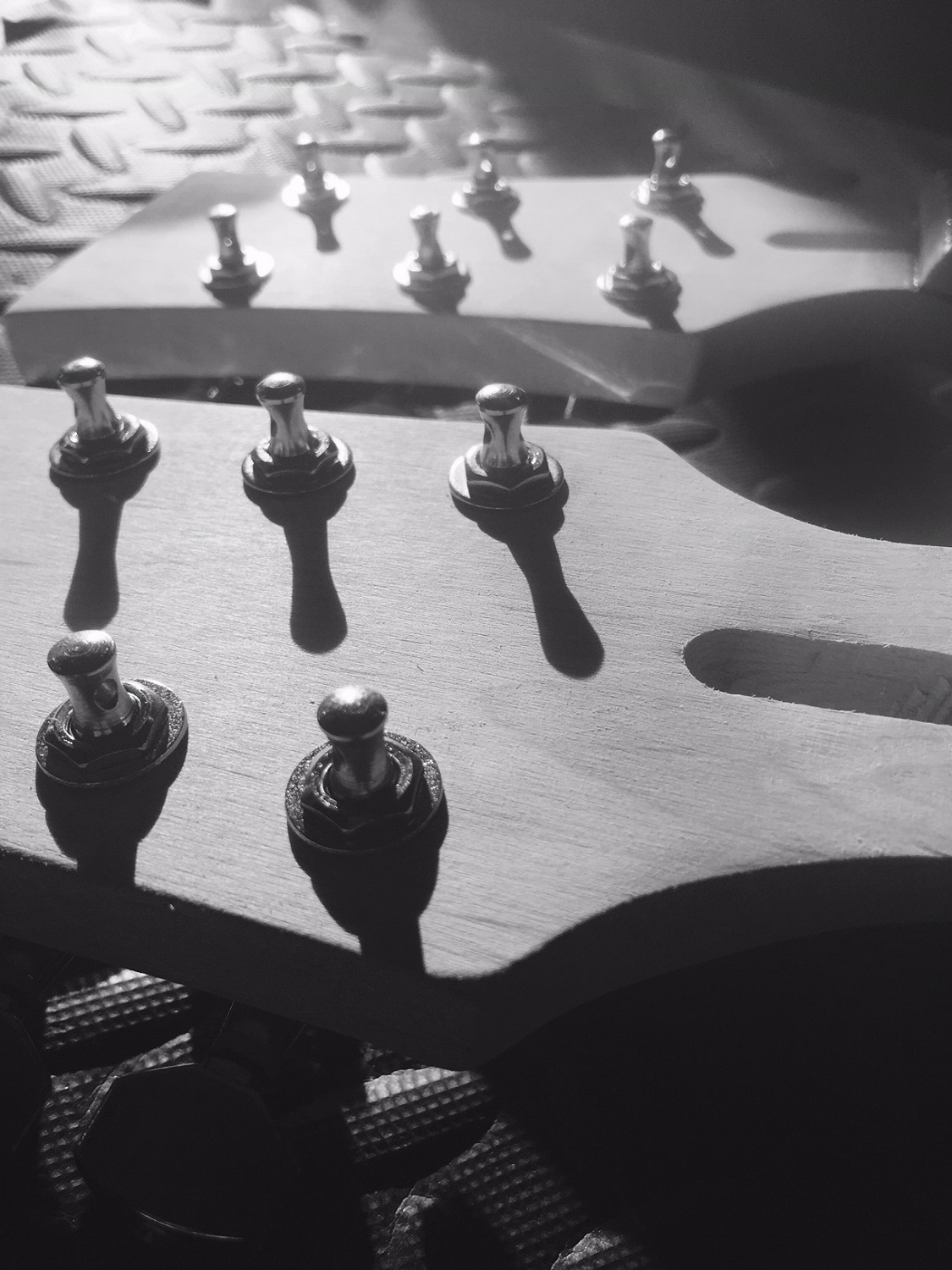

    The kit came with two different types of washers for the tuners. The 12's were flat washers but the 6's were indented. (weird) I just grabbed 6 disused flat washers from my ST-1 build and now they match.

    The pickguards were actually black white black 3 ply, not just black which is a m a s s i v e bonus!

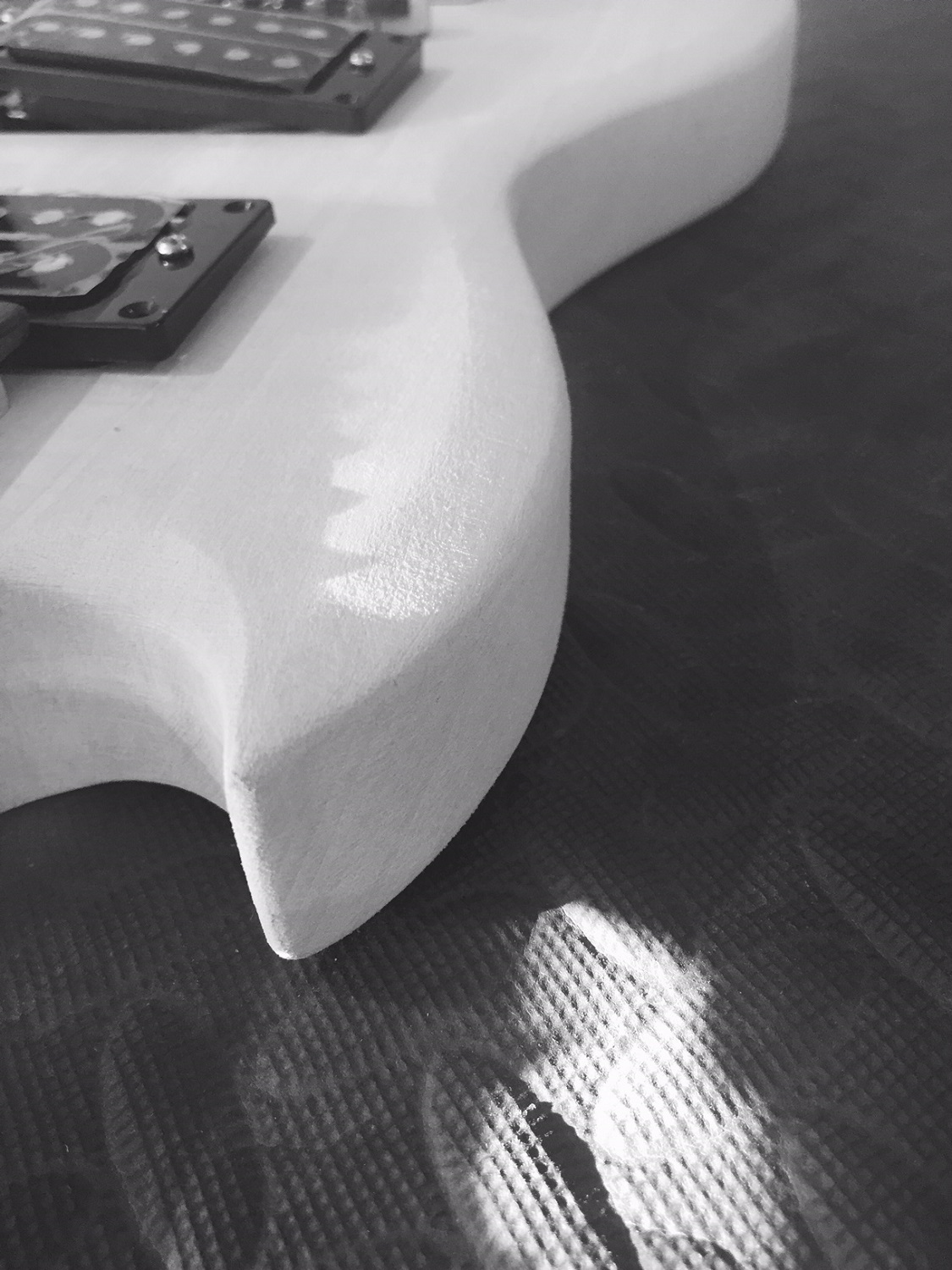

    The body shape is almost faultless, but sanding is required

    Click image for larger version.

Name:	FullSizeRender_3.jpg
Views:	35
Size:	390.9 KB
ID:	9734
    Last edited by Andy40; 25-03-2016 at 10:43 AM.
    Build #1 - ST-1 - Completed and upgraded
    Build #2 - LP-1SS - Completed | Co-Winner-May 2016 GOTM | Runner up GOTY 2016
    Build #3 - TLA-1R - Completed
    Build #4 - SGD-612 - Completed | Runner up Feb 2017 GOTM
    Build #5 - ES-1G - Completed
    Current Build #6 - STA-1HT
    Current Build #7 - JBA-4

  7. #7
    Overlord of Music Andy40's Avatar
    Join Date
    Oct 2015
    Posts
    2,388
    Now for some of the challenges:-

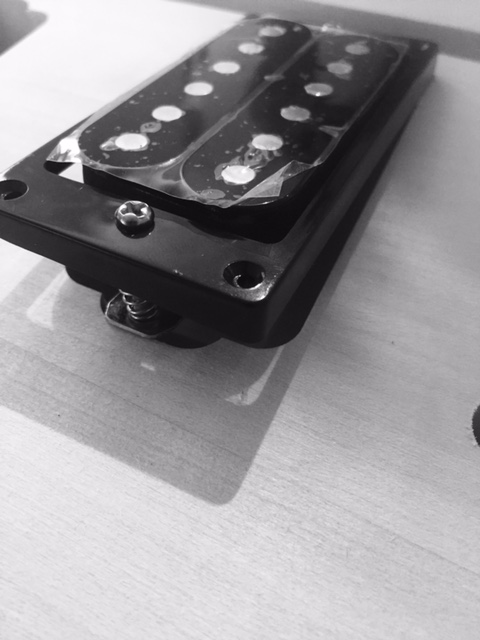

    The bridge pup routs need to be widened to fit the PBG humbuckers.
    Click image for larger version.

Name:	Mock pup.jpg
Views:	21
Size:	78.9 KB
ID:	9735

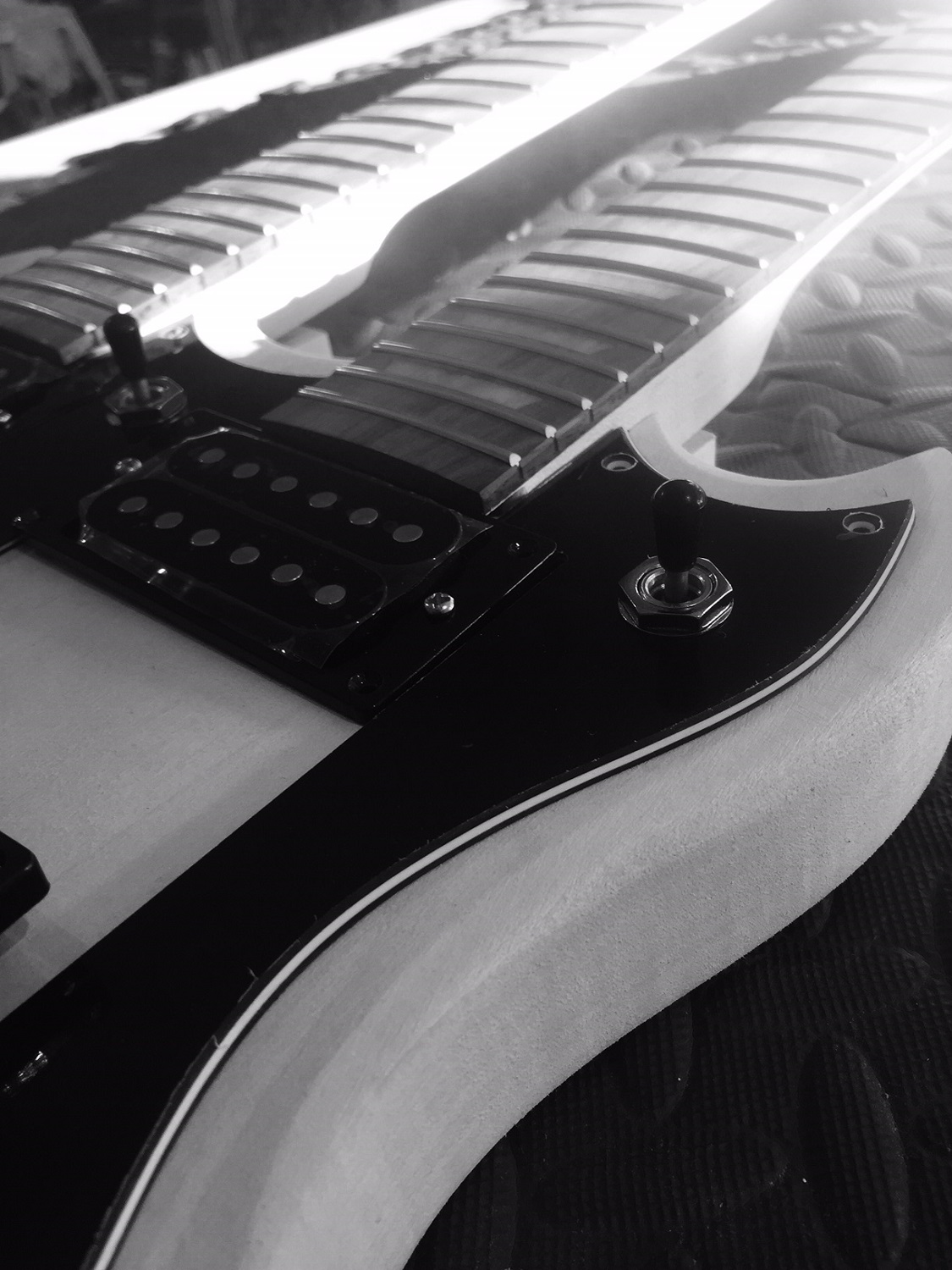

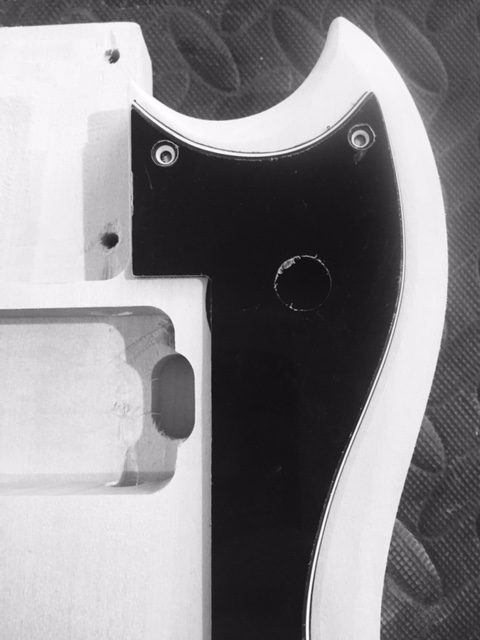

    The side pickguard is bevelled but the centre pickguard is not. I'll need to work out how to bevel it.

    Click image for larger version.

Name:	Mock - side pick.jpg
Views:	29
Size:	73.1 KB
ID:	9736

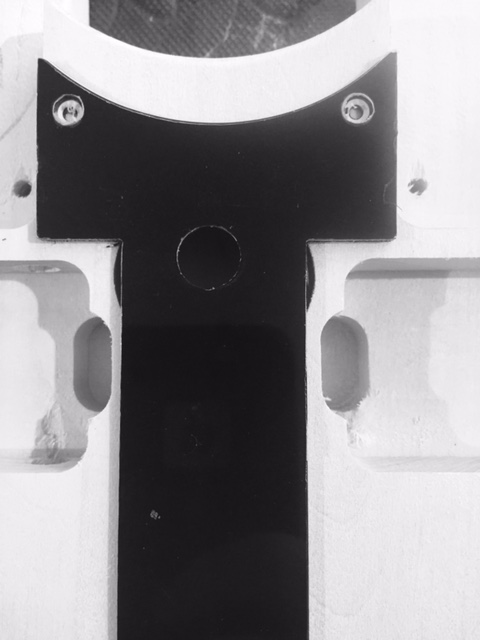

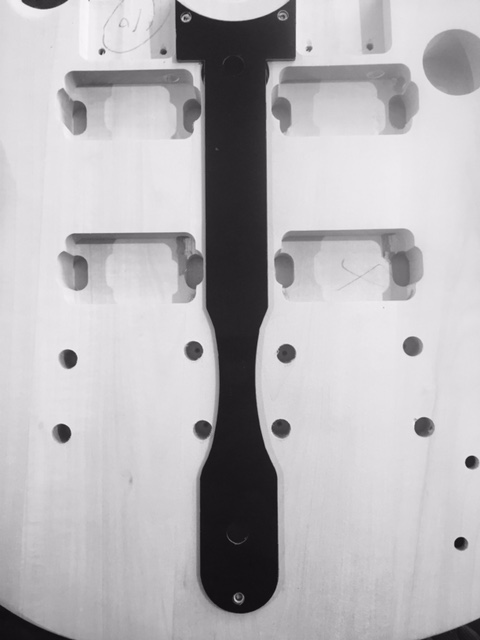

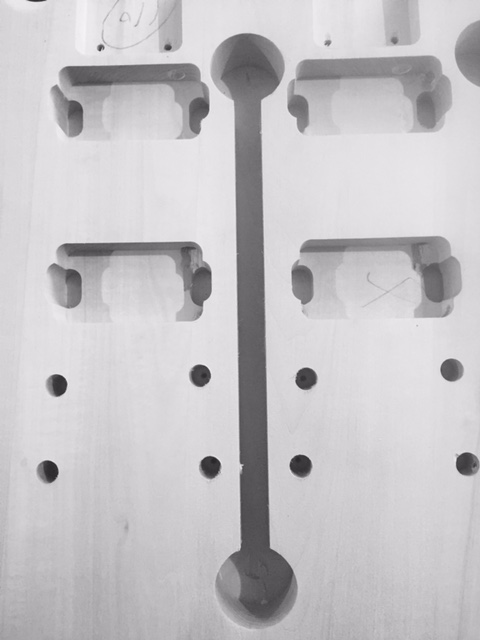

    The centre pickguard does not completely cover the top switch rout. I'll have to use an off cut to cover.

    Click image for larger version.

Name:	FullSizeRender1.jpg
Views:	26
Size:	58.9 KB
ID:	9737Click image for larger version.

Name:	Mock - centre pick.jpg
Views:	25
Size:	54.3 KB
ID:	9738Click image for larger version.

Name:	Mock Centre pick 1.jpg
Views:	26
Size:	59.3 KB
ID:	9739
    Build #1 - ST-1 - Completed and upgraded
    Build #2 - LP-1SS - Completed | Co-Winner-May 2016 GOTM | Runner up GOTY 2016
    Build #3 - TLA-1R - Completed
    Build #4 - SGD-612 - Completed | Runner up Feb 2017 GOTM
    Build #5 - ES-1G - Completed
    Current Build #6 - STA-1HT
    Current Build #7 - JBA-4

  8. #8
    Overlord of Music Andy40's Avatar
    Join Date
    Oct 2015
    Posts
    2,388

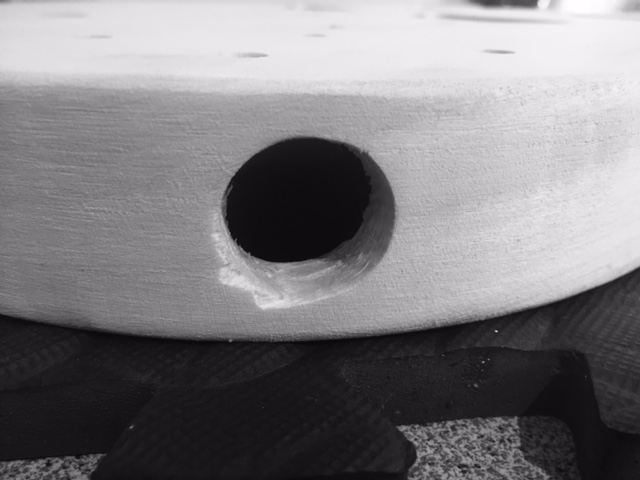

    The jack hole is a bit munted, but the cover will hide.
    Click image for larger version.

Name:	Mock Jack.jpg
Views:	24
Size:	74.2 KB
ID:	9740

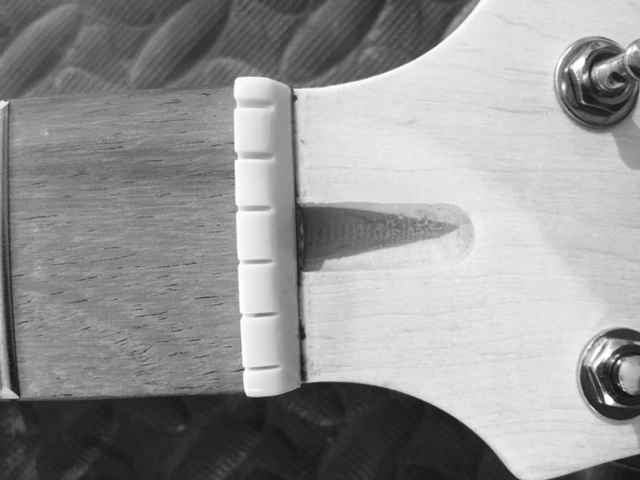

    The 6 string nut is positioned ok but the 12 string nut is wonky.

    Click image for larger version.

Name:	Mock 6 string.jpg
Views:	21
Size:	81.4 KB
ID:	9741Click image for larger version.

Name:	Mock 12 string.jpg
Views:	30
Size:	86.3 KB
ID:	9742

    Both necks have a slight back bow which I will align later.

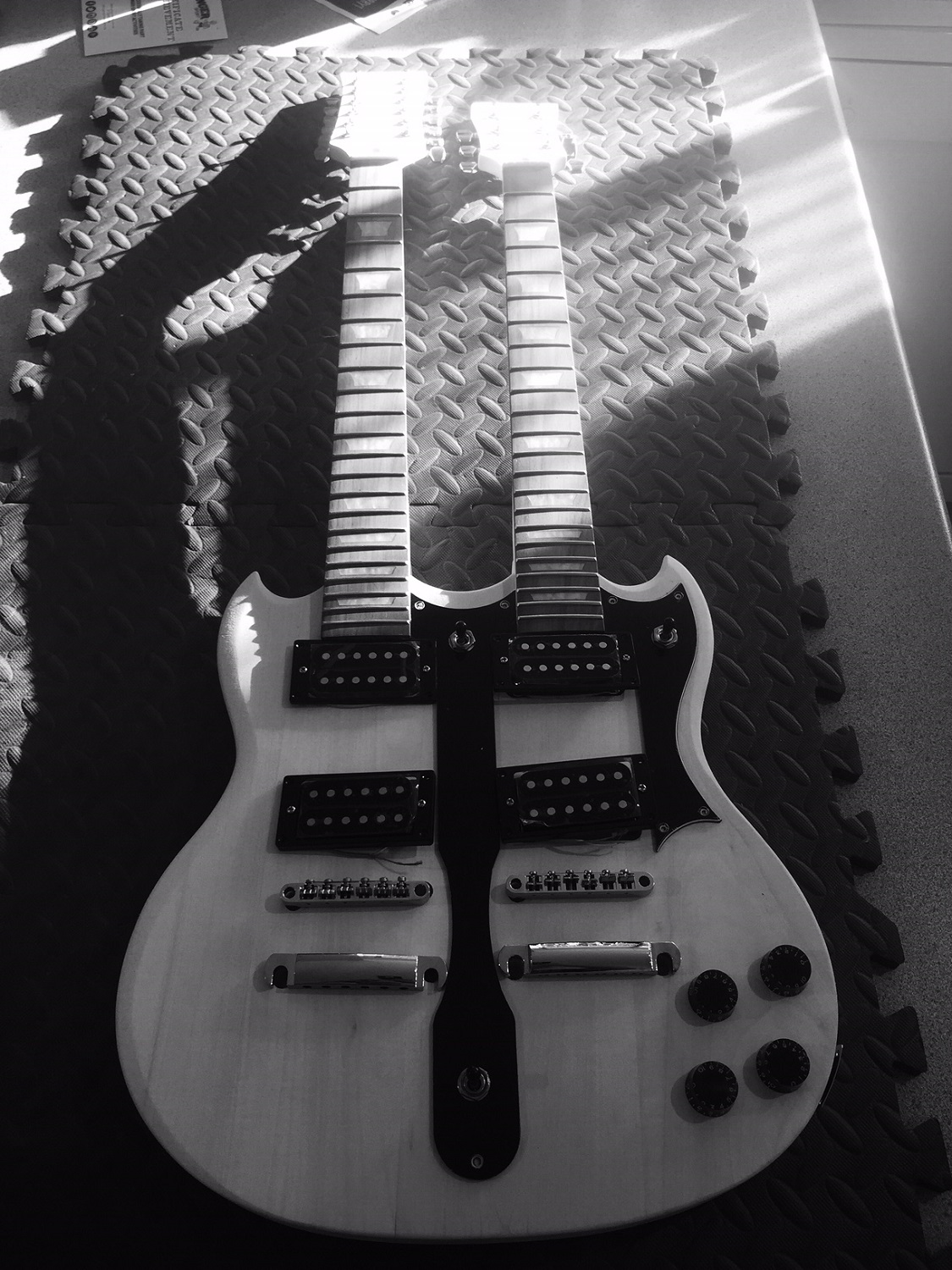

    Rock on.

    Click image for larger version.

Name:	IMG_6485.JPG
Views:	31
Size:	44.5 KB
ID:	9743
    Last edited by Andy40; 25-03-2016 at 11:17 AM.
    Build #1 - ST-1 - Completed and upgraded
    Build #2 - LP-1SS - Completed | Co-Winner-May 2016 GOTM | Runner up GOTY 2016
    Build #3 - TLA-1R - Completed
    Build #4 - SGD-612 - Completed | Runner up Feb 2017 GOTM
    Build #5 - ES-1G - Completed
    Current Build #6 - STA-1HT
    Current Build #7 - JBA-4

  9. #9
    Overlord of Music gavinturner's Avatar
    Join Date
    May 2013
    Location
    HOLGATE NSW
    Posts
    3,044
    The kit looks great Andy. A few challenge but nothing you can't handle. Will be watching your build with keen interest!

    Cheers,
    Gav.
    --
    Build #01: BC-1
    Build #02: ST-1
    Build #03: JR-1DC
    Build #04: ES-2V
    Build #05: ESB-4 (GOTM July 2014)
    Build #06: RC-1
    Build #07: MK-2
    Build #08: TLA-1
    Build #09: JR-1DC
    Build #0A: LPA-1
    Build #0B: STA-1 (GOTM April 2015)
    Build #0C: MKA-2
    Build #0D: LP-1M
    Build #0E: JB-1
    Build #0F: FS-1

    Find me:
    https://www.facebook.com/firescreek.guitars/
    http://www.guitarkitbuilder.blogspot.com.au/

  10. #10
    Overlord of Music wazkelly's Avatar
    Join Date
    Aug 2015
    Location
    Caloundra West, Sunshine Coast Qld
    Posts
    3,680
    Good on ya mate. If I build another PBG kit this is it. Definitely worth it as you said you get 2 guitars for the price of one, albeit a quite expensive one.
    Small challenge with the centre switch cover and maybe Pabs can make something for you that might fit. The wiring will be a massive challenge and best to keep things simple. If it were me I'd go with one vol & one tone for each neck and corresponding PUP's otherwise there will be plenty of spaghetti inside those switch cavities.

    Good luck and I will be watching and encouraging you on with keen interest.
