Thread: Ham-fisted attempt at DIY combo valve amp

  1. #31
    Don't know if it's of any revelance, but I saw this KLD kit on ebay.
    It infers Australia requires a different power transformer

    https://www.ebay.com.au/itm/KLD-Pilo...YAAOSwYMldVe8d

    It's also only 15 watts.

    cheers, Mark.

  2. #32
    Member Andy123's Avatar
    Join Date
    Jul 2017
    Location
    Brisbane
    Posts
    202
    Yep, that one comes with the correct transformer.

  3. #33
    Mentor jugglindan's Avatar
    Join Date
    Sep 2019
    Location
    Canberra
    Posts
    1,178
    Valve Heaven sell Australian designed and made valve amp kits:
    https://www.valveheaven.com/diy-amp-kits/

    However they are not super cheap, and do not come with a cabinet of any form. Most don't have the EQ options that the OP was looking for either. Still, I think they are interesting...

  4. #34
    Member Andy123's Avatar
    Join Date
    Jul 2017
    Location
    Brisbane
    Posts
    202
    So I've obtained a different combo with controls along the front.
    Click image for larger version.

Name:	70850021_2303882293053904_5517381534664884224_o.jpg
Views:	9
Size:	210.9 KB
ID:	36677

    This looks like a straight forward case of flipping everything upside down, except for one thing:

    All the pots and sockets for the front of the amp are mounted to a perforated section of the circuit board, which is joined to the main board by a bunch of really short leads.

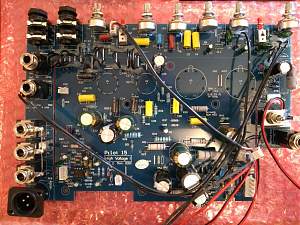

    Click image for larger version.

Name:	pic1.jpg
Views:	10
Size:	618.8 KB
ID:	36678

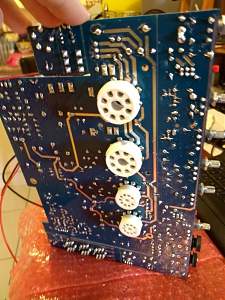

    Click image for larger version.

Name:	pic2.jpg
Views:	10
Size:	472.3 KB
ID:	36679

    They designed this section to be broken off the main board, but installed close to it in a similar relative position. This would mean the valves are hard up against the rear of the front control panel, possibly coming close to (if not touching) the speaker.

    To pull this off I'm going to have to use much longer connecting wires and move that front panel to the opposite side. It was inevitable I guess, but it looks like I'm going to have make use of a soldering iron after all. I've never done that before, anyone go any pointers on how to unsolder those wires and replace them without destroying the whole kit?

    Also as Simon pointed out, with this amp getting installed upside down, the valves could shake loose and will require some kind of retainers. From what I can see, retainers usually screw into the base of the socket, but these sockets are soldered in place with nowhere to screw in a retainer. Is there a work around for this? Would I likely be able to just screw them into the chassis?

    Click image for larger version.

Name:	pic3.jpg
Views:	9
Size:	312.9 KB
ID:	36680
