  1. #111
    Mentor nitroburner1000's Avatar
    Join Date
    Jun 2016
    Location
    Mount Gambier Australia
    Posts
    1,153

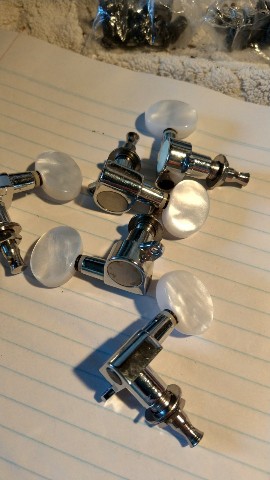

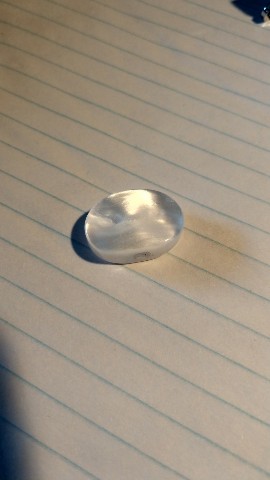

    So ive got about 5 sets of tuners in different colours and finishes and a set of tuning knobs in real white pearl.

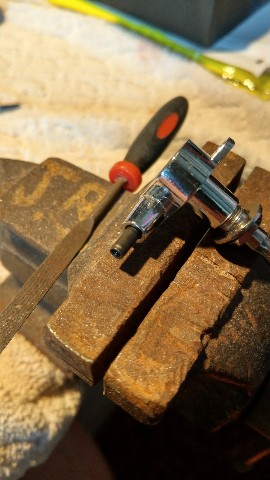

    So after dismanling all of them i found a set with similar hole and screw sizes. About .02 too small. So i filed down the tuner spline and gently tapped them on. Perfect, the screws fitted perfectly as well. So now i have my own customised tuners with oversized tuning pegs. YES!

    Click image for larger version.

Name:	resize1617591286480.jpg
Views:	26
Size:	28.7 KB
ID:	39989 Click image for larger version.

Name:	resize1617591286623.jpg
Views:	27
Size:	22.2 KB
ID:	39990 Click image for larger version.

Name:	resize1617591286667.jpg
Views:	24
Size:	39.1 KB
ID:	39991

    Click image for larger version.

Name:	resize1617591286549.jpg
Views:	25
Size:	36.7 KB
ID:	39992 Click image for larger version.

Name:	resize1617591352150.jpg
Views:	18
Size:	39.7 KB
ID:	39993

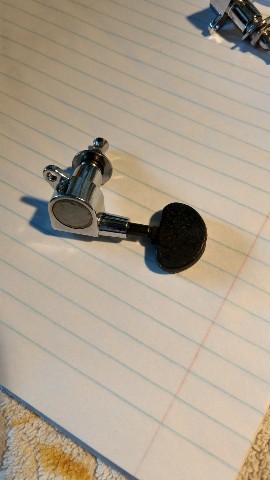

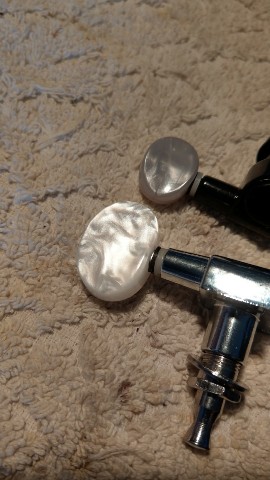

    The last picture is a comparison of the ones i made and the one from ebay. White my A#*e!
    Fender electric Fat Strat mim. (Bought)
    Maton Electric Acoustic EM325C
    Pitbull Guitars ST-1 ( finished) http://www.buildyourownguitar.com.au...ead.php?t=5970
    Pitbull Guitars SG-2 ( Finished) http://www.buildyourownguitar.com.au...ead.php?t=6124

    Pitbull Guitars JM-1 (Finished. 2018 June GOTM))http://www.buildyourownguitar.com.au...ead.php?t=7150
    Pitbull Guitars TL-1 (In production) [url]https://www.buildyourownguitar.com.au/forum/showthread.php?t=8676

  2. #112
    Overlord of Music McCreed's Avatar
    Join Date
    Oct 2018
    Location
    AUS
    Posts
    2,646
    Mix & match!
    I love it when this works (sometimes it just doesn't). Adds to the uniqueness of an instrument.
    Making the world a better place; one guitar at a time...

  3. #113
    Mentor nitroburner1000's Avatar
    Join Date
    Jun 2016
    Location
    Mount Gambier Australia
    Posts
    1,153
    Quote Originally Posted by McCreed View Post
    Mix & match!
    I love it when this works (sometimes it just doesn't). Adds to the uniqueness of an instrument.
    I hear ya, i tried 4 sets and tried drilling out the peg holes before filing down the splines it worked, cheers
    Fender electric Fat Strat mim. (Bought)
    Maton Electric Acoustic EM325C
    Pitbull Guitars ST-1 ( finished) http://www.buildyourownguitar.com.au...ead.php?t=5970
    Pitbull Guitars SG-2 ( Finished) http://www.buildyourownguitar.com.au...ead.php?t=6124

    Pitbull Guitars JM-1 (Finished. 2018 June GOTM))http://www.buildyourownguitar.com.au...ead.php?t=7150
    Pitbull Guitars TL-1 (In production) [url]https://www.buildyourownguitar.com.au/forum/showthread.php?t=8676

  4. #114
    Mentor nitroburner1000's Avatar
    Join Date
    Jun 2016
    Location
    Mount Gambier Australia
    Posts
    1,153

    Next Stage

    So back to it....still working on the neck, have about 15 coats on the back and head. Fretboard needs another 5 or 6 then it will be done.
    Click image for larger version.

Name:	resize1626056589712.jpg
Views:	17
Size:	128.3 KB
ID:	40993 Click image for larger version.

Name:	resize1626056589770.jpg
Views:	16
Size:	98.8 KB
ID:	40994 Click image for larger version.

Name:	resize1626056496938.jpg
Views:	18
Size:	125.4 KB
ID:	40995

    Click image for larger version.

Name:	resize1626056589824.jpg
Views:	17
Size:	96.8 KB
ID:	40996 Click image for larger version.

Name:	resize1626056589872.jpg
Views:	16
Size:	104.6 KB
ID:	40997
    Fender electric Fat Strat mim. (Bought)
    Maton Electric Acoustic EM325C
    Pitbull Guitars ST-1 ( finished) http://www.buildyourownguitar.com.au...ead.php?t=5970
    Pitbull Guitars SG-2 ( Finished) http://www.buildyourownguitar.com.au...ead.php?t=6124

    Pitbull Guitars JM-1 (Finished. 2018 June GOTM))http://www.buildyourownguitar.com.au...ead.php?t=7150
    Pitbull Guitars TL-1 (In production) [url]https://www.buildyourownguitar.com.au/forum/showthread.php?t=8676

  5. #115
    Mentor nitroburner1000's Avatar
    Join Date
    Jun 2016
    Location
    Mount Gambier Australia
    Posts
    1,153

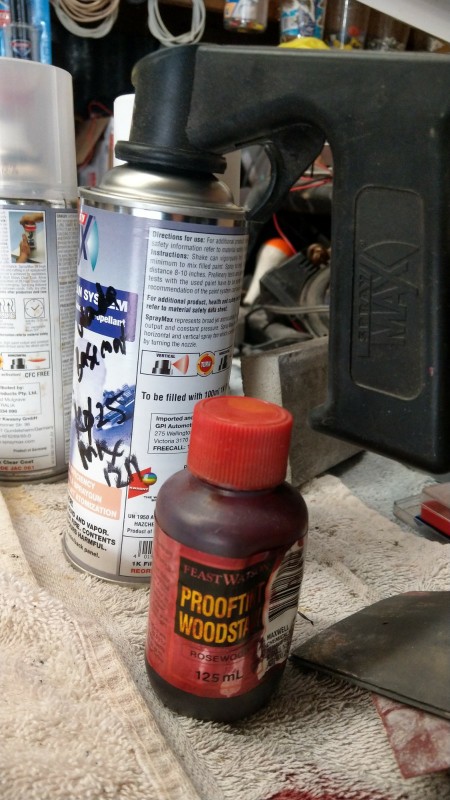

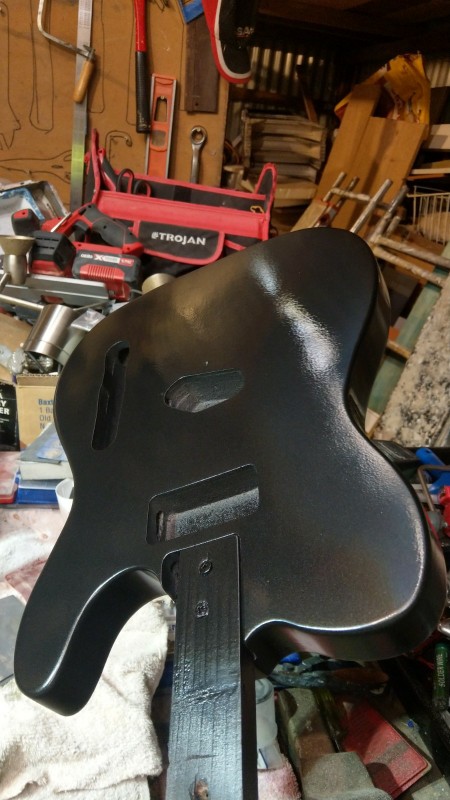

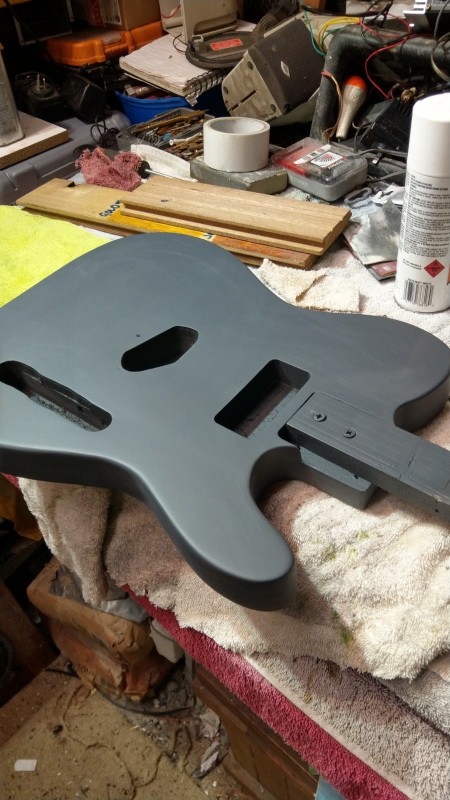

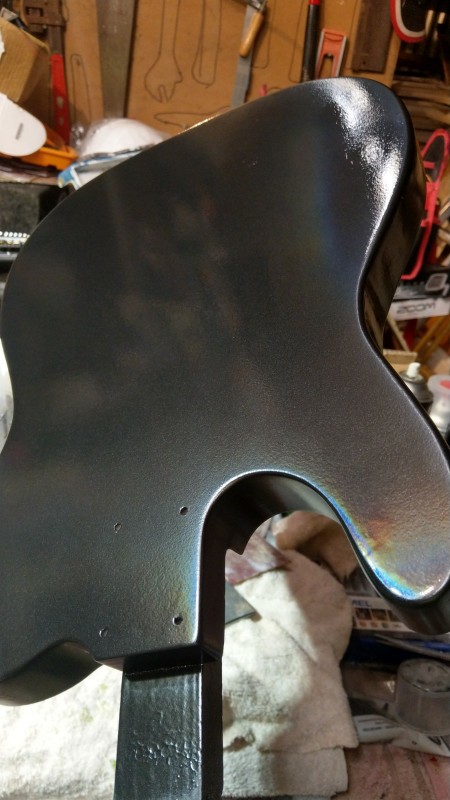

    Next a quick sand of the body and 3 coats of a G.M Holden colour, Phantom Mica, black with minute flecks of red, blue and green.
    Then a week to dry, very wet here at the moment, inspection then more coats before the final 2k finish.

    Click image for larger version.

Name:	resize1626056496716.jpg
Views:	14
Size:	106.0 KB
ID:	40998 Click image for larger version.

Name:	resize1626056496789.jpg
Views:	14
Size:	89.3 KB
ID:	40999 Click image for larger version.

Name:	resize1626056496850.jpg
Views:	19
Size:	81.8 KB
ID:	41000

    Click image for larger version.

Name:	resize1626056496897.jpg
Views:	18
Size:	94.7 KB
ID:	41001
    Fender electric Fat Strat mim. (Bought)
    Maton Electric Acoustic EM325C
    Pitbull Guitars ST-1 ( finished) http://www.buildyourownguitar.com.au...ead.php?t=5970
    Pitbull Guitars SG-2 ( Finished) http://www.buildyourownguitar.com.au...ead.php?t=6124

    Pitbull Guitars JM-1 (Finished. 2018 June GOTM))http://www.buildyourownguitar.com.au...ead.php?t=7150
    Pitbull Guitars TL-1 (In production) [url]https://www.buildyourownguitar.com.au/forum/showthread.php?t=8676

  6. #116
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    8,918
    I've missed seeing the start of this build. All very interesting.

    Can I ask if you've checked whether two of those large-button tuners will fit side-by-side on the headstock when the buttons are parallel with the headstock? From the photos it looks like it could be a very tight fit and there's a possibility they could clash and you can't turn them. You never know what angle they'll end up at when the guitar is in tune.

  7. #117
    Mentor nitroburner1000's Avatar
    Join Date
    Jun 2016
    Location
    Mount Gambier Australia
    Posts
    1,153
    Quote Originally Posted by Simon Barden View Post
    I've missed seeing the start of this build. All very interesting.

    Can I ask if you've checked whether two of those large-button tuners will fit side-by-side on the headstock when the buttons are parallel with the headstock? From the photos it looks like it could be a very tight fit and there's a possibility they could clash and you can't turn them. You never know what angle they'll end up at when the guitar is in tune.

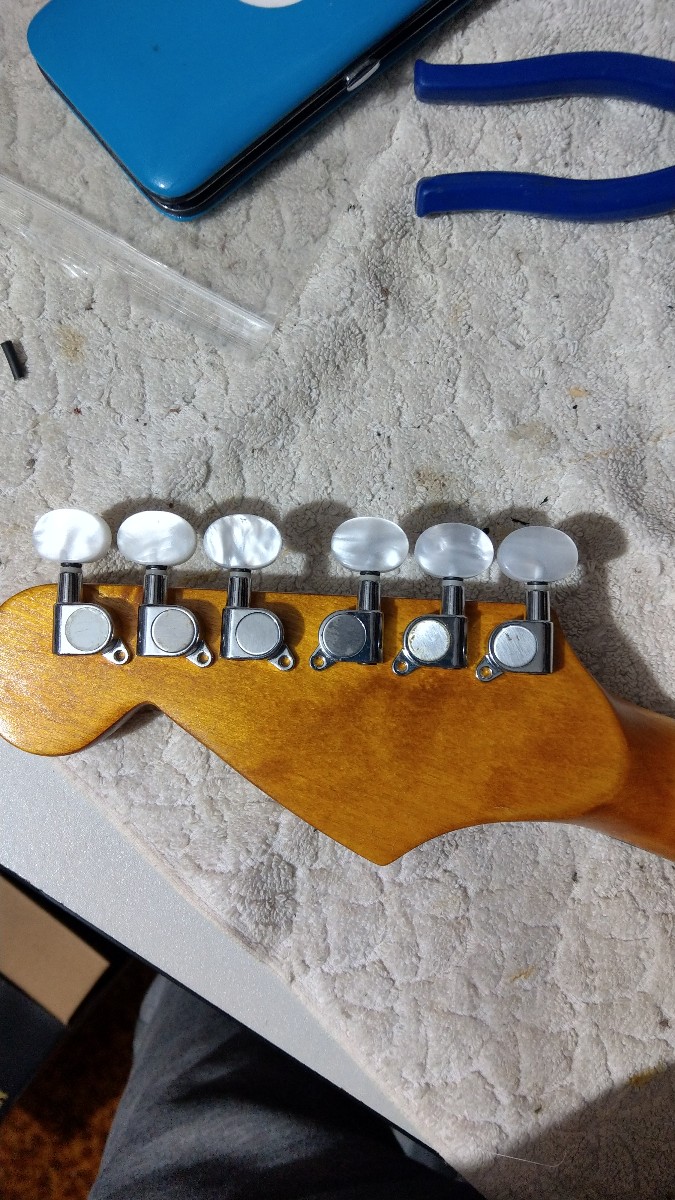

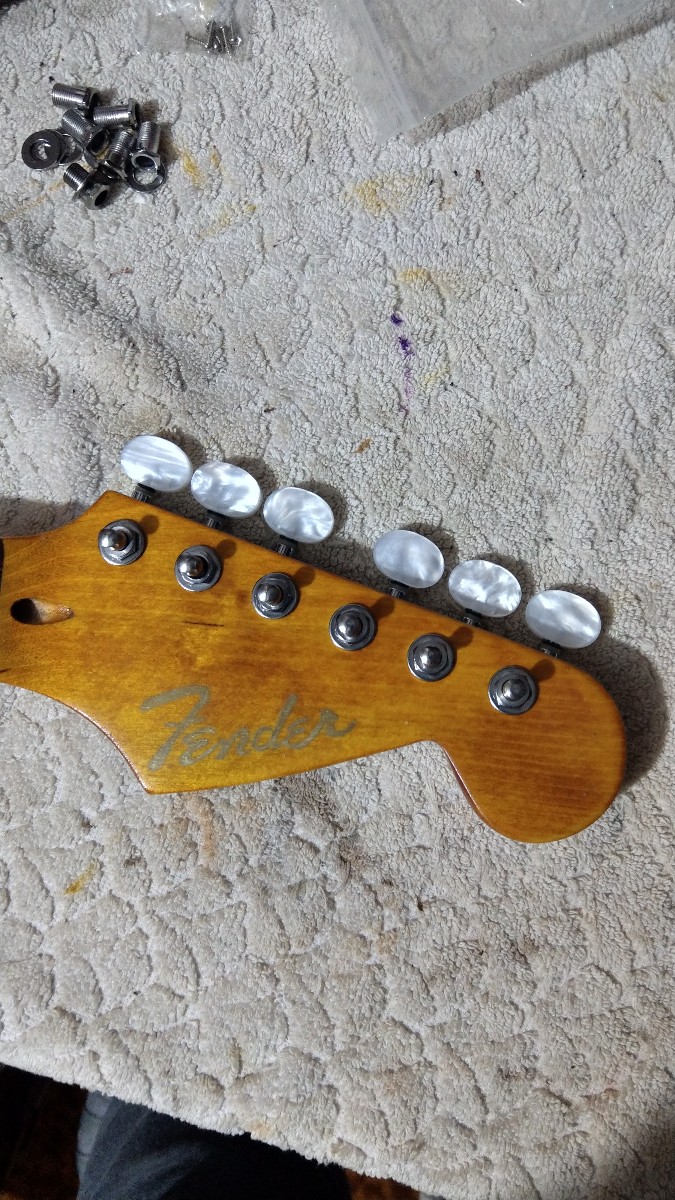

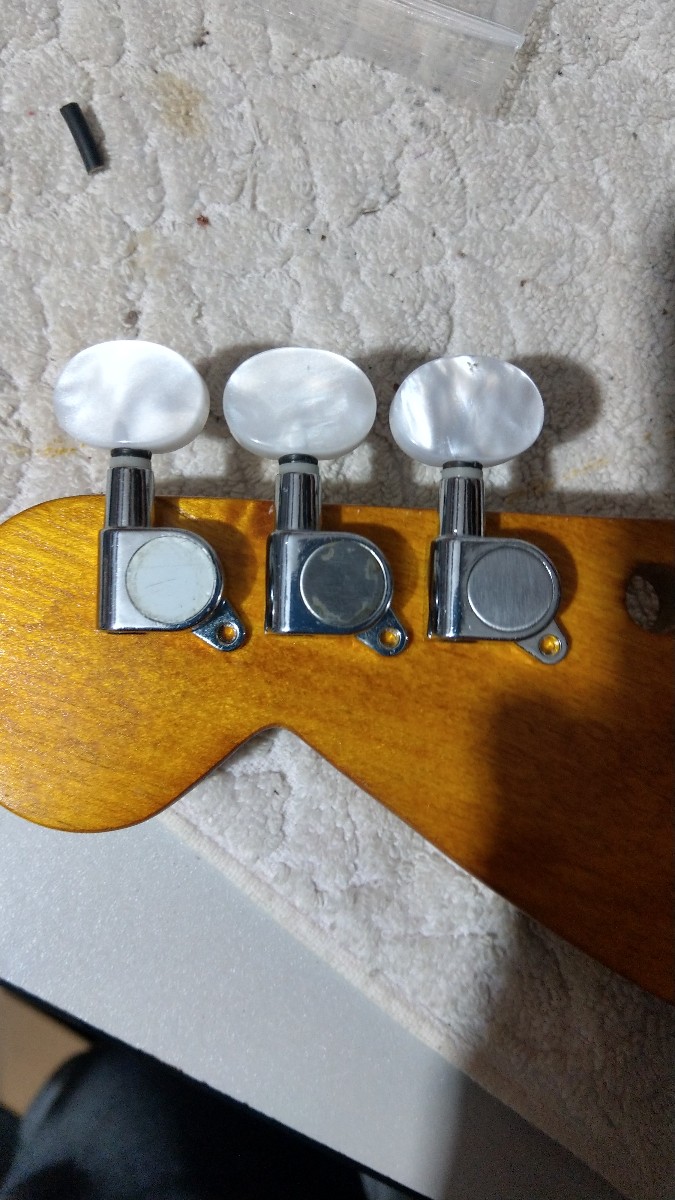

    Yea all is good. But i want opinions on doing something different, putting 3 aside on a 6 inline headstock using oversized pegs.

    Pretty radical but i like different.

    SO DOES THIS LOOK GOOD OR IS IT CRAP? ALL CRITICISM EXCEPTED AND NEEDED. THANKS

    Click image for larger version.

Name:	resize1626141540350.jpg
Views:	17
Size:	197.8 KB
ID:	41015 Click image for larger version.

Name:	resize1626141540612.jpg
Views:	19
Size:	328.0 KB
ID:	41016 Click image for larger version.

Name:	resize1626141540865.jpg
Views:	19
Size:	273.5 KB
ID:	41017

    Btw, they are not going on this neck but the red one pictured above, couldnt fit them as it is still wet.
    Fender electric Fat Strat mim. (Bought)
    Maton Electric Acoustic EM325C
    Pitbull Guitars ST-1 ( finished) http://www.buildyourownguitar.com.au...ead.php?t=5970
    Pitbull Guitars SG-2 ( Finished) http://www.buildyourownguitar.com.au...ead.php?t=6124

    Pitbull Guitars JM-1 (Finished. 2018 June GOTM))http://www.buildyourownguitar.com.au...ead.php?t=7150
    Pitbull Guitars TL-1 (In production) [url]https://www.buildyourownguitar.com.au/forum/showthread.php?t=8676

  8. #118
    Overlord of Music McCreed's Avatar
    Join Date
    Oct 2018
    Location
    AUS
    Posts
    2,646
    Personally, I wouldn't do the large buttons on my guitar. I find tuning is a real PITA if the button don't have enough space between each other, and I have small hands and fingers. I would imagine someone with sausage fingers, the difficulty would increase exponentially.

    BTW, I am in no way implying that you yourself have said sausage fingers...
    Making the world a better place; one guitar at a time...

  9. #119
    Mentor nitroburner1000's Avatar
    Join Date
    Jun 2016
    Location
    Mount Gambier Australia
    Posts
    1,153
    Quote Originally Posted by McCreed View Post
    Personally, I wouldn't do the large buttons on my guitar. I find tuning is a real PITA if the button don't have enough space between each other, and I have small hands and fingers. I would imagine someone with sausage fingers, the difficulty would increase exponentially.

    BTW, I am in no way implying that you yourself have said sausage fingers...
    Lol, i was blessed with small hands, but i appreciate the criticism. What about the 3 aside, too weird?
    Fender electric Fat Strat mim. (Bought)
    Maton Electric Acoustic EM325C
    Pitbull Guitars ST-1 ( finished) http://www.buildyourownguitar.com.au...ead.php?t=5970
    Pitbull Guitars SG-2 ( Finished) http://www.buildyourownguitar.com.au...ead.php?t=6124

    Pitbull Guitars JM-1 (Finished. 2018 June GOTM))http://www.buildyourownguitar.com.au...ead.php?t=7150
    Pitbull Guitars TL-1 (In production) [url]https://www.buildyourownguitar.com.au/forum/showthread.php?t=8676

  10. #120
    GAStronomist Simon Barden's Avatar
    Join Date
    Oct 2016
    Location
    Reading, UK
    Posts
    8,918
    Too wrong mechanically.

    With normal tuner orientation, the string tension pulls the string post so that the gear at its base is pulled against the worm gear on the button shaft and minimises any slack or wear on the gears.

    Reverse this, and the gears are pulled apart by string tension, so you end up with more backlash, and the tuners become looser and looser as time goes by. It might work for a while when the tuners are new, but with use, you’ll have three dodgy tuners quite quickly.
