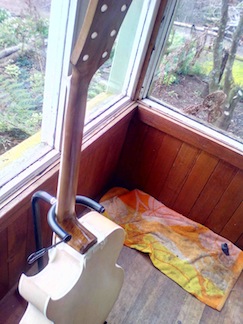

    Finish neck fail and recovery

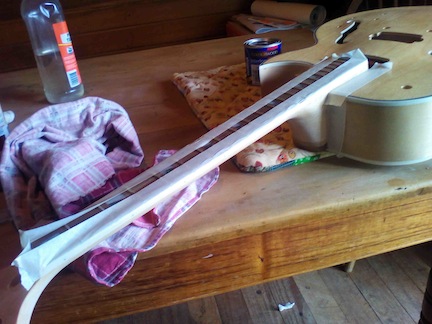

    Ok, Mask neck binding and apply tinted varnish.

    Click image for larger version.

Name:	IMG_20190921_093230.jpeg
Views:	7
Size:	56.5 KB
ID:	32379

    Two coats.

    Click image for larger version.

Name:	IMG_20190921_095810.jpeg
Views:	6
Size:	40.7 KB
ID:	32380

    Decided I didn't like it. Much sanding later and application of stain without varnish.

    Click image for larger version.

Name:	IMG_20190927_075003.jpg
Views:	6
Size:	68.5 KB
ID:	32381
    --- Over what hill? I don't remember any hill! ---

  2. #22
    Member Taswegian's Avatar
    Join Date
    Apr 2016
    Location
    Tasmania
    Posts
    28

    Looking a bit more like a guitar

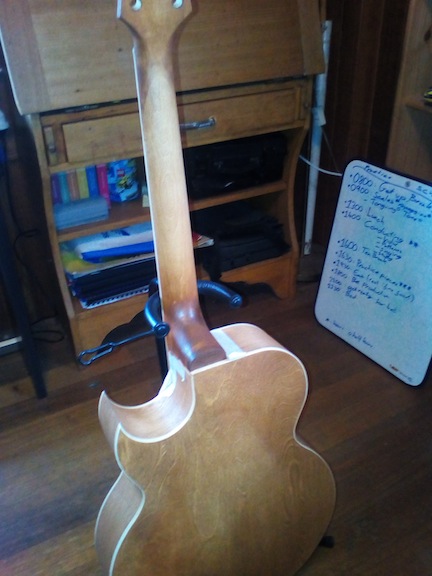

    Several clear coats of Aussie Oil rubbed onto top. Walnut stain back and sides. Headstock face painted black.

    Click image for larger version.

Name:	IMG_20190930_141118.jpg
Views:	7
Size:	70.7 KB
ID:	32382
    --- Over what hill? I don't remember any hill! ---

  3. #23
    Member Taswegian's Avatar
    Join Date
    Apr 2016
    Location
    Tasmania
    Posts
    28

    Fruit of the Loom

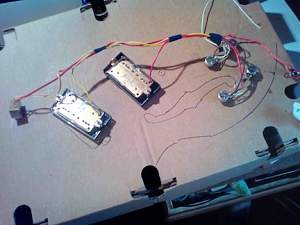

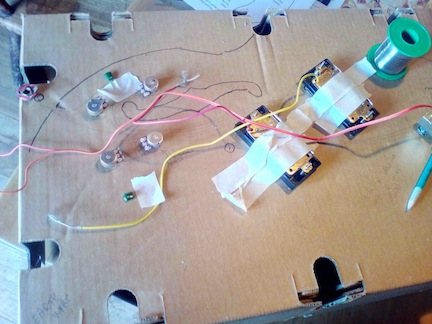

    Heat up soldering iron.

    Before:

    Click image for larger version.

Name:	IMG_20190921_113158.jpeg
Views:	6
Size:	54.2 KB
ID:	32383

    After:

    Click image for larger version.

Name:	IMG_20190921_134424.jpeg
Views:	6
Size:	48.4 KB
ID:	32384

    Figure everything can fit in through pickup holes.

    After this photo I added an extra ground wire to the back of all 4 pots.

    Maybe I will redo all this one day with shielded wire. It's great fun putting it into the guitar!
    --- Over what hill? I don't remember any hill! ---

  4. #24
    Member Taswegian's Avatar
    Join Date
    Apr 2016
    Location
    Tasmania
    Posts
    28

    Finished finish?

    More pictures of finish applied
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMG_20190930_141312.jpg
Views:	4
Size:	68.7 KB
ID:	32385   Click image for larger version.

Name:	IMG_20190930_141359.jpg
Views:	4
Size:	74.1 KB
ID:	32386   Click image for larger version.

Name:	IMG_20190930_141520.jpg
Views:	3
Size:	70.8 KB
ID:	32387   Click image for larger version.

Name:	IMG_20190930_141408.jpg
Views:	4
Size:	57.4 KB
ID:	32388
    --- Over what hill? I don't remember any hill! ---

  5. #25
    Member Taswegian's Avatar
    Join Date
    Apr 2016
    Location
    Tasmania
    Posts
    28

    Tuner Day

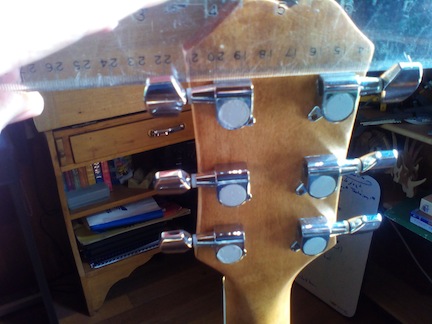

    Trial attachment of tuners. When I finally drilled the holes for the little screws I forgot I was going to align them all horizontally.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMG_20191002_113239.jpg
Views:	3
Size:	47.9 KB
ID:	32389
    --- Over what hill? I don't remember any hill! ---

  6. #26
    Member Taswegian's Avatar
    Join Date
    Apr 2016
    Location
    Tasmania
    Posts
    28

    "Fake" Floater

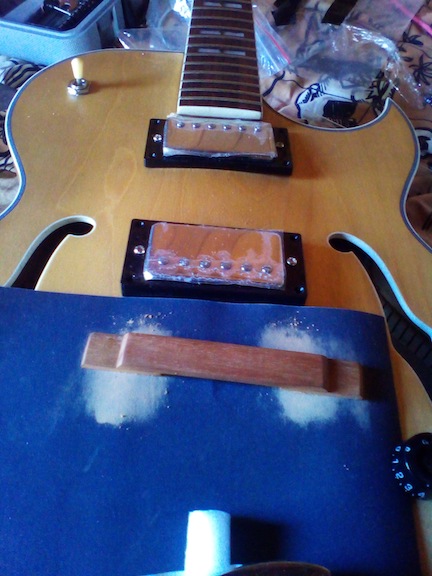

    You may recall that the neck angle was still slightly askew but thought that a floating bridge or renotching the bridge saddles would get it right. Had an idea for a sort of fake floating bridge.

    1. Remember to drill an extra hole for an earth with to the tailpiece because I'm not using the stud mounting inserts.

    2. Some strips of hardwood, blackwood I think or maybe myrtle, glue together and sanded to contour.

    3. Holes drilled for studs.

    4. Threads cut with bolt.

    5. Voila
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMG_20191002_131601.jpg
Views:	4
Size:	67.7 KB
ID:	32390   Click image for larger version.

Name:	IMG_20191003_090004.jpg
Views:	5
Size:	82.8 KB
ID:	32391   Click image for larger version.

Name:	IMG_20191003_125645.jpg
Views:	6
Size:	63.3 KB
ID:	32392   Click image for larger version.

Name:	IMG_20191003_125903.jpg
Views:	5
Size:	65.0 KB
ID:	32393   Click image for larger version.

Name:	IMG_20191003_130123.jpg
Views:	5
Size:	77.2 KB
ID:	32394

    --- Over what hill? I don't remember any hill! ---

  7. #27
    Member Taswegian's Avatar
    Join Date
    Apr 2016
    Location
    Tasmania
    Posts
    28

    It aligns!

    Click image for larger version.

Name:	IMG_20191003_131852.jpg
Views:	4
Size:	74.8 KB
ID:	32397

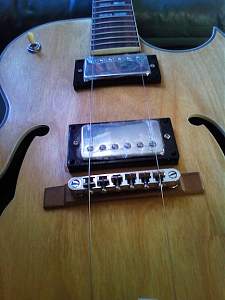

    However quite a lot of sanding to get action down. Also I ground the bottom off the ABR to make it flat.

    I started to get quite excited and didn't stop to take photos of the next few processes.

    Getting the pickguard to look correct was interesting. Compared to an ES-175 there are some differences. They have a 14 fret neck/body join and the kit has a 15/16 fret join, so there is not as much real estate between the pickup and the cutaway. Also it was predrilled for the bracket a bit close to the edge once I had the basic shape right.

    Click image for larger version.

Name:	IMG_20191005_100945.jpg
Views:	4
Size:	102.2 KB
ID:	32396
    --- Over what hill? I don't remember any hill! ---

  8. #28
    Member Taswegian's Avatar
    Join Date
    Apr 2016
    Location
    Tasmania
    Posts
    28

    Thar She Blows

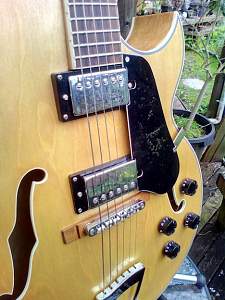

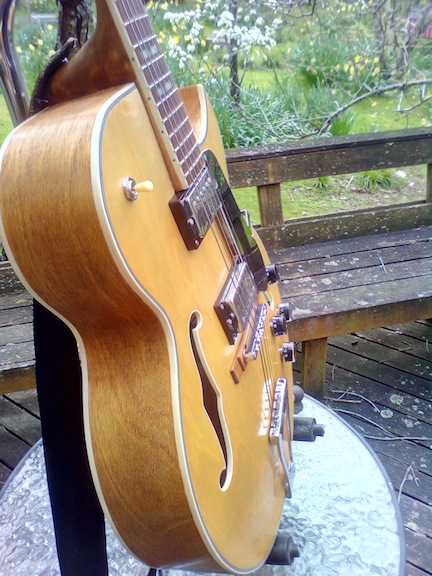

    Finished maybe. Still touching up fret ends and whatnot. Very low fast action. Plays really well.
    Attached Thumbnails Attached Thumbnails Click image for larger version.

Name:	IMG_20191005_100712.jpg
Views:	4
Size:	90.3 KB
ID:	32398   Click image for larger version.

Name:	IMG_20191005_100849.jpg
Views:	4
Size:	156.1 KB
ID:	32399   Click image for larger version.

Name:	IMG_20191005_100930.jpg
Views:	9
Size:	127.7 KB
ID:	32400   Click image for larger version.

Name:	IMG_20191005_101014.jpg
Views:	4
Size:	118.6 KB
ID:	32401   Click image for larger version.

Name:	IMG_20191005_101033.jpg
Views:	9
Size:	112.5 KB
ID:	32402

    --- Over what hill? I don't remember any hill! ---

  9. #29
    Mentor DarkMark's Avatar
    Join Date
    Sep 2017
    Location
    Palmyra, WA
    Posts
    809
    Great ideas on making a bridge, Iíll file that away in the memory bank. I also like your choice of walnut stain. Nice work.
