    Or sand it back and try something else.
    # 1 - EX-5 https://goo.gl/fQJMqh
    # 2 - EX-1 https://goo.gl/KSY9W9
    # 3 - Non PBG Tele https://goo.gl/W14G5g
    # 4 - Non PBG J Bass https://goo.gl/FbBaFy
    # 5 - TL-1AR GOTM Aug 2017 https://goo.gl/sUh14s
    # 6 - MMB-4 Runner-up GOTM Oct 2018https://goo.gl/gvrPkp
    # 7 - ES-1 Runner-up GOTM Aug 2018https://goo.gl/T9BEY8

  2. #2
    Waz you just did an application of the tea mixture and then let it dry and then the vinegar and steel wool concoction. How many coats and how did you apply just wipe one with rag? How fine did you sand down to? Questions , questions i have many... I think that this is just what I need to try and blend the different grain patterns and get some character in a dark color.. I should probably start a new thread for this but this will do for now.

  3. #3
    GAStronomist wazkelly's Avatar
    Join Date
    Aug 2015
    Location
    Caloundra West, Sunshine Coast Qld
    Posts
    6,631
    Quote Originally Posted by Drummerdude View Post
    Waz you just did an application of the tea mixture and then let it dry and then the vinegar and steel wool concoction. How many coats and how did you apply just wipe one with rag? How fine did you sand down to? Questions , questions i have many... I think that this is just what I need to try and blend the different grain patterns and get some character in a dark color.. I should probably start a new thread for this but this will do for now.
    Hi Dude, initially 1 coat of tea and maybe 2 coats of steel wool rust solution but then stupidly added some ink pad black ink which turned everything crap and had to sand almost everything off. So all up it has 2 coats of tea and probably 2 or 3 of the rust. Only sanded the body to 120 and made that grade as smooth as it would get before applying the stains and then no more sanding, just straight onto the full strength Tru Oil for about 6 coats then reverted to 50/50 with turps to do the wet sanding application as that helped to apply the finish as well as smooth things out at the same time.
    # 1 - EX-5 https://goo.gl/fQJMqh
    # 2 - EX-1 https://goo.gl/KSY9W9
    # 3 - Non PBG Tele https://goo.gl/W14G5g
    # 4 - Non PBG J Bass https://goo.gl/FbBaFy
    # 5 - TL-1AR GOTM Aug 2017 https://goo.gl/sUh14s
    # 6 - MMB-4 Runner-up GOTM Oct 2018https://goo.gl/gvrPkp
    # 7 - ES-1 Runner-up GOTM Aug 2018https://goo.gl/T9BEY8

  4. #4

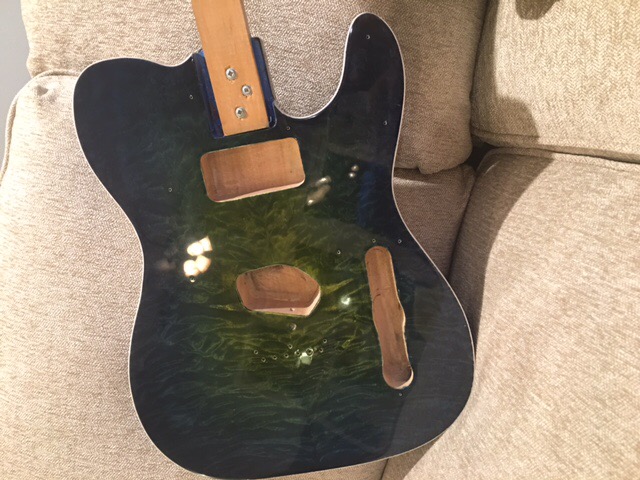

    Ok so I just couldn't wait and the last coat of poly was a week ago so I decided to hit with foam pad on drill and some fine cut compound. And this is the result. Sorry bad lighting but you can get the picture. I will wait another week and then move to swirl remover and a coat of polishing compound.
    Click image for larger version.

Name:	IMG_2233.JPG
Views:	170
Size:	120.7 KB
ID:	19550

  5. Liked by: wazkelly

  6. #5
    GAStronomist FrankenWashie's Avatar
    Join Date
    Jan 2016
    Location
    Glebe, NSW
    Posts
    5,666
    Quote Originally Posted by Drummerdude View Post
    Ok so I just couldn't wait and the last coat of poly was a week ago so I decided to hit with foam pad on drill and some fine cut compound. And this is the result. Sorry bad lighting but you can get the picture. I will wait another week and then move to swirl remover and a coat of polishing compound.
    Click image for larger version.

Name:	IMG_2233.JPG
Views:	170
Size:	120.7 KB
ID:	19550
    It's a sweet look, even without the cat.
    FrankenLab
    Hand crafting guitars, because Death Rays are expensive.


  7. #6
    Member CascadiaGuitarGeek's Avatar
    Join Date
    Jan 2017
    Location
    British Columbia, Canada
    Posts
    239
    Nice! That's looking very shiny.

  8. #7
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    looks excellent Drummerdude. I only just noticed did you have to widen the control cavity for large pots ?
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  9. #8
    Yes and I just used dremel and sanded them bigger around pots area only..

  10. #9
    GAStronomist wokkaboy's Avatar
    Join Date
    Dec 2012
    Location
    Perth WA
    Posts
    13,555
    nice one DD, that's what I thought. As long as the control plate covers the cavity, sure it does just
    Current Builds and status
    scratch end grain pine tele - first clear coat on !
    JBA-4 - assembled - final tweaks
    Telemonster double scale tele - finish tobacco burst on body and sand neck

    Completed builds
    scratch oak.rose gum Jazzmaster - assembled needs setup
    MK-2 Mosrite - assembled - play in
    Ash tele with Baritone neck - neck pup wiring tweaks and play in

  11. #10
    Mentor Kick's Avatar
    Join Date
    Feb 2017
    Location
    Amsterdam, The Netherlands
    Posts
    823
    Way to go DD!
    Nr 1: Red Widow LP-1MQ (Finished) ->Diary<-
